China Brass DOT Air Fittings Supplier for OEM Projects

Push-to-connect, compression, and reusable types
Brass material with consistent machining quality
Custom threads, marking, and packaging available
Sample support and bulk order production

Product List

Brass DOT air fittings connect approved tubing to valves, brake chambers, reservoirs, manifolds, and other components in commercial vehicle air brake systems. Applicable requirements depend on the fitting design, tubing specification, vehicle application, and destination market.

The main configurations include push-to-connect, compression, and reusable fittings for compatible nylon or copper tubing. Available body styles include straight connectors, elbows, tees, unions, reducers, and bulkhead fittings with selected NPT, UNF, metric, BSPP, and BSPT threads.

Topa supports OEM, aftermarket distribution, and recurring supply programs with controlled machining, multi-SKU production, custom marking, and private-label packaging. Please confirm the fitting type, tube specification and outside diameter, port thread, applicable standard, quantity, and packaging requirements before quotation.

Brass D.O.T. Air Brake Fitting Video

This video presents selected brass push-to-connect, compression, reusable, threaded, elbow, tee, union, and bulkhead fitting configurations for commercial vehicle air line systems. It shows the tube connection, port thread, internal retention components, sealing elements, body configurations, machining details, and available marking options.

Before purchasing, confirm the tube specification and outside diameter, connection method, port thread, fitting configuration, applicable performance requirement, temperature range, quantity, number of SKUs, marking, and packaging.

Application

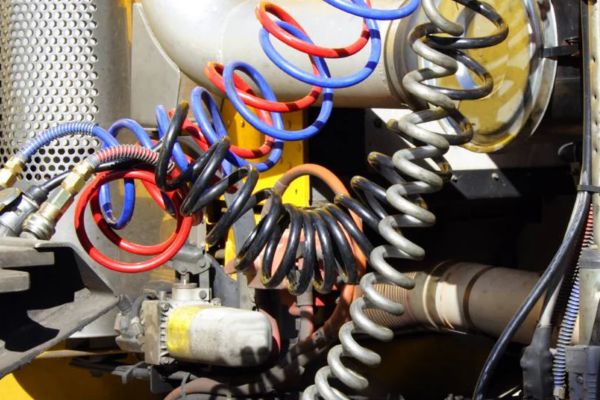

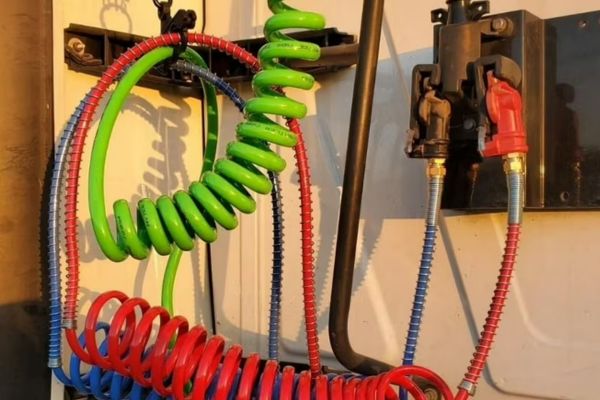

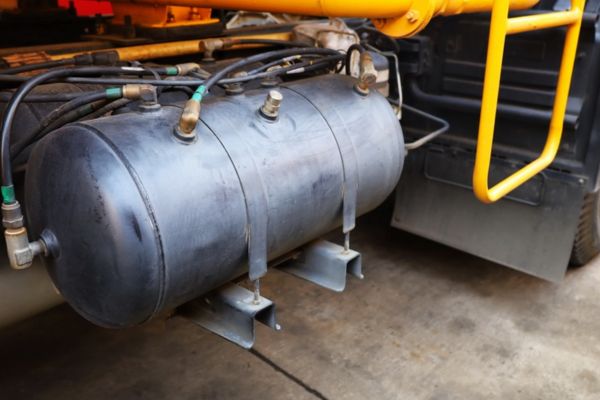

Brass DOT air brake fittings are commonly used in air brake systems, including those used in vehicles, construction, and industrial machinery. These fittings ensure the proper operation of the braking system and prevent accidents from arising.

Get in Touch with Topa！

Have specific requirements? Contact us today for custom solutions or to discuss your air brake fitting needs. We’re here to help!

What is a D.O.T. Air Brake Fitting?

A D.O.T. air brake fitting refers to a type of connector or fitting that meets the standards set by the U.S. Department of Transportation (D.O.T.) for use in air brake systems. These fittings are essential for commercial vehicles such as trucks, trailers, and buses. They are designed to ensure stable connections, minimize the risk of air leaks, and withstand high-pressure conditions in the braking system. D.O.T. air brake fittings must adhere to strict safety and performance standards to guarantee the reliability of the air brake system.

Construction

Push-to-Connect Construction

The tubing is inserted through the release mechanism and sealing element until it reaches the internal tube stop. The retention components hold the tube while the seal maintains the connection under specified operating conditions.

Compression Construction

Tightening the nut compresses the sleeve around the compatible tubing and against the fitting body to form the mechanical connection and seal.

Reusable Construction

The tubing is assembled with the specified fitting body, sleeve, insert, or nut according to the approved product design and assembly procedure.

Working Principle

D.O.T. air brake fittings operate by creating secure, leak-free connections within the air brake system. Here’s how they function:

Air Supply: Compressed air from the vehicle’s air compressor travels through the air lines to various components of the brake system.

Connection Points: Fittings serve as critical junctions, connecting air lines, valves, brake chambers, and other components.

Pressure Management: The fittings ensure that air pressure remains stable and controlled as it flows through the system, allowing the brake components to engage efficiently.

Leak Prevention: Fittings, especially those with seals, ensure that air does not leak, maintaining the system’s efficiency and safety.

Material

Brass Body Material

Brass provides suitable machinability, dimensional control, and corrosion resistance for many commercial vehicle pneumatic connections. The specified brass grade should be confirmed according to the drawing, mechanical requirements, operating temperature, environment, and destination-market requirements.

Unplated Brass

Natural brass is used for selected fittings where the material grade and environmental requirements do not require an additional coating.

Nickel-Plated Brass

Nickel plating can be specified for selected products requiring a defined appearance or additional surface protection, subject to coating and corrosion requirements.

Composite Components

Selected push-to-connect products may combine brass bodies with approved polymer release components and elastomeric seals. Component materials must be verified against the applicable temperature and performance requirements.

Surface Treatment

To further enhance the performance and longevity of brass D.O.T. air brake fittings, a variety of surface treatments are often applied:

Nickel Plating: Many brass fittings are coated with nickel to improve their resistance to wear, corrosion, and oxidation. This surface treatment also helps improve the aesthetic appearance of the fitting.

Zinc Coating: Zinc coating is another common treatment used to protect brass fittings from rust and corrosion, especially in environments exposed to moisture and chemicals.

Chrome Plating: For additional durability and resistance to harsh environmental factors, chrome plating may be applied, offering a glossy finish and extra protection against corrosion.

Passivation: This process involves treating the surface of the brass to remove impurities, enhance corrosion resistance, and create a non-reactive layer.

Why Choose Brass DOT Air Brake Fittings

Brass DOT air fittings are widely used in air brake systems due to their compatibility, sealing performance, and ease of installation. They are suitable for both OEM assembly and replacement applications.

Compatible with Standard Air Brake Tubing

Designed for use with SAE J844 nylon tubing, making it easy to match existing air brake systems without additional modification.

Reliable Sealing in Air Brake Systems

Compression and push-to-connect designs provide stable sealing performance in systems where air pressure and vibration are present.

Multiple Connection Types Available

Available in push-to-connect, compression, and reusable types to match different installation methods and maintenance needs.

Suitable for Installation and Field Service

Push-to-connect fittings allow fast assembly, while reusable fittings support disassembly and replacement without changing the full tubing.

Flexible Thread Options for Different Markets

Supports common thread types such as NPT, UNF, BSPT, and BSPP, making it suitable for different regional standards and applications.

Material Suitable for Air Brake Applications

Brass material offers stable machining quality and consistent dimensions for air line connections.

Request a Quote!

Interested in purchasing? Click here to get a personalized quote for your order and find out how Topa can deliver cost-effective, reliable solutions for your business.

Types of D.O.T. Air Brake Fittings

D.O.T. air brake fittings come in several different types, each designed for specific applications and ease of use in the air brake system. The primary types are:

Threaded Fittings

Threaded D.O.T. air brake fittings are designed with male or female threads that connect securely to other components, such as hoses or pipes. These fittings require the use of thread sealant or a gasket to ensure a leak-free connection. They are commonly used in both high-pressure and low-pressure systems.

Push-to-Connect Fittings

Push-to-Connect (PTC) fittings are a quick and convenient solution for connecting air brake hoses to the system without the need for tools or threading. These fittings have a simple push mechanism that allows the hose to be inserted and securely locked into place.

Compression Fittings

Compression D.O.T. air brake fittings feature a compression mechanism that seals the connection by applying pressure to the hose. These fittings typically consist of a nut, a ferrule (compression sleeve), and the fitting body. Once the nut is tightened, the ferrule compresses against the hose, creating a tight, leak-proof seal.

Reusable Fittings

Reusable D.O.T. air brake fittings are designed to be removed and reinstalled multiple times without losing their sealing integrity. These fittings are ideal for applications that require periodic maintenance or adjustments to the air brake system.

Custom Brass DOT Air Fittings for OEM Projects

Standard sizes are available for common applications. For OEM projects, custom design and production are supported based on your drawing, sample, or specific requirements.

We support custom brass DOT air fittings for different tubing systems, thread standards, and application requirements. Whether you need size adjustments, special configurations, or branding, our team can match your project based on your technical data or sample.

Custom Thread Options

NPT, UNF, BSPT, BSPP, and other thread standards can be produced based on your market requirements.

Custom Structure and Size

Fitting type, connection design, and dimensions can be adjusted to match your assembly or system layout.

Logo Marking

Laser marking or stamping is available for brass fitting part number, logo, or other brand identification.

Special Packaging

Custom labeling, bagging, carton marking, and pallet packaging can be arranged for your distribution or retail needs.

Drawing-Based Production

Production can be arranged directly from your detail 2D drawing, 3D file, detail datas or brass fitting sample.

Sample Development

Samples can be provided for quality testing, fit verification, and standard approval before bulk production.

Common Air Brake Fitting Purchasing Risks

When purchasing D.O.T. air brake fittings, customers may encounter some common purchasing problems, and Topa, as a professional air brake fittings manufacturer, is committed to helping customers avoid these problems to ensure that the purchasing process goes smoothly and that they receive a high quality product.

Confusing General Pneumatic Fittings with Air Brake Fittings

Similar appearance does not confirm suitability. The tubing, fitting construction, temperature range, performance specification, and vehicle application must be checked.

Incorrect Tube Size or Specification

Tube outside diameter alone may be insufficient. Confirm the tubing standard, material, wall construction, and permitted application.

Mixing Incompatible Components

Nuts, sleeves, inserts, collets, seals, and fitting bodies from different systems should not be mixed without verified compatibility.

Incorrect Port Thread

NPT, UNF, BSPP, BSPT, and metric threads differ in dimensions and sealing methods and must not be selected by visual appearance alone.

Unsupported Compliance Claims

Request the applicable standard, product scope, test basis, traceability information, and available documentation before approving the fitting.

Incorrect or Unauthorized Marking

Manufacturer and compliance-related markings must follow the applicable requirements and verified product qualification.

Save Time and Money with Topa!

Don’t wait for the competition—receive high-quality hydraulic adapters that save you both time and money. Get in touch now to receive a special offer.

Choose Topa

More Than Just a Air Brake Fittings Manufacturer

Topa provides a range of services designed to ensure customer satisfaction and product excellence throughout the purchasing and after-sales process. Our commitment to quality and efficiency is evident in every service we offer:

Batch Specification Control

Approved materials, critical dimensions, components, markings, and inspection requirements are recorded for production.

Technical Review

Drawings, samples, part numbers, tube specifications, mating ports, and application information can be reviewed before quotation.

Multi-SKU Quotation

Product lists can be organized by tube size, thread, configuration, material, marking, packaging, and forecast demand.

Packaging Coordination

SKU labels, barcodes, individual bags, cartons, mixed-product packing, and pallet requirements can be arranged.

Export Documentation

Commercial documents, packing information, inspection records, and product documentation can be coordinated according to the order.

Post-Sales Support

Topa provides exceptional post-sales support, including a warranty on our products to give you peace of mind.

Choose Topa

See Our Production, Inspection, Storage, and Delivery Capability

At Topa, each custom brass fitting project follows a clear production flow. This helps reduce drawing misunderstandings, thread errors, burr problems, and batch inconsistency.

FAQ

What is a D.O.T. Air Fitting?

The brass DOT fitting is a fitting that strictly adheres to the standards set by the Department of Transportation. This standard strictly requires the pressure tolerance, temperature adaptation range, and material merit of DOT fittings.

What are the different types of brass DOT air brake fittings?

The types of brass DOT fittings are DOT push-in fittings, DOT compression fittings, and DOT reusable fittings. DOT compression fittings can be divided into fittings for rubber and copper hoses.

What are the advantages of brass DOT fittings?

Brass DOT fittings are easy to install without special tools, corrosion resistant, vibration resistant, and can be used in a wide range of applications.

Which tubing is used with these fittings?

Tubing must be selected according to the specific fitting and vehicle application. SAE J844 nylon air brake tubing is commonly used with approved push-to-connect and compression fitting assemblies, while other fittings may require different tubing specifications.

What is the difference between push-to-connect and compression fittings?

Push-to-connect fittings retain and seal the tube through internal components after insertion, while compression fittings use a nut and sleeve to form the connection around the tube.

What are the advantages of brass DOT push in air fittings?

Push-in brass DOT fittings can be pushed directly onto hoses or tubes, saving installation time and installation steps. And it reduces the damage to the surrounding fittings.

What kind of tubing is normally used in brass DOT fittings?

Brass push-in DOT fittings and compression fittings use nylon or rubber tubing, while there is a special compression fitting that uses copper tubing.

What information is required for a brass air brake fitting quotation?

Provide the fitting type, tube specification and outside diameter, port thread, body configuration, applicable standard, annual or batch quantity, number of SKUs, marking, packaging, destination market, and available drawings or samples.

Are all brass pneumatic fittings suitable for vehicle air brake systems?

No. General pneumatic fittings should not be used in vehicle air brake systems unless their construction, tubing compatibility, temperature range, performance, marking, and applicable compliance requirements have been verified.

Which thread types are available?

Selected products are available with NPT, UNF, metric, BSPP, or BSPT connections. Availability does not by itself establish DOT suitability; the complete product specification and destination-market requirements must be confirmed.
