Reusable Hydraulic Fitting Manufacturer in China

※ Field Attachable Hose Fittings
※ For emergency repairs
※ No need hose crimper
※ Reduce downtime

Product List

Reusable hydraulic hose fitting is also called field installable fittings or Field Attachable Hose Fittings. It is ideal for emergency repairs. Use a hand wrench to assemble, Assembled with simple tools, no need for a hose crimping machine. No Special Tools are Required. Reusable fittings help reduce hydraulic system downtime and quicker repairs, less lost revenue in the event of an unplanned hydraulic hose failure, so buy some sets of reusable fittings for your machine. These reusable fittings hydraulic are mainly used to connect hydraulic hoses in hydraulic systems and industrial applications. They convey air, hydraulic fluid, and water. Reusable hydraulic hose fitting installed on hydraulic hoses SAE100R1, SAE100R2 SAE100R5, PTFE, and other types.

Topa offers a wide range of reusable hydraulic hose fittings, including reusable hydraulic hose fittings, brake reusable fittings hydraulic, R1, R2, R5, and R7 reusable hose fittings, and PTFE reusable fittings. The reusable fitting has different threads such as BSP, NPT, JIC, flange, and so on. As per a full selection of reusable hydraulic hose fittings suppliers, Topa also could customize all kinds of reusable fitting. Topa reusable hydraulic hose fittings could be replaceable with brand gates, caterpillar, Weatherhead, Eaton, Parker, and so on.

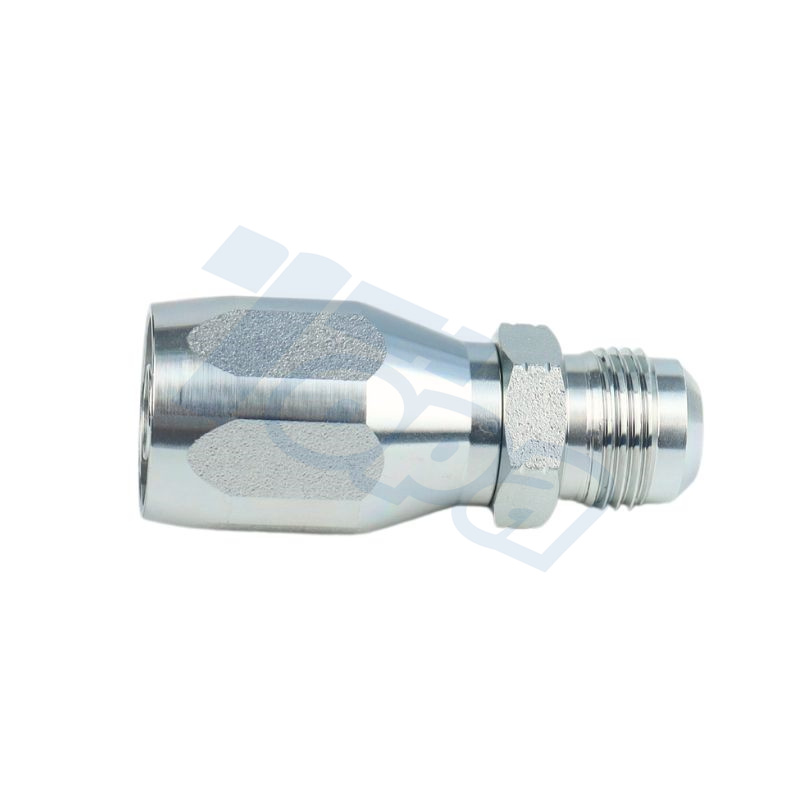

Male JIC Reusable Fitting

Male JIC reusable fitting, 16717, male thread, straight hose fitting.

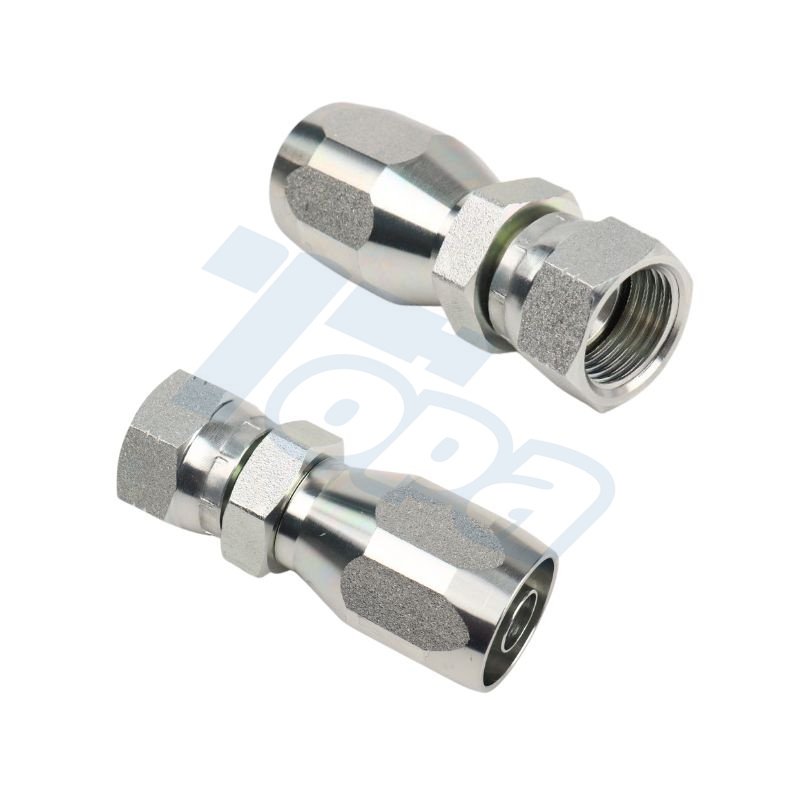

Female JIC Swivel Reusable Fitting

Female JIC swivel reusable hydraulic fitting, 26718D, female JIC thread.

JIC 45° Elbow Reusable Fitting

Female JIC 45° bend reusable fitting, 26748, female JIC thread.

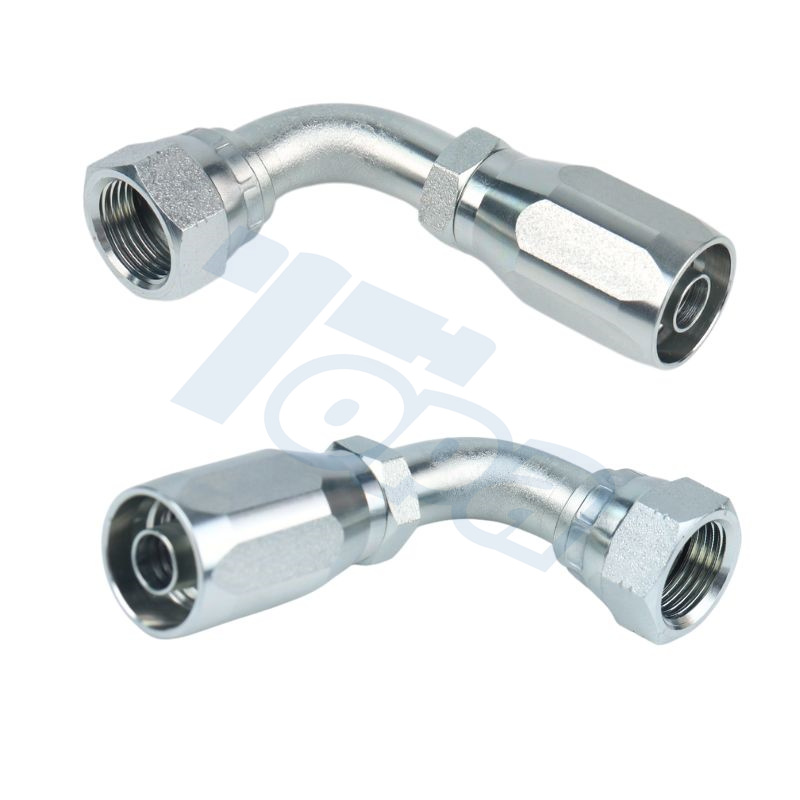

JIC 90° Elbow Reusable Fitting

Female JIC 90° standard drop reusable hose fitting, 26798D, female JIC threads.

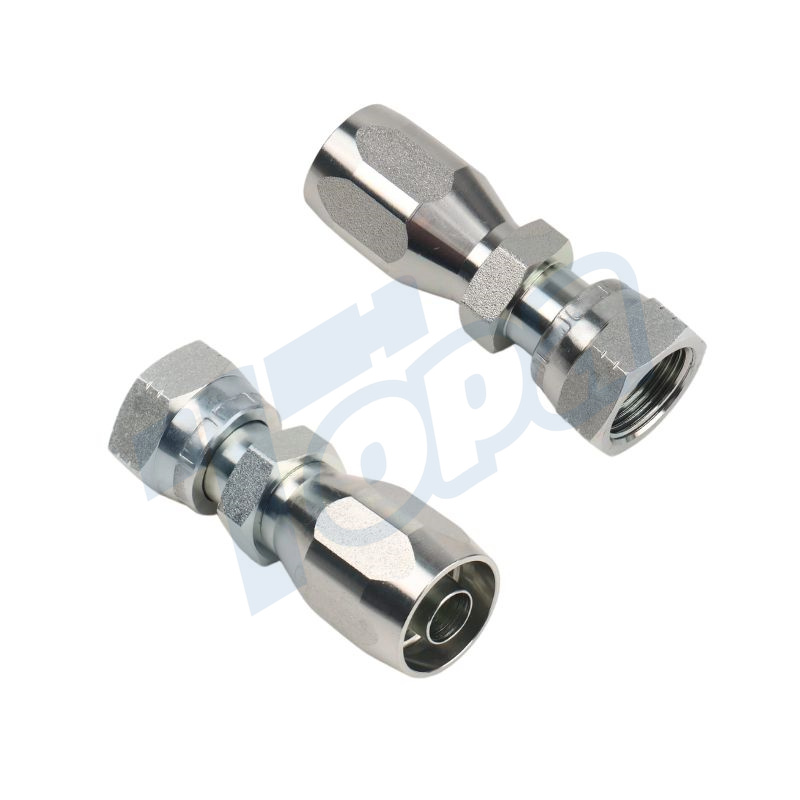

ORFS Straight Reusable Fitting

Female thread ORFS straight reusable hydraulic fitting.

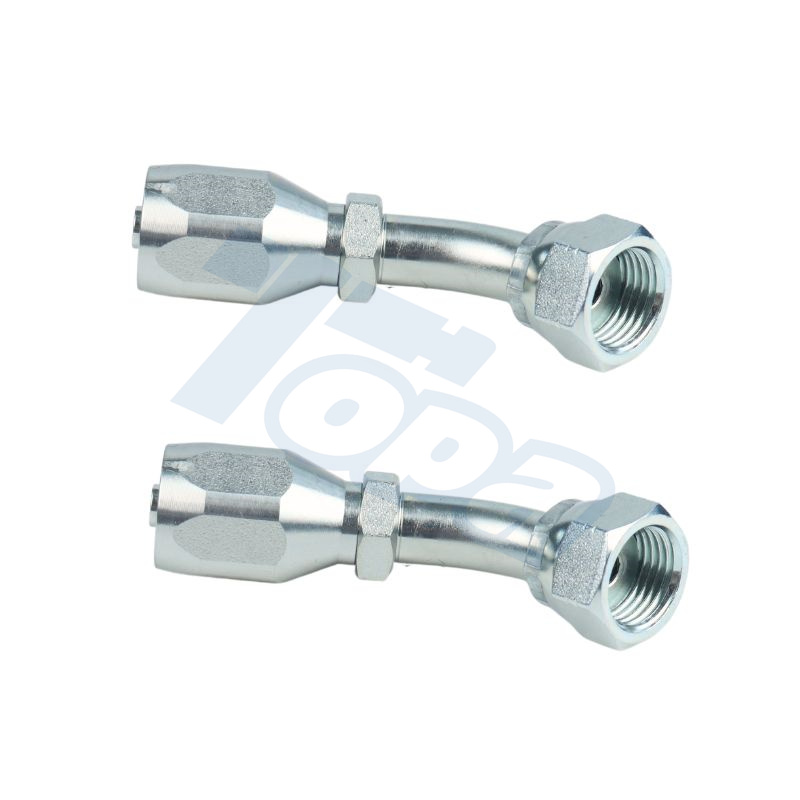

ORFS 45° Reusable Fitting

Female ORFS 45° elbow reusable hydraulic fitting.

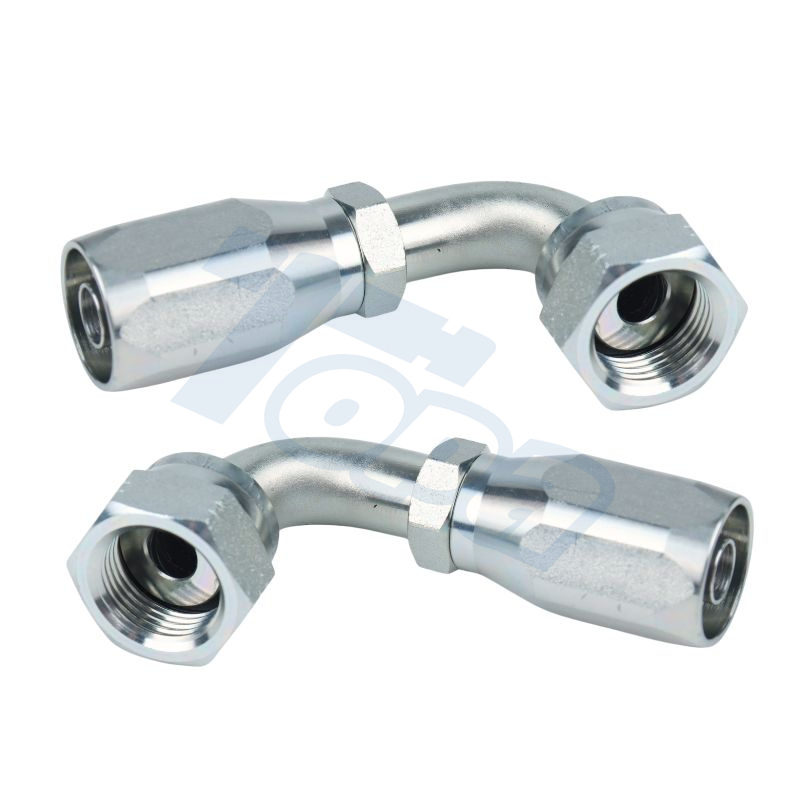

ORFS 90° Reusable Fitting

Female ORFS 90° elbow reusable fitting.

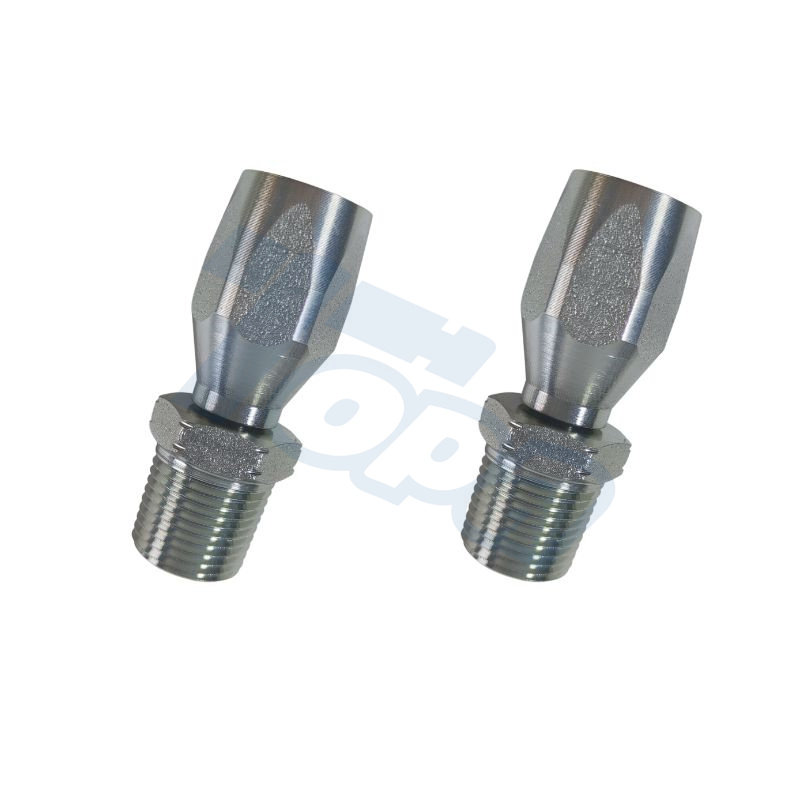

Male NPT Reusable Fitting

Male NPT reusable straight fitting.

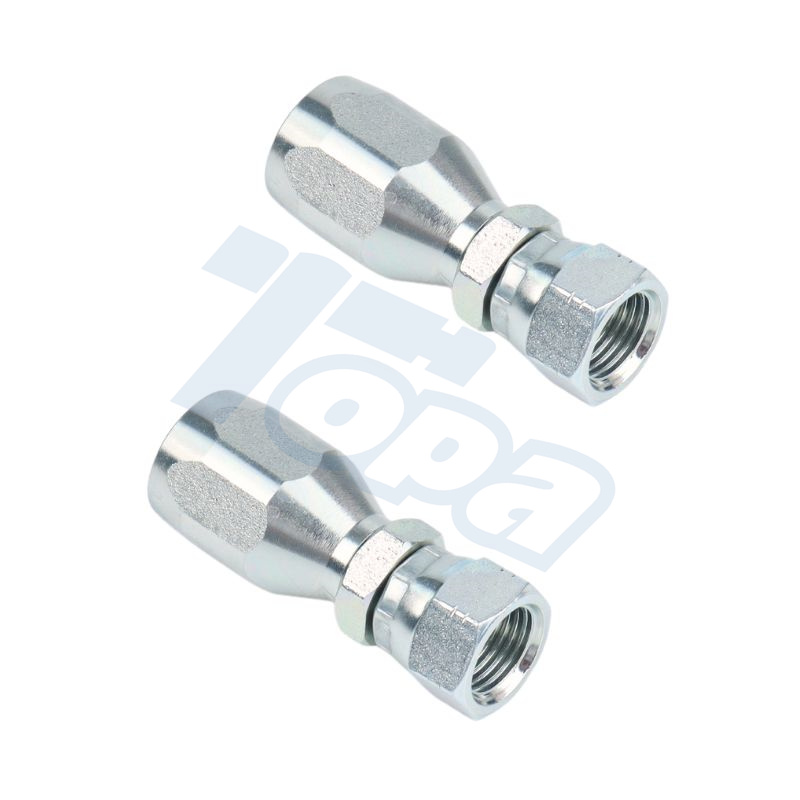

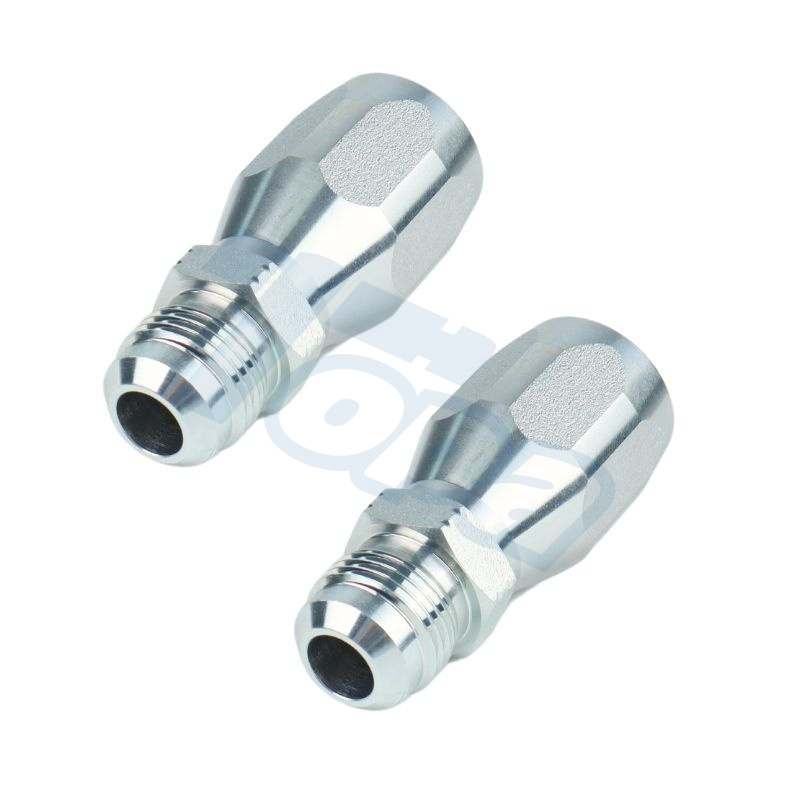

SAE Straight Reusable Fitting

27818, 45-degree cone flare female straight SAE reusable fitting.

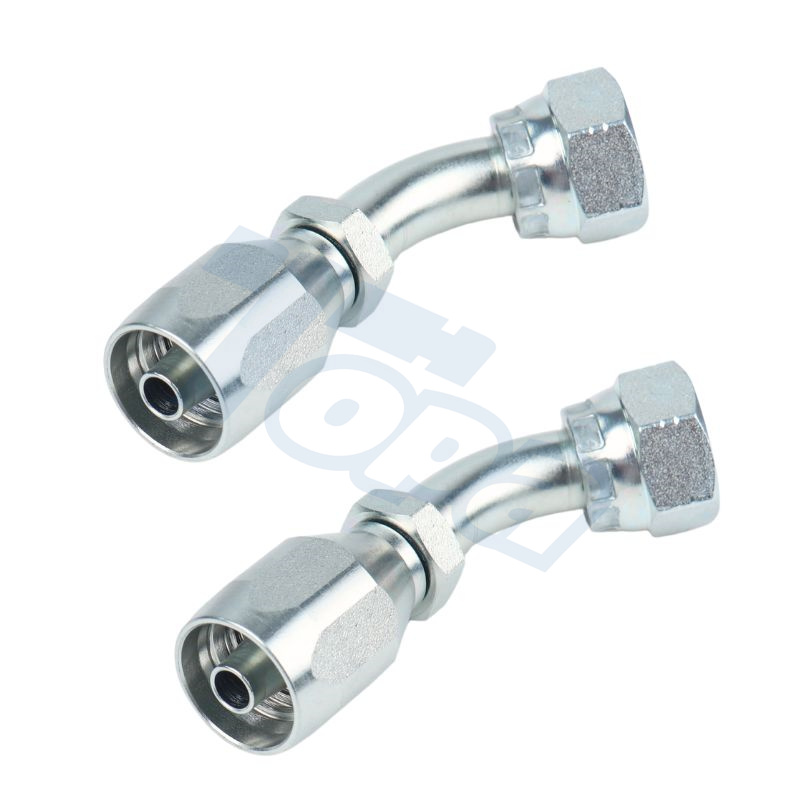

45° SAE Hydraulic Reusable Fitting

27848 female straight 45° elbow reusable fitting, 45-degree cone flare.

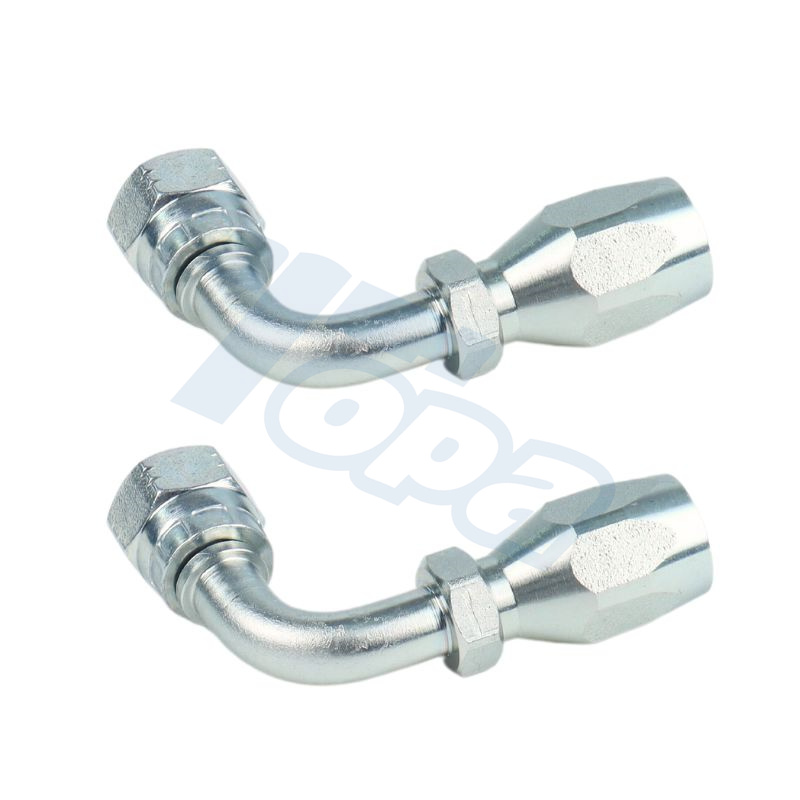

90° SAE Hydraulic Reusable Fitting

27898 female SAE 90° elbow reusable hydraulic hose fitting, 45-degree cone flare.

45° Cone SAE Reusable Fitting

SAE 100R5 reusable hydraulic hose fittings, 45° cone male thread.

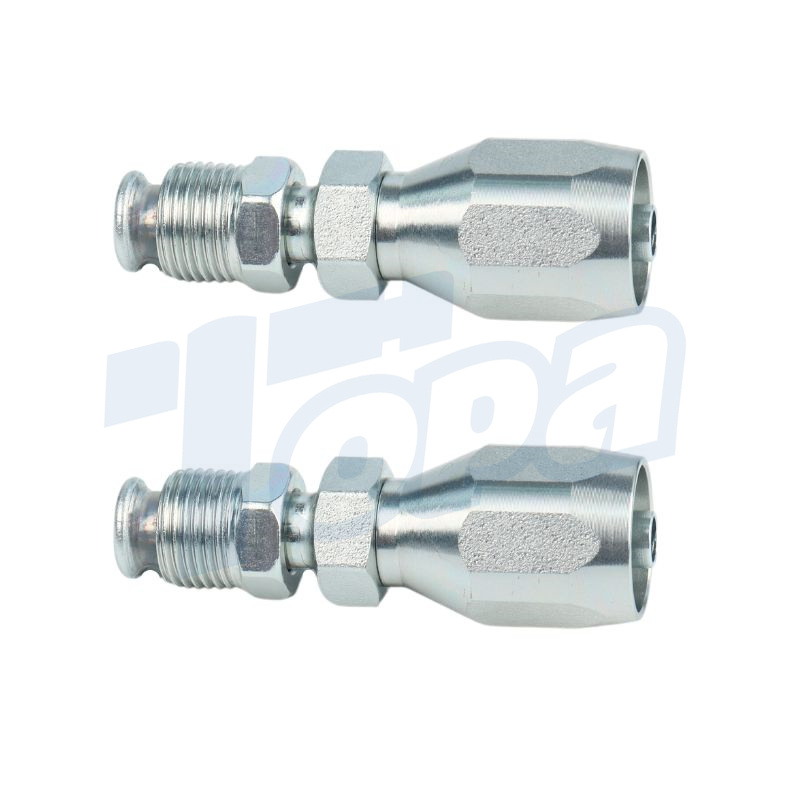

Male Inverted Flare Hydraulic Reusable Fitting

Straight male inverted flare reusable fitting, reusable hose end inverted flare fittings.

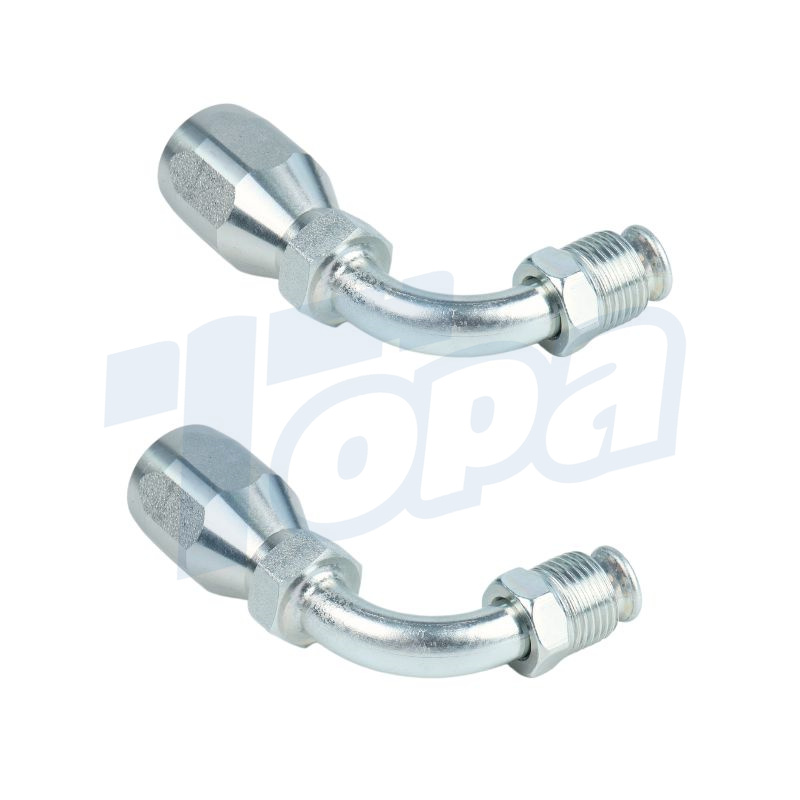

90° Elbow Inverted Flare Reusable Fitting

SAE 90° inverted flare hydraulic reusable fitting, made of high-quality carbon steel.

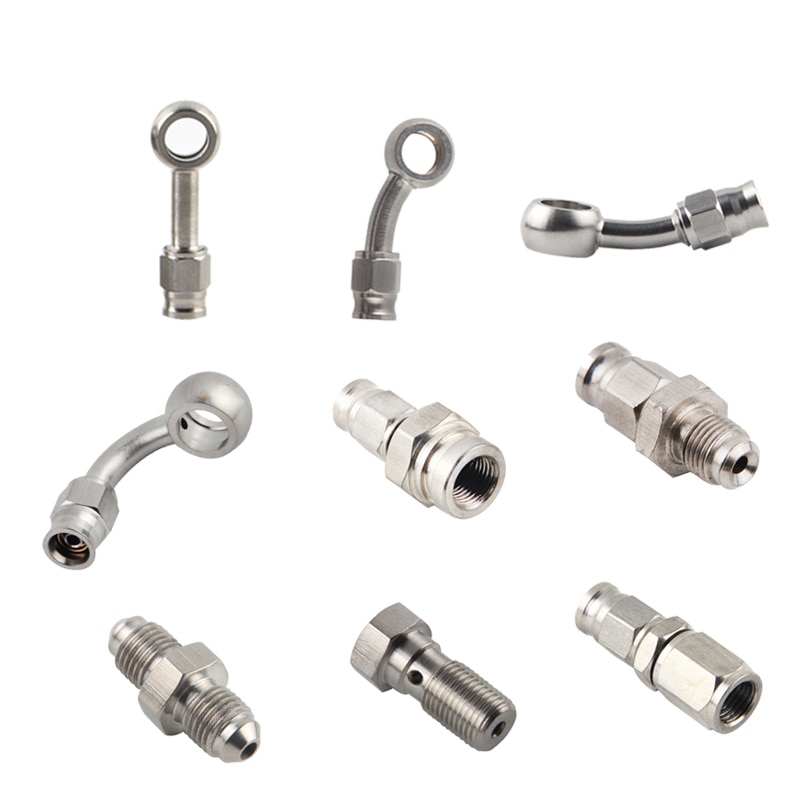

Brake Reusable Fitting

Reusable brake hose hydraulic hose, elbow /straigh banjo eye brake hose fitting.

PTFE Reusable Fitting

PTFE hose end fitting connector .

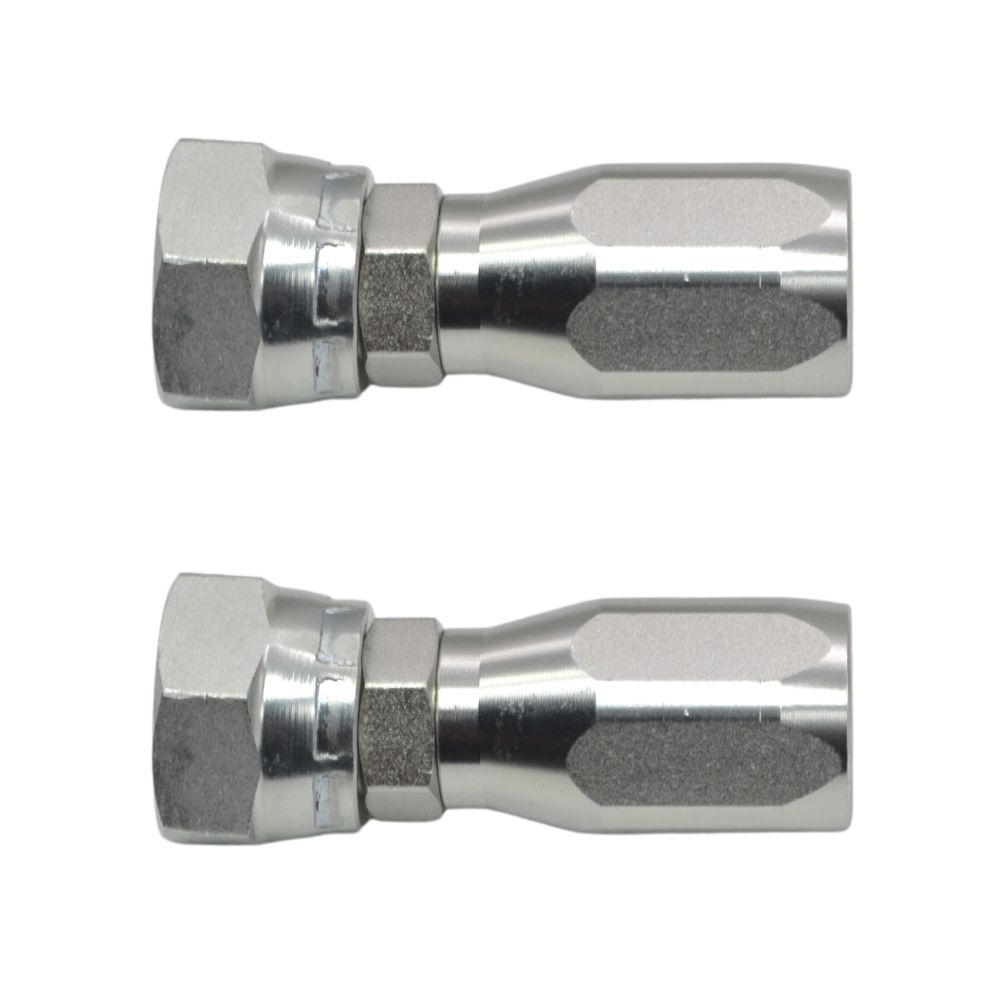

Female BSP Straight Reusable Fitting

BSP female 60 degree cone reusable hydraulic hose fittings.

Female BSP 90° Reusable Fitting

Female BSP 90° reusable fittings, swivel hose fitting, 90° Elbow.

Male BSP Hydraulic Reusable Fitting

Male BSP reusable hydraulic hose fitting.

DN Hose Standpipe Fitting

DN hose standpipe reusable hydraulic fitting.

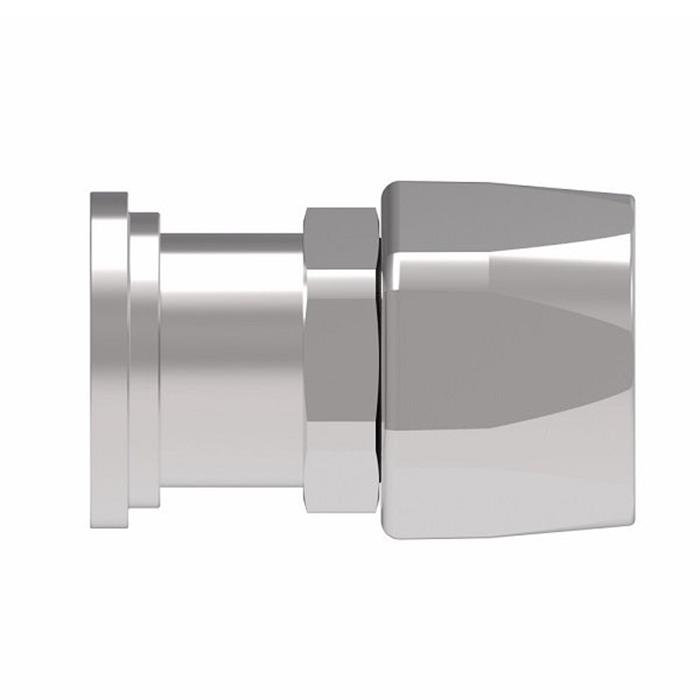

Code 61 Flange Straight Reusable Fitting

Code 61 flange straight reusablefittings, code 61 flange rigid.

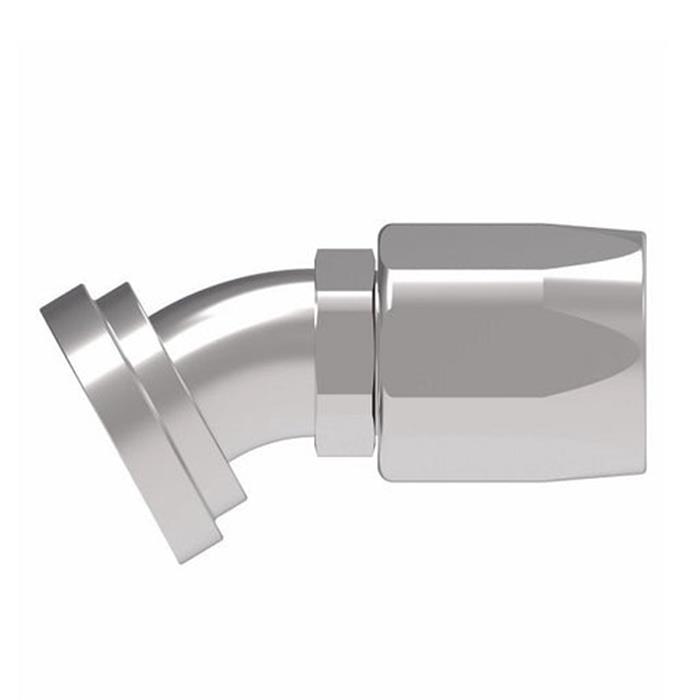

Code 61 Flange 45° Reusable Fitting

Code 61 flange reusable hydraulic fitting, 45 degree elbow.

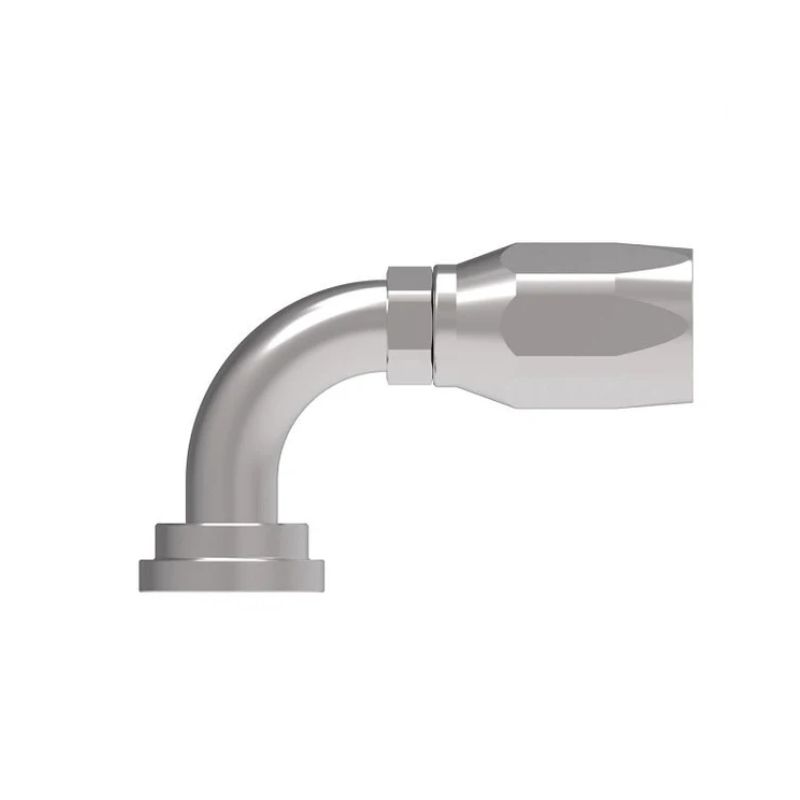

Code 61 Flange 90° Reusable Fitting

Code 61 flange reusable hydraulic hose fitting, 90 degree elbow.

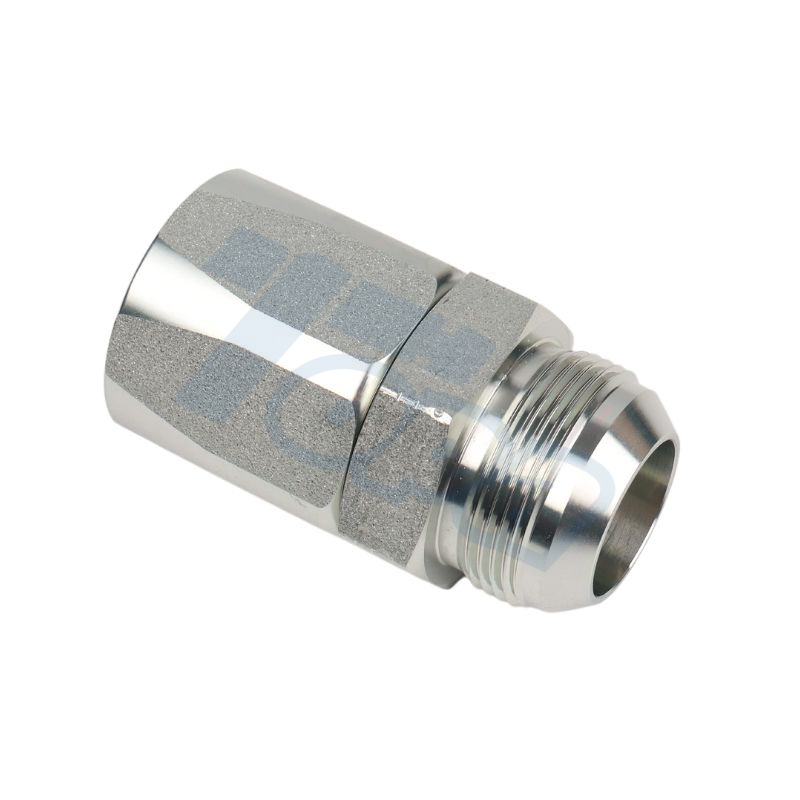

JIC Male Reusable Fitting

Male JIC 37-degree cone flare reusable hydraulic hose fittings, made of carbon steel.

Custom Reusable Fitting

Topa can custom all types of reusable hose fittings, contatc us for more information!

Reusable Hydraulic Fitting Video

This video introduces Topa’s wide range of reusable fittings, highlighting their versatility, durability, and user-friendly design. It showcases different types of reusable fittings, including JIC, ORFS, BSP, and NPT, demonstrating their compatibility with various hydraulic systems and applications.

We are a manufacturer of reusable hydraulic connectors, we can independently produce many types of reusable fittings, and high-quality products, and excellent service has won many customers.

Click below to view the full product line and see how Topa can meet your specific hydraulic needs!

Application

Topa hose end reusable fittings are used in a wide range of applications, including refrigeration systems, buses, trucks, off-highway vehicles, paint and paint spraying, engines, hot presses, and many others.

Reusable hydraulic fitting supplier application
Automotive

Reusable fitting is easy to assemble, and reusable, and can be used to repair damaged fittings in existing hydraulic hose assemblies without complete replacement, saving costs and reducing machine downtime for cars.

BSP hydraulic fitting factory application
Transportation

As field installable fittings, reusable fitting is often used in conjunction with other hoses by connecting them to compatible hydraulic hoses and tightening them with a wrench for applications on heavy trucks.

Reusable hydraulic fitting supplier application
Lifting

The reusable hose fittings can be used repeatedly, with good sealing, easy installation and maintenance, with advanced measurement, hydraulic and pneumatic signal pipe line connection.

Ask Us about Our Products

At Topa, we offer over 160 valve models. Request a free quote from us today!

All You Need to Know About Hydraulic Reusable Fittings

Topa’s reusable hydraulic hose fittings are meticulously engineered with three essential components that work in harmony to deliver reliable and durable performance:

Structure

Threaded Insert:

This component is designed with precision threads that provide a secure and robust attachment to the hydraulic hose. The threading ensures that the fitting stays firmly in place, even when subjected to high-pressure systems or vibrations, making it ideal for demanding industrial applications.

Sealing Component:

A critical part of the fitting, the sealing component ensures a tight and leak-proof connection between the fitting and the hydraulic hose. By effectively sealing the junction, it prevents hydraulic fluid from escaping, which is essential for maintaining the efficiency and safety of the hydraulic system.

Reusable Clamp:

The reusable clamp allows for quick and easy assembly and disassembly of the fitting. This feature is particularly beneficial for applications where frequent maintenance, repairs, or replacements are required. The clamp’s robust design ensures a secure hold while facilitating hassle-free reusability.

reusable Hydraulic hose Fittings drawing
reusable Hydraulic hose Fitting working principle
Working Principle

The operation of Topa’s reusable hydraulic hose fittings is based on precision engineering and seamless integration of its components:

Clamping Mechanism:

The threaded insert is attached to the hydraulic hose, utilizing precision threading to create a stable connection. This step secures the hose within the fitting, ensuring it remains firmly in place during operation.

Sealing Mechanism:

Once the hose is secured, the sealing component comes into play. It creates a tight seal between the fitting and the hose, effectively eliminating any risk of fluid leaks. This is particularly critical for systems that operate under high pressure or in environments where leakage could lead to performance issues or safety hazards.

Reusable Design:

The reusable clamp allows the fitting to be easily removed and reassembled without compromising its integrity. This feature ensures that the fitting can be reused multiple times, reducing the need for frequent replacements and lowering maintenance costs.

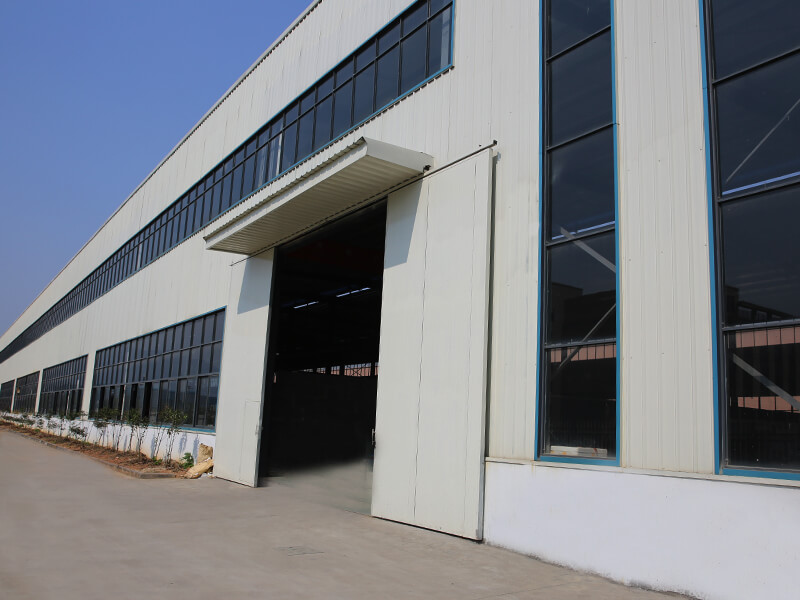

Hydraulic Reusable Fittings Factory Video

Reusable hydraulic hose fittings threads are available in BSP, JIC, and NPT for R1 R2 R5 as well as brake hoses, and a wide range of applications, reusable fittings save time and cost, reduce hydraulic system downtime, simple assembly, and fast maintenance.The video takes you behind the scenes of Topa’s advanced manufacturing process for reusable hydraulic fittings. Watch as high-quality raw materials are transformed into precision-engineered components through state-of-the-art CNC machining. Each step, from threading the inserts to assembling the sealing components, is meticulously carried out to ensure durability and reliability under high-pressure conditions.

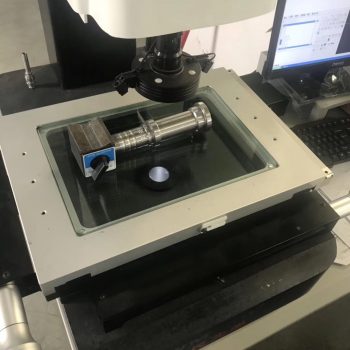

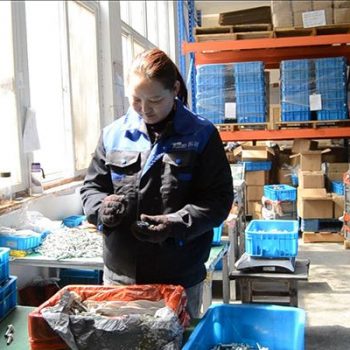

Additionally, the video showcases the rigorous quality control tests conducted at every stage. From pressure testing to leak-proof validation, Topa ensures that each fitting meets global standards and is compatible with renowned brands like Parker and Gates.

Contact us today for a consultation or personalized solutions!

Avoid Common Pitfalls

Purchasing reusable hydraulic fittings can significantly enhance your system’s efficiency, flexibility, and cost-effectiveness. However, mistakes during the selection or purchasing process can lead to system failures, costly repairs, and unnecessary downtime. To ensure you get the most out of your investment, be aware of these common pitfalls and take the necessary precautions.

Material

Ensure that the coupling material is compatible with the system fluid and environmental conditions.Topa can provide stainless steel, carbon steel, and brass options.

Inventory

Inadequate stock planning can lead to project delays or downtime in emergency repairs. Maintain sufficient inventory levels of commonly used fittings to avoid supply chain disruptions, especially for urgent needs.

Price

Avoid focusing solely on low prices, as this often indicates substandard quality. Compare pricing from reputable suppliers to ensure you are getting cost-effective yet durable and reliable products.

Surface Treatment

Verify that the fittings have proper surface coatings, such as zinc or chrome plating, to resist corrosion and wear. Poor or absent surface treatments can lead to reduced lifespan, especially in harsh environments.

Thread

Check the thread type and compatibility with your system. Mismatched threads, such as using BSP with NPT, can result in leaks or fitting failure. Always confirm thread specifications before purchasing.

Size

Incorrect sizing can lead to a poor seal, system inefficiency, or fitting failure. Always double-check the dimensions of the fitting and ensure they match your hose and system requirements.

REQUEST A QUOTE FOR MORE DETAILS!

How to Customize and Purchase Hydraulic Reusable Fitting

Table of Contents

Unlike crimped fittings, they can be easily assembled, disassembled, and reused, making them ideal for maintenance-intensive operations. These fittings simplify on-site adjustments, save costs by eliminating the need for complete replacements, and adapt to various system requirements with customizable sizes, threads, and materials.

Types of Hydraulic Reusable Fittings

Reusable fittings come in a variety of types, each designed to meet specific industrial and hydraulic system requirements. Understanding these types is crucial to choosing the right one for your application.

Overview of Common Fitting Types

JIC (Joint Industry Council) Fittings

JIC fittings are known for their 37-degree flare design, which provides a leak-proof seal in high-pressure applications. They are widely used in the automotive, aerospace, and agricultural industries due to their reliability and compatibility with various hose types.

NPT (National Pipe Tapered) Fittings

NPT fittings use a tapered thread design to create a tight, secure connection. They are commonly found in North American systems and are ideal for low-pressure hydraulic applications. However, their sealing depends heavily on thread quality and the use of sealant or tape.

BSP (British Standard Pipe) Fittings

BSP fittings, prevalent in Europe and Asia, come in two types: BSPP (parallel) and BSPT (tapered). They are known for their versatility and ability to handle both hydraulic and pneumatic systems.

SAE (Society of Automotive Engineers) Fittings

SAE fittings follow strict engineering standards and are often used in automotive and industrial hydraulic systems. Their O-ring face seal design ensures exceptional leak prevention, even under high pressure.

Which Hydraulic Fitting Type Is Best for Your Needs?

Choosing the right fitting type depends on several factors, including system requirements, operating pressure, and geographic standards. Here’s how to decide:

For High-Pressure Systems: Go with JIC or SAE fittings due to their robust sealing capabilities.

For North American Standards: NPT fittings are widely used but require precise installation to avoid leaks.

For European or Asian Systems: BSP fittings offer compatibility and reliability for localized applications.

For Specialized Applications: Consider custom options that combine elements of different standards to meet unique operational needs.

Materials and Their Impact

The material of your hydraulic reusable fittings plays a crucial role in determining their performance, durability, and compatibility with your system. Each material offers unique benefits and is suited for specific applications.

Reusable hydraulic fitting Topa China

Choosing the Right Material

Stainless Steel

Stainless steel is known for its excellent corrosion resistance, making it ideal for harsh environments, including marine, chemical, and outdoor applications. It also withstands high pressures and temperatures, providing reliability in demanding hydraulic systems.

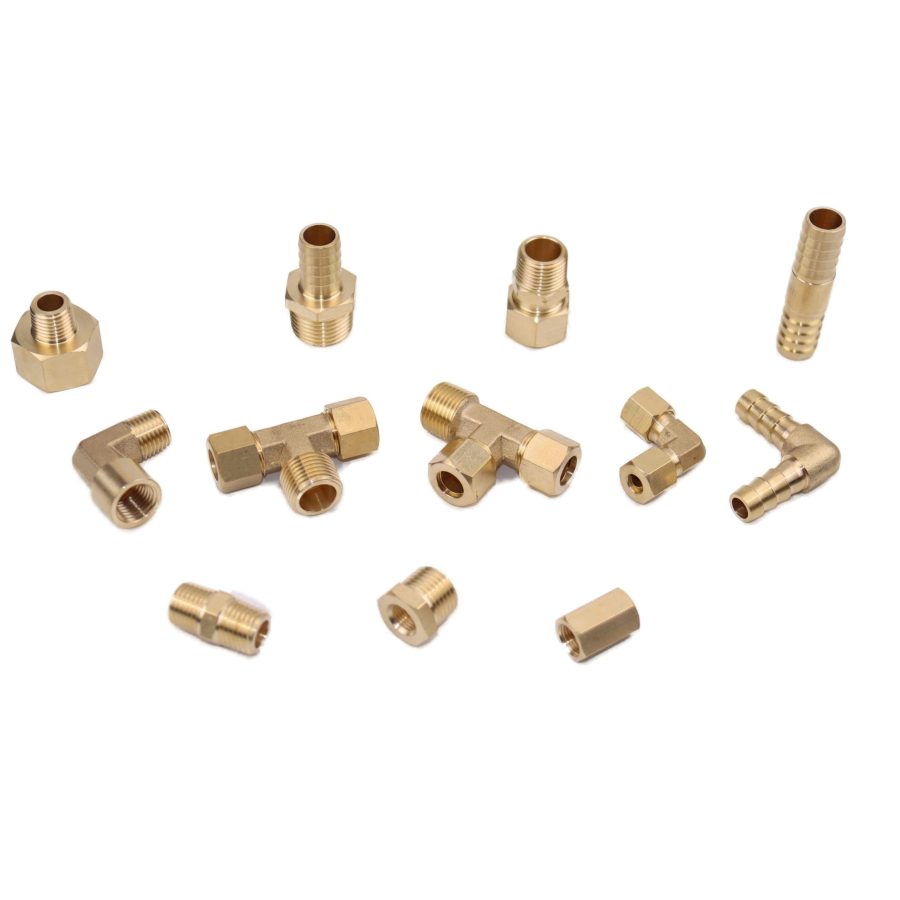

Brass

Brass is a versatile material that offers moderate corrosion resistance and is highly machinable, allowing for precise customization. Its non-sparking properties make it suitable for use in explosive environments, while its aesthetic appeal is a bonus in visible installations.

Carbon Steel

Carbon steel fittings are valued for their strength and cost-effectiveness, making them popular in heavy-duty industrial applications. They are best suited for systems with controlled environments, as they are less resistant to corrosion unless coated with protective layers.

Environmental Considerations

Lead-Free Materials

As industries increasingly adopt environmentally friendly practices, lead-free fittings have become a top choice. They ensure safety in applications like food processing, drinking water systems, and medical equipment while complying with strict environmental regulations.

Eco-Friendly Manufacturing

Opting for fittings made using sustainable processes can reduce your carbon footprint. Many manufacturers now use recyclable materials and energy-efficient production methods to create fittings that meet both performance and environmental standards.

Topa Customization Options for Hydraulic Fittings

Topa specializes in delivering hydraulic fittings tailored to meet the unique demands of your applications. Customization enhances compatibility, performance, and branding, providing fittings that perfectly align with your system and business goals.

reusable fitting threads Topa

Size and Thread Standards

Precise Sizing

Topa offers fittings in a wide range of sizes to ensure seamless integration with your hydraulic systems, avoiding leaks and ensuring efficiency.

Thread Standards

Compatibility is crucial in global applications, so Topa provides threads in various standards, including JIC, NPT, BSP, and SAE, ensuring fittings meet your regional or system-specific needs.

Pressure Customization

Optimized for Performance

Custom fittings can be designed to withstand specific pressure ranges, from low-pressure systems to high-pressure industrial applications. This ensures safe and reliable operations without compromising on performance.

Testing and Validation

Each fitting undergoes rigorous pressure testing to ensure it meets your exact specifications and industry standards.

Custom Logos and Branding for Your Fittings

Professional Branding

Enhance brand visibility with engraved or embossed company logos directly on the fittings, showcasing quality and professionalism.

Custom Identification

Add unique markers or identifiers to make it easier to organize and track fittings during installation or maintenance.

Packaging and Labeling: Tailoring to Your Brand

Branded Packaging

Topa offers fully customizable packaging options, including branded boxes, eco-friendly materials, and protective packaging to keep fittings secure during transit.

Detailed Labeling

Customized labels with product specifications, barcodes, and your logo streamline inventory management and ensure accurate identification.

Purchasing Hydraulic Reusable Fittings

Making informed purchasing decisions is key to maximizing value and ensuring the compatibility and efficiency of hydraulic reusable fittings for your operations.

Custom logo

Step-by-Step Guide to Buying Hydraulic Fittings on Topa

Identify Your Needs

Assess system requirements: fitting size, thread type, material, and pressure rating.

Determine custom features: logos, specialized threading, or tailored packaging.

Browse Topa’s Catalog

Explore Topa’s extensive range of hydraulic reusable fittings on their website.

Use filters to streamline selection by material, thread type, and size.

Request a Quote

Contact Topa for quotes on bulk or customized orders.

Share detailed specifications for accurate pricing and lead time estimates.

Evaluate Lead Times and Shipping Options

Review delivery schedules and shipping policies to align with your procurement timeline.

Leverage Topa’s international shipping expertise for global delivery needs.

Place Your Order

Confirm details and complete your purchase via Topa’s secure platform.

Double-check packaging, labeling, and customization details for bulk orders.

Follow Up

Track your shipment and stay in touch with Topa’s support team for updates.

Inspect delivered fittings to verify they meet your specifications.

Get Free Quotation Now!

Choose Topa

More Than Just a Hydraulic Fittings Manufacturer

Fast and Accurate Quotation

Topa provides precise and rapid quotations, ensuring you receive detailed pricing information quickly. This helps you make informed purchasing decisions without delays.

Reasonable Price

Our competitive pricing balances cost-effectiveness with premium quality, allowing you to maximize your value while staying within budget constraints.

Professional Service

Our team of skilled professionals is always ready to assist with technical guidance, product recommendations, and after-sales support, ensuring a seamless customer experience.

Responsible Attitude

At Topa, we prioritize accountability and customer satisfaction, addressing concerns promptly and ensuring you receive reliable solutions every time.

A Large Amount of Inventory

With extensive stock available, we guarantee quick delivery times and consistent supply to meet your project requirements without interruptions.

Customizable Solutions

Topa offers fully customizable hydraulic fittings, tailored to your specific requirements, including size, material, and branding, ensuring they perfectly align with your needs.

Your Reliable Reusable Hydraulic Fitting Manufacturer

reusable fitting china manufacturer CNC machine Topa

High-quality field repair hydraulic fittings, compatible with a variety of hoses, suitable for a variety of applications, can quickly complete the repair work, very popular in the market.

  • Reusable hydraulic hose ends Simple and convenient assembly
  • Use with a variety of pipes such as medium pressure and high pressure
  • Reusable hydraulic hose fittings Various threads and sizes available
  • Reusable hose fitting On-site installation reduces assembly time
  • Hydraulic reusable hose fittings with more cost-effective
  • Attachable fittings
  • Flexibility for a wide range of applications

FAQ

What are reusable hydraulic hose fittings?

Reusable hydraulic hose fittings are fittings for emergency repairs, they can use the right tool to directly replace damaged fittings and reduce hydraulic machine repair time.

Are JIC fittings reusable?

JIC hydraulic fittings can be reused under normal conditions, but multiple reuse is not advised as they will likely not have the ability to stop leaks.

How to reuse JIC fittings?

First check the JIC fitting for any damage and make sure there are no leaks, then check the fitting to ensure there is no dirt and clean it. After confirming that the fitting is ready for re-use, use the appropriate tool for the exchange installation.

How to fit reusable hydraulic hose fittings?

step1. Insert the lubricant into the insertion end of the detachable fitting and the inner diameter of the hydraulic hose

step2. Measure and mark the end of the detachable fitting insertion hose

step3. Install the Ferrule onto the hydraulic hose to the marked depth

step4. Insert the Nipple of the detachable coupling into the hose and touch the ferrule

Can you reuse brass fitting?

Brass fittings can be used repeatably. Brass fittings are more durable and less prone to abrasion and corrosion, so you can carefully check the level of damage and confirm that there are no problems before using them.

Can NPT fittings be reused?

It is generally suggested not to use NPT fittings several times because NPT threads are easily damaged during use. Therefore, before using them again, double check the damage of the threads before deciding whether to reuse them, but the times of use should not exceed three times.

How to install reusable hydraulic hose fittings?

We need tools Wrench, Hose cutter,Lubricant and Bench vise, first cut hose, a straight clean cut is important. Screw the hydraulic ferrule onto the hose, rotate it until the inside of the hose bottoms out. Secure the ferrule in a vise, lubricate the stem and the inside of the hydraulic hose with some hydraulic fluid, and then start turning the stem. Push and turn until the threads engage.

How to repair with reusable hydraulic hose fittings?

Reusable fittings are easy to repair, simply remove the damaged part and screw a new reusable fitting onto the hose to quickly make the repair job complete.

What tools do I need to replace the reusable air hose fittings?

The hose with reusable fittings is easy to install, no need for a cramping machine during installation, it can be done with basic manual or wrench assistance.

What should be paid attention to when using reusable air hose fittings ?

1. Find which hydraulic hose is damaged.
2. Release the pressure
3. Take off the hydraulic hose assembly
4. Take off the hydraulic hose fitting
5. Replace hydraulic fittings

Get more information about products

your name
E-mail
With Country Code
what can we do for you?
Reusable hydraulic fitting catalog

Contact Topa

Looking for unbeatable prices, top-tier quality, or custom solutions that fit your exact needs? Contact Topa Now!
