Explore TOPA flange one-piece hydraulic fittings by model, connection type, fitting angle, and hose series. Send your specifications for product selection and quotation support.
TOPA provides a selected range of flange one-piece fittings for different hose sizes, installation directions, and hydraulic assembly requirements.
Available configurations include straight, 45-degree, and 90-degree designs. Model matching support is available according to the flange standard, flange size, hose specification, fitting angle, working conditions, and customer drawings.
This video introduces Topa’s flange one-piece hydraulic fittings, including straight, 45-degree, and 90-degree options. We supply different flange types and hose sizes for high-pressure hydraulic systems used in construction, mining, agriculture, and industrial equipment.
For model matching or size confirmation, please send us the flange standard, hose size, working pressure, fitting angle, part number, photo, or drawing. Our team will help you select the correct flange one-piece fitting for your application.

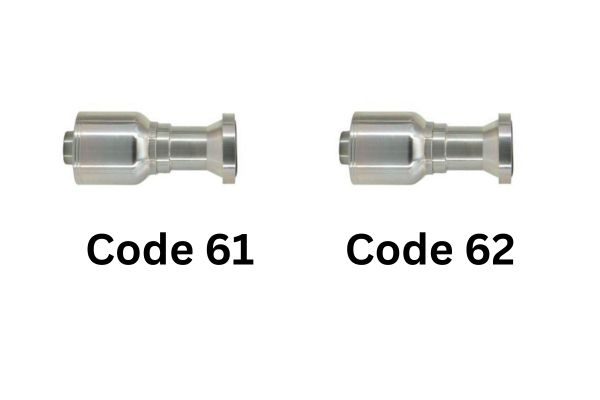

SAE Code 61 and Code 62 flange fittings may look similar, but they can differ in flange dimensions, thickness, pressure class, clamp structure, and mating port design. Do not confirm interchangeability based only on appearance or nominal size.
Before selecting a replacement fitting, confirm:
Incorrect matching may cause installation interference, seal misalignment, leakage, or insufficient pressure capacity.
Each hydraulic fitting is checked through a series of inspection and testing procedures to ensure consistent performance, reliable sealing, and long service life in hydraulic systems.

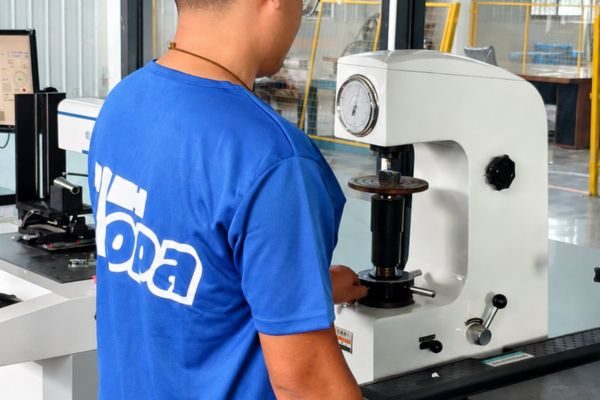

Material information is checked against the confirmed order, drawing, or project specification, with additional verification arranged when required.
Critical dimensions such as flange size, sealing face, insert diameter, effective length, bend angle, and orientation are checked against the approved drawing.
The flange structure, sealing area, machining condition, and matching dimensions are inspected to confirm compatibility with the approved connection.

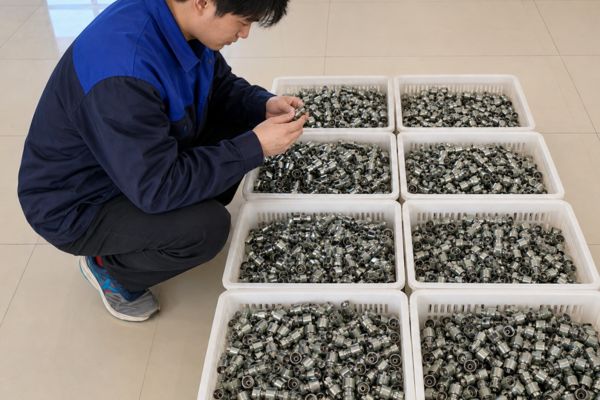

The fitting is checked for coating consistency, burrs, rust, contamination, visible damage, sealing-face defects, and marking accuracy.
The hose-side structure is checked for correct insertion, crimping suitability, and assembly consistency according to the approved hose and fitting combination.

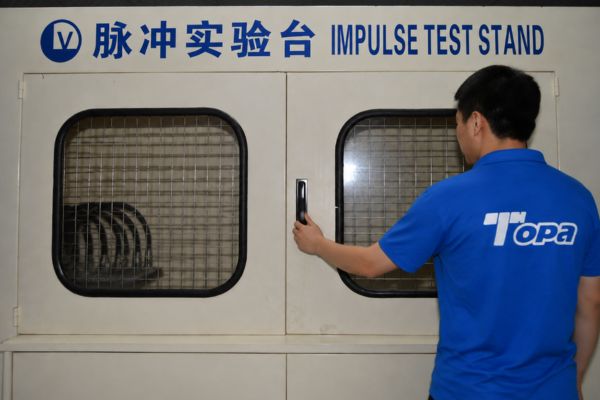

Pressure or assembly testing is carried out according to the fitting model, hose assembly, project requirements, and agreed inspection plan.
Please provide the flange standard, flange size, hose dash size, hose type, fitting angle, working pressure, required quantity, and any available photos or drawings.
No. They may differ in flange dimensions, thickness, pressure class, clamp structure, and mating port design. Compatibility must be confirmed before replacement.
The correct angle depends on installation space, hose routing, bend radius, port orientation, and maintenance access.
No. Nominal size is not enough. The flange standard, critical dimensions, sealing structure, pressure requirement, and hose-side connection must also match.
Photos can support initial identification, but final confirmation may also require dimensions, the original part number, hose markings, mating port details, or a technical drawing.
Depending on the order, available documents may include technical drawings, dimensional inspection reports, material records, product photos, packaging photos, test records, and batch identification information.
Topa offers different types of flange one-piece hydraulic fitting, this catalog includes all kinds of flange hydraulic fittings. If you need more information of flange one-piece hydraulic fitting, please contact us.
