In the realm of hydraulic systems, you’ll encounter a diverse array of hydraulic cylinders, each tailored for specific applications and environments. Starting with single-acting cylinders, which are ideal for straightforward, unidirectional force applications. We transition to double-acting cylinders that offer more versatility with bidirectional force capabilities. Next in line are telescopic cylinders, known for their extended stroke length and compact design, followed by tie-rod cylinders that are celebrated for their durability and ease of maintenance. Last but not least, we have ram cylinders, which are typically used for heavy-duty tasks requiring high pressure, and plunger cylinders that are perfect for high-speed, high-force applications.

Topa will provide a comprehensive yet concise overview of the types of hydraulic cylinders available, catering to the diverse needs of your clients in the hydraulic industry.

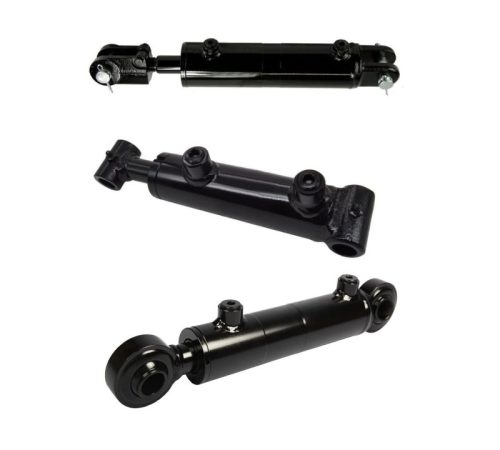

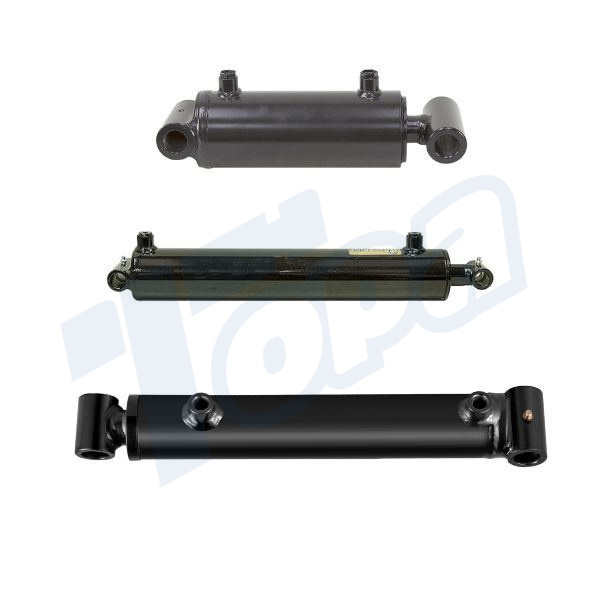

Double Acting Hydraulic Cylinder

Offers power in both push and pull directions, ideal for various industrial applications.

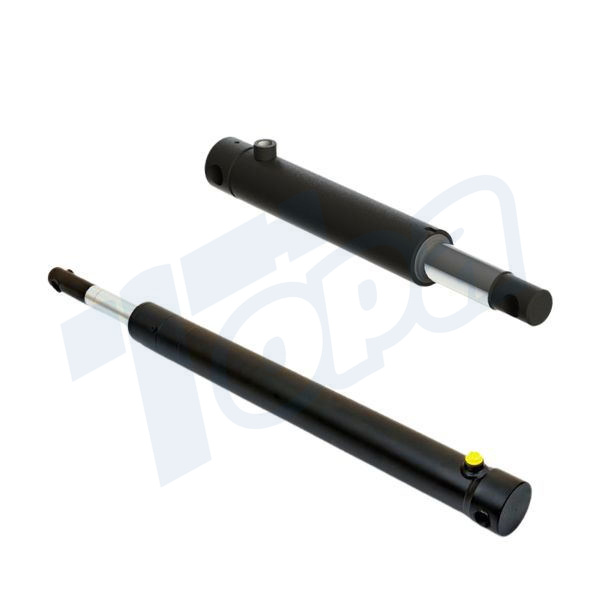

Single Acting Hydraulic Cylinder

Utilizes pressure in one direction only, commonly used in lifting tasks or single-action mechanisms.

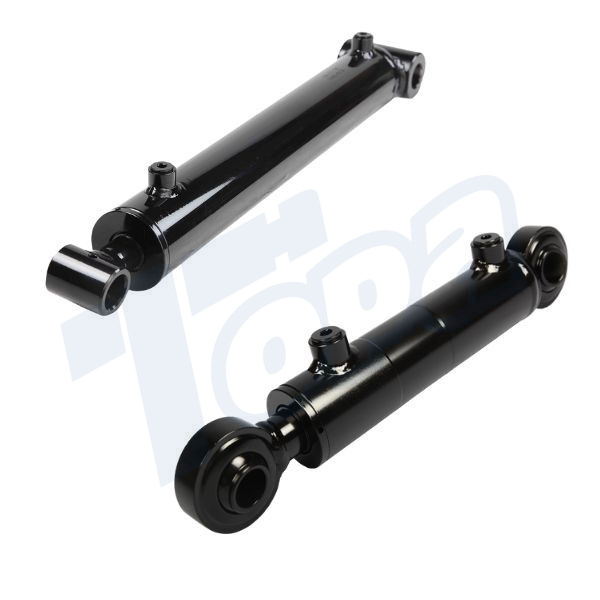

Welded Hydraulic Cylinder

Features a robust welded design, suitable for heavy-duty applications under harsh conditions.

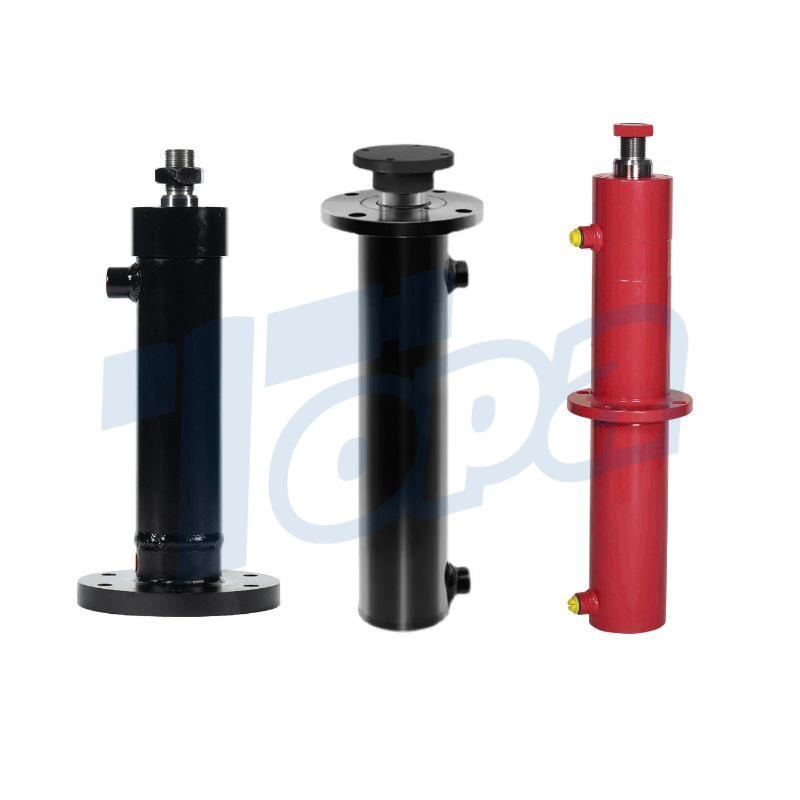

Flange Hydraulic Cylinder

Designed with a flange for mounting, providing stability in operations that involve high side loads.

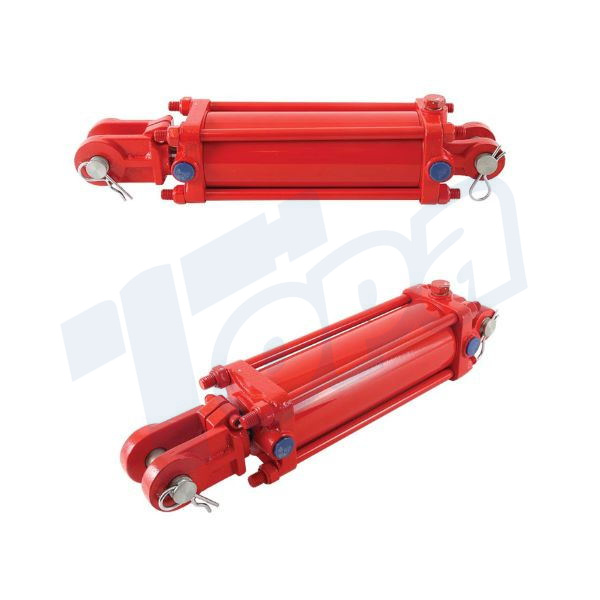

Tractor Hydraulic Cylinder

Customized for agricultural use, these cylinders are built to withstand the rigors of farm.

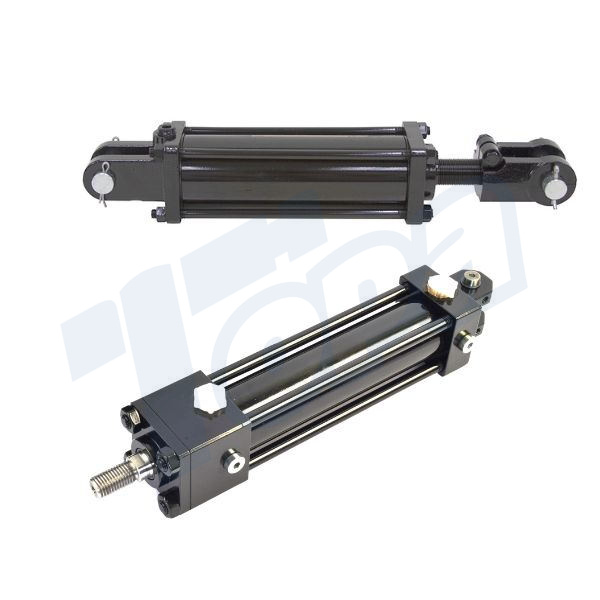

Tie Rod Hydraulic Cylinder

Utilizes external tie rods to secure the end caps, perfect for industrial machinery.

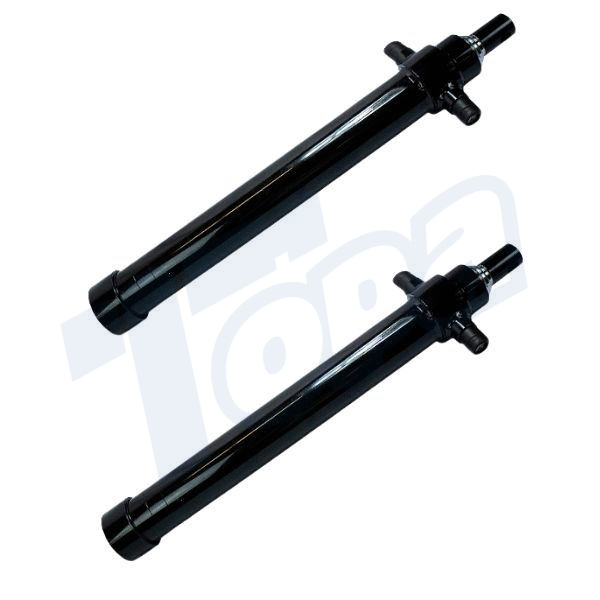

Telescopic Hydraulic Cylinder

Multi-stage units that provide long extension capabilities while maintaining a compact retracted size.

Snow Plow Cylinder

It is designed to remain stable in extremely cold environments, ensuring smooth operation of snow removal equipment.

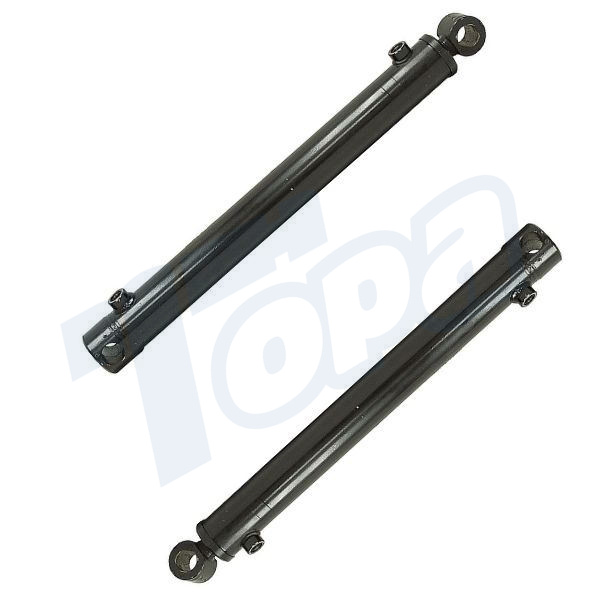

Loader Hydraulic Cylinder

Designed for loader applications, these cylinders offer precise control and strength.

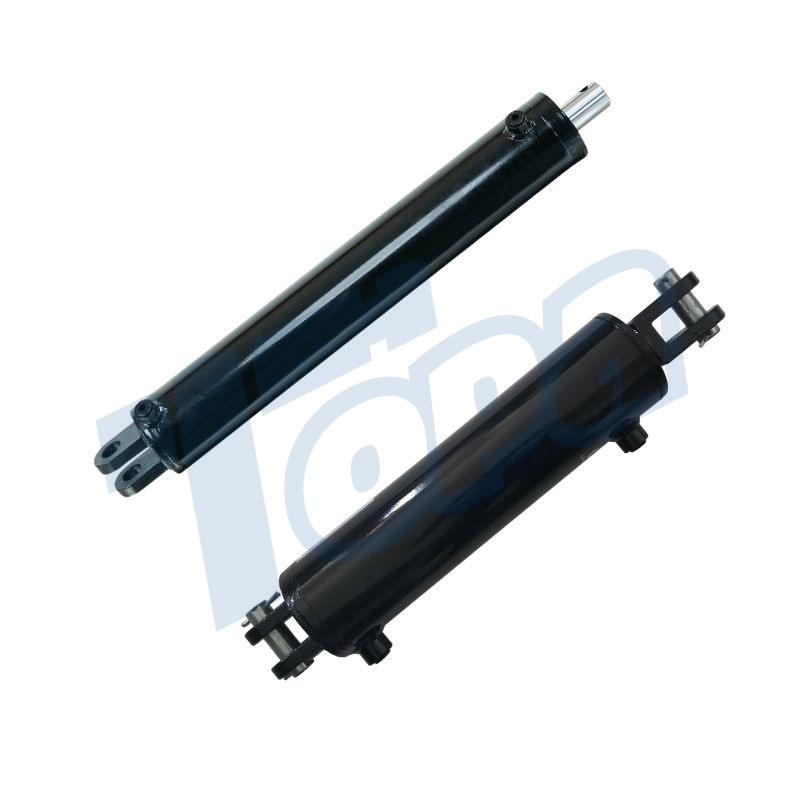

Log Splitter Hydraulic Cylinder

Tailored for log splitters, these cylinders provide the force required to effectively split logs.

HSG Series Hydraulic Cylinder

Part of the HSG series, these cylinders are suitable for a variety of industrial and mobile applications.

Hydraulic Steering Cylinder

These cylinders provide smooth control of vehicle and machine steering mechanisms.

Multi Stage Hydraulic Cylinder

This type of cylinder features multiple stages that extend sequentially, providing a long extension length from a compact retracted state.

Heavy Duty Hydraulic Cylinder

Suitable for high-load applications, these cylinders provide robust performance in challenging environments.

Light Duty Hydraulic Cylinder

These cylinders are for light duty applications, combining performance with a compact design for machinery and equipment where space is limited.

Hydraulic Lifting Cylinder

Designed for lifting operations, these cylinders provide a powerful and stable lifting capacity.

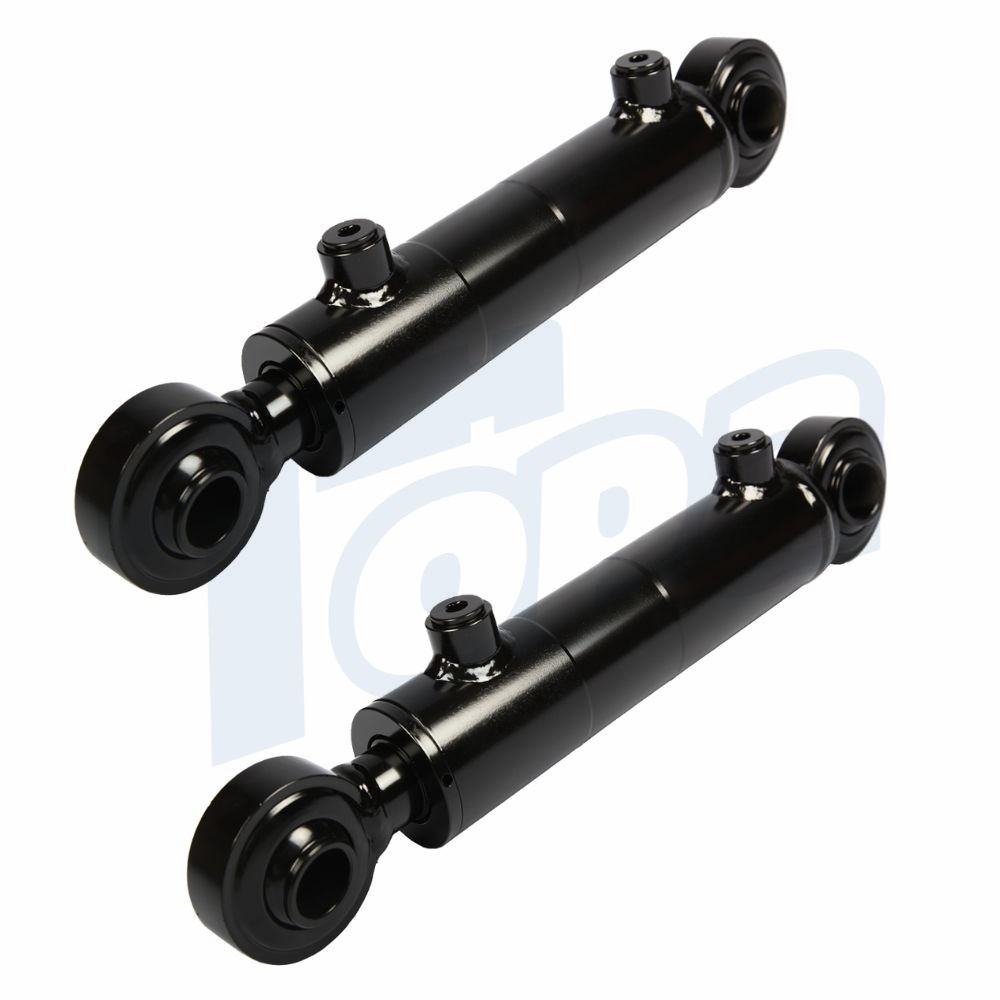

WSE- Welded Swivel Ball Cylinder

Provides a swivel ball end for flexible alignment and reduced stress on the cylinder during operation.

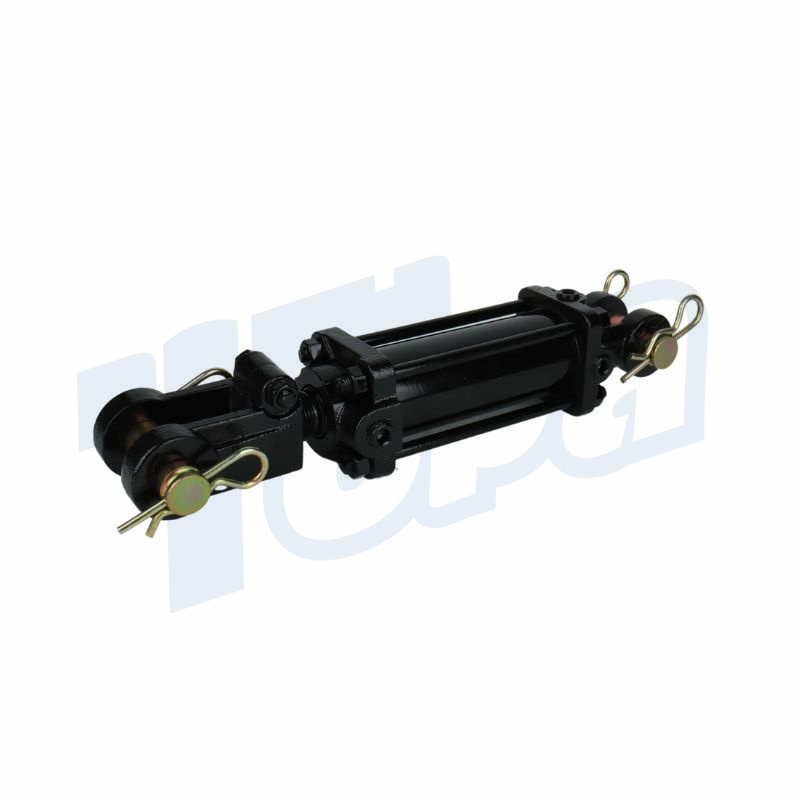

TRH - Tie Rod Hydraulic Cylinder

Known for their reliability in a wide range of industrial and manufacturing environments.

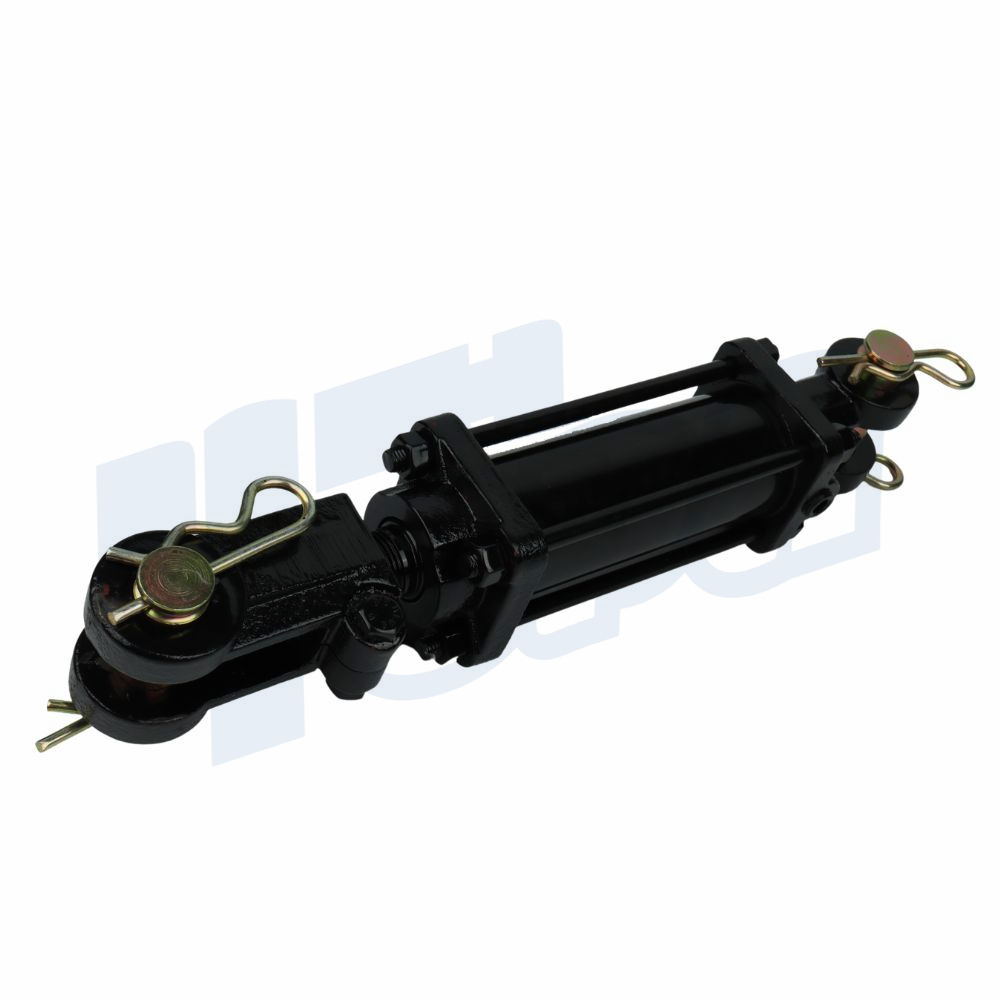

TRL-Tie Rod Hydraulic Cylinder

Designed for lighter loads, reliable performance and easy maintenance.

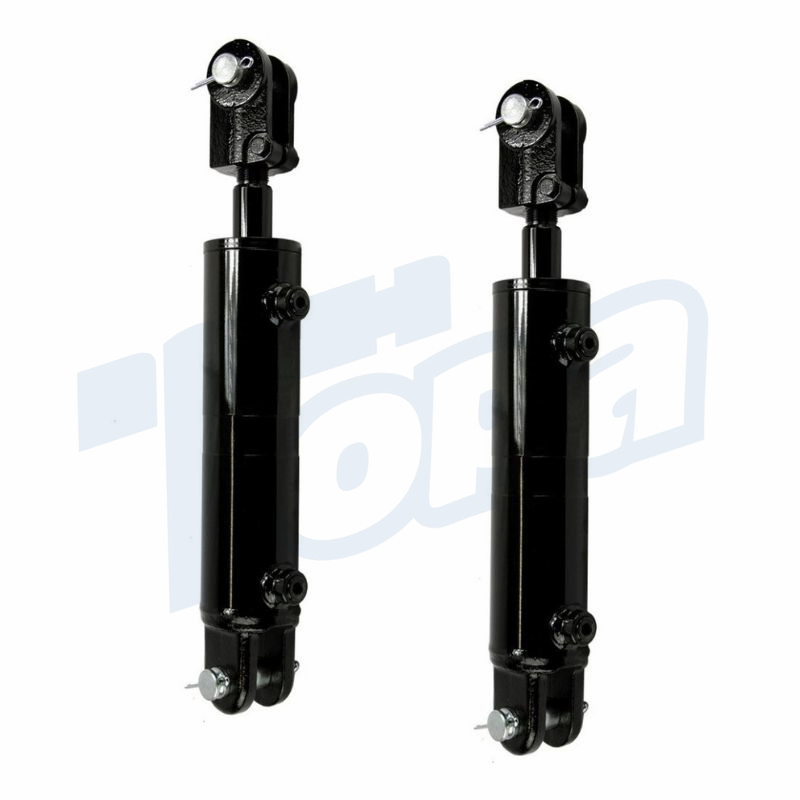

CMH - Weld Clevis Hydraulic Cylinder

With collet ends for pivot mounting to ensure smooth operation in machinery.

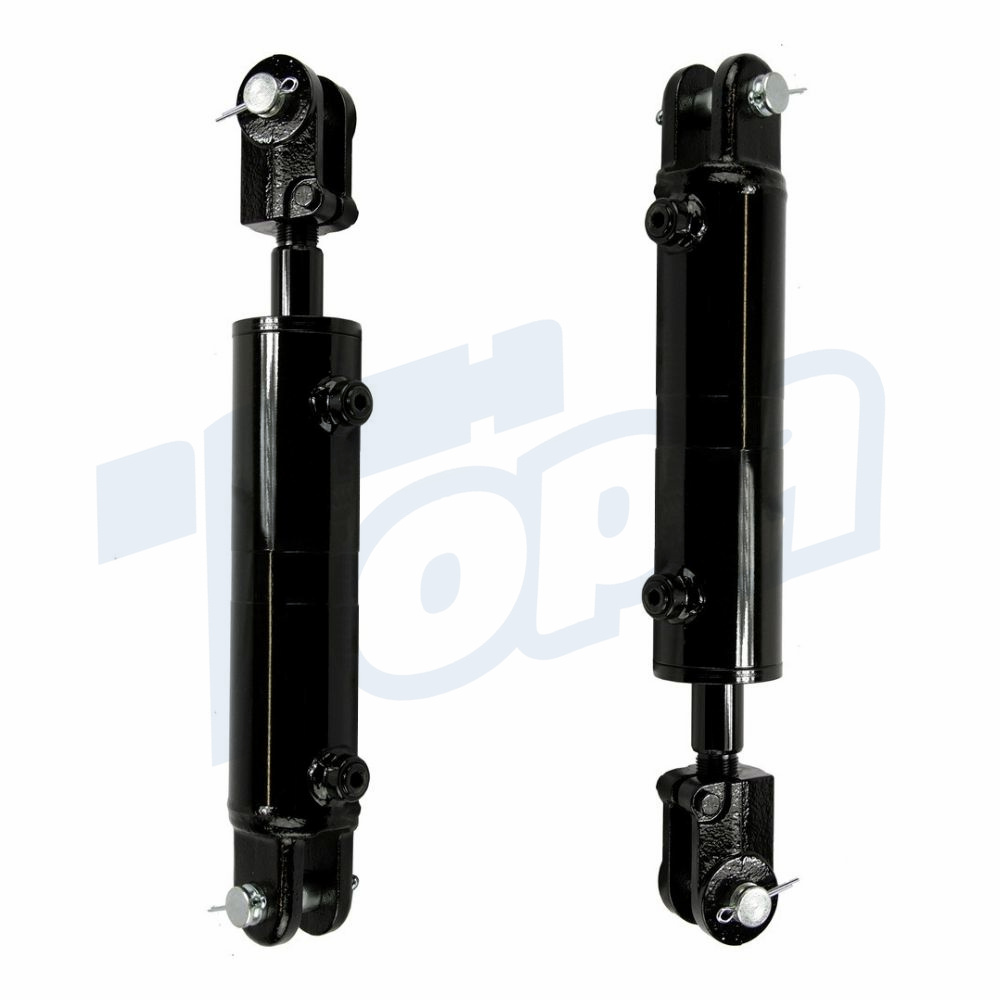

CML - Weld Clevis Hydraulic Cylinder

Featuring a clevis end design for rugged performance in rotary applications.

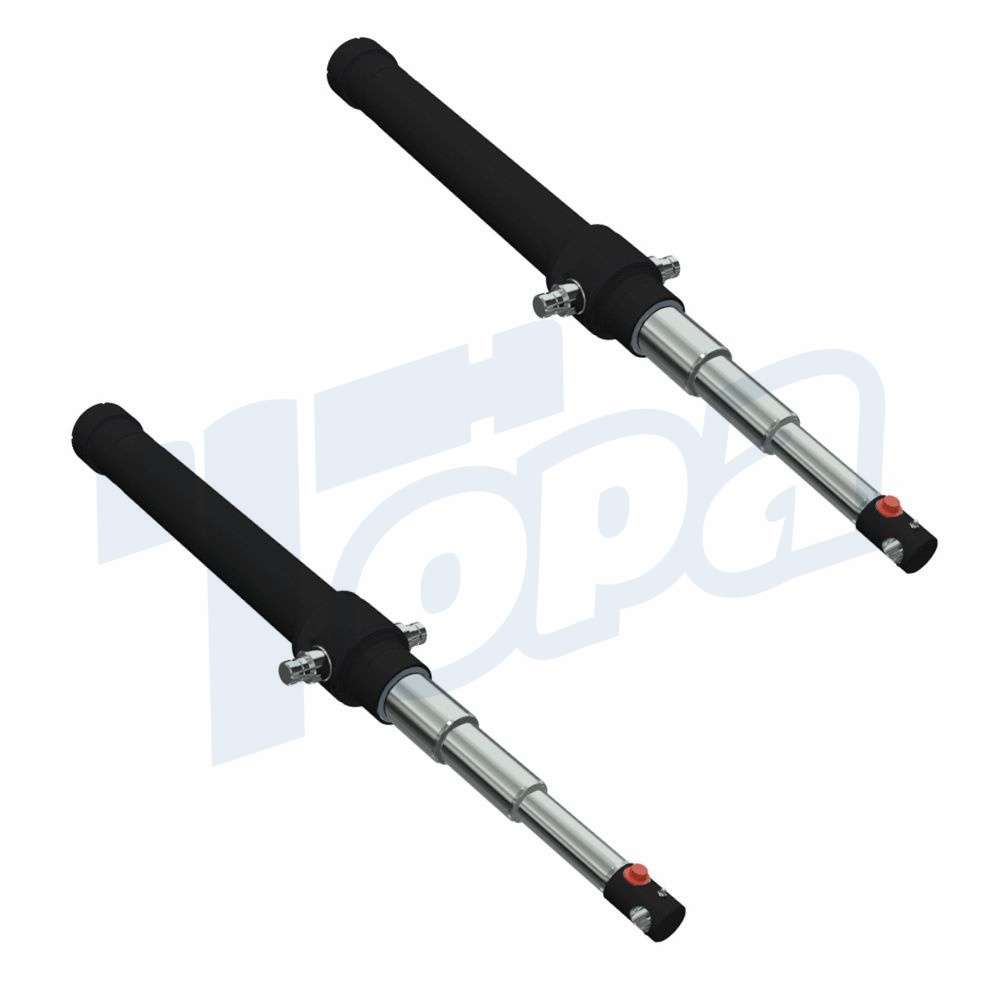

HTC - Telescopic Hydraulic Cylinder

Designed for dump truck applications, they move in a compact telescopic configuration.

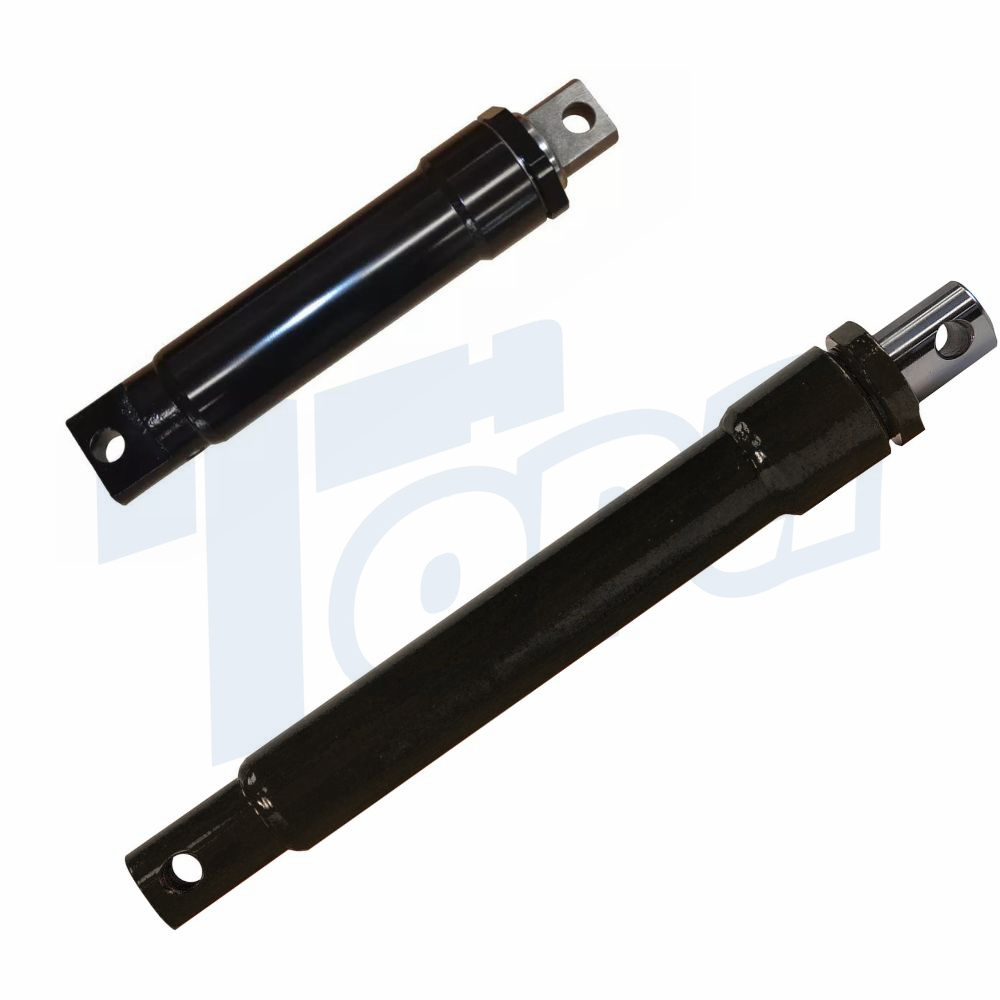

SP - Snow Poly Hydraulic Cylinder

These cylinders are designed for snowplow applications and can operate in cold temperatures.

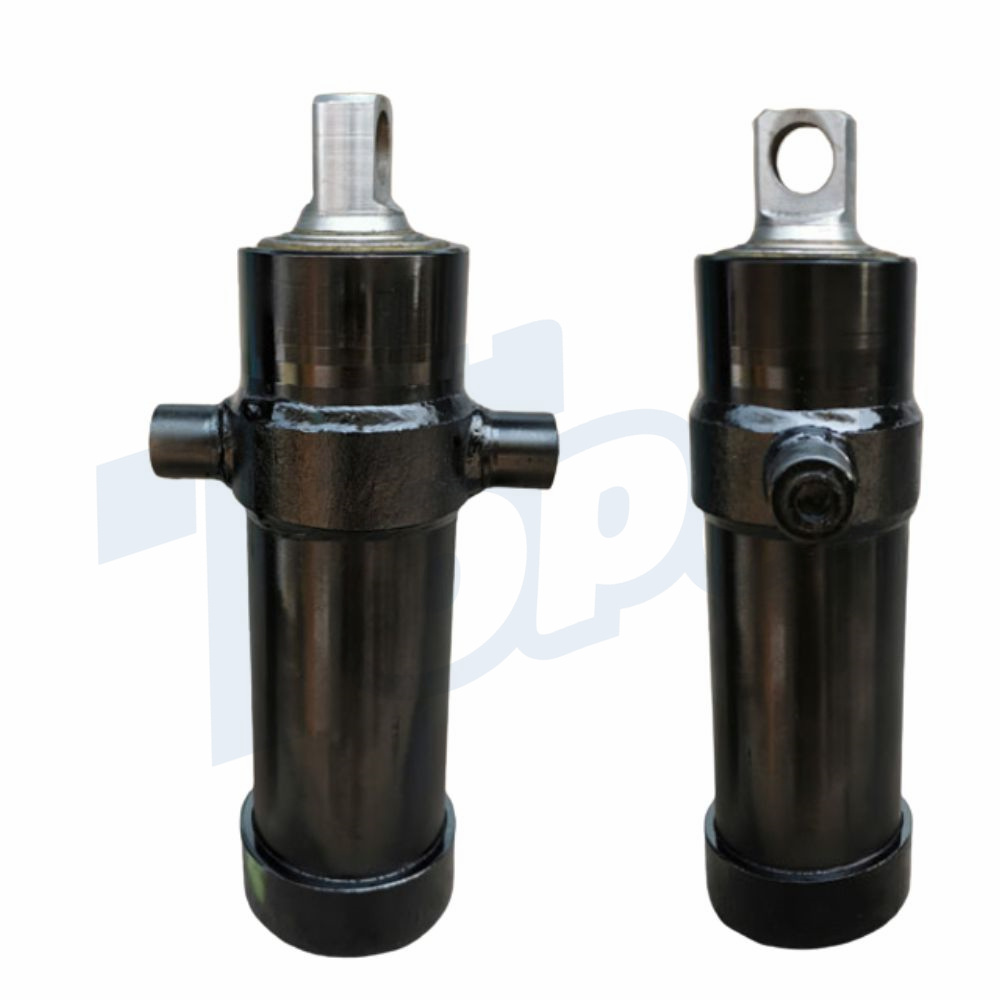

UTC - Hydraulic Tipping Cylinder

Key to tipping body and trailer applications, providing the power to lift and tip heavy loads.

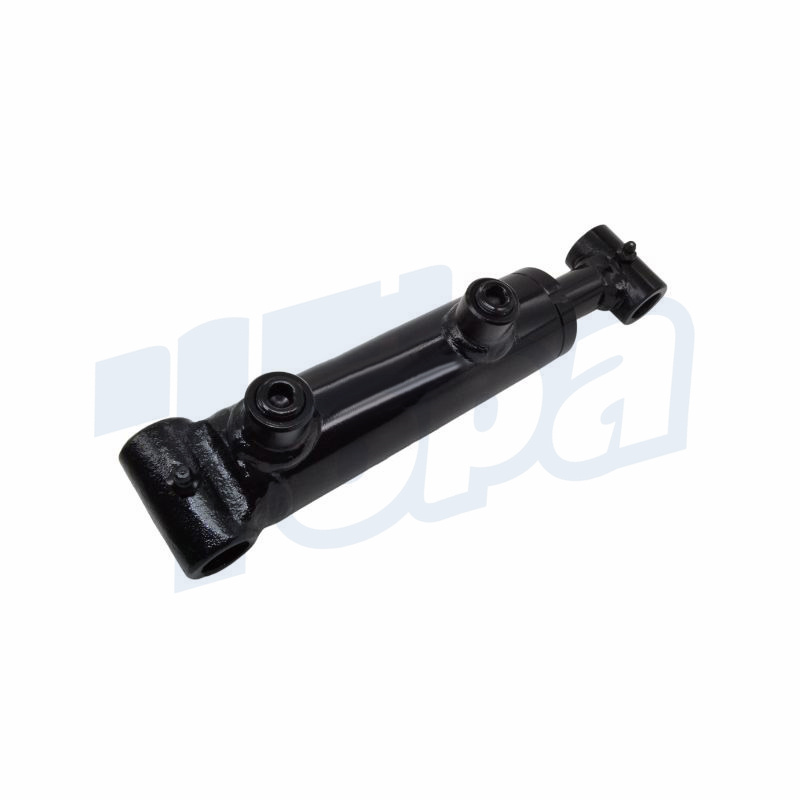

MWH - Mechicaical Welded Cylinder

Designed for the most demanding applications, these cylinders can withstand high loads and pressures.

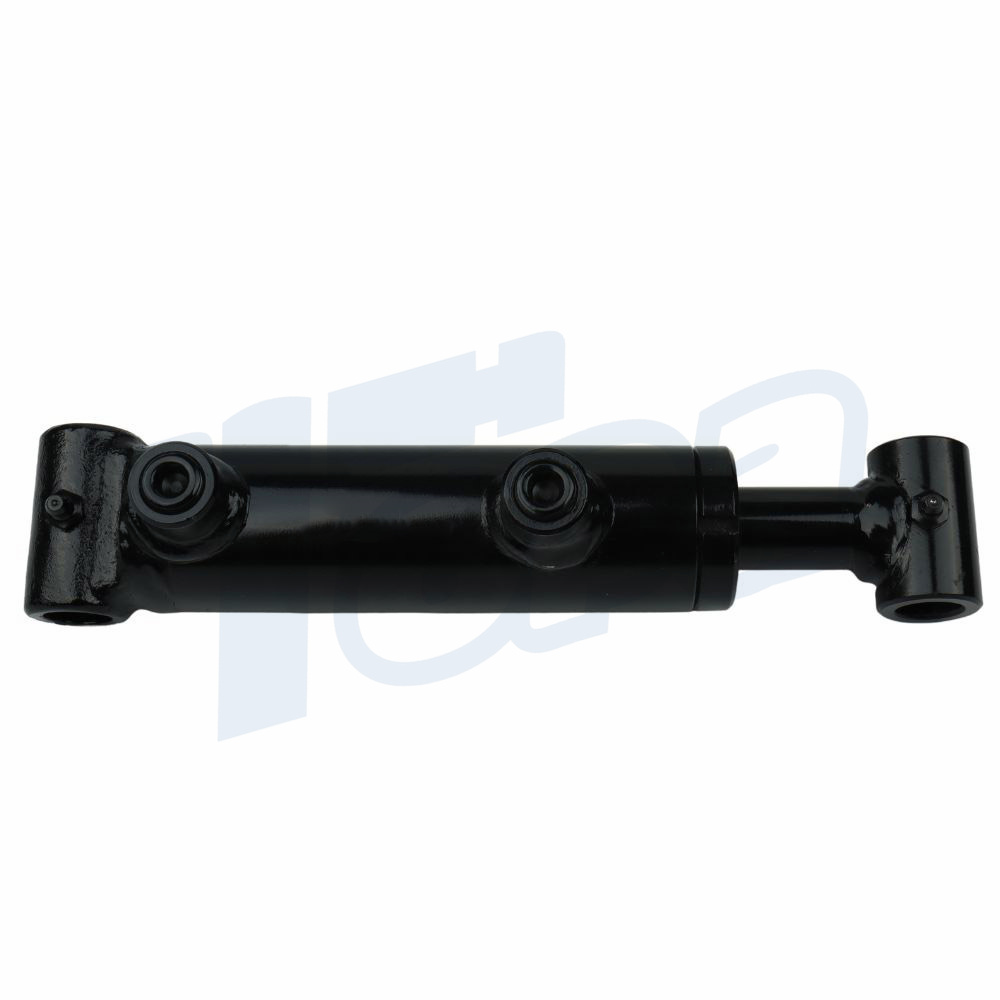

MWL - Mechicaical Welded Cylinder

Combines mechanical and hydraulic functions for versatility in mechanical operations.

Tilt Trailer Hydraulic Cylinder

Specially designed for tilt trailers, this cylinder provides smooth and controlled tilting of the bed.

High Pressure Hydraulic Cylinder

Ideal for demanding applications, this cylinder withstands high pressure.

Hydraulic Cylinder Features

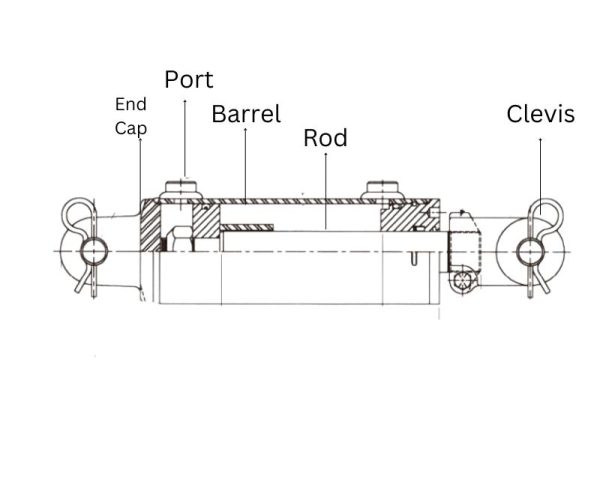

A hydraulic cylinder is a marvel of engineering, consisting of several key components that work in harmony to convert hydraulic energy into mechanical force. At its core, you’ll find a cylinder barrel that houses the piston, a crucial element responsible for the linear movement. The piston rod extends out of the barrel and is the part that usually does the heavy lifting, pushing, or pulling. Seals and wipers ensure that the hydraulic fluid stays where it should, preventing leaks and contamination. Then there’s the cylinder head, which seals the pressure end of the barrel, and the cap that seals the other end. These components are often made from high-strength materials like steel or aluminum, designed to withstand varying pressures and loads.

Hydraulic cylinders are the linchpin of many hydraulic systems, serving a multitude of purposes across different industries. They are primarily used for creating linear motion, which can mean lifting a heavy object, pushing materials in a manufacturing line, or pulling a load. The applications are virtually limitless, ranging from the simple to the complex, and they are often the go-to solution when high force output is required in a controlled manner.

Stroke Range

The stroke range of a hydraulic cylinder refers to the distance the piston can travel within the cylinder barrel. This can vary widely depending on the application and the type of cylinder. Miniature cylinders may have a stroke range of just a few inches, suitable for confined spaces and lighter tasks. Standard industrial cylinders often have a stroke range that can extend up to several feet, providing the necessary reach for more demanding applications. Specialized telescopic cylinders can even achieve extended strokes while maintaining a compact closed length.

Pressure Range

When it comes to pressure, hydraulic cylinders are designed to operate within a specific range, which is usually indicated by the manufacturer. Low-pressure cylinders are suitable for less demanding applications and typically operate around 500 PSI. High-pressure cylinders, on the other hand, are built for heavy-duty tasks and can withstand pressures up to 5,000 PSI or more. The pressure range is a critical factor in determining the cylinder’s suitability for a particular application, as exceeding the recommended pressure can lead to premature wear and even catastrophic failure.

Applications

Construction Industry

Excavators: Hydraulic cylinders enable the arm movements and bucket operations, allowing for efficient digging and material handling.

Bulldozers: The blade and ripper of a bulldozer are controlled by hydraulic cylinders, providing the force needed for leveling ground or breaking hard surfaces.

Cranes: Lifting and lowering heavy loads are made possible through hydraulic cylinders, offering precise control and stability.

Manufacturing Sector

Pressing Machines: Hydraulic cylinders generate the force required for metal forming, plastic molding, and other pressing applications.

Conveyor Systems: They assist in lifting and moving materials along production lines, ensuring smooth workflow.

Robotic Arms: In automated manufacturing, hydraulic cylinders offer the range and precision for tasks like welding, painting, and assembly.

Agricultural Machinery

Tractors: Hydraulic cylinders are used in attachments like plows and loaders, aiding in tasks such as tilling and lifting.

Harvesters: They facilitate the cutting and gathering of crops, making the harvesting process more efficient.

Sprayers: Hydraulic cylinders help in adjusting the height and angle of spraying booms for optimal coverage.

About Us

Company feature

In the dynamic landscape of hydraulic systems and components, Topa stands as a beacon of quality, innovation, and reliability. With our roots firmly planted in China, we have carved a niche for ourselves as a premier manufacturer of hydraulic cylinders, offering an unparalleled blend of quality and affordability. Our journey in this specialized sector has been marked by a relentless pursuit of engineering excellence, a trait that resonates in every hydraulic cylinder that rolls off our production lines.

Why Choose Topa?

The answer is simple: We offer a superior cost-performance ratio that is second to none. Our hydraulic cylinders are not just products; they are engineered solutions designed to meet the most demanding industrial challenges. Manufactured under stringent quality controls, each cylinder undergoes rigorous testing to ensure it meets or exceeds industry standards. This commitment to quality is not just a company policy; it’s a promise to our clients, who range from seasoned salespeople to zero-sales merchants in the hydraulic industry.

Our Team

Our strength lies in our skilled professionals who bring a wealth of experience and expertise to the table. This dedicated workforce is the backbone of our operations, ensuring that every hydraulic cylinder we produce is a testament to craftsmanship and engineering prowess.

Our Capabilities

We pride ourselves on our state-of-the-art manufacturing facilities that enable us to produce a wide range of hydraulic cylinders, each tailored to specific applications and industries. Whether you require low-pressure cylinders for light-duty tasks or high-pressure variants for heavy-duty applications, Topa Hydraulic has you covered. Our cylinders come in various sizes and pressure ranges, offering flexibility and customization that few can match.

Global Reach

Our hydraulic cylinders are not confined to any geographical boundaries. We have a diverse clientele that spans the United States, Canada, Australia, Afghanistan, Algeria, the United Kingdom, Germany, France, India, Indonesia, Thailand, South Korea, and beyond. This global footprint is a testament to the trust and confidence that clients place in our products.

One-Stop Solutions

At Topa, we go beyond merely supplying hydraulic cylinders. We offer one-stop solutions that cover everything from consultation and design to manufacturing and after-sales support. Our aim is to simplify your hydraulic cylinder procurement process, making it as seamless and hassle-free as possible.

Future-Ready

As we look to the future, our focus remains on innovation and sustainability. We are continually investing in research and development to bring you hydraulic cylinders that are not just in line with current industry standards but are also future-ready.

Choosing Topa means opting for a partner who understands your needs, shares your vision, and is committed to delivering hydraulic cylinders that are nothing short of exceptional. We invite you to experience the Topa difference, where quality meets affordability, and customer satisfaction is not just a goal but a guarantee.

Welcome To Order

Hydraulic Cylinders Manufacturing Process

Topa Custom Hydraulic Cylinder Services

At Topa, customization begins with a thorough understanding of your specific needs. Whether you’re a seasoned salesperson in the hydraulic industry or a zero-sales merchant looking for the perfect component, we take the time to understand your application, pressure requirements, and operational challenges. Our team of experts engages in detailed consultations to ensure that we grasp the nuances of your project.

Once we have a comprehensive understanding of your needs, our skilled engineers get to work. We design hydraulic cylinders that are tailor-made for your application. Every design aspect, from the choice of materials to the dimensions and pressure ratings, is meticulously planned to ensure optimal performance.

We understand that different applications require different materials. Whether you need corrosion-resistant stainless steel for marine applications or lightweight aluminum for mobile machinery, we’ve got you covered.

Our state-of-the-art manufacturing facilities are equipped to handle custom orders of any scale. Advanced CNC machines, welding stations, and assembly lines ensure that each custom hydraulic cylinder is built to the highest standards of quality and precision.

Our relationship doesn’t end with the delivery of your custom hydraulic cylinders. We offer comprehensive after-sales services, to ensure your cylinders continue to operate at peak performance.

Why Choose Us

Comprehensive Types

Topa has a complete range of hydraulic cylinders and we also offer a customized service!

A lot of Discount

The larger the quantity, the lower the price if you need to order cylinders.

Best Services

Topa offers the best shopping service and can guarantee every customer's shopping experience!

24/7 Support

The larger the quantity, the lower the price if you need to order cylinders.

Production Process

Requirement Analysis

Before any manufacturing process begins, the first step is to analyze the requirements. This includes understanding the application needs, pressure ranges, dimensions, and any other specific requirements from the client.

Material Selection

The next step is selecting the appropriate materials for the cylinder. This could range from high-strength steel to corrosion-resistant alloys, depending on the application.

Cutting and Shaping

After material selection, the raw materials are cut and shaped according to the design specifications. This is usually done using CNC machines for high precision.

Welding and Assembly

The cut pieces are then welded together to form the main body of the cylinder. The piston, seals, and other internal components are assembled at this stage.

Surface Treatment

To enhance durability and corrosion resistance, the assembled cylinder may undergo various surface treatments like coating or plating.

Quality Control

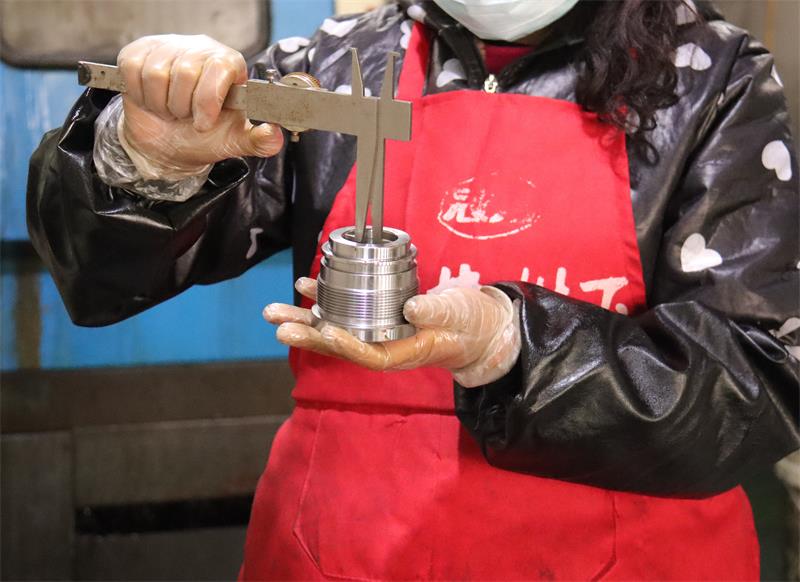

Dimensional Checks

As components are produced, dimensional checks are carried out to ensure that each part conforms to the design specifications. This involves measuring the dimensions of the cylinder barrel, piston, and other components to ensure they meet the tolerances outlined in the design.

Welding Inspection

For welded components, the quality of the welds is inspected both visually and, if necessary, through non-destructive testing methods like ultrasonic testing. This ensures that the welds are strong and free from defects.

Surface Finish Inspection

The surface finish of the internal and external components is inspected to ensure it meets the required smoothness and coating specifications. This is crucial for both the performance and longevity of the hydraulic cylinder.

Pressure Testing

Each hydraulic cylinder undergoes pressure tests to ensure it can withstand the operational pressures it will encounter. This involves filling the cylinder with hydraulic fluid and subjecting it to pressures that may exceed its normal operating range to test for any weaknesses or leaks.

Leak Testing

In addition to pressure testing, leak tests are performed to ensure that all seals are functioning correctly and that there are no leaks in the hydraulic system. This is often done using air or hydraulic fluid under pressure and checking for any signs of leakage.

Other Products

In addition to hydraulic cylinders, we also offer a wide range of ancillary products such as hydraulic fittings, hoses, and ferrules. If you have other needs, please click to view, or contact us, we will serve you as soon as possible!

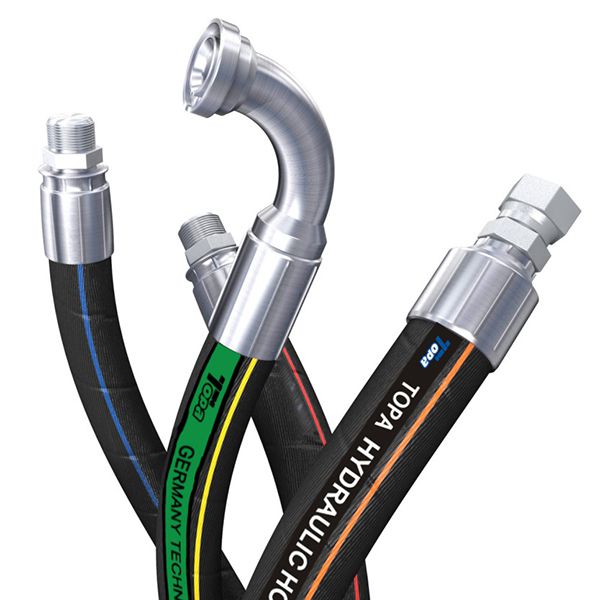

Hydraulic Hoses

Topa offers hydraulic hoses in a wide range of materials for use in different hydraulic environments.

Hydraulic Fittings

Looking for matching hydraulic fittings, click on the image to pick the hydraulic product you need!

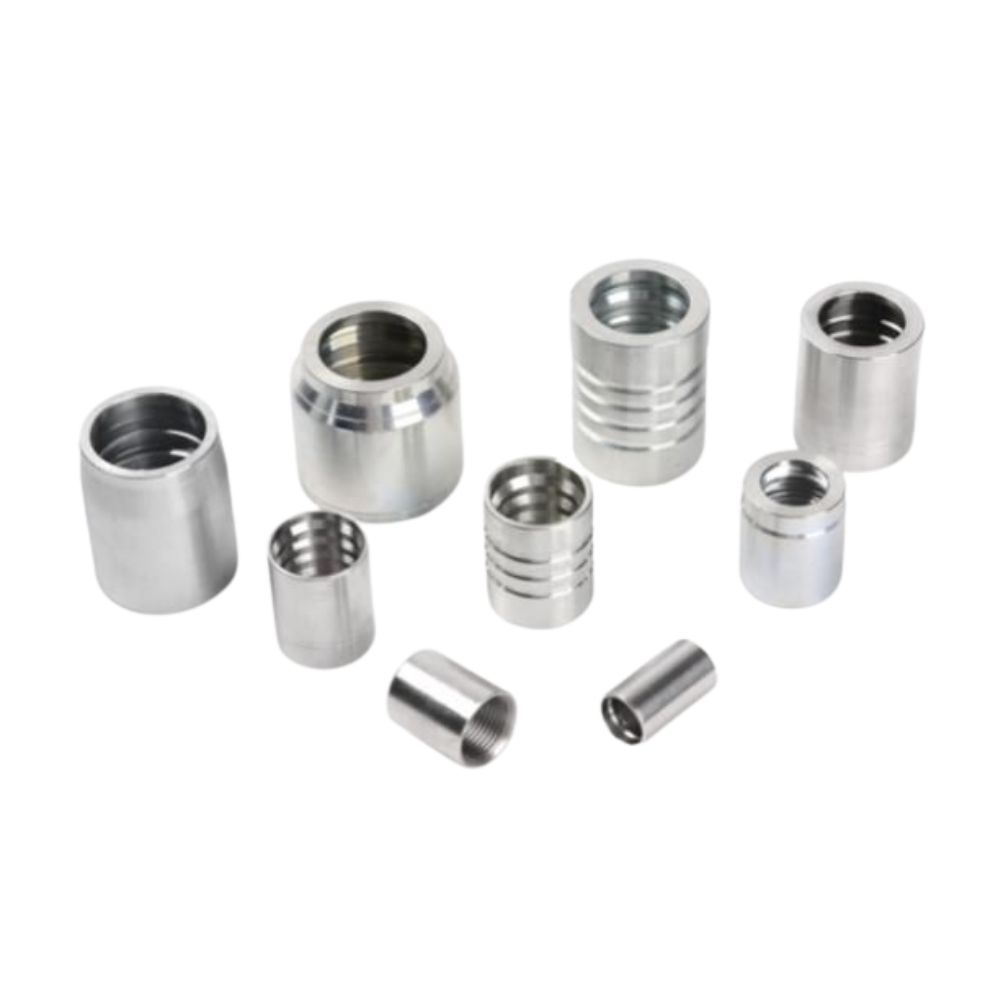

Hydraulic Ferrules

Different hydraulic fittings and hoses require different standard ferrules, click to find the corresponding products!

FAQ

What is a hydraulic cylinder?

A hydraulic cylinder is a mechanical actuator that provides unidirectional force through unidirectional stroke. It’s widely used in various applications, from construction equipment to manufacturing machinery, offering a high cost-performance ratio.

How do Hydraulic cylinders work?

Hydraulic cylinders operate on the principle of pressurized fluid force. When hydraulic fluid is pumped into the cylinder, it pushes the piston, which in turn moves the rod to perform work. The efficiency and power are unparalleled, making it a go-to choice for heavy-duty tasks.

What are the different types of hydraulic cylinders?

The most common types are tie-rod, welded, telescopic, and mill-type cylinders. Each type has its own set of advantages and is suited for specific applications, ensuring you get the most value for your investment.

Are hydraulic cylinders interchangeable?

While some components may be interchangeable, it’s crucial to consult the manufacturer’s specifications to ensure compatibility, thereby avoiding any compromise in performance and safety.

How do I maintain a hydraulic cylinder?

Regular inspection, lubrication, and seal replacement are key. Proper maintenance not only extends the lifespan of the cylinder but also ensures optimal performance, saving you money in the long run.

What are the common causes of hydraulic cylinder failure?

Seal leakage, rod bending, and internal corrosion are some common issues. Being proactive in maintenance can help you avoid costly downtime and repairs.

Can hydraulic cylinders be repaired?

Yes, most hydraulic cylinders can be repaired or reconditioned, offering a cost-effective alternative to replacement. Always consult professionals for accurate diagnosis and repair.

What is the typical lifespan of a hydraulic cylinder?

With proper maintenance, a quality hydraulic cylinder can last up to 10 years or more. Investing in a high-quality cylinder initially can offer a higher cost-performance ratio over time.

How do I choose the right hydraulic cylinder for my application?

Consider factors like load capacity, stroke length, operating pressure, and mounting options. Understanding your specific needs will help you select a cylinder that offers both affordability and quality.

Where can I purchase high-quality hydraulic cylinders?

At Topa, we offer a wide range of hydraulic cylinders designed to meet various application needs. Our products are competitively priced and manufactured in China, ensuring you get the best value for your money.
