Hydraulic Tee Manufacturer in China

❖   Leak-free
❖   Versatile
❖   Corrosion-resistant
❖   Long service life

Product List

A hydraulic tee is a T-shaped fitting, which can connect three components to allow the fluid to pass freely within it. Hydraulic tee fitting is made of metal, which can be used in high-pressure environments to connect different hydraulic pipelines and allow the fluid to pass through in a relatively smooth manner. There are several types of hydraulic tee: equal tee, branch tee, run tee, and reducing tee. These types of tee fitting all have JIC, BSP, metric, ORFS, and NPT threads. Some tee has the same threads for all three, while some have different threads. Contact Topa to select the most suitable hydraulic tee fitting!

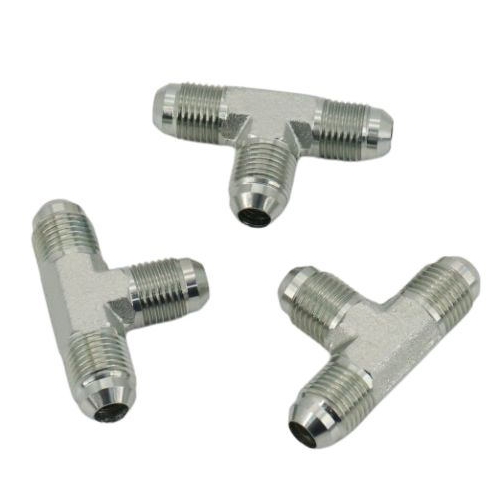

JIC Hydraulic Tee

JIC hydraulic tees, hydraulic tee tube adapter, hydraulic tee pipe fitting.

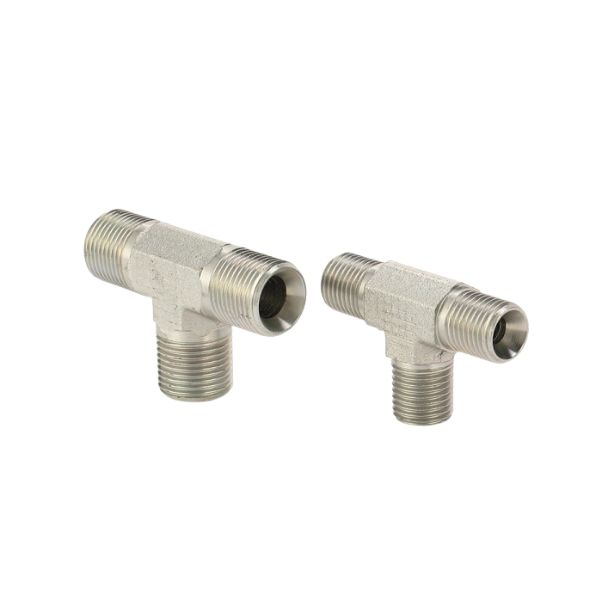

BSP Hydraulic Tee

BSP hydraulic tees, BSP male and female 60° cone tee hydraulic adapter.

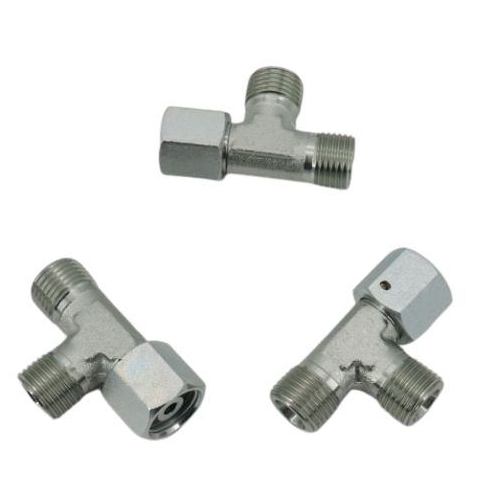

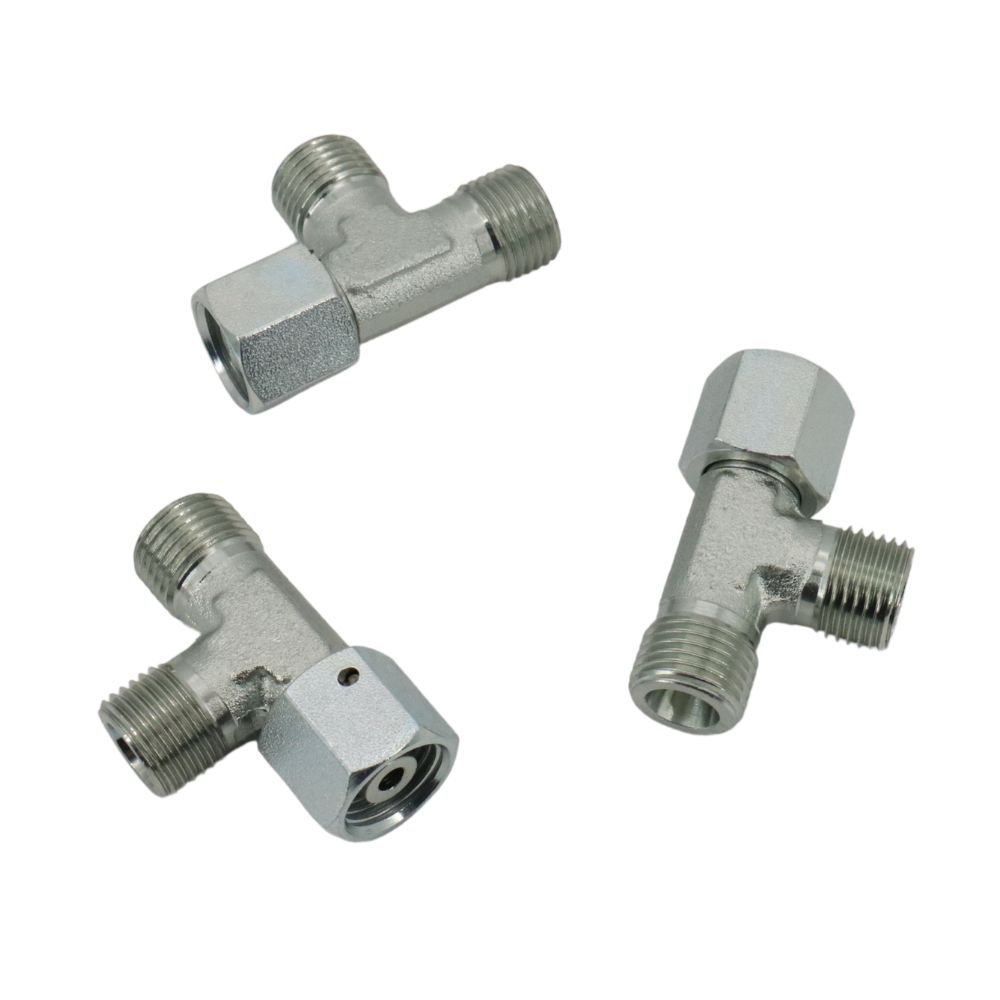

Metric Hydraulic Tee

Metric hydraulic tees, tees metric thread hydraulic adapter.

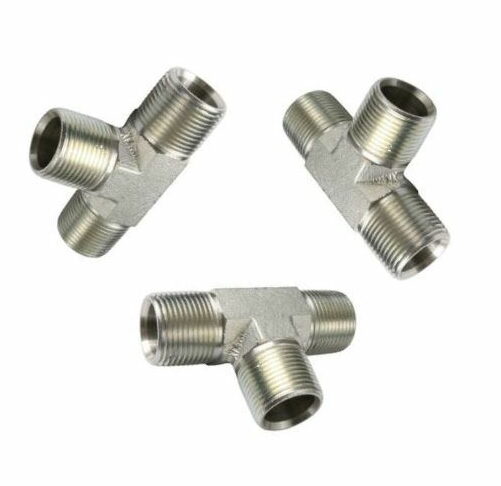

NPT Hydraulic Tee

NPT hydraulic tees, NPT male tee 3-way pipe fitting.

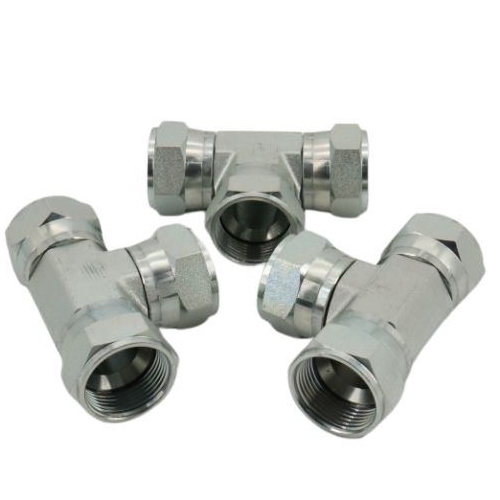

Female Hydraulic Tee

Female hydraulic tees, hydraulic tee threaded adapter, female connector.

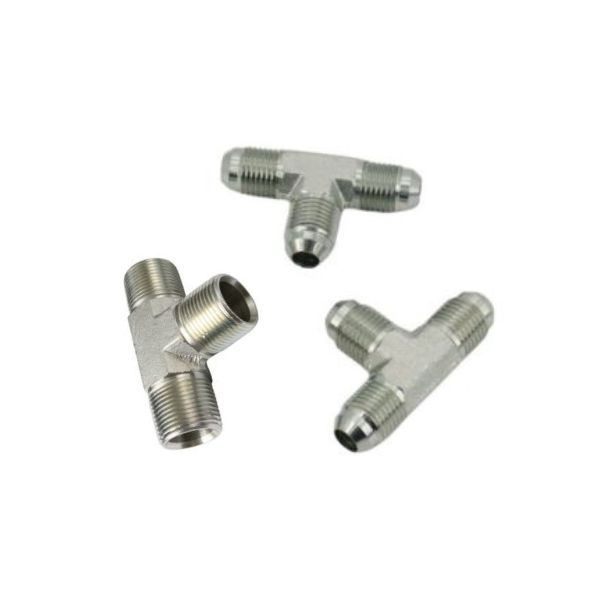

Male Hydraulic Tee

Male hydraulic tees, hydraulic tee threaded adapter, male connector.

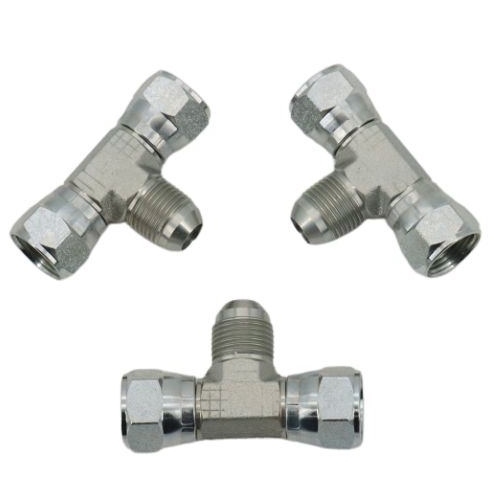

Male to Female Hydraulic Tee

Male to Female hydraulic tees, male to female thread hydraulic tee adapter.

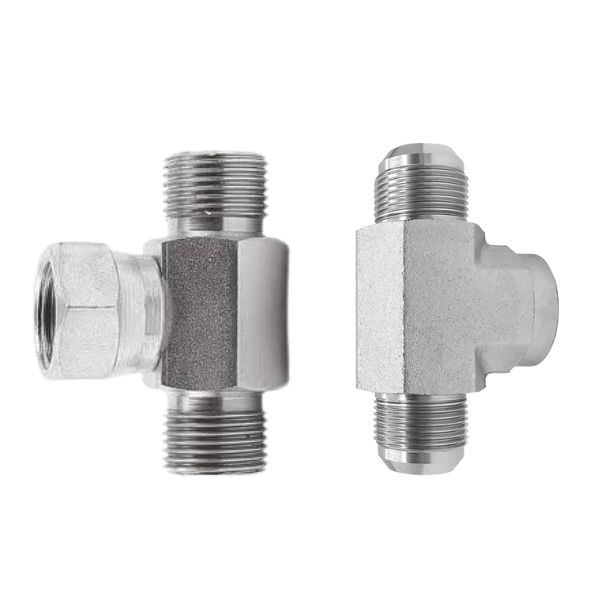

Branch Hydraulic Tee

Branch hydraulic tees, hydraulic tees adapter.

Run Hydraulic Tee

Run hydraulic tees, with male, and female threads. Available in many different materials.

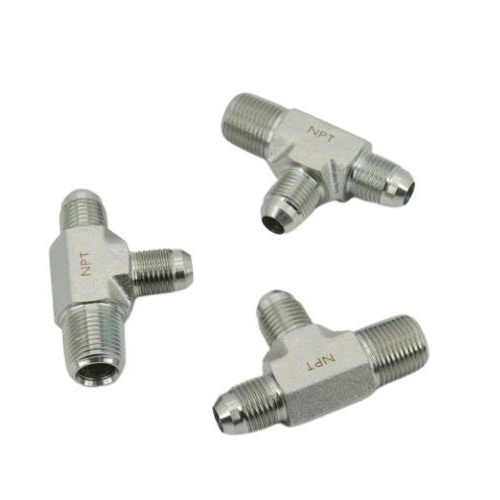

JIC to NTP Hydraulic Tee

JIC to NTP hydraulic tees, JIC to NTP hydraulic hose tee fitting, tee adapters.

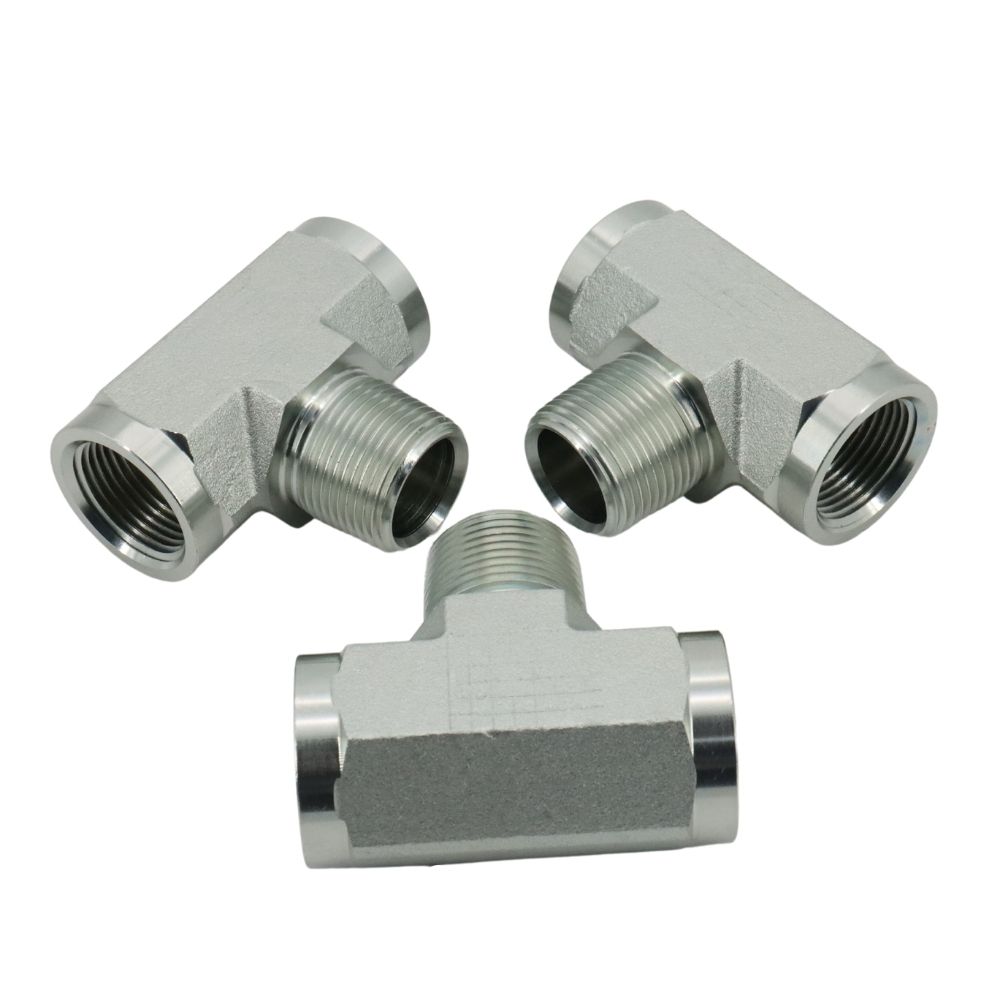

NPTF Hydraulic Tee

NPTF hydraulic tees, NPTF hydraulic hose tees.

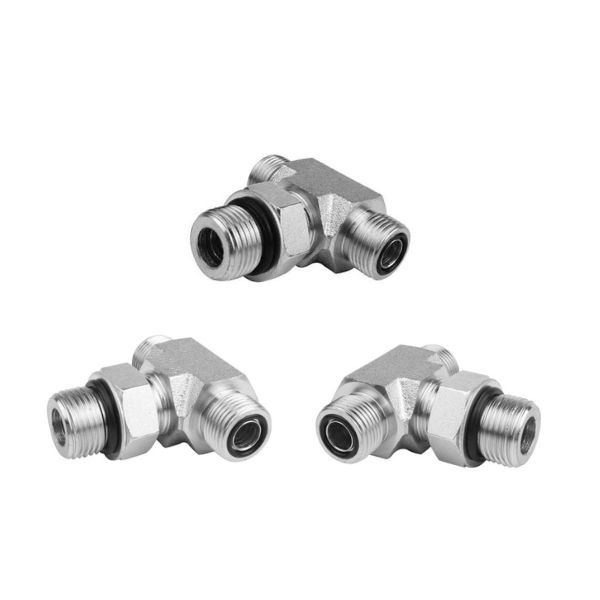

ORFS Hydraulic Tee

With an o-ring face, ORFS hydraulic tees create a strong seal to prevent leakage.

Hydraulic Tee Adapter Video

This section displays multiple types of Tee Hydraulic Adaptors in real usage. Watch how they’re assembled and applied in different systems. See the difference between swivel and fixed types, thread variations, and sizes. We also highlight common thread variations—BSP, JIC, NPT, ORFS—so you can visually confirm how each thread connects.

Click and watch now — understand the product better before buying. Visual proof builds your confidence!

Application

Due to its good sealing, simple operation, corrosion resistance, and high-pressure resistance, the hydraulic tee is widely used in many applications. Industries such as chemical, food processing, shipbuilding, oil and gas, construction, and agriculture all use hydraulic tee fittings as connection fittings.

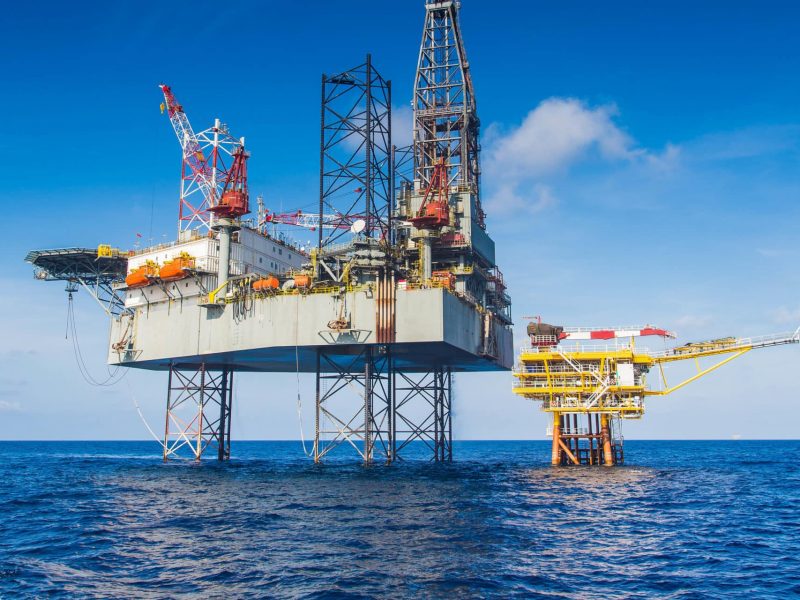

hydraulic tee fitting marine application

Marine

Hydraulic tee fittings are commonly used in hydraulic systems to split the flow of hydraulic fluid in multiple directions. Topa hydraulic tee fitting can be applied in marine applications and can provides a strong seal.

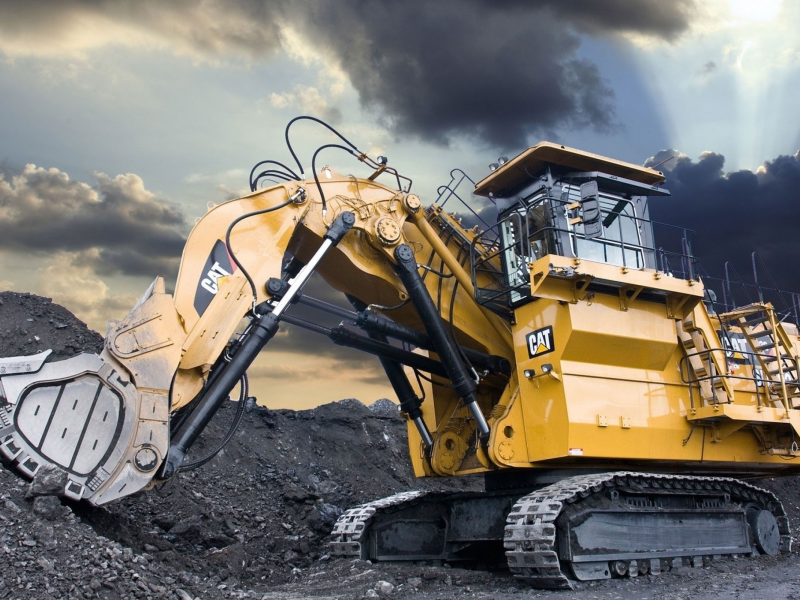

tee hydraulic fitting mining supplier

Mining

Topa tee fitting can play an essential role in mining systems. Hydraulic tee fittings are essential components in hydraulic systems that allow for efficient and effective distribution of hydraulic fluid to different components.

hydraulic fitting factory used in Production and Manufacturing applications

Industry

Hydraulic fluid enters through the tee inlet and can be distributed through the outlet to two different hydraulic components. Industrial applications want tee fittings to keep machines running.

Get a Custom Quote Today!

Unlock tailored solutions for your hydraulic needs! Fill out our form, and one of our experts will reach out to provide a personalized quote within 24 hours.

Hydraulic Tee Adapter Features

Connection Types

Standard Thread Options

BSP / BSPT: British Standard parallel or tapered

JIC: 37° flare metal seal

NPT / NPTF: American National Pipe Tapered

ORFS: O-ring Face Seal

Metric / UNF / SAE: Available upon request

Mixed Connections

  • Custom combinations supported, such as two JIC male ends with one NPT female port
  • Swivel End Option
  • Prevents hose twisting during installation
  • Extends hose service life and improves maintenance convenience
hydraulic tee adapter types
Tee Hydraulic Hose Adapter

Component Structure

 T-Shaped Design

  • Composed of three ports forming a “T” shape

  • Two Run Ports: Connect to the main hydraulic line for fluid input and output

  • One Branch Port: Used for fluid diversion or connection to auxiliary equipment

Connection Types

  • Available with a mix of male and female thread configurations

  • Female ports can be fixed or swivel-type to suit installation requirements

Sealing Methods

  • Depends on thread type; supports O-ring, metal-to-metal cone seal (JIC 37°), or flat-face O-ring seal (ORFS)

Materials

🔩 Carbon Steel (Zinc-Plated)

This is the most widely used material in industrial hydraulic systems. Carbon steel offers high strength, impact resistance, and cost-efficiency. The surface is zinc-plated to improve corrosion resistance.

Silver zinc plating – General protection for indoor or low-exposure systems

Yellow trivalent zinc plating – Enhanced protection with aesthetic visibility

🛡️ Stainless Steel (304 / 316 Grades)

304 Stainless Steel – Good corrosion resistance and cost-effective for general corrosive applications

316 Stainless Steel – Superior protection, especially in saltwater, acidic, or chlorinated environments

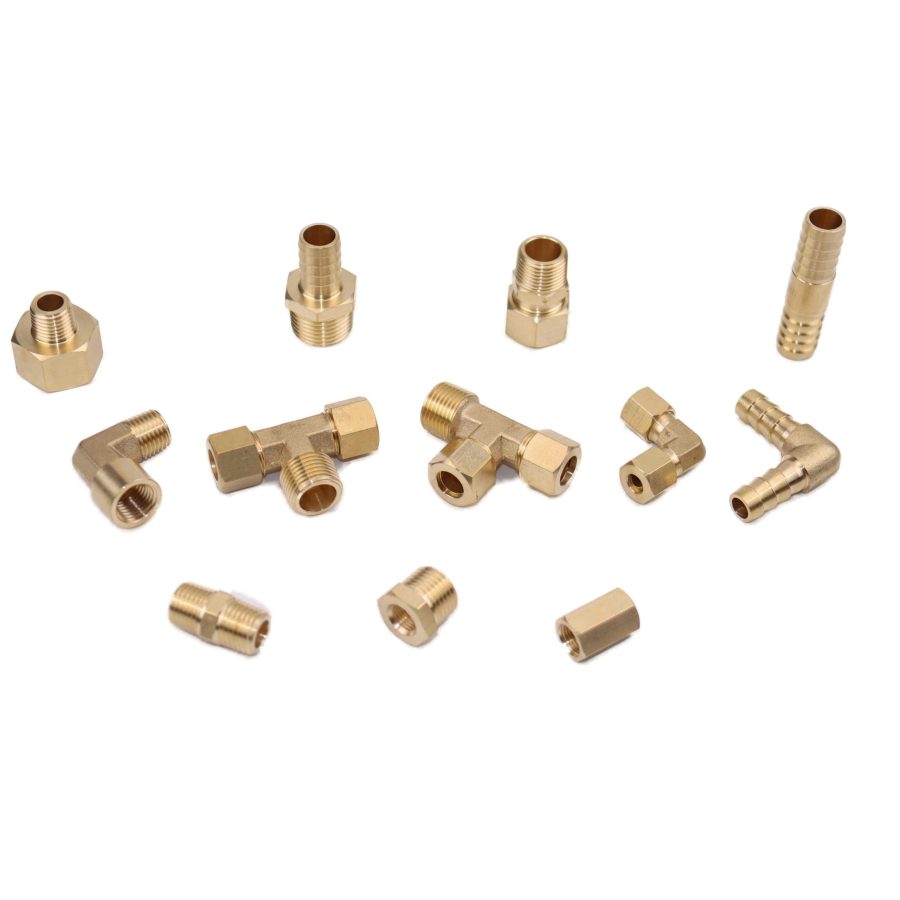

🟡 Brass

Brass offers excellent machinability, is naturally corrosion-resistant in fresh water, and is ideal for applications where frequent disassembly or field replacement is required.

hydraulic tee adapter material

Working Principle – How a Hydraulic Tee Adapter Functions

A hydraulic tee adapter serves as a critical junction point in fluid power systems. It features a T-shaped design with three openings: two aligned on a straight axis (run ports) and one branch port that intersects perpendicularly. Here’s how it works:

When hydraulic fluid enters the adapter from one run port, the internal passage directs the fluid in two possible directions—continuing through the second run port or diverting it through the branch port.

In practical systems, the tee fitting makes it possible to:

  • Share a main hydraulic line between two downstream components
  • Monitor pressure by connecting a sensor to the branch
  • Supply fluid to auxiliary tools or actuators from a single feed line
hydraulic tee adapter flow
hydraulic tee adapter connection

🔄 Flow Division

Tee adapters are commonly used to split hydraulic flow into two separate lines. For example, from one pump output, you can supply two hydraulic cylinders operating in tandem or independently. This ensures simultaneous operation or provides redundancy in system design.

🔁 Flow Collection

In reverse applications, tee adapters combine flows from two separate sources into one line. This can be useful for systems with dual pumps feeding a common return line or for synchronized hydraulic movements.

🔧 Adaptation

Tee fittings are not limited to fluid routing. They also serve as transition points between different thread types or sizes. For example, a branch port may have a smaller thread size for pressure gauges or different sealing type (e.g., JIC to NPT), allowing system customization without compromising flow integrity.

Working Pressure: Up to 6000 PSI (414 bar)

Topa tee adapters are rated for high-pressure hydraulic systems, with most standard carbon steel models supporting working pressures up to 6000 PSI, depending on size, thread type, and configuration.

Temperature Range: -40°C to +120°C

Minimum: -40°C (-40°F) – Suitable for outdoor, winter, or refrigeration-related environments

Maximum: +120°C (248°F) – Compatible with high-temperature fluid circuits, such as engine-driven hydraulic pumps or brake systems

Corrosion Resistance: 96+ Hours Salt Spray Tested

All Topa tee fittings undergo surface treatment to resist corrosion in harsh or humid environments. We conduct neutral salt spray tests (NSS) in accordance with ASTM B117 or ISO 9227, with results exceeding 96 hours of protection on.

hydraulic tee adapter storage

Hydraulic Tee Adapter Types

Fixed Tee Adapter VS Swivel Tee Adapter

What Is a Fixed Tee Adapter?

Fixed Tee Adapters feature female ends that do not rotate. Once installed, the fitting stays in a fixed position. These are typically used where:

The hose or tube does not need to move after the connection

The operator has sufficient room for wrench access

The hydraulic circuit is stationary and stable

What Is a Swivel Tee Adapter?

Swivel Tee Adapters include at least one female swivel port, which allows the hose to rotate independently of the body during installation. This makes alignment much easier and helps reduce hose wear caused by torque or movement.

Swivel tee vs fixed tee
Branch Tee vs run tee adapter

Branch Tee VS Run Tee

What Is a Branch Tee?

A Branch Tee (“Side Outlet Tee”) has:

Two run ports (the straight-through ports) of the same thread/gender

One branch port (the perpendicular side port) with a different thread/gender

Usage:

When you need to tap into an existing line with a sensor, valve, or smaller hose

For pressure gauge ports or signal line takeoffs

What Is a Run Tee?

A Run Tee (sometimes referred to as an Equal Tee) has:

One run port and the branch port share the same thread/gender

The remaining run port is different

Usage:

Used when connecting two different components inline and feeding a third from the branch

Helps in adapting systems with mixed thread sizes or orientations

Ready to Get Started?

Send us your specifications or drawings—we’ll provide a fast, accurate quote with no hidden costs. Let’s build your hydraulic solution together.

Your Reliable Hydraulic Tee Supplier

Commonly used hydraulic tees are made of brass, aluminum, stainless steel, and carbon steel as the primary materials. If there are special requirements for the environment or pressure, other materials can be selected.

Hydraulic tees can be installed directly, pressed with nuts, or welded. The different installation methods depend on the type of tee and the use environment.

The advantages of the hydraulic tee are:

※ Flexibility

※ Excellent stability

※ Corrosion resistance

※ Long service life

※ Strong sealing properties

※ Wide application

Topa’s hydraulic tee can meet everyone’s needs in terms of quality and type. If you have any questions about our website content, please contact our staff.

Compatible Hydraulic Tee Manufacturer in China

Topa is the manufacturer and expert specialized in the research, development, and production of hydraulic fittings. Our main products are various hydraulic fittings such as adapters, ferrules, flanges, and clamps. In Topa, You will find the exact products you want. We are committed to providing one-stop procurement services for our clients.

We are a hydraulic company in China with the following advantages:

1. More than 20 years of hydraulic experience

With more than 20 years of industry experience, Topa has built reliable and long-term partnerships with many suppliers and importers.

2. High-Quality Products and Hydraulic Technicians

We are able to provide various products such as rubber hoses, fittings, assemblies, etc.

Our technicians have rich professional knowledge and are good at finding problems from daily work, summarizing experience, and improving product quality.

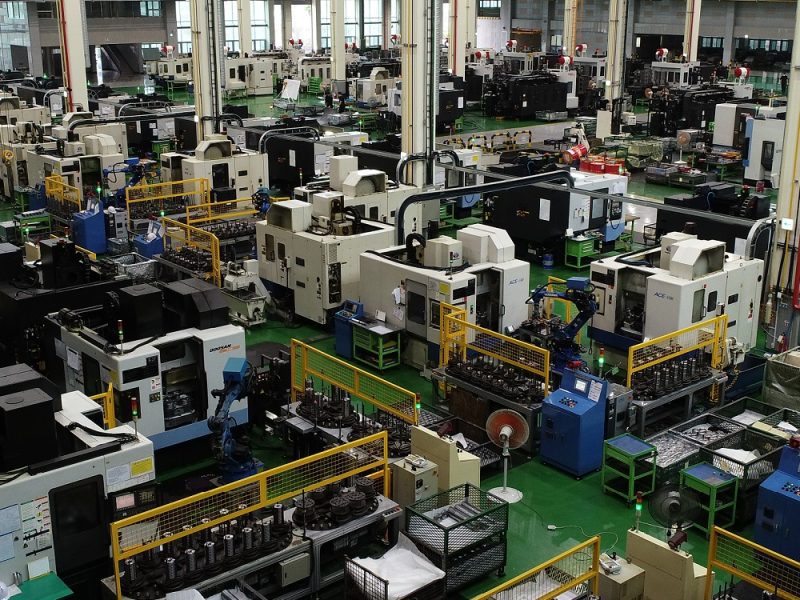

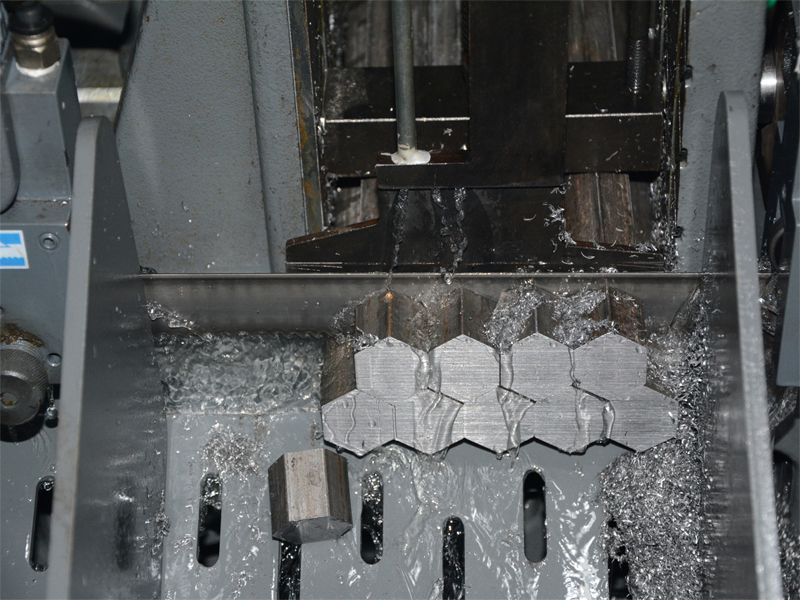

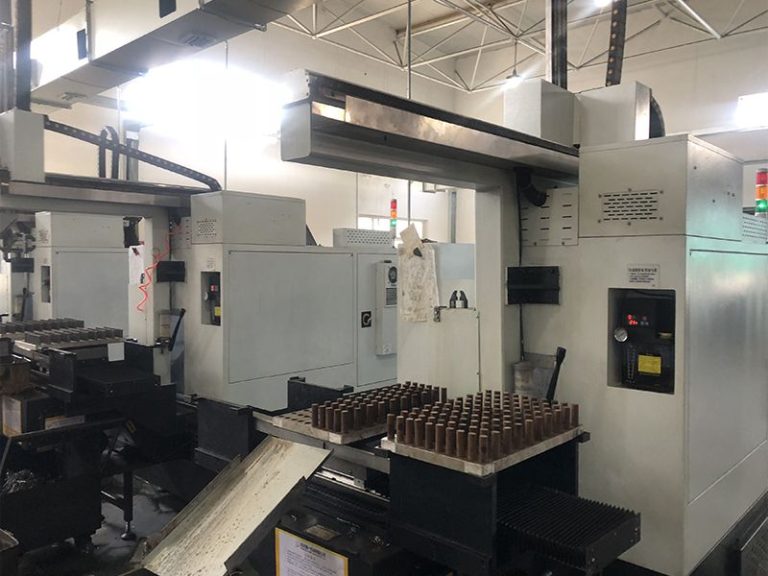

3. Advanced Workshop

Topa has a high-level workshop with much-advanced equipment, which means we can customize fittings for our clients. Only need to know the specific details and model, so we can produce the specific product.

4. Major savings on high-pressure hose assemblies

We produce our products in our own factory to control product quality and cost. This means that we can provide our customers with high-quality hose assemblies at competitive prices to help them save costs.

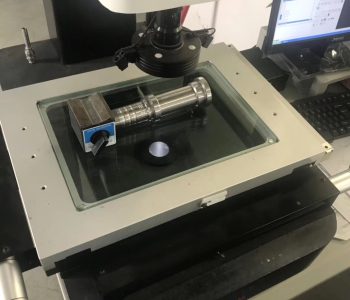

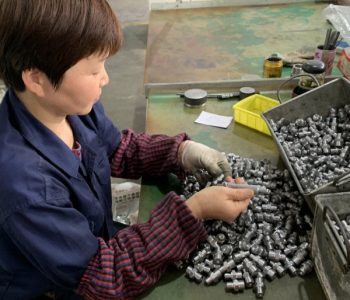

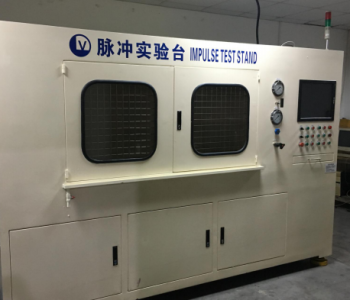

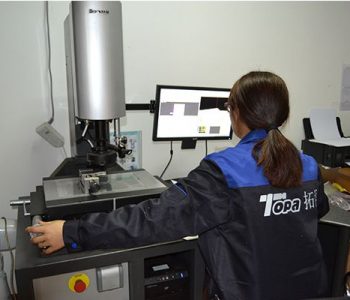

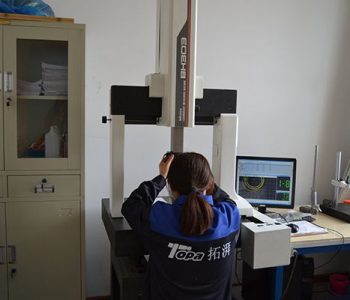

 5. Strict quality control

Topa hydraulic fittings have passed a strict quality control test. Quality is not only limited to our products but also presented in our services and the process of our management.

FAQ

What are hydraulic tee fittings?

A hydraulic tee has three endings that connect three components at 90-degree angles.

What are the benefits of a hydraulic tee?

A hydraulic tee is widely used, has a good seal, is durable, corrosion resistant, and is resistant to high pressure.

What are the applications of hydraulic tee fittings?

Hydraulic tees can be used in the mining, marine, oil and gas, mechanical industries and transportation.

What are the materials of hydraulic tees?

Hydraulic tees are available in stainless steel, galvanized steel, aluminum, carbon steel, and brass.

What are the types of hydraulic tees?

Hydraulic tees include equal tees, branch tees, running tees, and reducing tees. All tees have either a male or female end.

What are the thread types of hydraulic tees?

JIC, NPT, BSP, BSPP, Metric, ORFS, and SAE.

Do hydraulic tees require a sealant?

Most tees do not require a sealant and can be sealed directly by threads or O-rings.

How does Topa ship hydraulic tees?

Land, sea, and air transportations are all possible.

Can I have a custom hydraulic tee fitting made?

Of course, please provide drawings and requirements about the material, size, and quantity of the tee fitting.

Can I request free samples of hydraulic tees?

If in stock, it could be 20 pieces of each size, if not in stock, we need to communicate with you.
