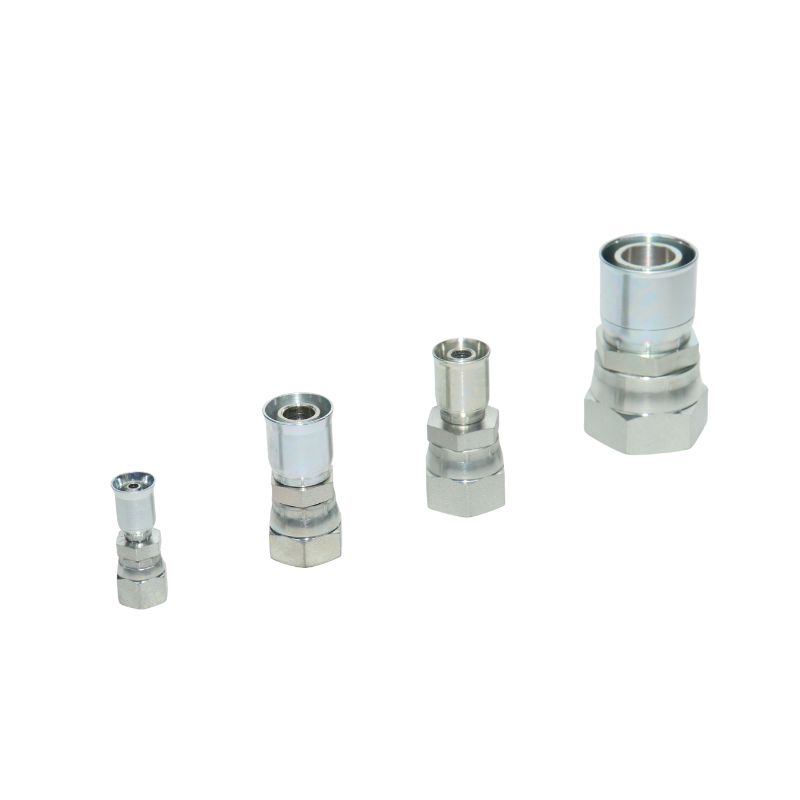

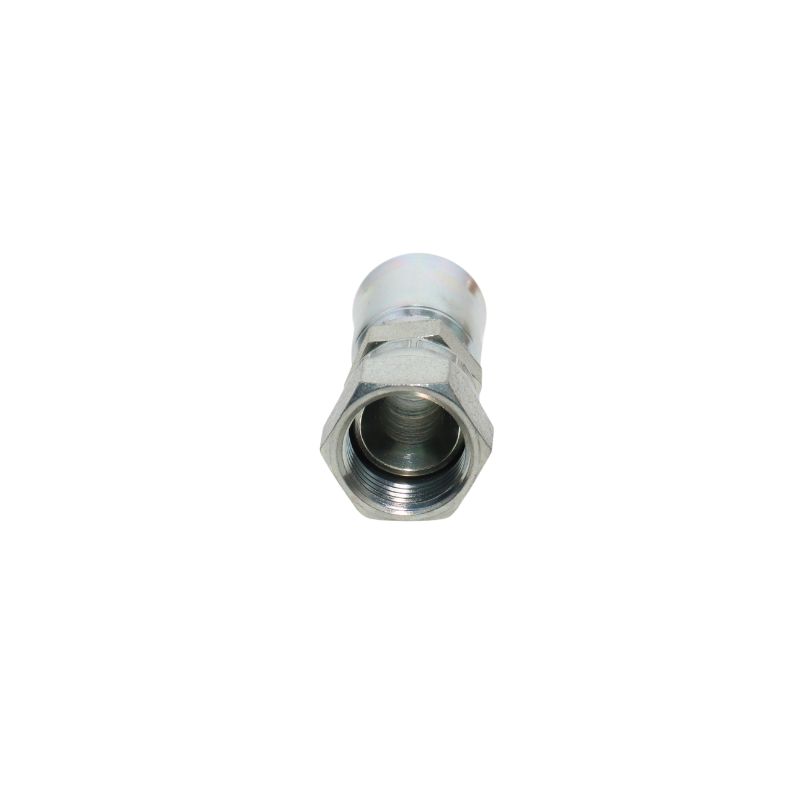

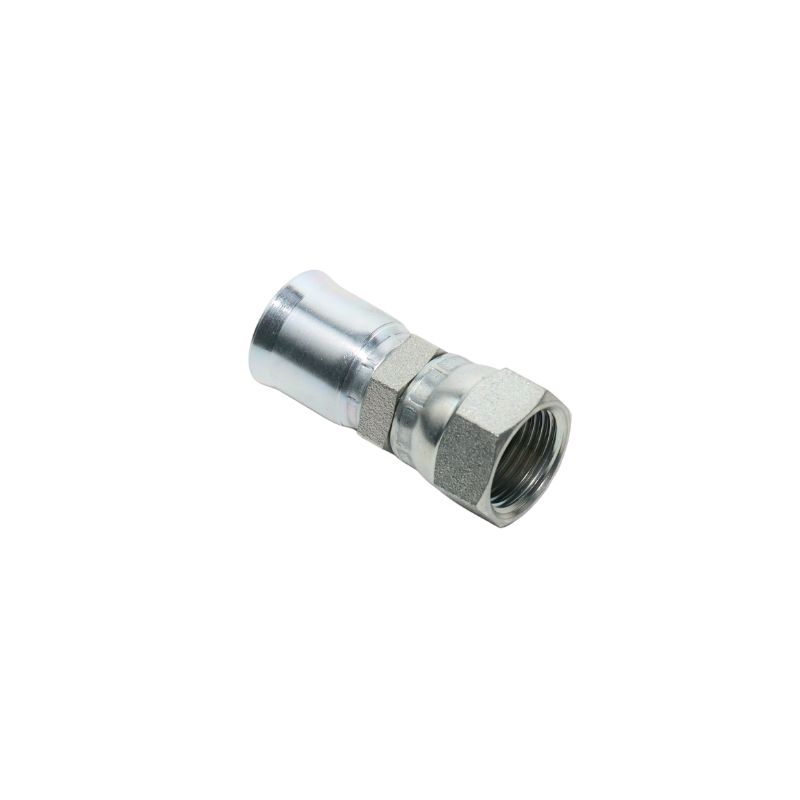

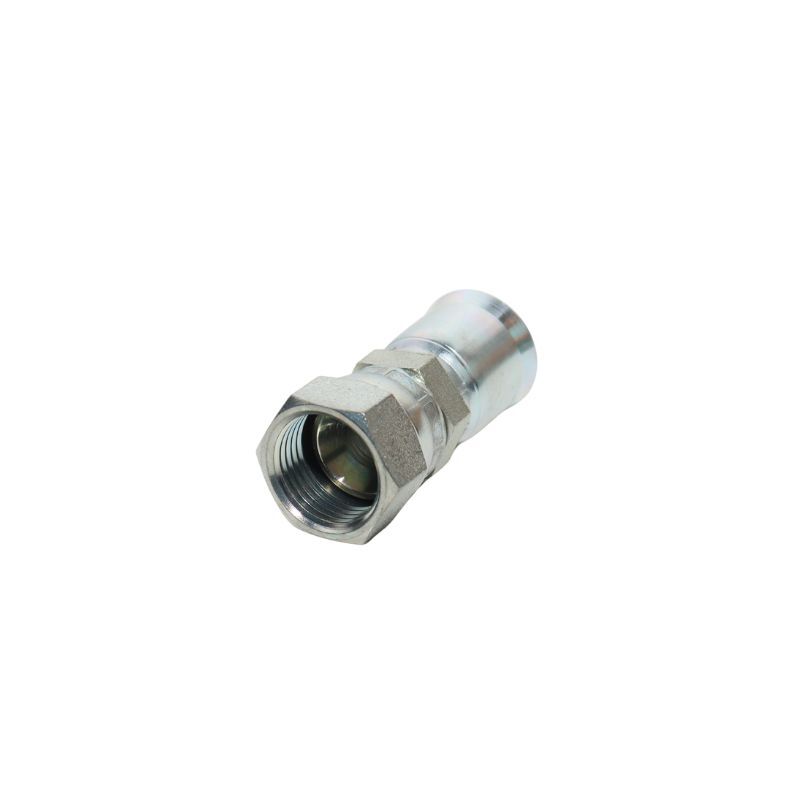

10691N One Piece Fittings

10691N One Piece Fittings

Topa 10691N one piece fittings are carbon steel hydraulic hose fitting with JIC thread, ensuring accurate fit and reliable connection in hydraulic systems. Check the construction details below:

Connection 1: Female JIC 37° – Swivel

Connection 2: Hose End – Designed for PTFE hoses

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings No-Skive

Applications: Agriculture;Marine;Industry;Heavy Machine;Oil and Gas

Looking for trusted hydraulic fittings? Topa offers precision-made crimp solutions, standard or customized. Quote today!

Category: Tags: , ,

Description

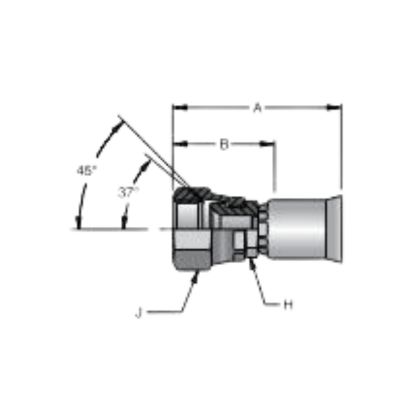

10691N one piece fittings drawing Topa
Part
Number
Thread
Size
Hose
Size
inch
A Cutoff Allow.
B
H
Hex
inch
J
Hex
inch
inch  mminch  mm
10691N-4-47/16-20-4 1.47 37 7/822 3/89/16
10691N-5-51/2-20-5 1.60 41 25 7/165/8
10691N-6-69/16-18-6 1.66 42 25 1/211/16
10691N-6-89/16-18-8 1.72 44 25 9/1611/16
10691N-8-83/4-16-8 1.89 48 1-3/1630 11/167/8
10691N-8-103/4-16-10 1.86 58 1-1/829 3/47/8
10691N-10-107/8-14-10 2.03 52 1-5/1633 13/16
10691N-12-121-1/16-12-12 2.18 55 1-3/835 1-1/4
10691N-16-161-5/16-12-16 2.45 62 1-9/1640 1-1/41-1/2
10691-20-201-5/8-12-20 2.66 68 1-5/842 1-11/16

10691N One Piece Fittings Video

This video provides a detailed look at the Topa 10691N one piece fittings.

It highlights the product’s construction, including the high-quality carbon steel and stainless steel materials used, and the precise machining process that guarantees accurate dimensions. You will also see the surface finish and design features that ensure strong, leak-free connections in demanding hydraulic applications.

Topa’s one union hydraulic fittings are built for durability and consistent performance under high pressure and vibration. Watch the full video to understand our technical expertise—and contact Topa today to request your inquiry or order.

Hot Sales

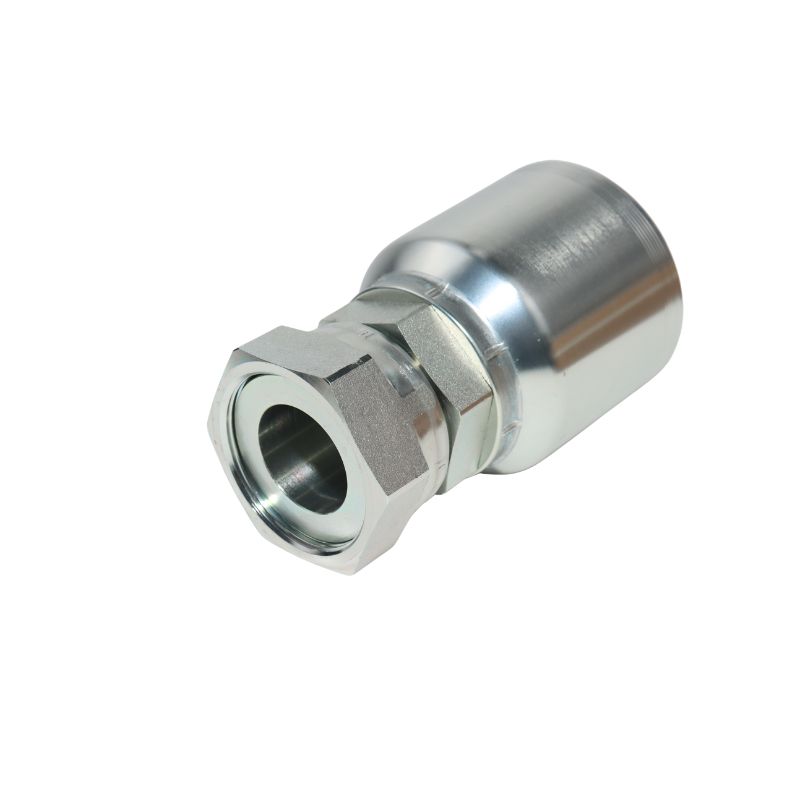

1JS78
Hydraulic Crimp Fittings

10191N
Crimp Hydraulic Fitting

1J778
One Piece
Fittings

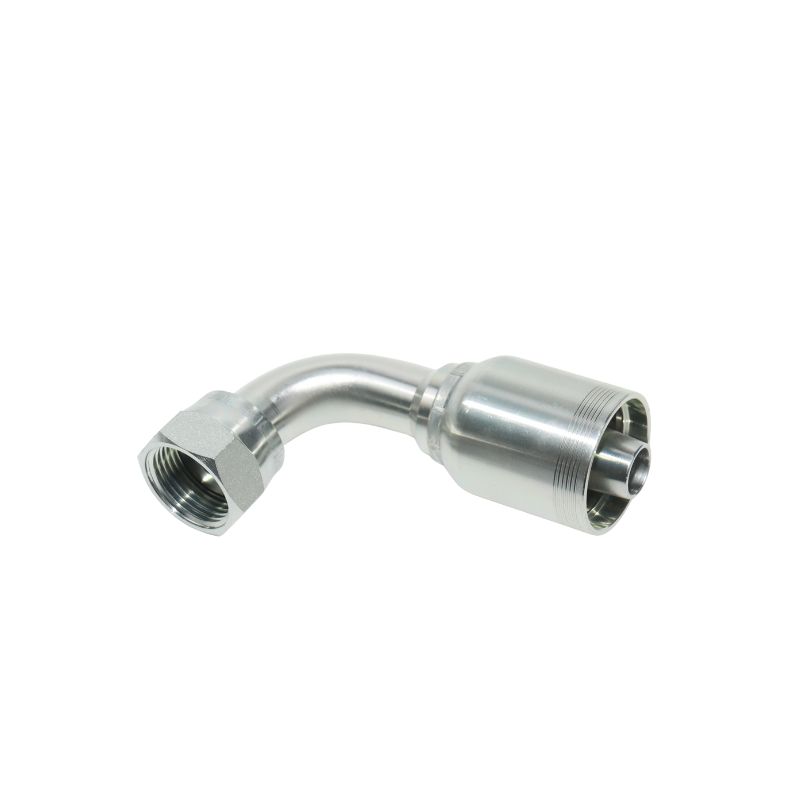

1J978 Crimp Hydraulic Hose Fitting
