Description:

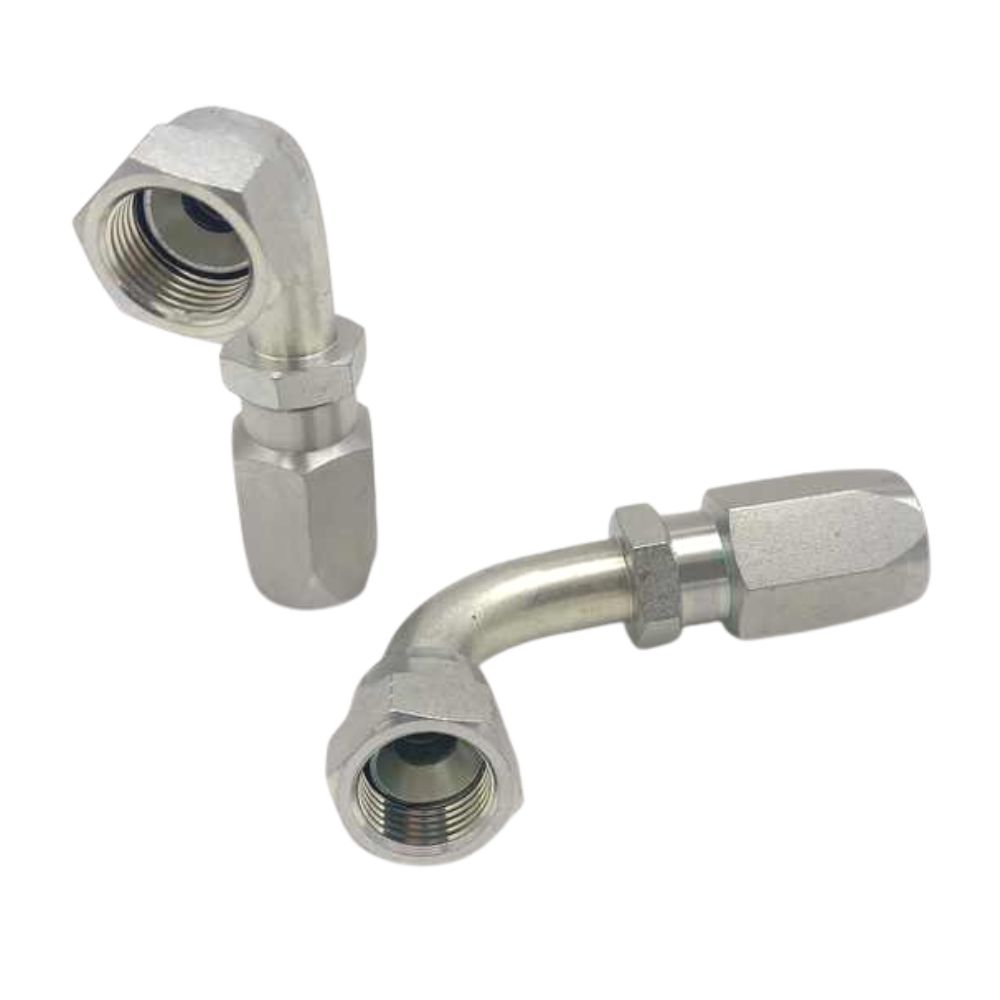

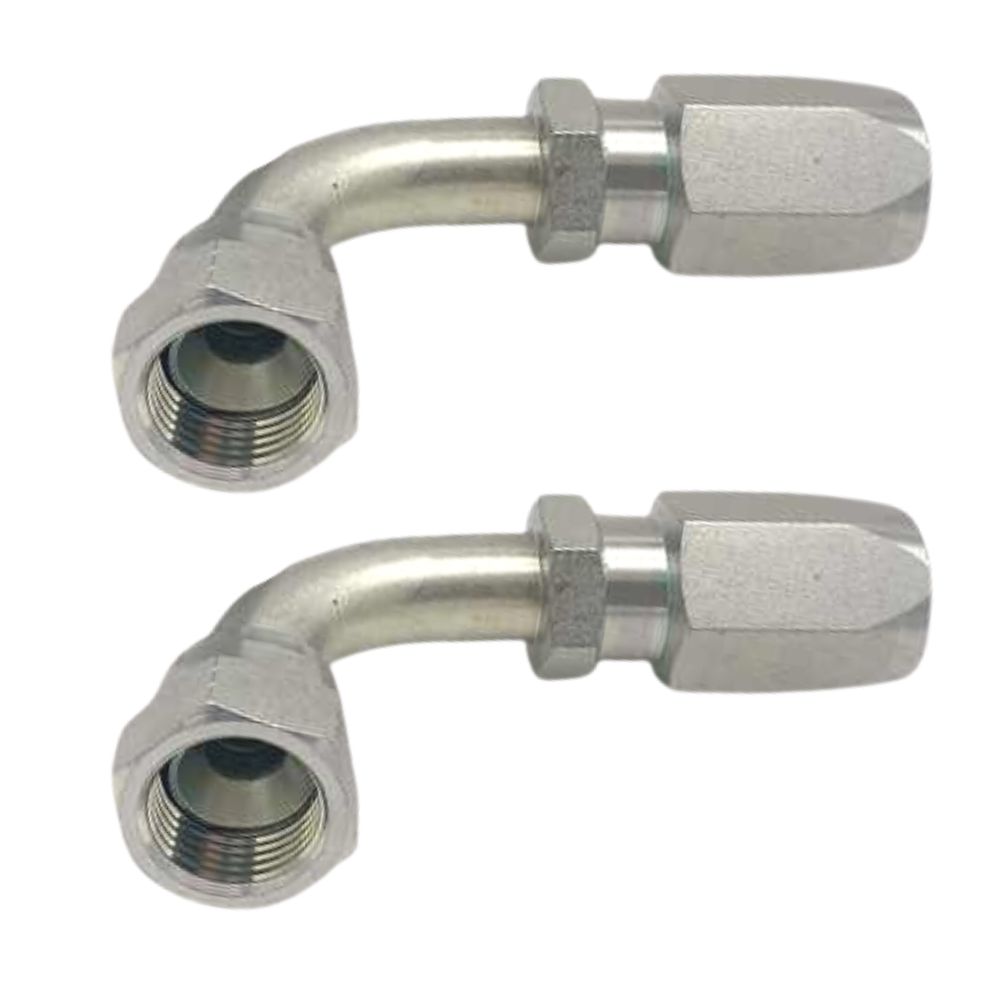

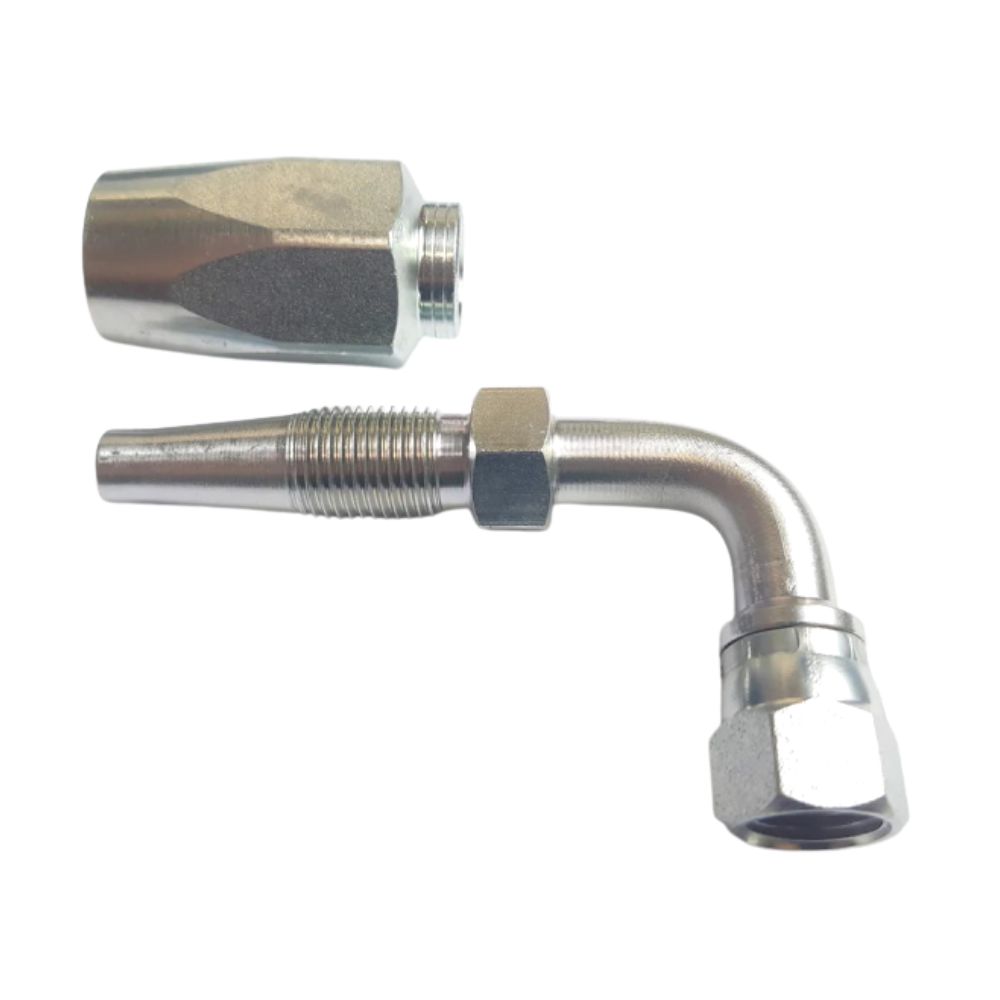

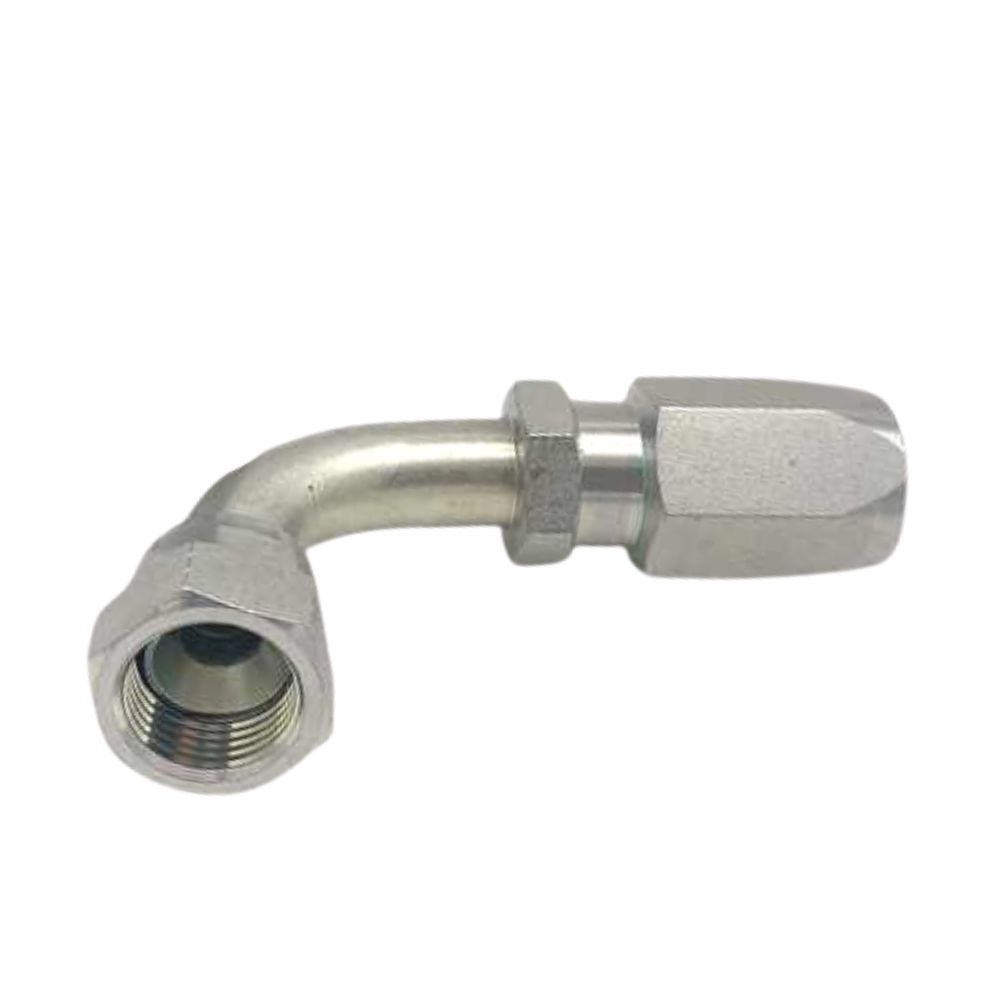

26798D 90° reusable JIC hydraulic fitting is a female swivel 74-degree cone seat thread hydraulic hose fitting with a 90-degree elbow.
A substitute for crimp hose fitting is the 26798D 90° reusable JIC hydraulic fitting. Additionally, it works with R5 and R2 hoses. This type of fitting is reusable and has a variety of significant uses, including transportation and agriculture.
Please contact us for free samples or more information about reusable hose fittings hydraulic.
Features and Benefits:
• Reusable
• Reliable
• Affordable
• Tight seal
Categories: Reusable, JIC, Carbon steel, Elbow 90°, Hose fitting
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
DN | DASH | A | H | S1 | S2 | ||
26798D-04-04(R5) | 7/16″X20 | 5 | 4 | 38.5 | 33.5 | 14 | 15 |
26798D-05-05(R5) | 1/2″X20 | 6 | 5 | 43.4 | 37 | 14 | 17 |
26798D-06-06(R5) | 5/8″X18 | 8 | 6 | 44.75 | 39.3 | 17 | 19 |
26798D-08-08(R5) | 3/4″X16 | 11 | 8 | 53 | 47.5 | 19 | 24 |
26798D-10-10(R5) | 7/8″X14 | 13 | 10 | 66.5 | 52.5 | 24 | 27 |
26798D-12-12(R5) | 1.1/16″ X14 | 16 | 12 | 79.5 | 63.5 | 27 | 32 |
26798D-16-16(R5) | 1.5/16″ X12 | 22 | 16 | 86.5 | 70 | 32 | 41 |
26798D-20-20(R5)W | 1.5/8″X12 | 28 | 20 | 98.5 | 82.5 | 38 | 50 |
26798D-24-24(R5)W | 1.7/8″X12 | 35 | 24 | 121 | 97.5 | 46 | 55 |
26798D-32-32(R5)W | 2.1/2″X12 | 46 | 32 | 143.25 | 118.8 | 60 | 75 |
This video is about the details of the 90° reusable JIC hydraulic fitting.
Moreover, Reusable JIC hydraulic fittings 26798D are available in a variety of applications, sizes, and dimensions, allowing them to be used in a variety of hydraulic fluid systems.
And if you want more information about hydraulic reusable hose fittings, please contact us.
