Description:

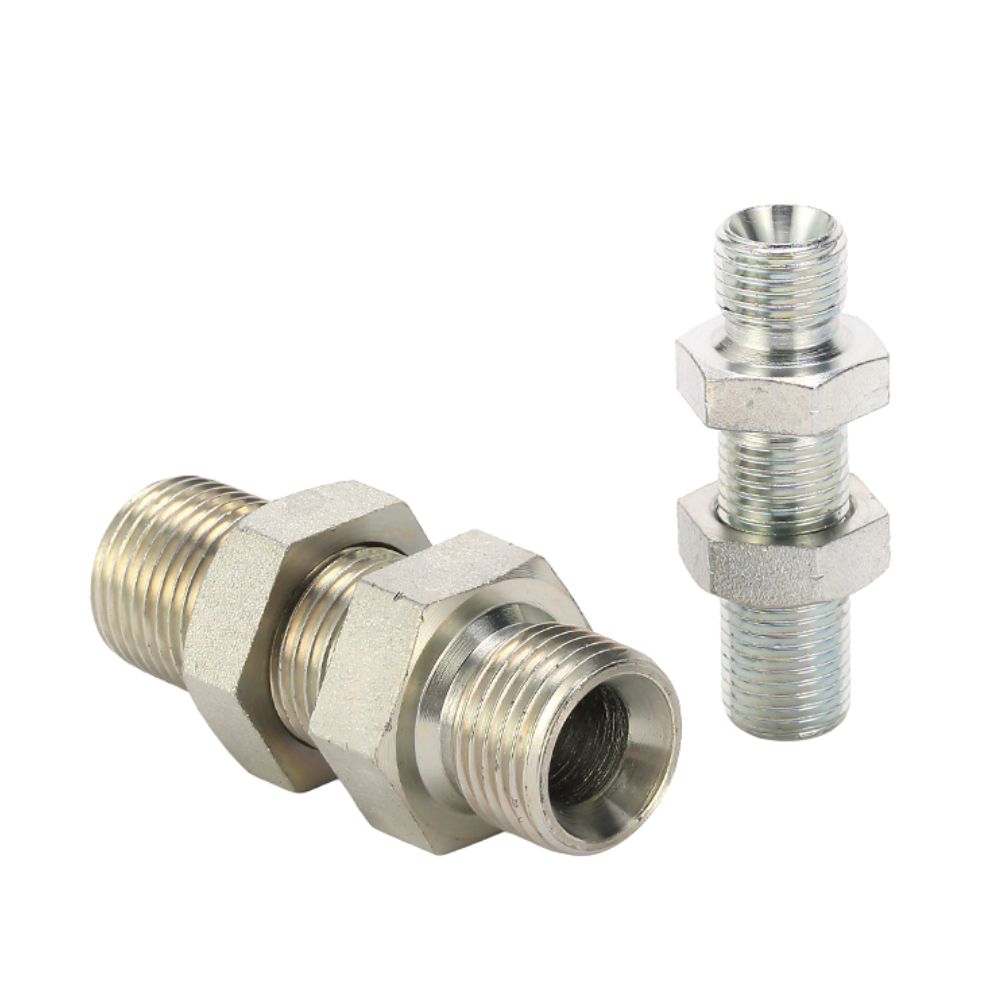

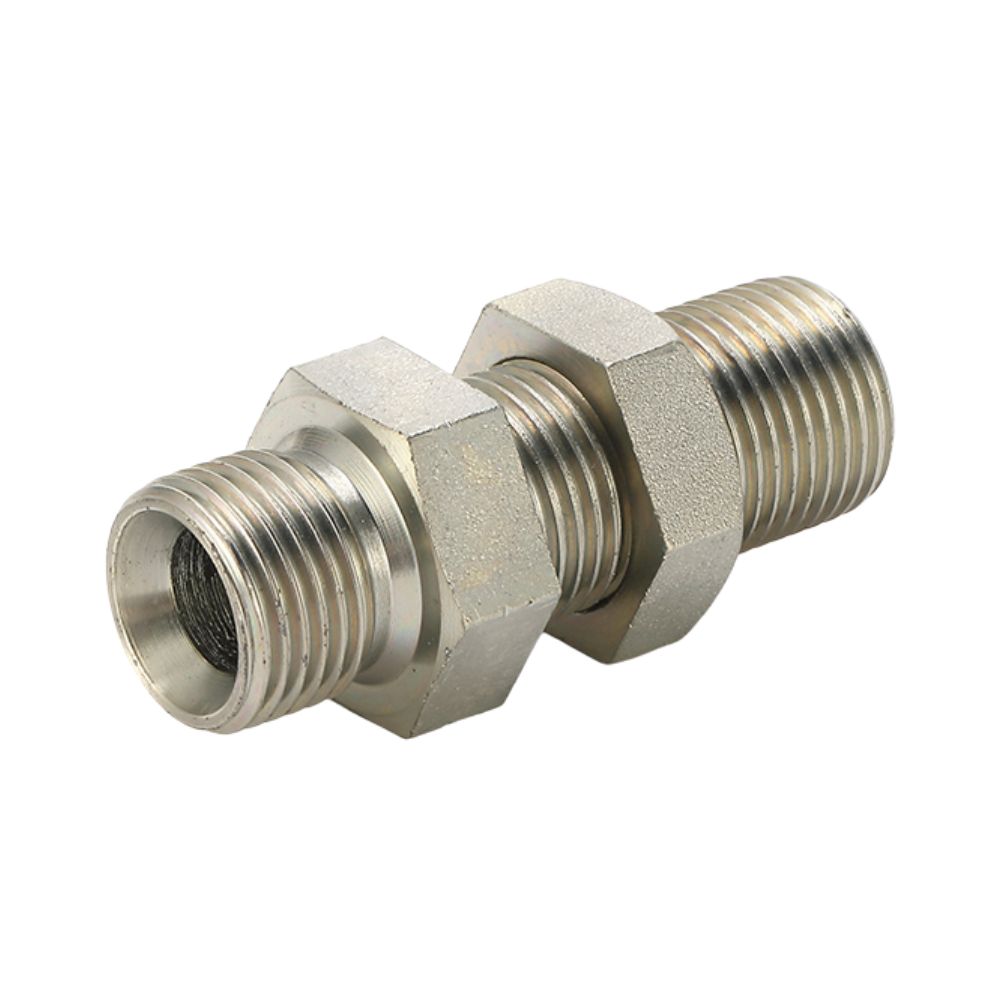

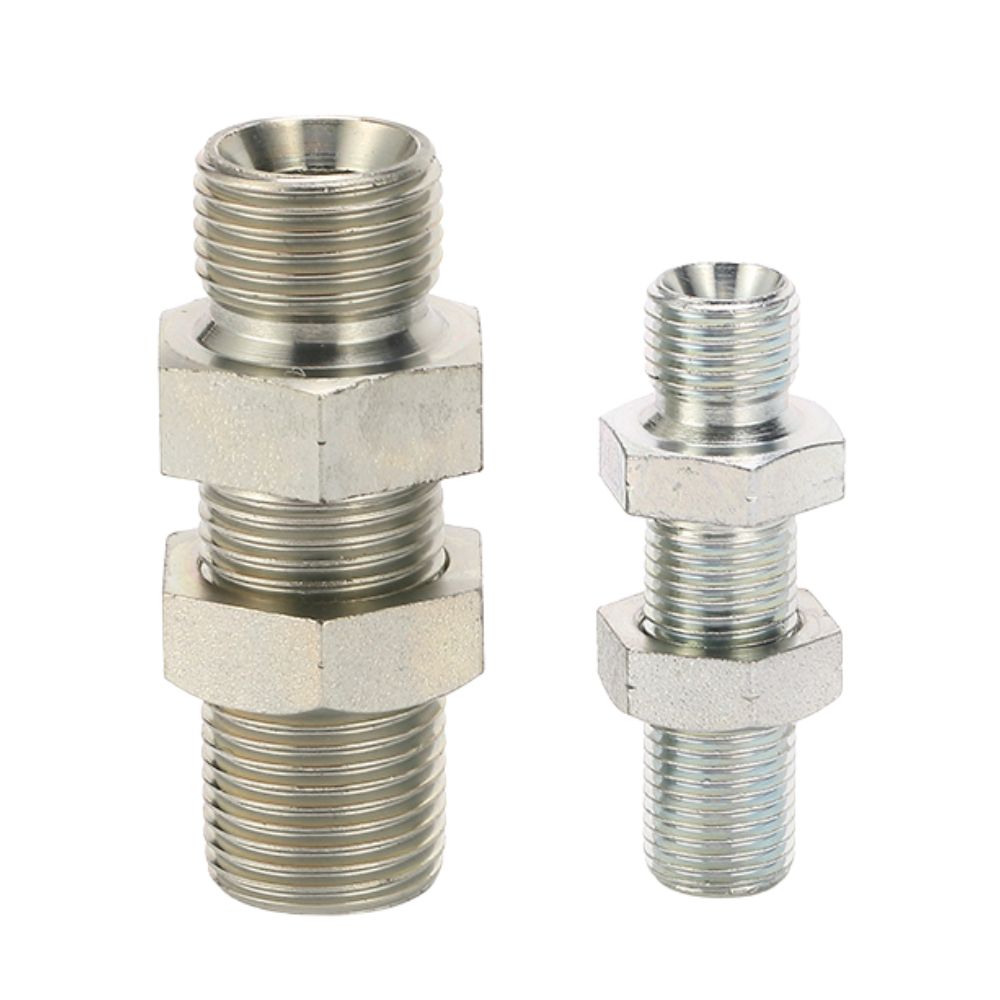

6B BSP bulkhead hydraulic fitting is the male bulkhead fitting with two 60-degree cone seats. It can be applied in many hydraulic fluid systems.
Using a bulkhead fitting, piping can be connected to a tank. It can make a strong seal.
If you want free samples or want to know more information about bsp threaded fittings, please contact us.
Features and Benefits:
• Affordable
• Useful
• Special design
• Tight seal
Categories: hydraulic fitting, BSP thread, Bulkhead thread
RAPT NO. | THREAD | DIMENSIONS | |||||
T1 | T2 | L1 | L2 | L | S1 | S2 | |
6B-04LN | G1/4＂X19 | G1/4＂X19 | 12 | 35 | 53 | 19 | 19 |
6B-06LN | G3/8＂X19 | G3/8＂X19 | 13.5 | 35 | 56.5 | 22 | 22 |
6B-08LN | G1/2＂X14 | G1/2＂X14 | 16 | 39 | 65 | 27 | 27 |
6B-10LN | G5/8＂X14 | G5/8＂X14 | 17.5 | 40 | 67.5 | 30 | 30 |
6B-12LN | G3/4＂X14 | G3/4＂X14 | 18.5 | 42 | 71.5 | 32 | 32 |
6B-16LN | G1＂X11 | G1＂X11 | 20.5 | 50 | 84 | 41 | 41 |
6B-20LN | G1.1/4＂X11 | G1.1/4＂X11 | 20.5 | 52 | 89.5 | 50 | 50 |
6B-24LN | G1.1/2＂X11 | G1.1/2＂X11 | 23 | 55 | 93 | 55 | 55 |
This video is about the details of the 6B BSP bulkhead hydraulic fitting. The bulkhead fitting will rest on a tank, drum, or reservoir. The fitting will let liquid flow once it is installed.
They have many usages, sizes, and dimensions and can also play an essential role in many hydraulic systems.
And if you want more information about bsp hydraulic fittings, please contact us.
