Description:

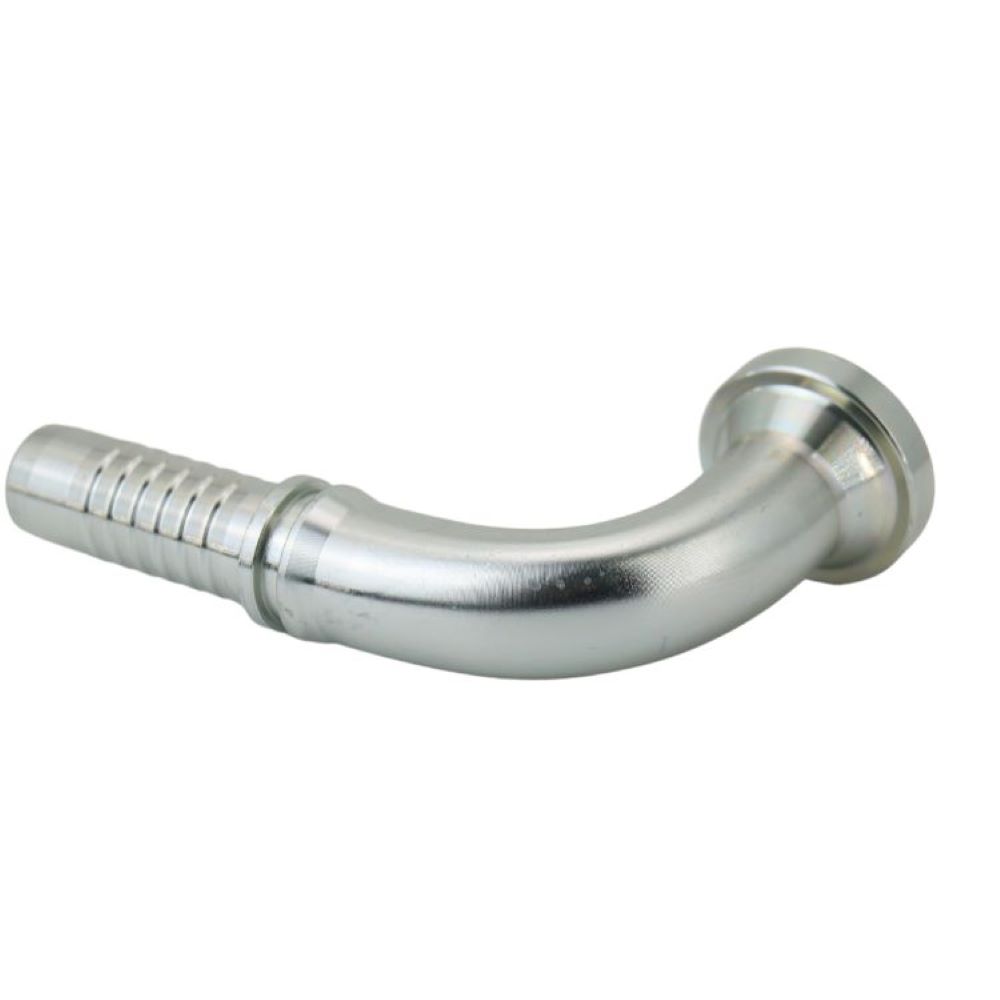

87391 hydraulic Code61 SAE 3000PSI flange is a 90-degree elbow flange fitting that is designed by SAE J516 standard. This type of flange can be used with one or two-wire hoses.
SAE flanges are a dependable alternative to standard pipe and tube connectors. Flanges make it possible to connect hoses and tubes/pipes without the use of additional adapters.
Please get in touch with us for free samples or more information about the hydraulic flange.
Features and Benefits:
• Vibration resistance
• High heat resistance
• High-pressure resistance
• Tight seal
Categories: SAE, Code61, Carbon steel, Elbow 90°, Hose fitting
|
| HOSE BORE |
DIMENSION
| |||||
DN | DASH | A | C | D | H | L | ||
87391-08-08 | 1/2″ | 12 | 8 | 41 | 30.2 | 24 | 47 | 6.73 |
87391-12-08 | 3/4″ | 12 | 8 | 41 | 38.1 | 31.7 | 48 | 6.73 |
87391-12-10 | 3/4″ | 16 | 10 | 56 | 38.1 | 31.7 | 52.5 | 6.73 |
87391-12-12 | 3/4″ | 20 | 12 | 66.2 | 38.1 | 31.7 | 62 | 6.73 |
87391-12-16 | 3/4″ | 25 | 16 | 76.7 | 38.1 | 31.7 | 67.5 | 6.73 |
87391-16-12 | 1″ | 20 | 12 | 65.5 | 44.4 | 38 | 62 | 8 |
87391-16-16 | 1″ | 25 | 16 | 76.7 | 44.4 | 38 | 67.5 | 8 |
87391-16-20 | 1″ | 32 | 20 | 91.5 | 44.4 | 38 | 78.5 | 8 |
87391-20-16 | 1.1/4″ | 25 | 16 | 76.7 | 50.8 | 43 | 67.5 | 8 |
87391-20-20 | 1.1/4″ | 32 | 20 | 91.5 | 50.8 | 43 | 78.5 | 8 |
87391-20-24 | 1.1/4″ | 40 | 24 | 107 | 50.8 | 43 | 78.5 | 8 |
87391-24-20 | 1.1/2″ | 32 | 20 | 91.5 | 6o.3 | 50 | 80.5 | 8 |
87391-24-24 | 1.1/2″ | 40 | 24 | 109.4 | 60.3 | 50 | 94 | 8 |
87391-32-24 | 2″ | 40 | 24 | 109.4 | 71.4 | 62 | 94 | 9.53 |
87391-32-32 | 2″ | 50 | 32 | 131.8 | 71.4 | 62 | 114.3 | 9.53 |
87391-40-32 | 2.1/2″ | 50 | 32 | 131.8 | 84.1 | 74 | 116.3 | 9.53 |
This video is about the details of the 87391 hydraulic code61 flange fitting.
Furthermore, 87391 hydraulic flange fittings are available in a wide range of applications, sizes, and dimensions, making them suitable for use in a wide range of hydraulic fluid systems.
And if you want more information about code 61 flange, please contact us.
