Description:

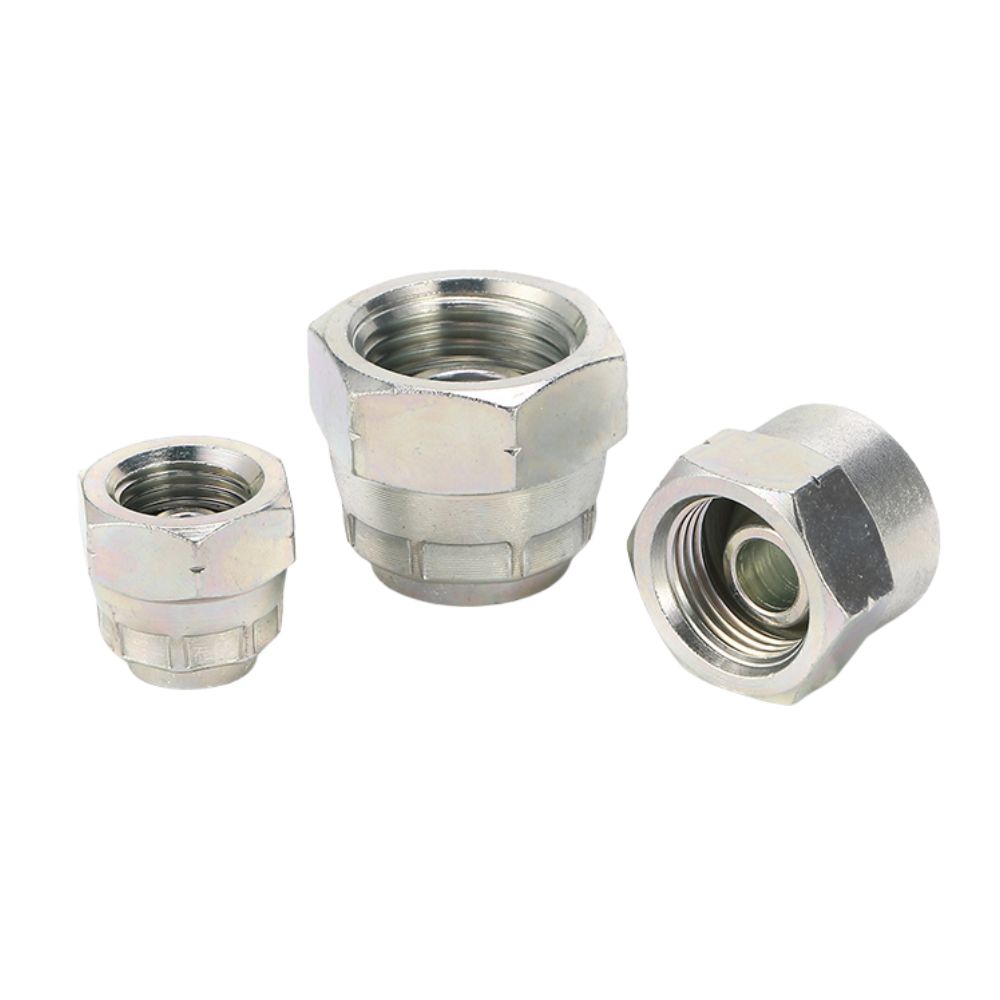

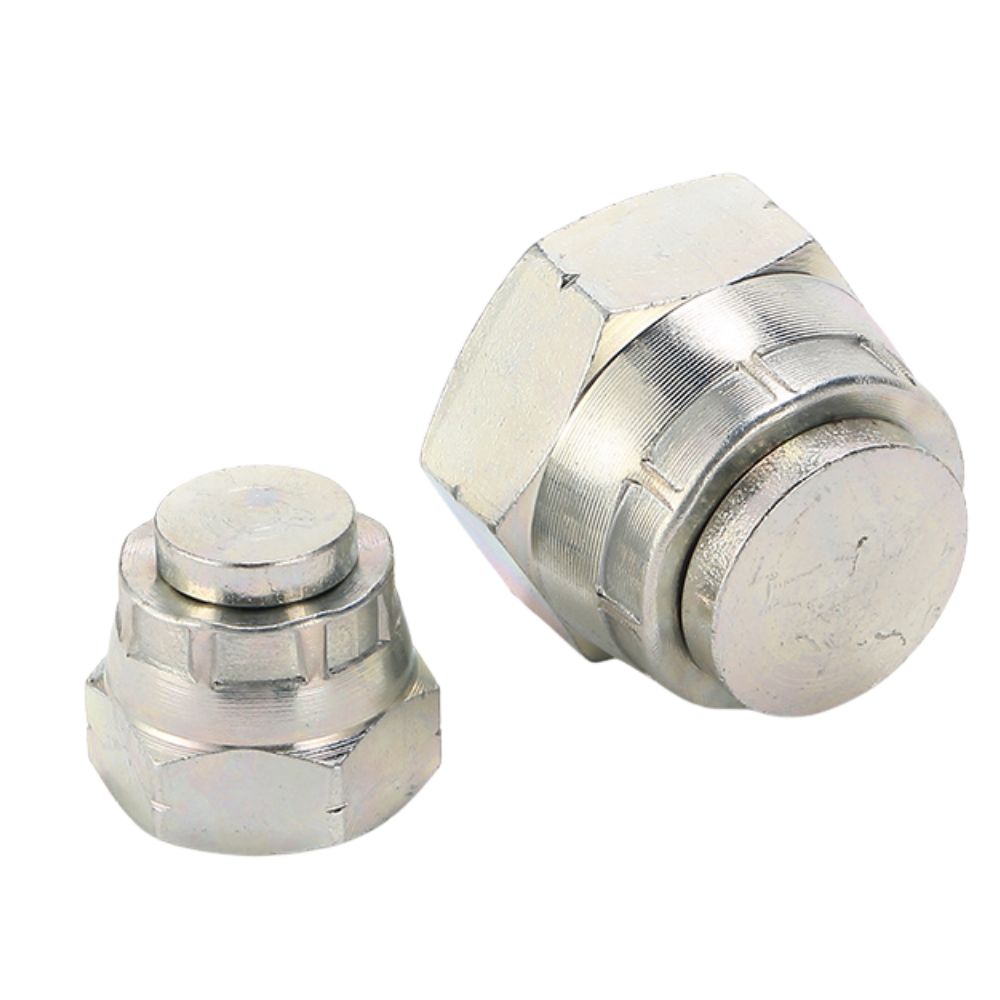

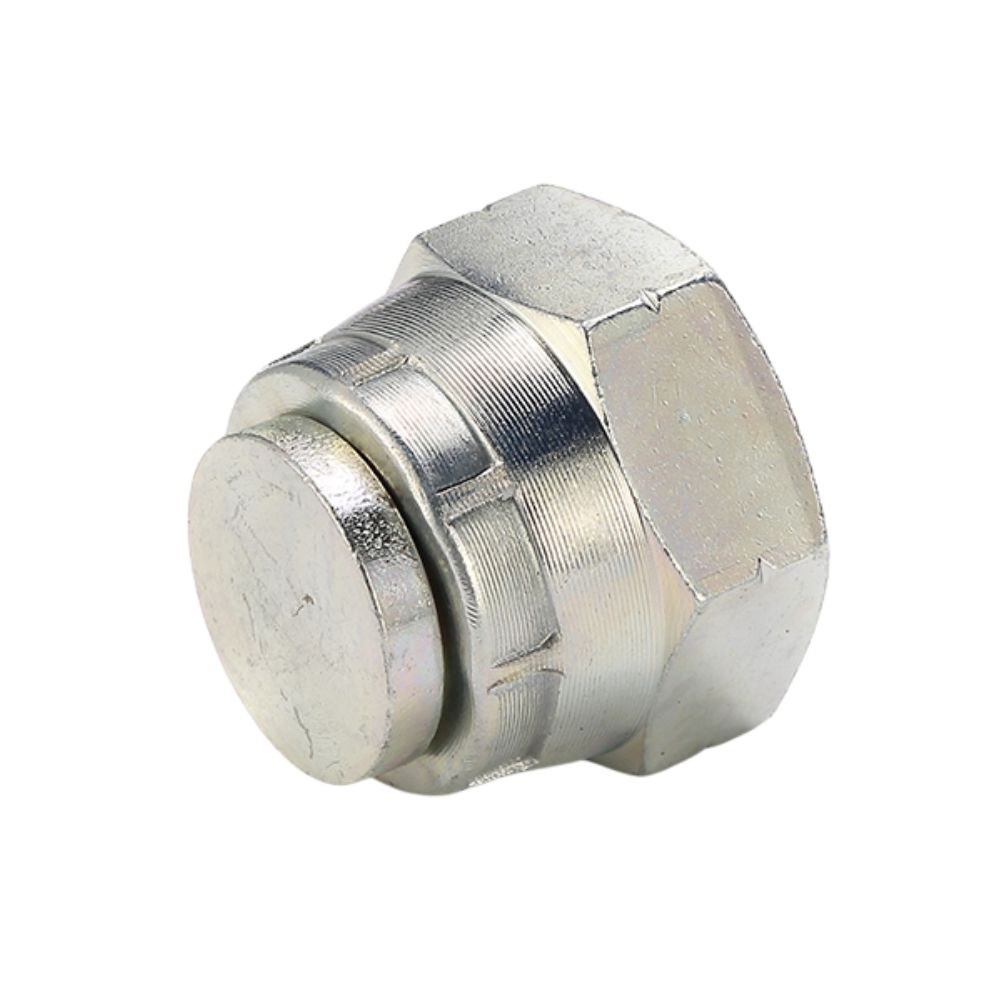

9B BSP cap hydraulic fitting is the female plug fitting.
Female BSP hydraulic plugs can make a strong seal to prevent dust or dirt to hurt threads.
If you want free samples or want to know more information about bsp hydraulic hose fittings, please contact us.
Features and Benefits:
• Multiple usages
• Useful
• Special design
• Long-life
Categories: hydraulic fitting, BSP thread, hydraulic plugs
RAPT NO. | THREAD | DIMENSIONS | |
T1 | L | S1 | |
9B-02 | G1/8＂X28 | 11.5 | 14 |
9B-04 | G1/4＂X19 | 13.5 | 19 |
9B-06 | G3/8＂X19 | 14.5 | 22 |
9B-08 | G1/2＂X14 | 16 | 27 |
9B-10 | G5/8＂X14 | 16.5 | 30 |
9B-12 | G3/4＂X14 | 17.5 | 32 |
9B-16 | G1＂X11 | 19 | 41 |
9B-20 | G1.1/4＂X11 | 21.5 | 50 |
9B-24 | G1.1/2＂X11 | 22 | 55 |
