Description:

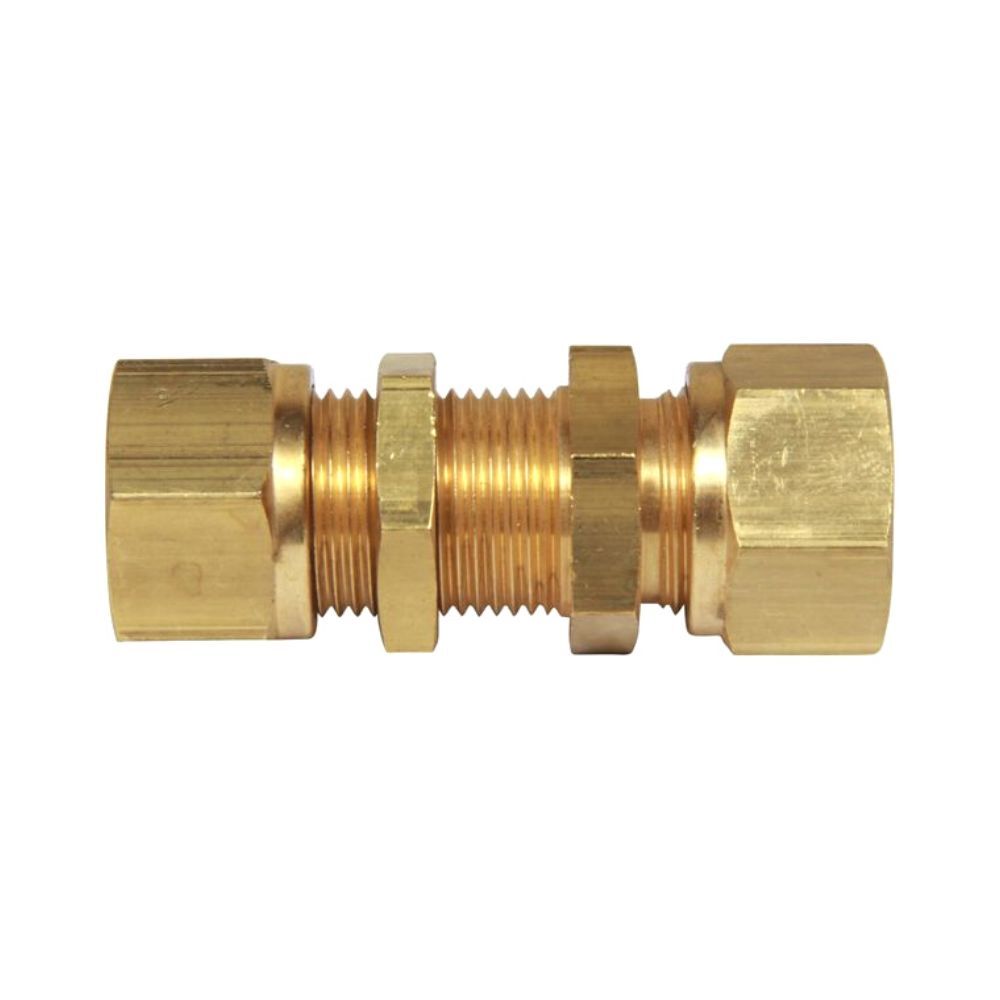

The bulkhead union is made up of three parts: the compression nut, the compression ring, and a central body.

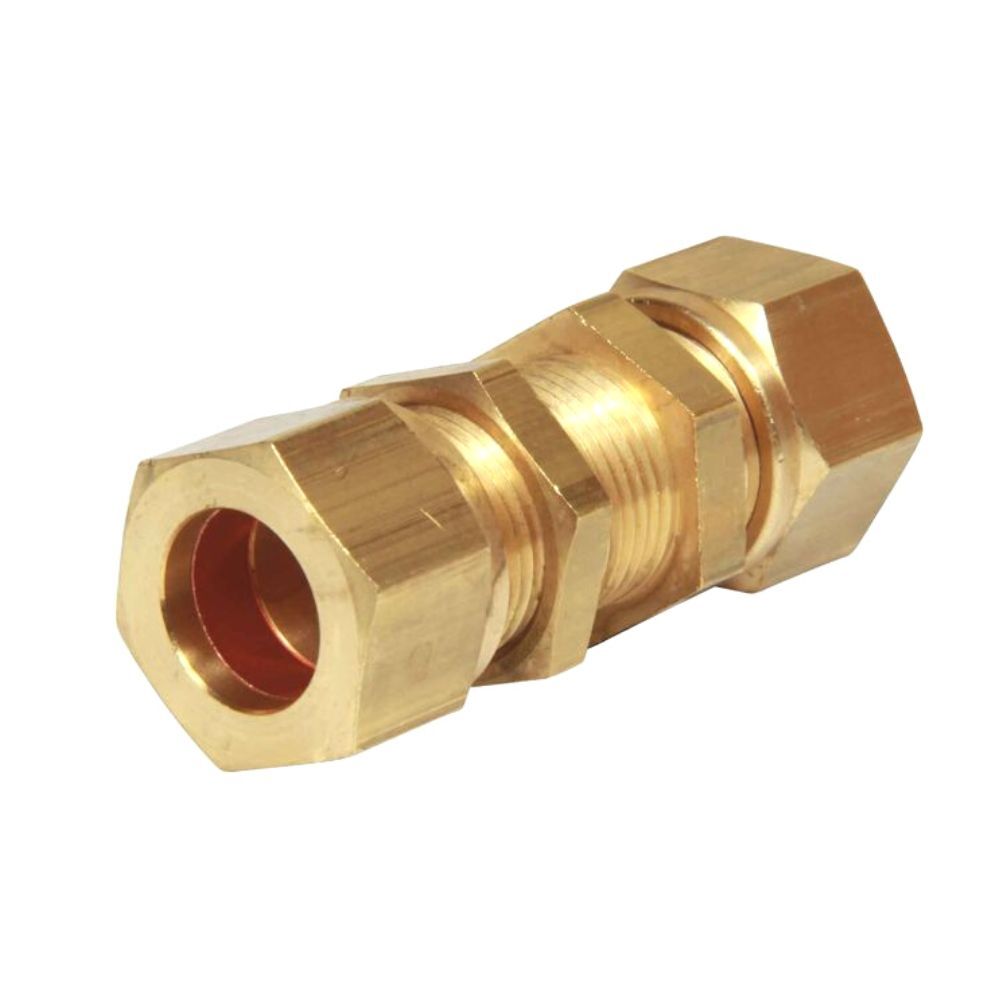

The brass compression bulkhead union fitting is used to pass through a panel or wall.
If you have any questions about the brass tubing compression union, feel free to ask.
Features and Benefits:
• Lead-free
• Reusable
• Easy to assemble
• Strong seal

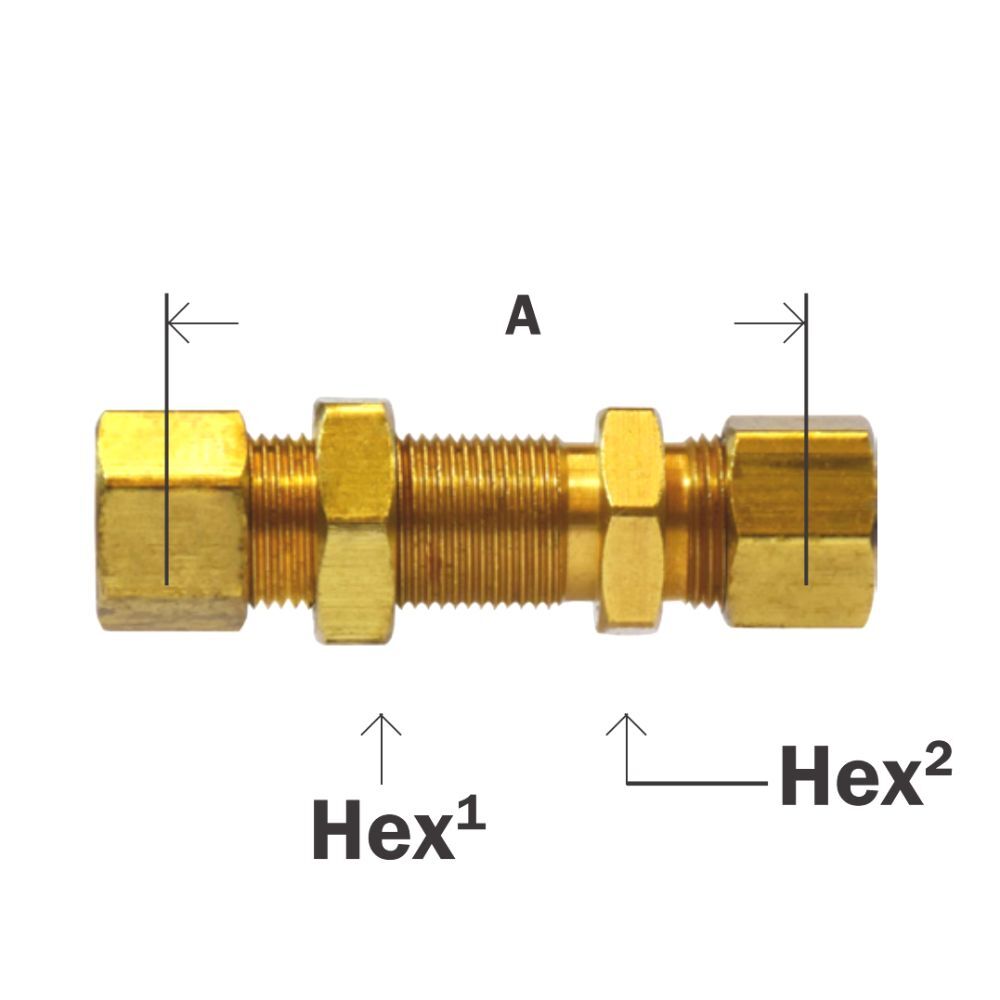

Part # | Size | A | Hex 1 | Hex 2 | Approx. Wt. Lbs. |
18-088 | 1/4” | 1.58 | 0.56 | 0.56 | 0.10 |
18-090 | 3/8” | 1.76 | 0.68 | 0.68 | 0.14 |
This video shows information about brass compression coupling-bulkhead union.
Brass compression bulkhead unions are available in a variety of sizes and can be used with a wide range of pipe materials, including copper, brass, and plastic.
If you have any questions about brass water union compression, please contact us.
