Brass Compression Tube Fitting

Description:

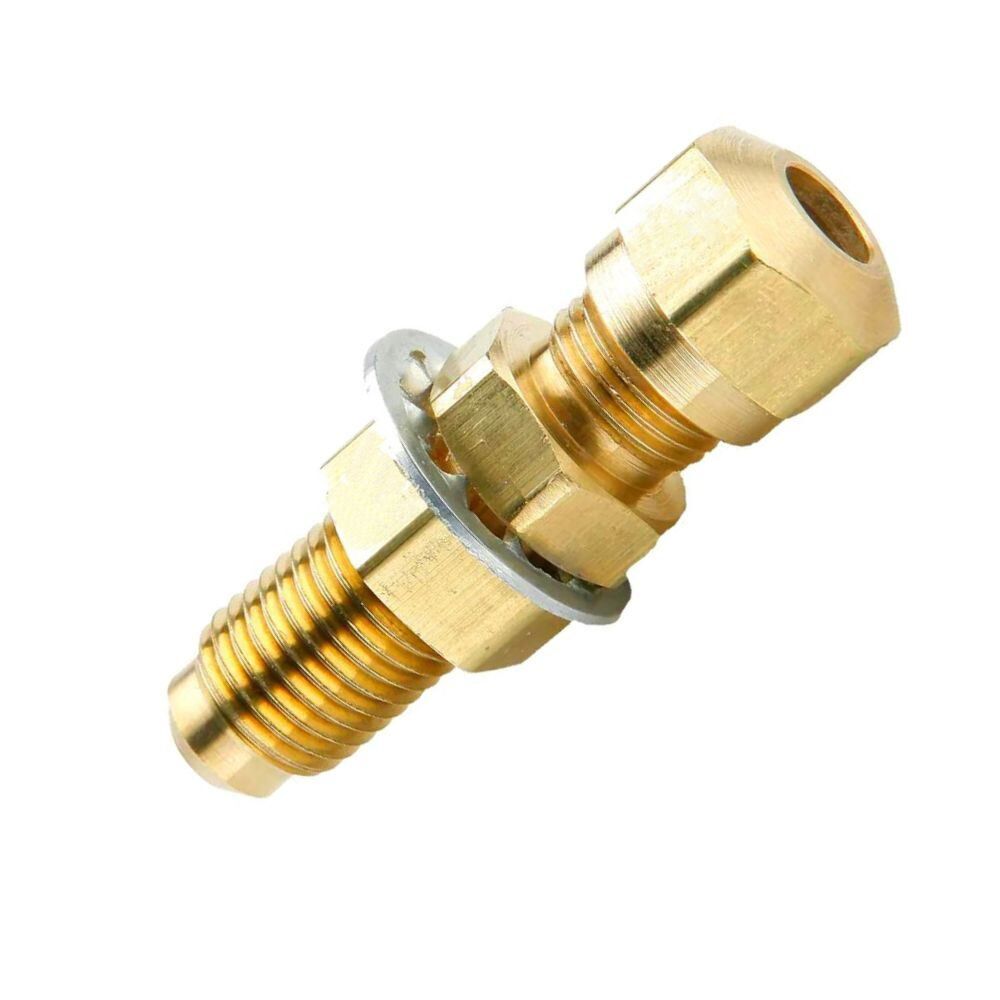

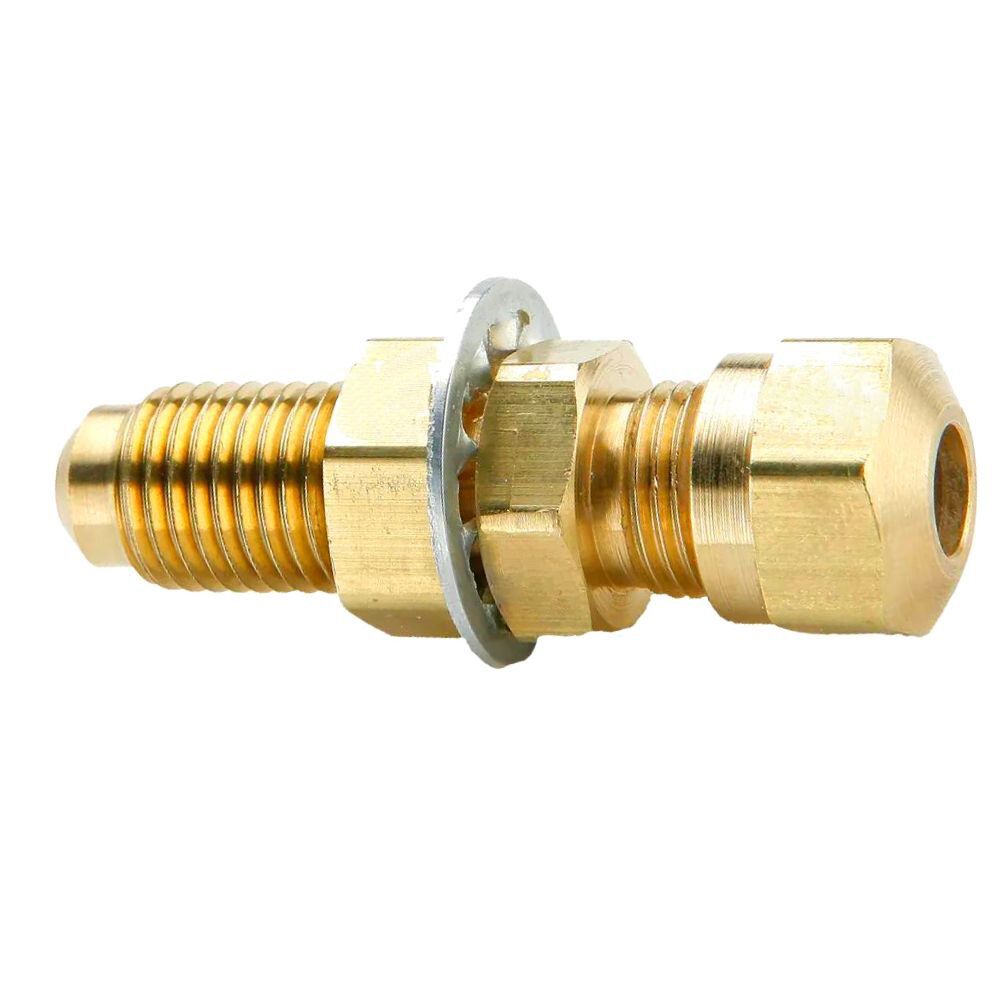

The compression × compression flare end bulkhead union has a female NPTF thread and it is used to connect nylon tubing. Brass compression tube fitting is a type of union fitting used in air brake systems.

The bulkhead union can be applied in many applications, and it can provide a secure, leak-tight connection.

If you have any further questions about the dot bulkhead fittings, feel free to ask.

Features and Benefits:

• Easy to maintain
• Durability
• Corrosion-resistance
• Quick

Description

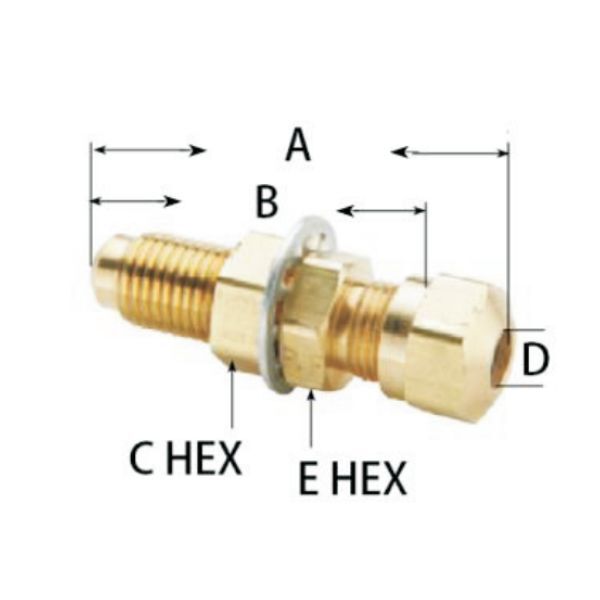

Part#	Tube O.D* NPTF	B Hex	C Hex	L	M	D
1587-4D	1/4*1/4	9/16	9/16	1.86	1.53	0.137
1587-6E	3/8*3/8	3/4	3/4	2.24	1.78	0.217
1587-8F	1/2*1/2	7/8	7/8	2.73	2.22	0.338
1587-10F	5/8*1/2	7/8	7/8	2.68	2.21	0.398
1587-10H	5/8*5/8	1	1	2.90	2.40	0.398

Brass Compression Tube Fitting - Nylon Tubing Bulkhead Union Video

This video shows the information on the compression × compression flare end bulkhead union.

Additionally, brass compression tube fitting can be used with nylon tubings. They have a large number of sizes and dimensions. And they also play an essential role in air brake systems.

Please get in touch with us if you have any questions about the dot approved brake line compression fitting.
