Brass DOT F Fittings

Brass F Fitting for Nylon Air Brake Tubing

Description:

A brass male F fitting is a type of fitting made of brass material. The F fitting has two male threads to connect with fittings or tubes.

Brass DOT F fitting can be applied in many air brake system applications.

Send Topa your required part numbers and quantities for product review and quotation. If you are identifying an existing fitting, include photos of all three connections, the tubing specification, and measured dimensions.

Features and Benefits:

F-Shaped Connection Layout: Two tubing connections arranged along the same side of the body.
Male Pipe Connection: A threaded end for a matching equipment port.
Nylon Tubing Connections: Select the specified tubing and compression components for the fitting.
Three-Connection Selection: Confirm each connection size against the numbered product drawing.

Description

Part#	Tube O.D (12)3
1589-6E	3/83/83/8
1589-6F	3/81/23/8
1589-8F	1/21/21/2

Brass DOT F Fittings - Nylon Tubing F Fitting Video

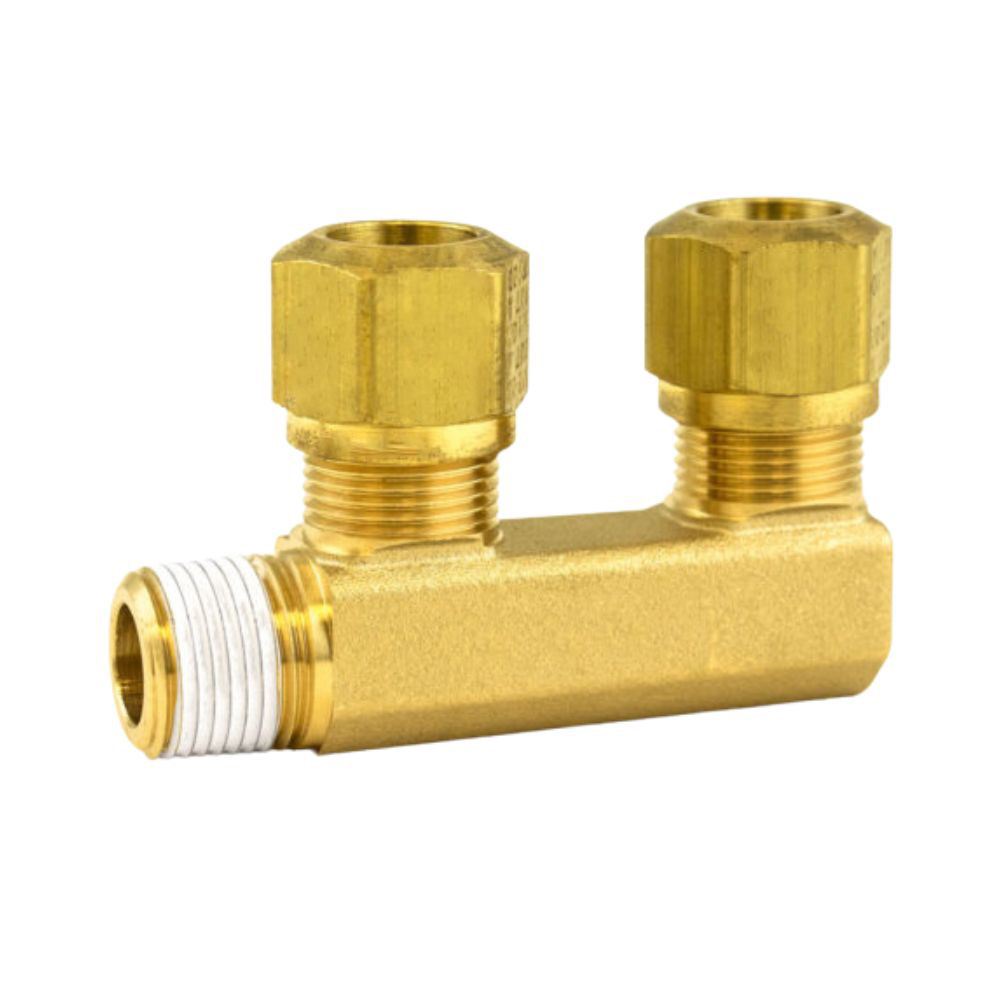

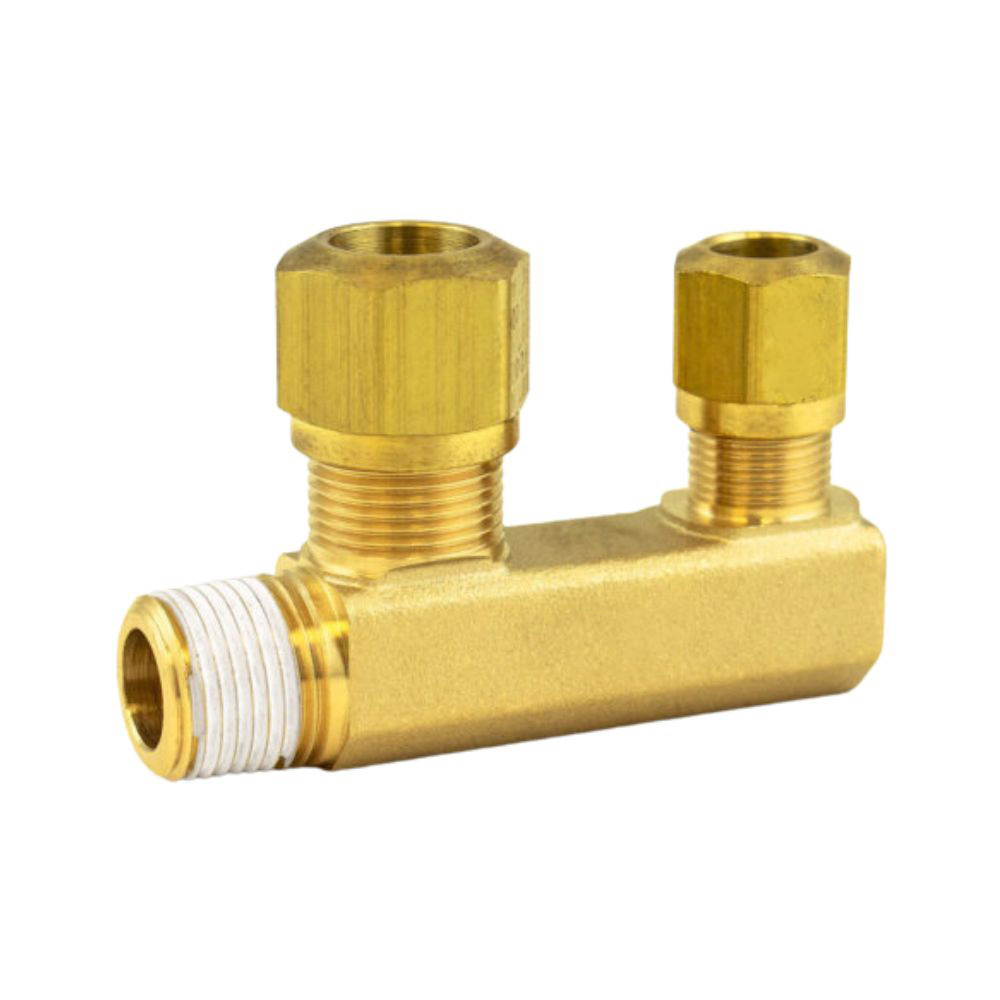

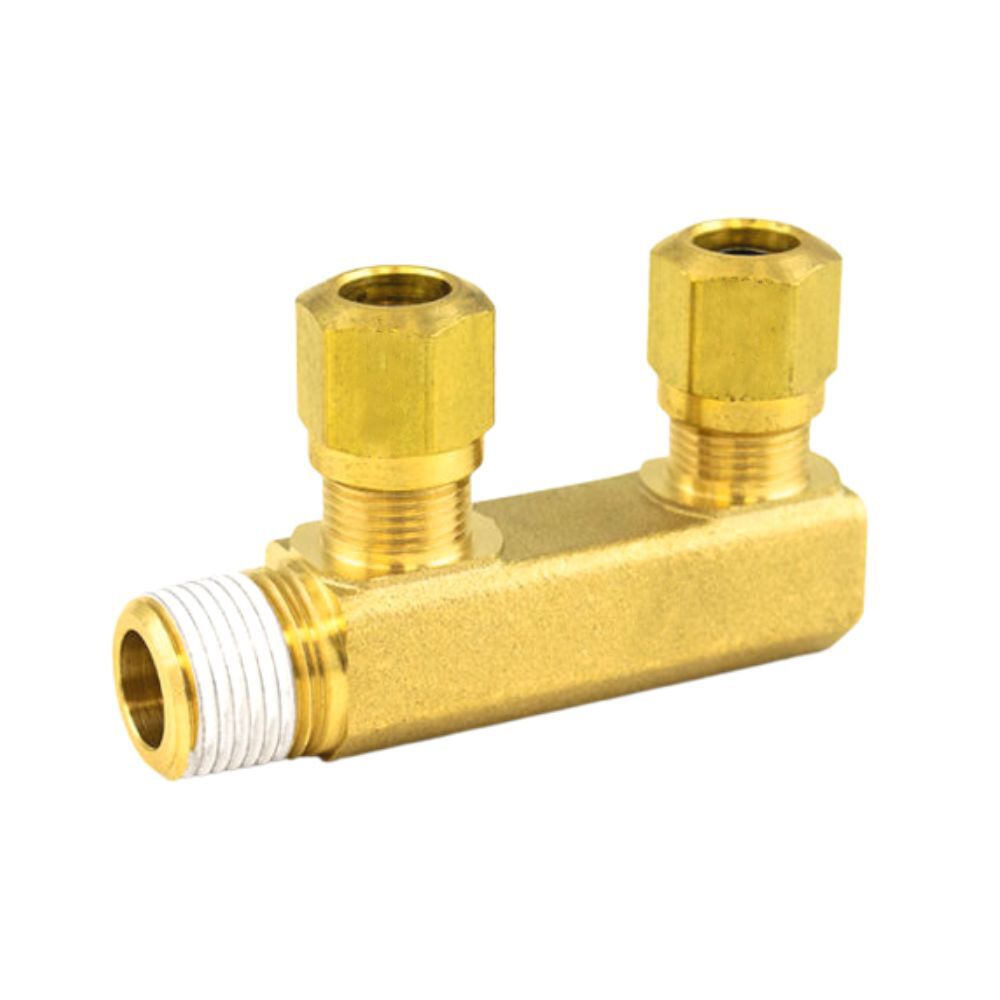

Watch the product video for a closer look at the 1589 brass F fitting. View it alongside the product photos and connection drawing to understand the body layout and the positions of the tubing and threaded connections.

When comparing the fitting with an existing part, check all three connection sizes and their sequence. Also review the body dimensions, connection spacing, and space available for tube routing and installation tools. The video provides a visual reference, while the numbered drawing and measured dimensions support final identification.

Click to watch the video and explore the product in more detail. Send Topa your part numbers, tubing specifications, port thread, and quantities for quotation.

Hot Sales

Review related adapters, elbows, and tees according to the connection layout required by your assembly. Where separate nuts, sleeves, or tube supports are needed, confirm that they belong to the specified fitting series.
