Description:
A brass forged reducing nut is a type of fastening device that is made of brass. It is forged, meaning it has been shaped and formed through a process of heating and hammering, rather than being cut from a sheet of metal.
Such a nut is typically used in high-stress or heavy-duty applications where a standard nut may not be strong enough, and it is often used in conjunction with other fasteners, such as bolts or screws, to secure two or more objects together.
If you have any further questions about brass SAE fittings or their applications, feel free to ask.
Features and Benefits:
• Leak resistance
• Durability
• Easy to install
• Strength
Categories: Nut, Brass, SAE, UNF

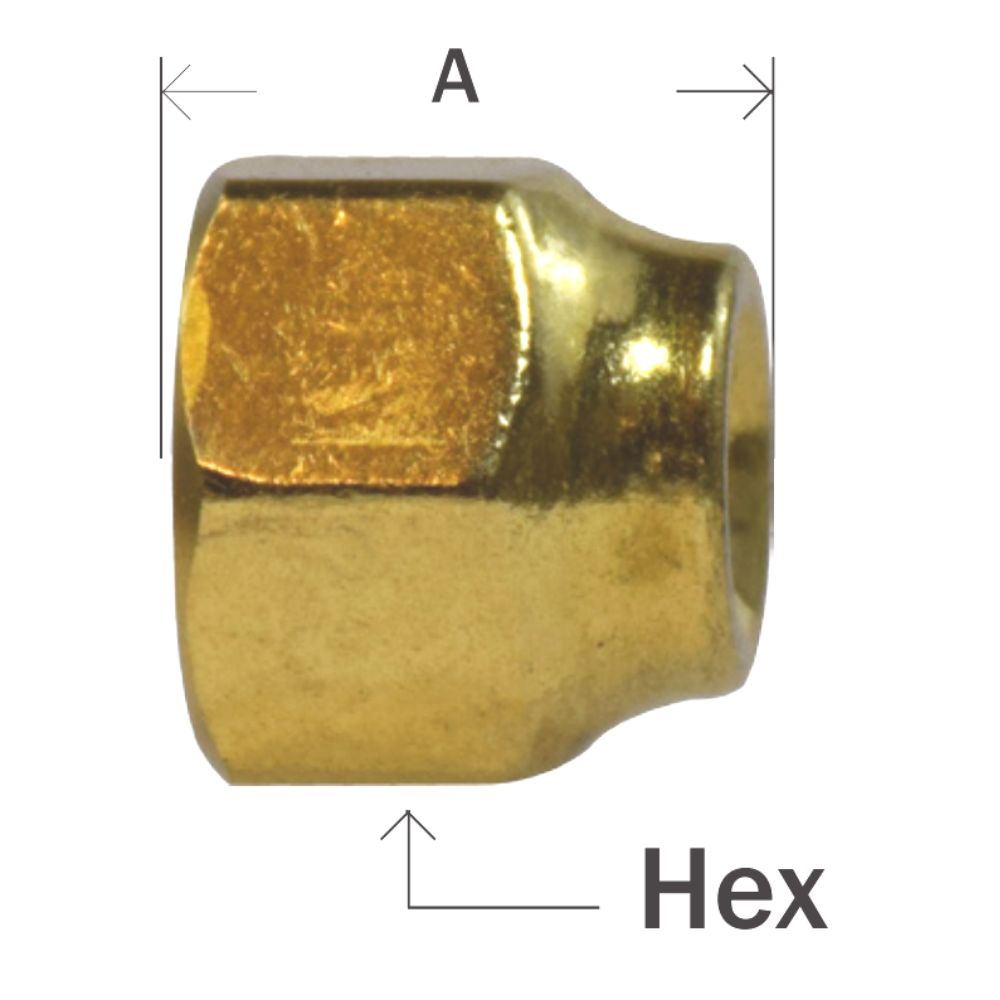

Part # | Female Flare x OD | A | Hex | Approx. Wt. Lbs. |
10-051 | 5/16” x 1/4” | 0.66 | 0.75 | 0.06 |
10-052 | 3/8” x 1/4” | 0.72 | 0.81 | 0.06 |
10-053 | 3/8” x 5/16” | 0.72 | 0.81 | 0.08 |
10-054 | 1/2” x 3/8” | 0.81 | 0.94 | 0.08 |
10-055 | 5/8” x 3/8” | 0.96 | 1.12 | 0.15 |
10-056 | 5/8” x 1/2” | 0.97 | 1.06 | 0.12 |
10-058 | 3/4” x 5/8” | 1.17 | 1.31 | 0.30 |
This video shows the information on the forged reducing nut brass hose fittings.
Additionally, forged reducing nut brass hose fittings are appropriate for use in a variety of hydraulic fluid systems since they are offered in a broad range of applications, sizes, and specifications.
Please contact us if you have any questions about the brass fittings.
