Brass Inverted Flare Adapters

Description:

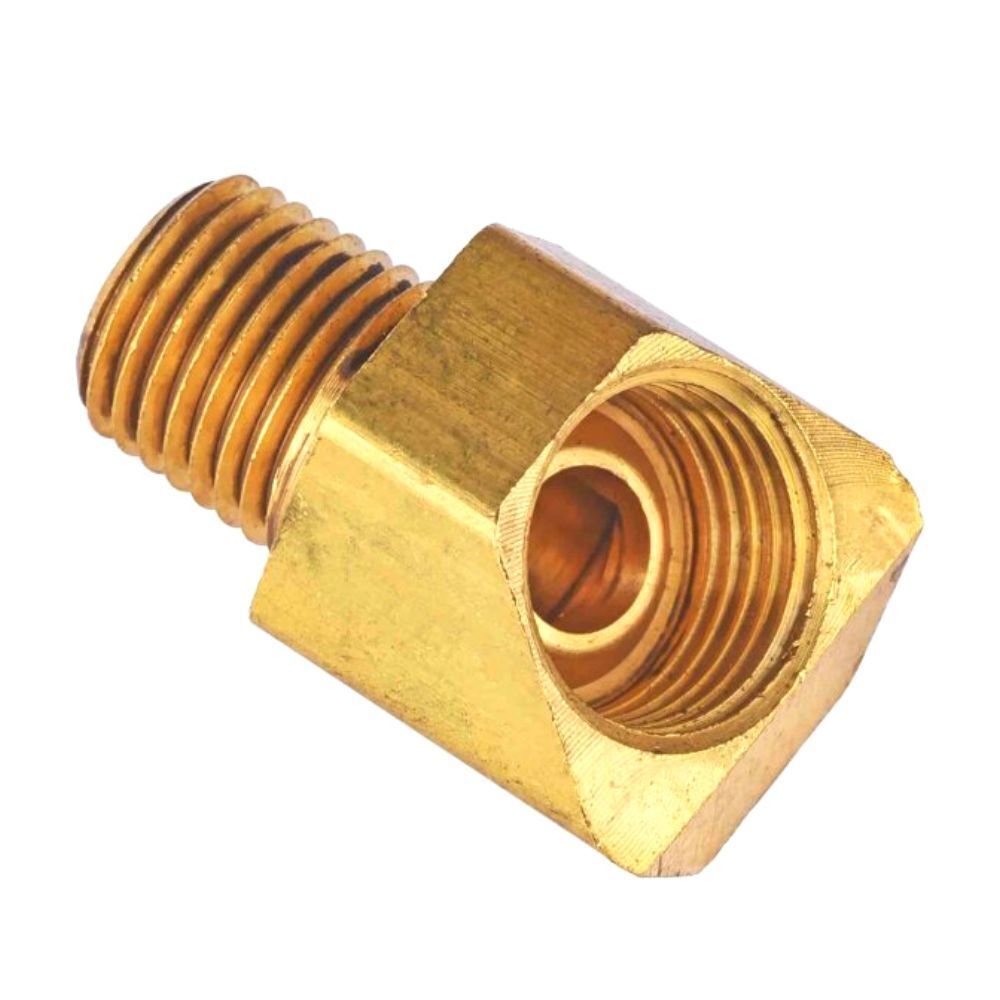

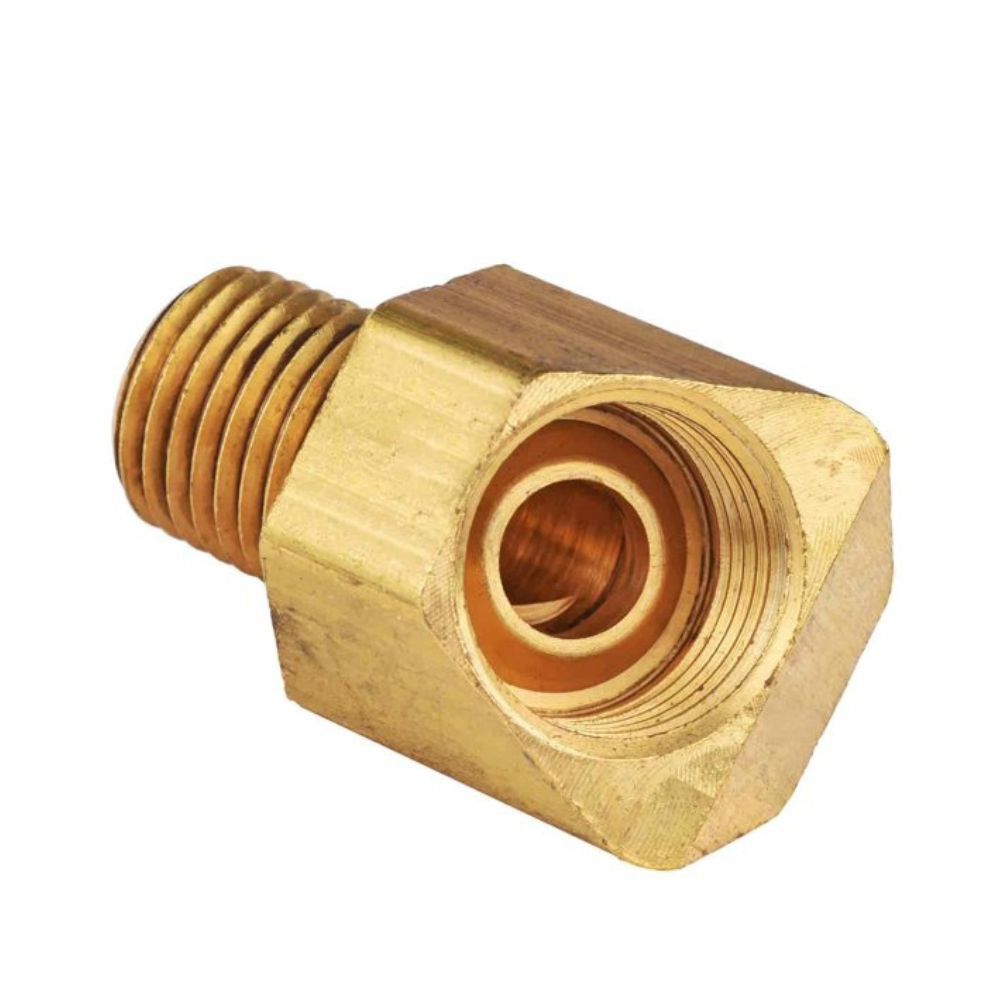

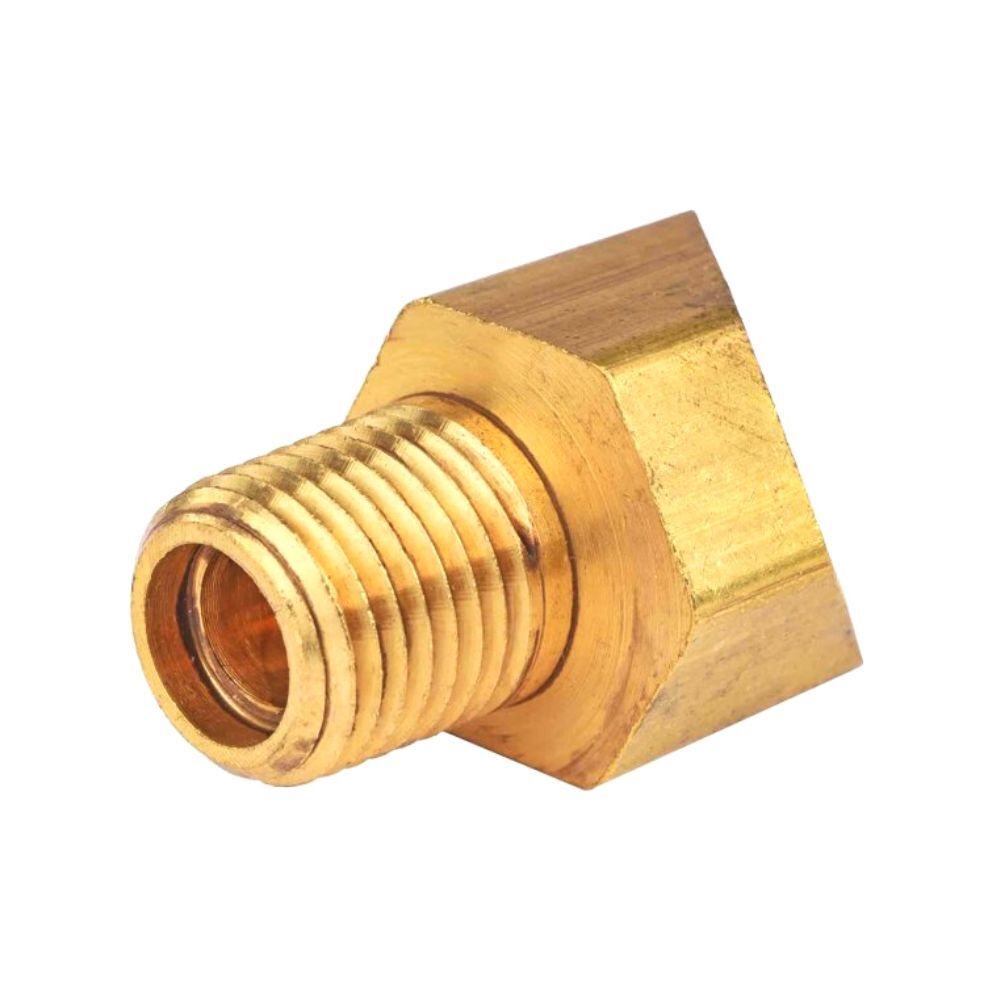

A brass inverted flare elbow is a 45-degree inverted fitting with a male NPTF thread that is used in plumbing or hydraulic systems.

The inverted flare connection allows for a secure and leak-proof joint, and the 90-degree bend provides flexibility in routing the fluid lines around obstacles or tight spaces.

If you have any questions about the inverted flare hydraulic fittings, feel free to ask.

Features and Benefits:

• Low cost
• Reusable
• Vibration resistant
• Strong seal

Description

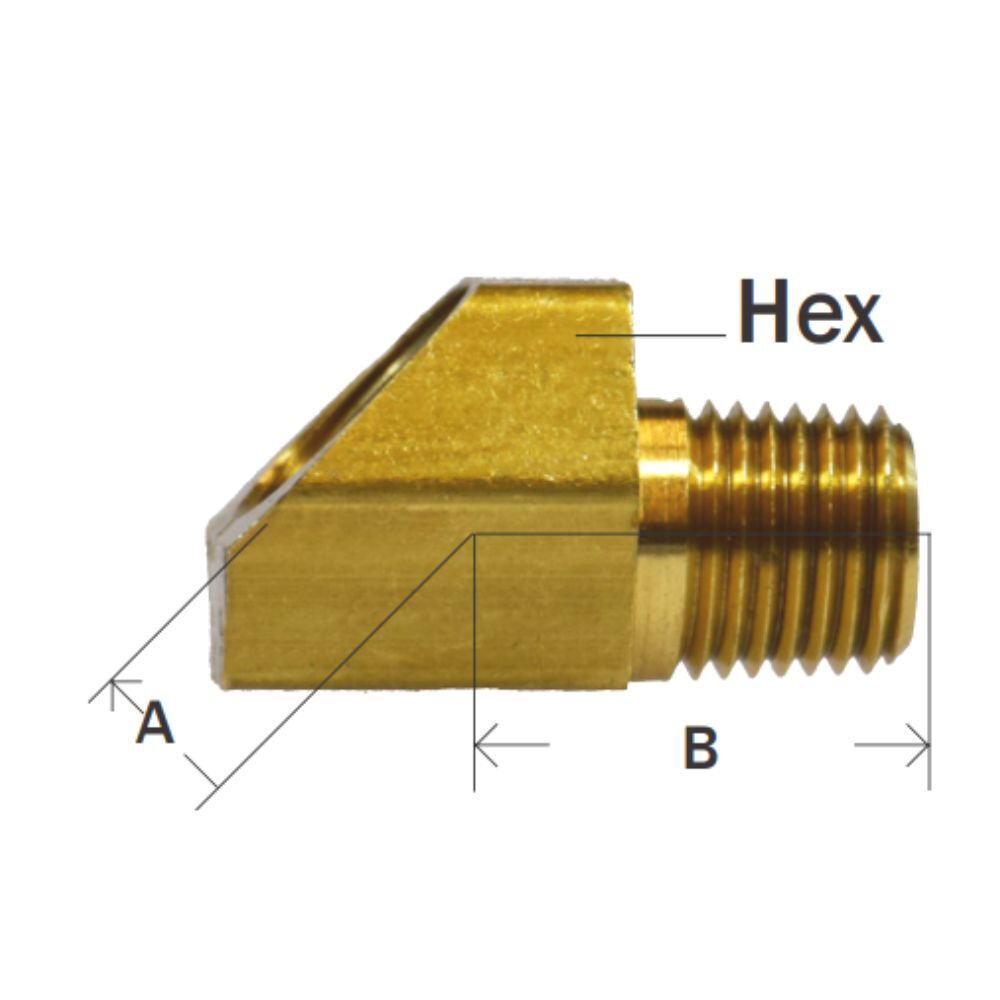

Part #	Inv. Flare X Male NPTF	A	B	Hex	Approx. Wt. Lbs.
12-072	3/16” x 1/8”	0.25	0.55	0.53	0.02
12-073	1/4” x 1/8”	0.27	0.58	0.56	0.04
12-074	5/16” x 1/8”	0.36	0.56	0.62	0.06
12-075	5/16” x 1/4”	0.23	0.83	0.62	0.06
12-076	3/8” x 1/4”	0.51	0.84	0.78	0.09
12-077	1/2” x 3/8”	0.38	0.91	0.84	0.11
12-079	5/8” x 1/2”	0.44	1.00	1.06	0.21

Brass Inverted Flare Adapters-45° Elbow Video

This video shows information about brass inverted flare adapters-45° elbow.

We can offer different sizes and types of the brass 45° inverted flare elbow, such as 1/2, 1/4, 3/8, etc. These 45-degree elbows play an essential role in the fuel line, brake line, and natural gas systems.

If you have any questions about npt to inverted flare adapter, please contact us.
