Brass JIC Adapters

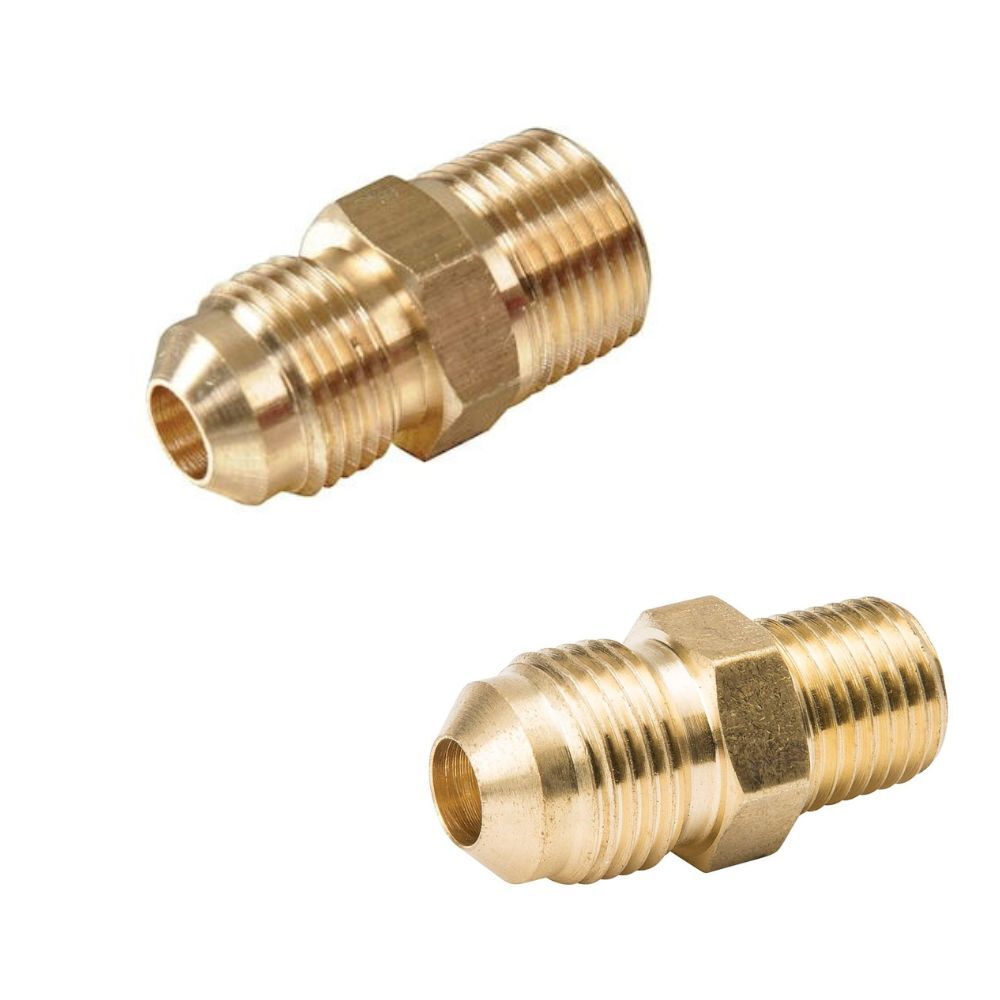

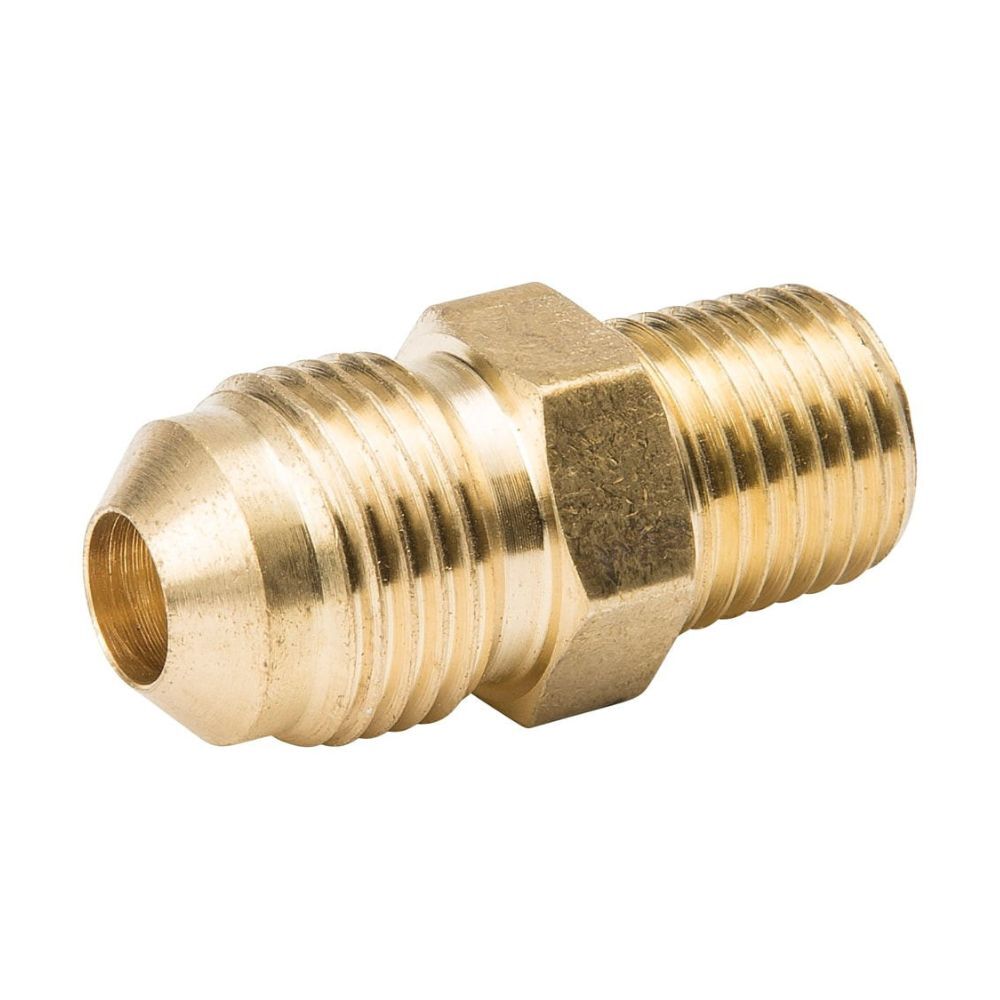

Brass JIC Straight Male Adapters

Description:

The brass JIC male straight adapter is a flare fitting that has a male JIC thread and a male NPT thread, it is commonly used in hydraulic systems for piping and hydraulic applications.

The brass JIC adapters are designed to connect two sections of tubing at a 37-degree angle to provide a secure and leak-proof seal.

Select the JIC size and pipe-thread size separately. Before ordering, confirm the pipe-thread designation, installation dimensions, working pressure, temperature, and fluid compatibility for the required part number.

Features and Benefits:

JIC 37° male connection: Designed to mate with a matching female JIC 37° flare connection.
Male pipe-thread connection: Provides a transition to a compatible female pipe-thread port.
Straight configuration: Keeps both connection ends aligned for installations that do not require a change in direction.
Brass construction: Provides a brass connection option where the material is suitable for the fluid and operating environment.
Hexagonal wrench flats: Allow the adapter body to be held during installation.

Description

Use the table below to compare part numbers, tube outside diameters, JIC thread sizes, pipe-thread sizes, overall lengths, and hex dimensions.

Tube OD identifies the corresponding tube outside diameter. It is not the outside diameter of the JIC thread. Specify both connection ends when selecting an adapter, as the JIC size and pipe-thread size may differ.

Before ordering, confirm the dimensions and pressure rating for the selected part number. The allowable operating pressure of the completed connection is limited by its lowest-rated component under the applicable service conditions.

Part #	Tube OD	A NPTF	Tube Thread	L	Hex	Working Pressure
28-701	1/4	1/8-27	7/16-20	1.22	0.45	3250 psi
28-702	1/4	1/4-18	7/16-20	1.37	0.56	3250 psi
28-703	1/4	3/8-18	7/16-20	1.42	0.75	3250 psi
28-705	5/16	1/4-18	1/2-20	1.42	0.56	3250 psi
28-706	3/8	1/8-27	9/16-18	1.24	0.63	3250 psi
28-707	3/8	1/4-18	9/16-18	1.43	0.63	3250 psi
28-708	3/8	3/8-18	9/16-18	1.38	0.75	3250 psi
28-709	3/8	1/2-14	9/16-18	1.69	0.88	3250 psi
28-710	1/2	1/4-18	3/4-16	1.53	0.81	3250 psi
28-711	1/2	3/8-18	3/4-16	1.53	0.81	3250 psi
28-712	1/2	1/2-14	3/4-16	1.79	0.88	3250 psi
28-713	1/2	3/4-14	3/4-16	1.85	1.13	2600 psi
28-715	5/8	1/2-14	7/8-14	1.89	0.94	3250 psi
28-716	5/8	3/4-14	7/8-14	1.95	1.13	2600 psi
28-748	3/4	1/2-14	1 1/16-12	2.06	1.13	2925 psi
28-717	3/4	3/4-14	1 1/16-12	2.06	1.13	2600 psi
28-749	3/4	1-11 1/2	1 1/16-12	2.25	1.38	1950 psi
28-719	1	3/4-14	1 5/16-12	2.06	1.13	2275 psi
28-718	1	1-11 1/2	1 5/16-12	2.3	1.38	1950 psi

Brass JIC Adapters-Straight Male Adapter Video

This video shows information about brass JIC adapters – male straight adapter.

We can offer different sizes and types of JIC brass male adapter such as 1/2, 1/4, 3/8, etc. These JIC fittings play an essential role in construction, automotive, and manufacturing systams.

If you have any questions about brass jic hydraulic fittings, please contact us.
