Brass JIC Flare Elbow

Description:

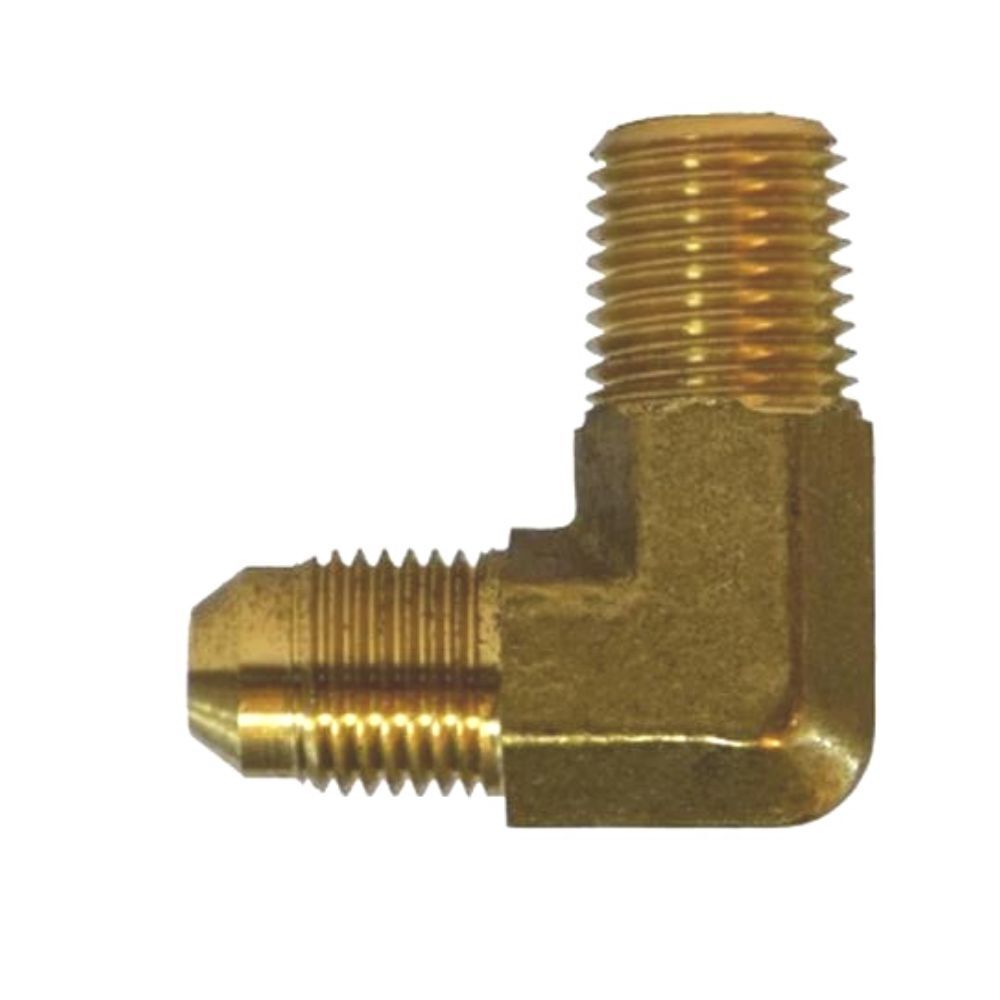

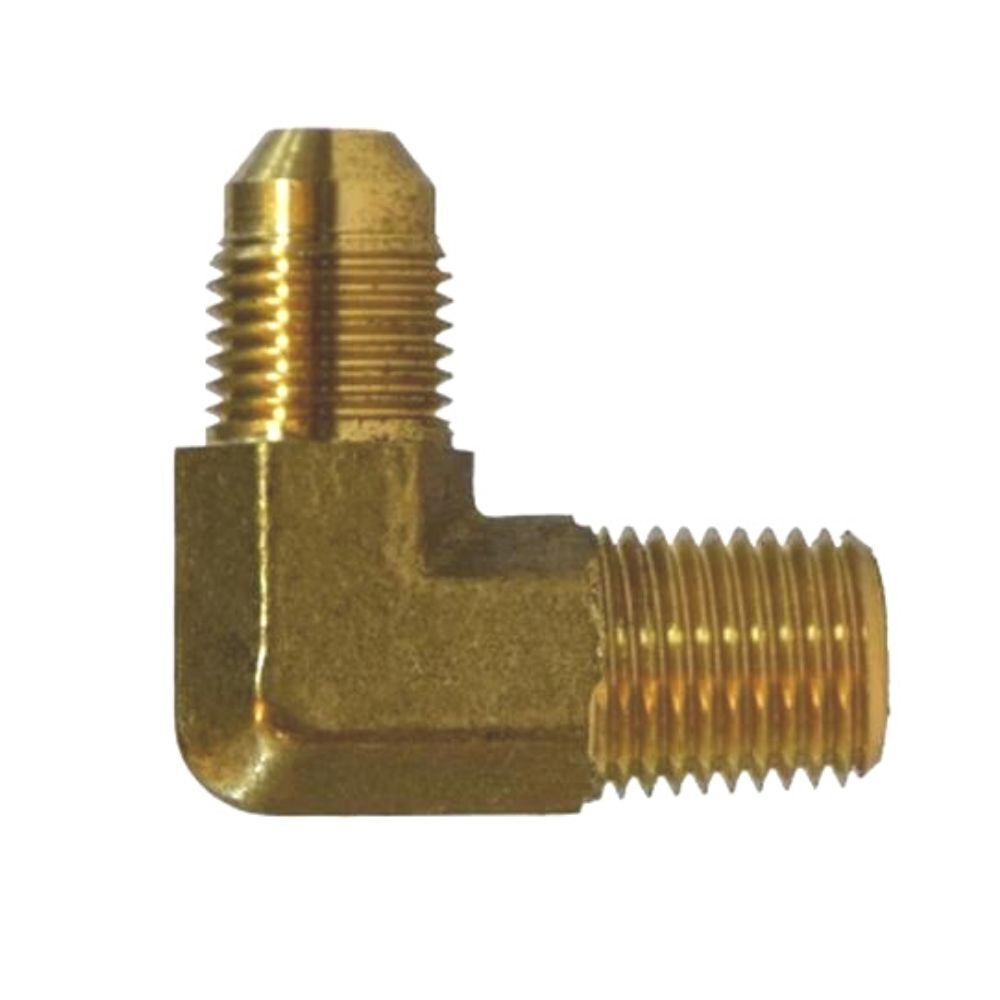

The brass JIC 90-degree elbow adapter is an elbow fitting with a male JIC thread and a male NPT thread, it is commonly used in hydraulic systems for piping and hydraulic applications.

The brass JIC flare elbow fitting is designed to connect two tubing sections at a 37-degree angle to provide a secure and leak-proof seal.

If you have any questions about the brass jic hydraulic fittings, feel free to ask.

Features and Benefits:

• Easy to assemble
• Durability
• Leak free
• Strong seal



Description

Part #

Tube OD

Tube Thread

A NPTF

M

N

Y

Working Pressure

28-760F

1/4

7/16-20

1/8-27

0.89

0.78

0.5

2160 psi

28-762F

1/4

7/16-20

1/4-18

1.05

1.03

0.53

1846 psi

28-766F

1/4

1/2-20

3/8-18

1.10

1.10

0.55

3905 psi

28-768F

3/8

9/16-18

1/8-27

1.06

1.00

0.56

3128 psi

28-770F

3/8

9/16-18

1/4-18

1.06

1.09

0.54

1564 psi

28-772F

3/8

9/16-18

3/8-18

1.15

1.22

0.74

1464 psi

28-773F

3/8

9/16-18

1/2-14

1.22

1.47

0.90

1265 psi

28-774F

1/2

3/4-16

3/8-18

1.25

1.22

0.81

1467 psi

28-777F

1/2

3/4-16

1/2-14

1.31

1.47

0.90

1265 psi

28-778F

1/2

3/4-16

3/4-14

1.4

1.59

0.89

2061 psi

28-780F

5/8

7/8-14

1/2-14

1.45

1.47

0.88

1265 psi

28-781F

3/4

1 1/16-12

1/2-14

1.66

1.56

1.08

1265 psi

28-783F

3/4

1 1/16-12

3/4-14

1.66

1.59

1.06

1084 psi

28-784F

1

1 5/16-12

1-11 1/2

1.88

1.77

1.32

1802 psi

28-786F

1

1 5/16-12

1-11 1/2

1.81

1.97

1.3

2361 psi

Brass JIC Flare Elbow-90° Forged Elbow Video

This video shows information about brass JIC flare elbow fitting – 90° forged elbow.

We can offer different sizes and types of  JIC brass adapter, such as 1/2, 1/4, 3/8, etc. These JIC elbow fittings play an essential role in fluid systems.

If you have any questions about jic to npt 90 degree brass elbow, please contact us.
