Description:
A brass push-on male elbow is a type of plumbing fitting used to connect two pipes or tubes at a 90-degree angle. It is called a “push-on” fitting because it is designed to be easily installed without the need for soldering or other special tools.
Instead, it has a barbed end that is inserted into the end of a pipe and a ring that is pressed over the pipe to hold it in place. The other end of the elbow is threaded to allow it to be connected to a female threaded fitting.
If you need more information about brass fittings or want to know more about other fittings, please contact us.
Features and Benefits:
• Leak resistance
• Durability
• Easy to install
• Strength
Categories: Adapter, Brass, Elbow 90°, Hose barb, NPTF

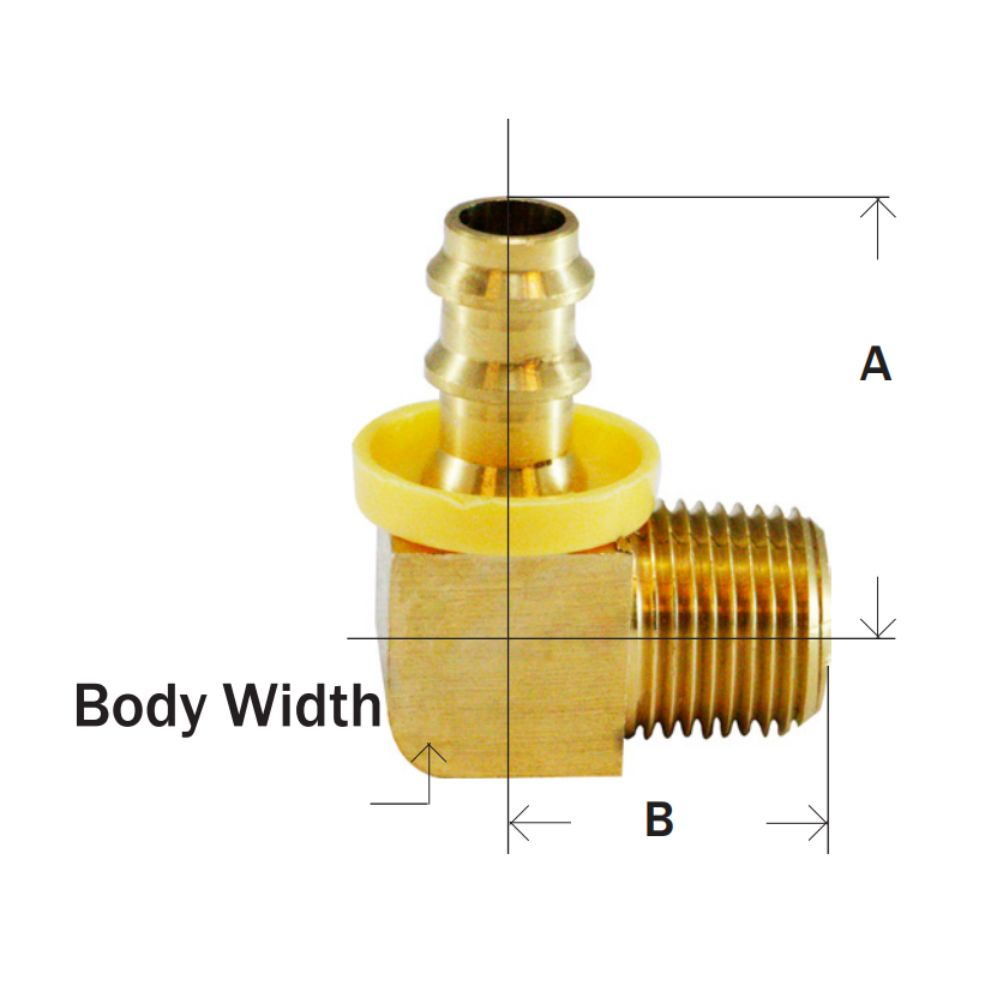

Part # | Hose I.D. x Male NPTF | A | B | Body Width | Approx. Wt. Lbs. |
30-372 | 1/4″ x 1/8″ | 0.98 | 0.75 | 0.50 | 0.04 |
30-373 | 1/4″ x 1/4″ | 1.04 | 0.95 | 0.56 | 0.06 |
30-374 | 5/16″ x 1/8″ | 1.02 | 0.94 | 0.50 | 0.06 |
30-375 | 5/16″ x 1/4″ | 1.09 | 0.94 | 0.56 | 0.08 |
30-370 | 3/8″ x 1/8″ | 1.11 | 0.75 | 0.50 | 0.10 |
30-371 | 3/8″ x 1/4″ | 1.13 | 0.90 | 0.56 | 0.10 |
30-376 | 3/8″ x 3/8″ | 1.21 | 0.92 | 0.70 | 0.12 |
30-377 | 3/8″ x 1/2″ | 1.30 | 1.19 | 0.87 | 0.22 |
30-382 | 1/2″ x 3/8″ | 1.32 | 1.02 | 0.70 | 0.13 |
30-378 | 1/2″ x 1/2″ | 1.50 | 1.19 | 0.87 | 0.22 |
30-379 | 5/8″ x 1/2″ | 1.98 | 1.19 | 0.87 | 0.26 |
30-383 | 3/4″ x 1/2″ | 2.15 | 1.24 | 0.87 | 0.25 |
30-381 | 3/4″ x 3/4″ | 2.07 | 1.28 | 1.06 | 0.34 |
This video shows the information on the brass push-to-connect male elbow adapter.
Additionally, brass push-to-connect male elbow adapters are appropriate for use in a variety of hydraulic fluid systems since they are offered in a broad range of applications, sizes, and specifications.
Please contact us if you have any questions about the brass fitting npt fittings.
