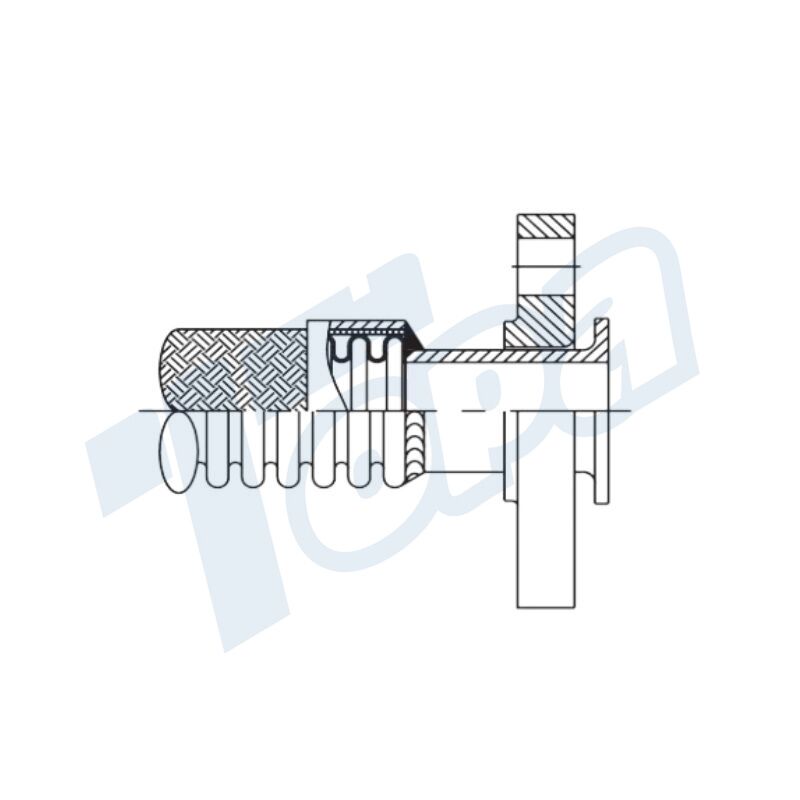

Description
DN | I.D | O.D | Pitch distance | Wall Thickness | |
(mm) | in | (mm) | (mm) | (mm) | (mm) |
6 | 1/4 | 6 | 8.8 | 2 | 0.2 |
8 | 5/16 | 7.80 | 11.3 | 3 | 0.2 |
10 | 3/8 | 11.00 | 15.7 | 3 | 0.2 |
12 | 1/2 | 11.6 | 18 | 3 | 0.2 |
15 | 5/8 | 14.4 | 21.5 | 3.5 | 0.3 |
20 | 3/4 | 19.4 | 27 | 4.5 | 0.3 |
25 | 1 | 24.4 | 32.5 | 5 | 0.3 |
32 | 1 1/4 | 31.4 | 40 | 5.5 | 0.3 |
40 | 1 1/2 | 39.4 | 5o | 6 | 0.3 |
50 | 2 | 49.4 | 63 | 7.5 | 0.3 |
65 | 2 1/2 | 64.4 | 81 | 9 | 0.3 |
80 | 3 | 79.2 | 98 | 10.5 | 0.4 |
100 | 4 | 99.2 | 120 | 13 | 0.4 |
125 | 5 | 124 | 150 | 14.5 | 0.5 |
150 | 6 | 149 | 180 | 17.5 | 0.5 |
200 | 8 | 198.8 | 240 | 24 | 0.6 |
250 | 10 | 248.4 | 300 | 28 | 0.8 |
300 | 12 | 298 | 355 | 33.5 | 1 |
Note: This is only a reference parameter, if you need other parameters of metal bellows, please contact us!

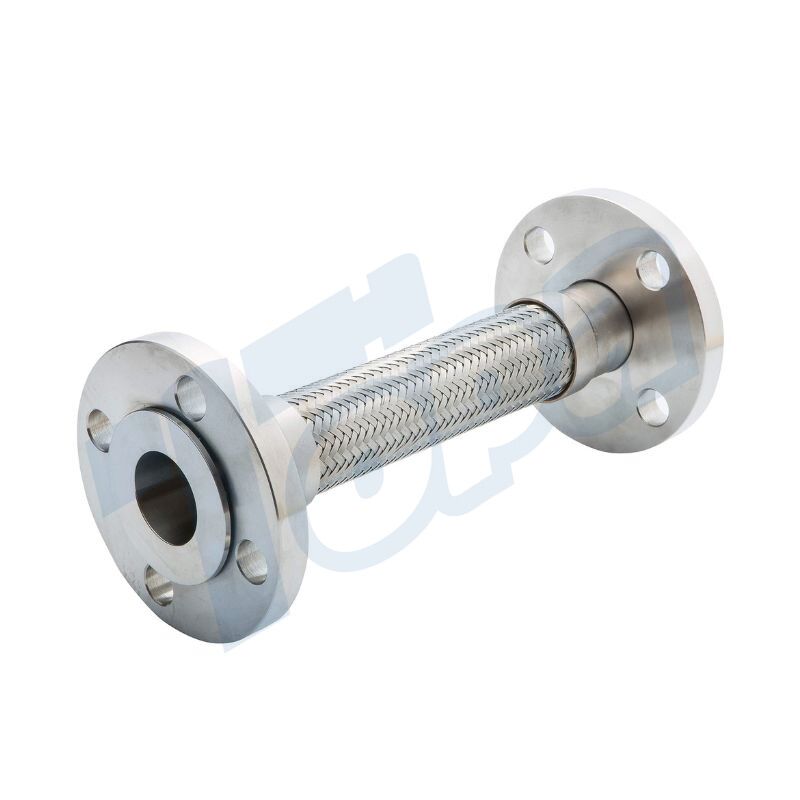

Stub End Flanged Corrugated Metal Hoses Assembly Video
This video shows information about the stub end flanged corrugated metal hose assembly.
Corrugated flexible metal hoses are the perfect choice for high-pressure fluid applications. We provide the best quality stainless steel and carbon steel flange corrugated metal hose. And you can ask for custom flexible metal hose services.
If you have any questions about the flexible metal water hose, please contact us!
