13771-JIC Crimping Hydraulic Hose Fittings

Crimping Hydraulic Hose Fittings

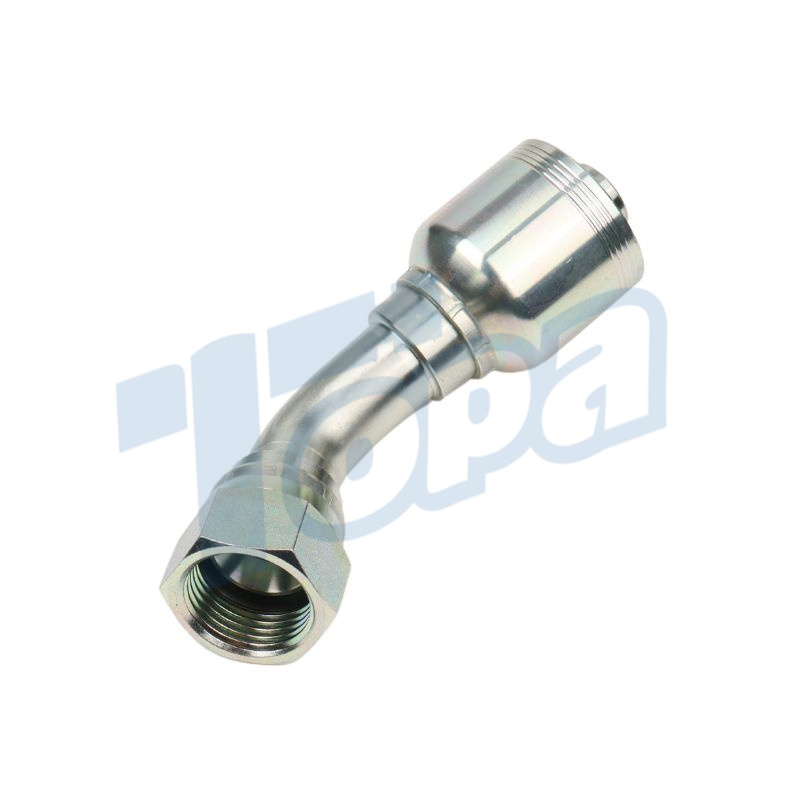

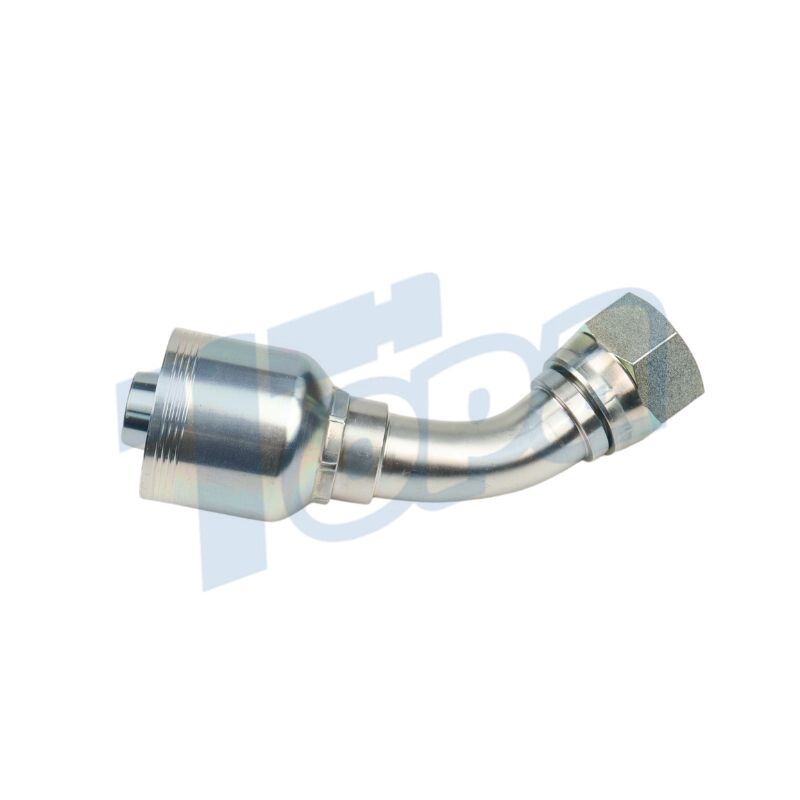

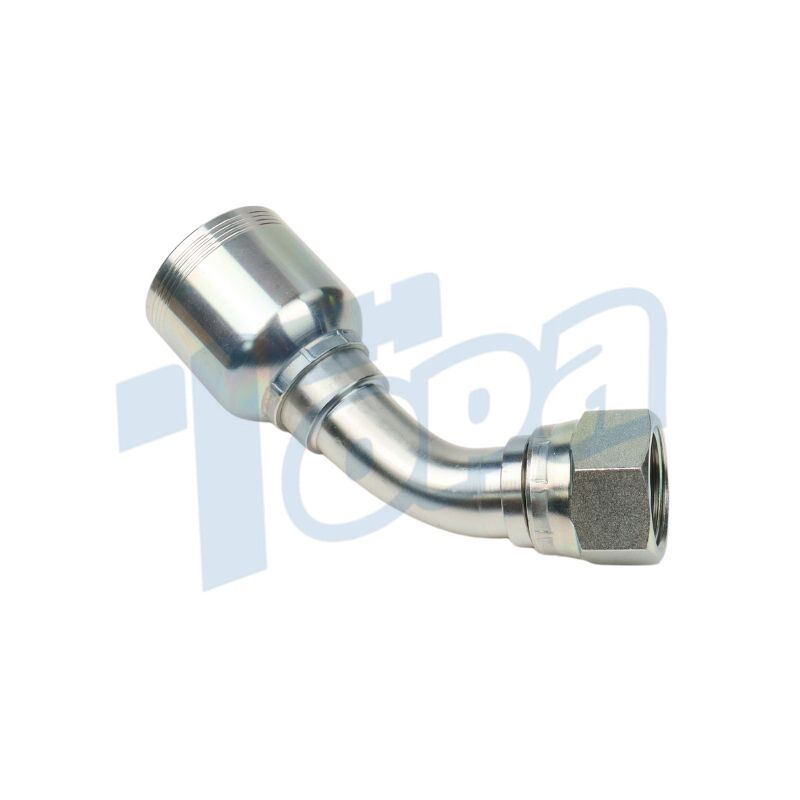

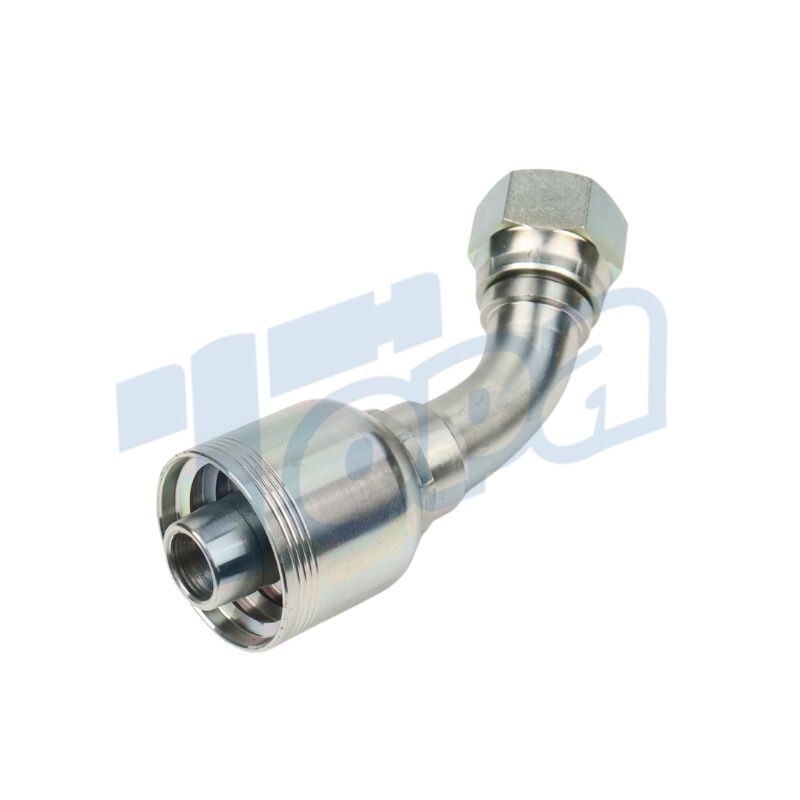

13771 JIC Crimping Hydraulic Hose Fittings

Topa’s JIC 13771 hydraulic hose crimp fittings have been carefully designed to provide a secure, leak-free connection to hydraulic systems. Its construction is described in detail below:

Connection 1: Female JIC 37°

Connection 2: Hose End

Material selection: Carbon steel; Stainless steel

Maximum Operating Pressure: 350 bar

Shape: 45° Elbow

Product types: Crimped Fittings

Applications: Industry, Manufacturing, Transportation, Oil & Gas

If you want hydraulic crimped hose fittings, just contact Topa. We can supply standard hose fittings, and also can custom crimped hose fittings for your special needs!

Description

Part No.	Hose Bore			Thread	W- HEX	Dimensions
Part No.	Size	Inch	DN	Thread	W- HEX	A(mm)	B(mm)
06-06FJ4	6	3/8″	10	9/16″-18	17.4	69	42
06-08FJ4	6	3/8″	10	3/4″-16	22.2	69	42
08-08FJ4	8	1/2″	12	3/4″-16	22.2	81	49
08-10FJ4	8	1/2″	12	7/8″-18	25.4	81	49
12-12FJ4	12	3/4″	20	1.1/16″-12	31.7	115	75
16-16FJ4	16	1″	25	1.5/16″-12	38.1	122	77
20-20FJ4	20	1.1/4″	32	1.5/8″-12	50.8	150	103
24-24FJ4	24	1.1/2″	40	1.7/8″-12	53.9	175	115
32-32FJ4	32	2″	50	2.1/2″-12	73	211	140

13771 JIC Crimping Hydraulic Hose Fittings Video

The 13771 JIC hydraulic hose crimp fitting manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.

As the video expands, you will see the entire process of hydraulic hose crimp fittings from raw material cutting to final completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.

Ready to experience quality service? Visit Topa today to learn more about our line of quality hydraulic fittings. Let Topa help you make a better choice.
