DOT Brake Line Compression Fittings

Description:

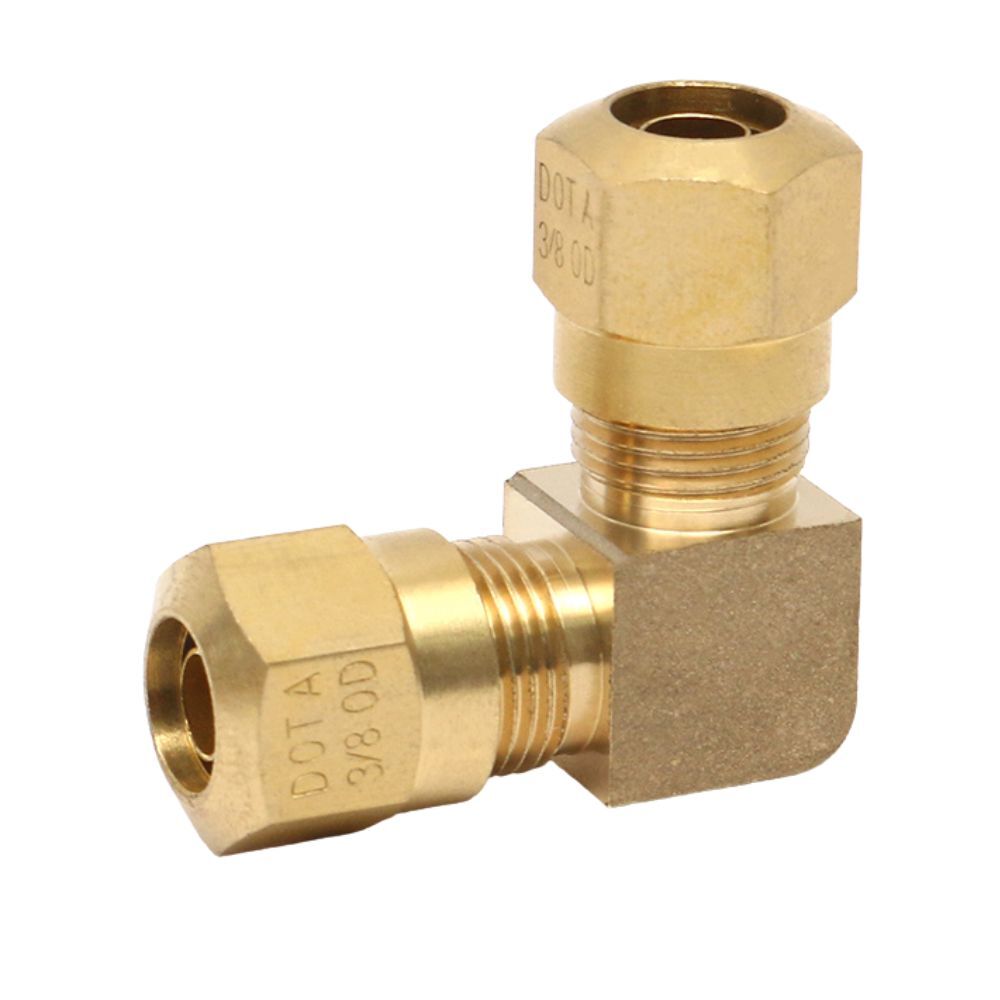

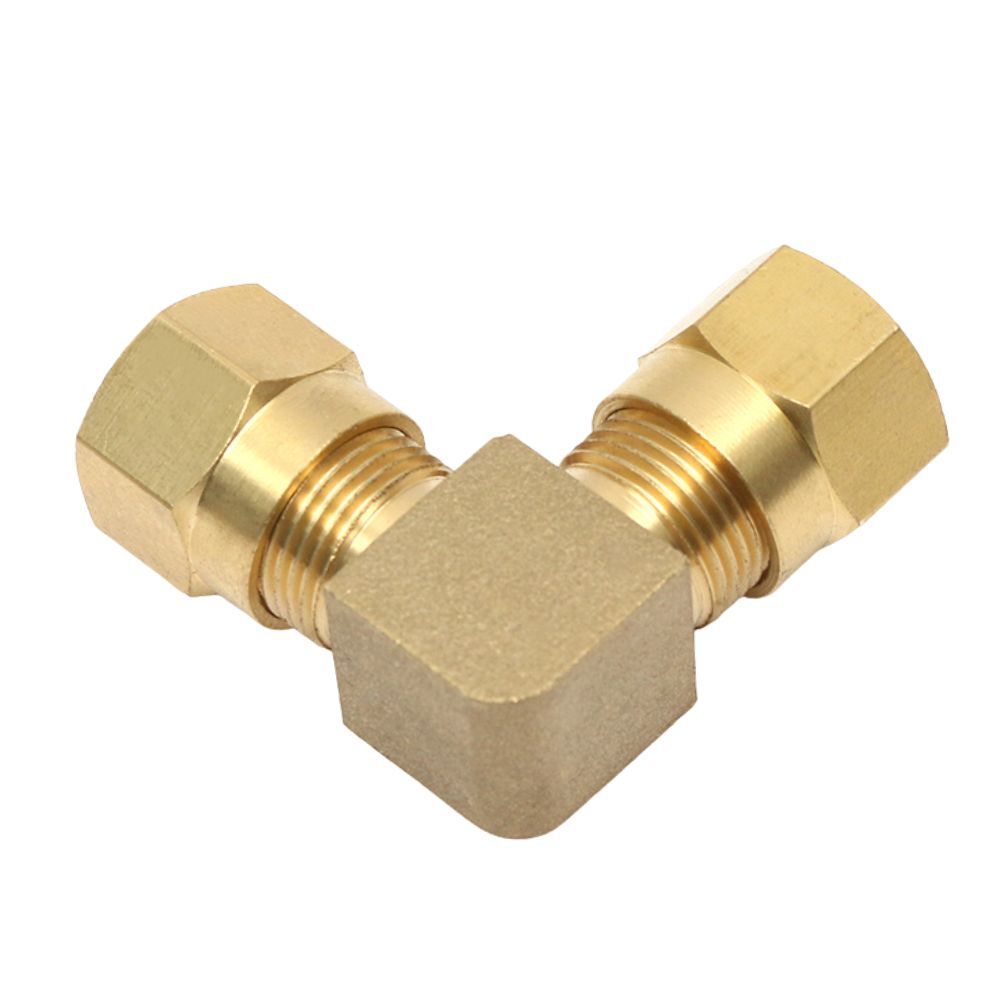

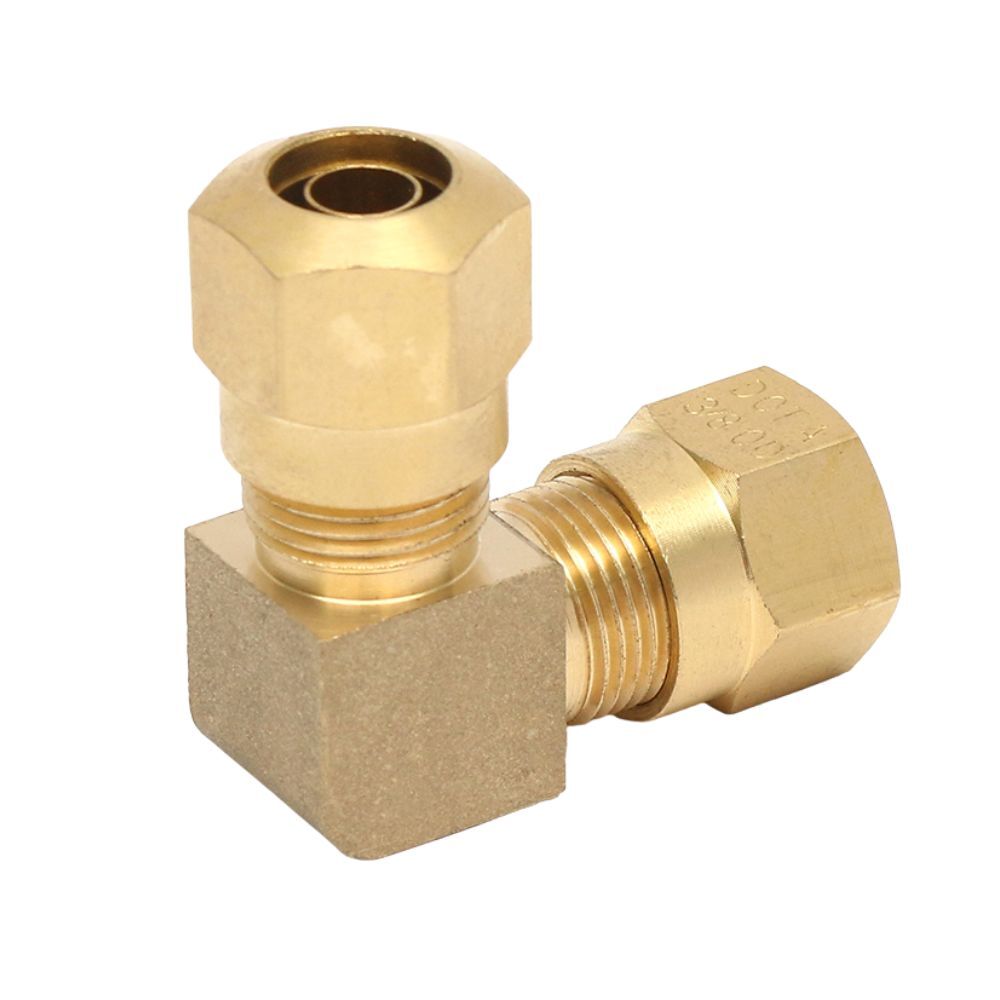

DOT brake line compression fittings are the type of fitting used in air brake systems. The union elbows are the 90-degree air brake fittings used to connect two sections of nylon tubing at an angle.

The use of compression connections allows for a secure connection to the flexible nylon tubing, which helps to prevent leaks and minimize maintenance requirements.

If you have any further questions about the brass air brake compression fittings, feel free to ask.

Features and Benefits:

• Easy to maintain
• Durability
• Corrosion-resistance
• Quick

Description

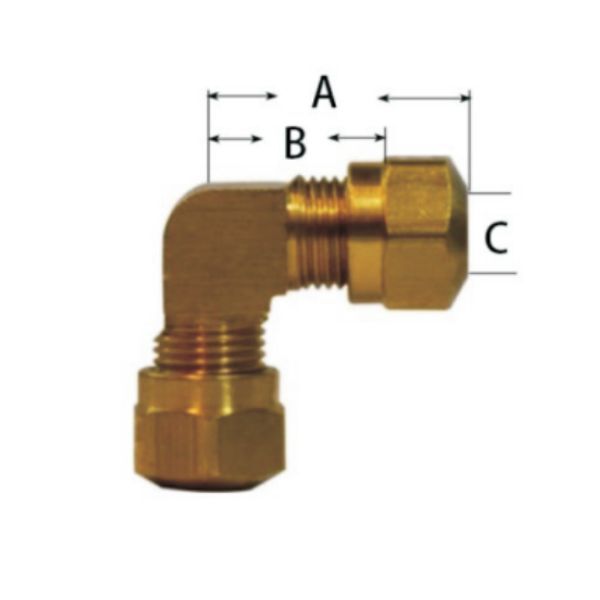

Part#	Tube.OD	A	B	C	Approx Wt.Lbs
1577-4	1/4	0.95	0.62	0.137	0.09
1577-6	3/8	1.25	0.79	0.217	0.13
1577-8	1/2	1.45	0.93	0.338	0.15
1577-10	5/8	1.58	1.09	0.398	0.36

DOT Brake Line Compression Fittings - For Nylon Tubing Elbow Video

This video shows the information on the DOT brake line compression fittings.

Additionally, brass union elbows can be used with nylon tubings. They have a large number of sizes and dimensions. And they also play an essential role in air brake systems.

Please get in touch with us if you have any questions about the compression dot brake line fitting.
