DOT Compression Air Brake Fitting-Nylon Tubing Male Adapter

DOT Compression Air Brake Fitting

Description:

DOT compression air brake fitting is a type of fitting used in air brake systems. The male adapters have a male NPT thread and are used to connect nylon tubing.

The use of compression connections allows for a secure connection to the flexible nylon tubing, which helps to prevent leaks and minimize maintenance requirements.

Send Topa your part numbers, tubing specifications, and quantities per size for product review and quotation. Include any required compliance documentation with your request.

Features and Benefits:

Tube-to-Port Connection: Connects compatible nylon tubing to a matching female pipe-threaded port.
Compression Tube End: Uses the specified nut, sleeve, and tube-support arrangement.
Straight Brass Body: An inline configuration for installations that do not require an elbow.
Separate Size Selection: Specify tubing outside diameter and pipe-thread size independently.

Description

The tubing size refers to its outside diameter. The pipe-thread size is a nominal connection designation and should not be interpreted as the thread’s measured outside diameter.

Part#	Tube O.D* Male NPTF	C Hex	A	B	D	Approx Wt.Lbs
1579-4B	1/4*1/16	3/8	1.16	0.87	0.087	0.05
1579-4C	1/4*1/8	7/16	1.15	0.86	0.087	0.05
1579-4D	1/4*1/4	9/16	1.43	1.10	0.137	0.06
1579-4E	1/4*3/8	11/16	1.47	1.14	0.137	0.08
1579-6C	3/8*1/8	9/16	1.49	1.03	0.217	0.07
1579-6D	3/8*1/4	9/16	1.67	1.21	0.217	0.08
1579-6E	3/8*3/8	9/16	1.70	1.4	0.217	0.10
1579-6F	3/8*1/2	7/8	1.89	1.43	0.217	0.14
1579-8D	1/2*1/4	11/16	1.85	1.33	0.338	0.13
1579-8E	1/2*3/8	11/16	1.85	1.33	0.338	0.14
1579-8F	1/2*1/2	7/8	2.04	1.52	0.338	0.18
1579-8G	1/2*3/4	1	219	1.68	0.523	0.23
1579-10E	5/8*3/8	13/16	1.88	1.39	0.398	0.17
1579-10F	5/8*1/2	7/8	2.10	1.58	0.398	0.21
1579-12F	3/4*1/2	1	2.19	1.68	0.523	0.28
1579-12G	3/4*3/4	1-1/8	2.22	1.71	0.523	0.30

DOT Compression Air Brake Fitting-Nylon Tubing Video

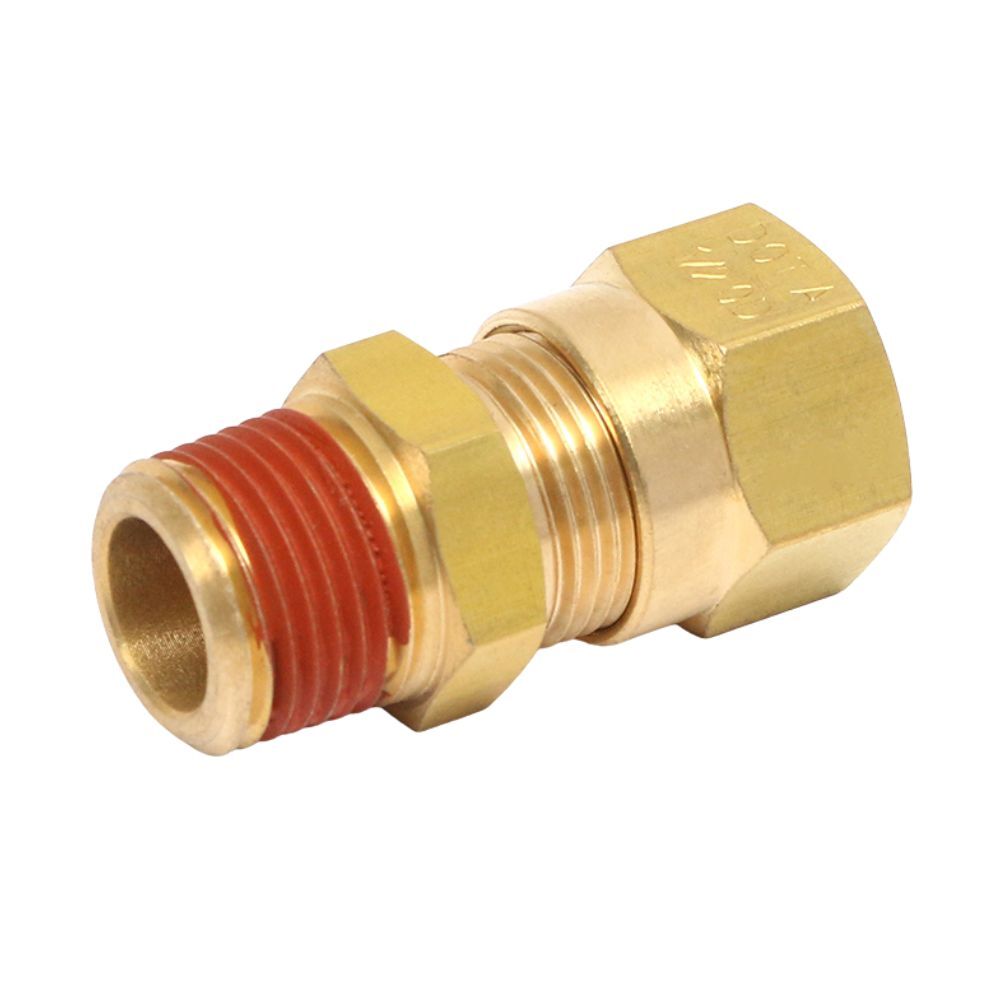

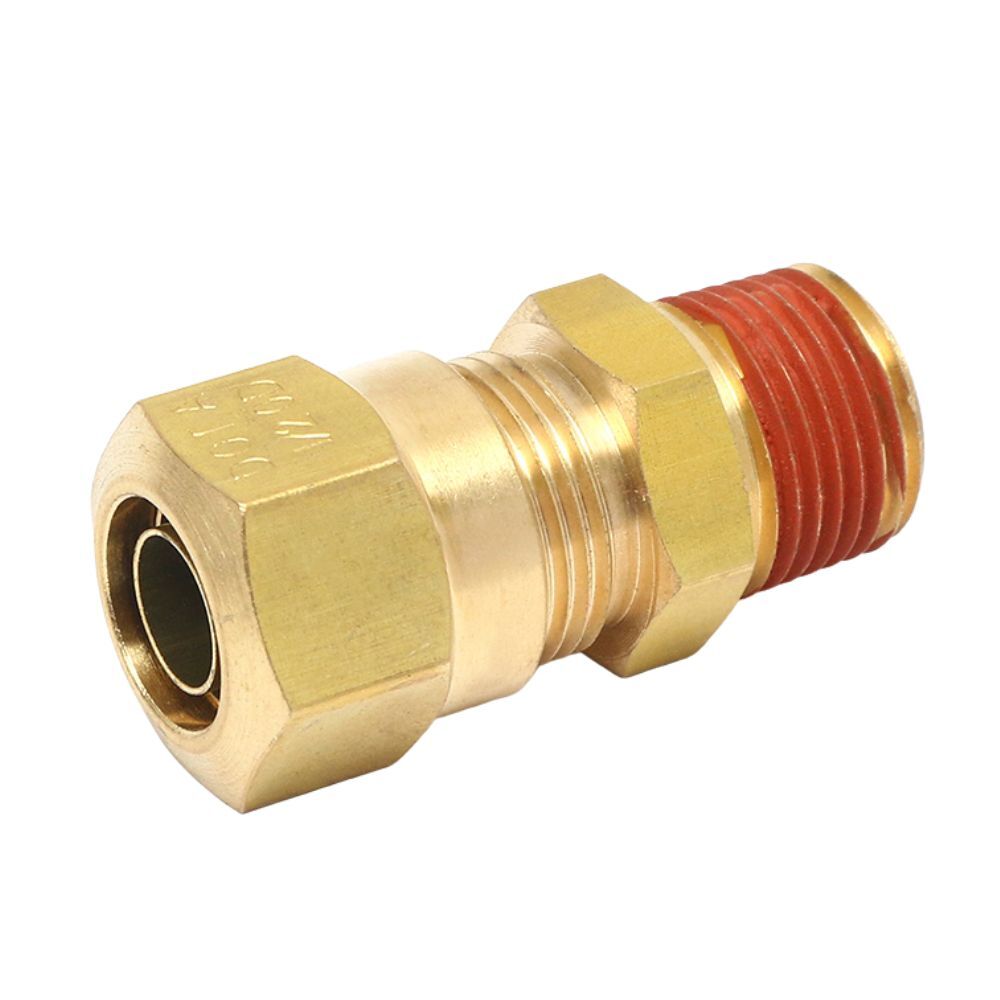

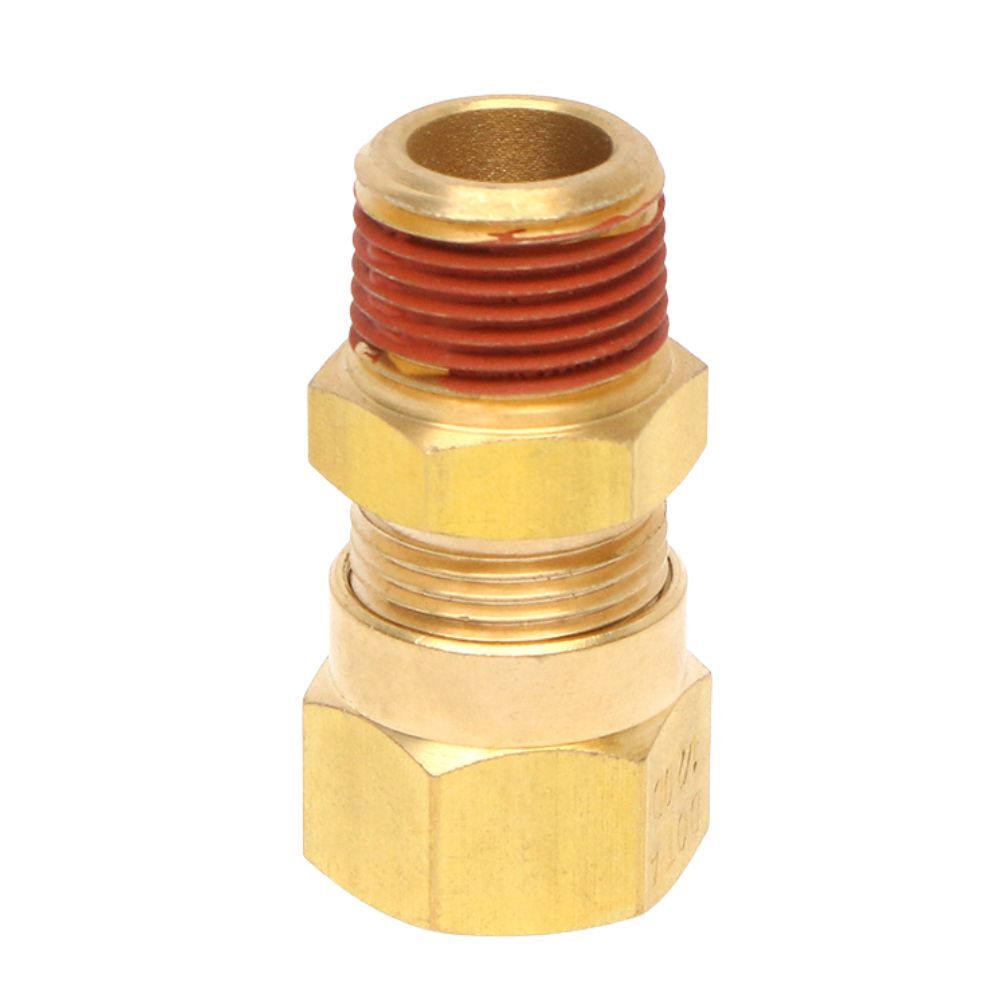

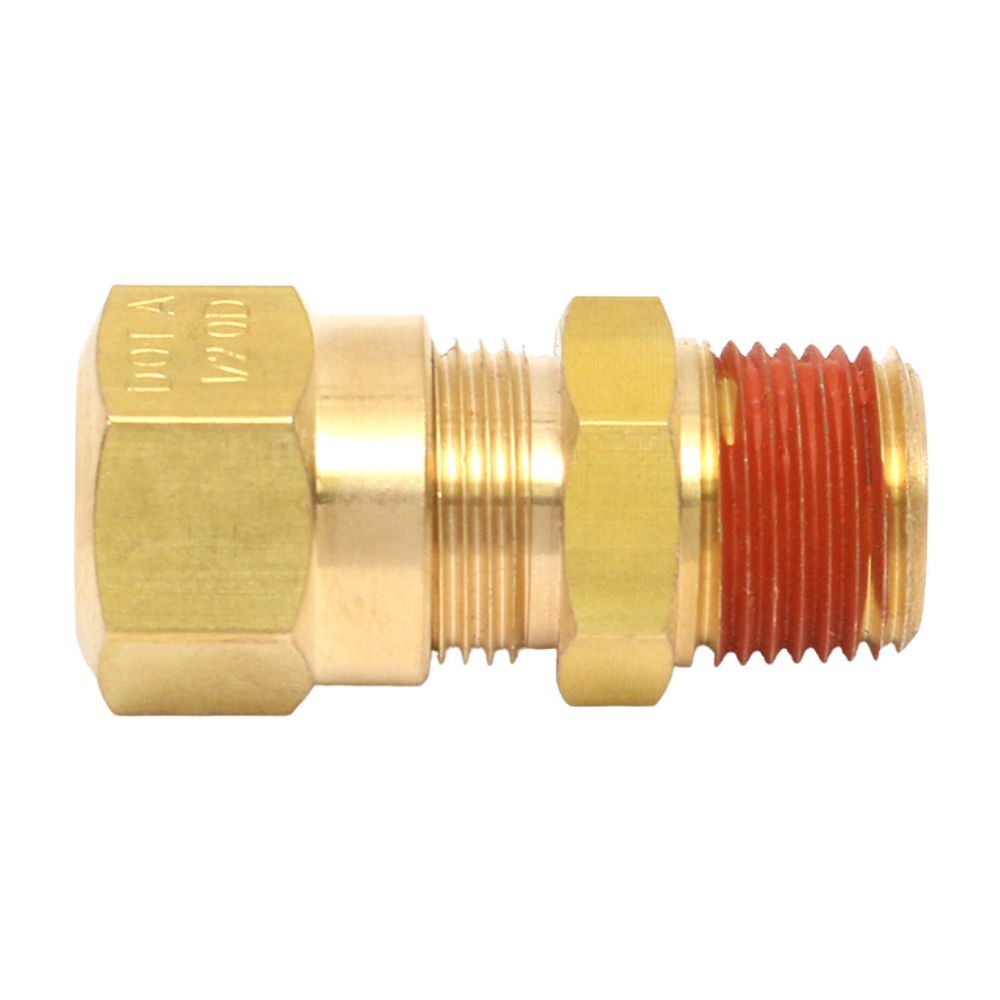

Watch the product video for a closer look at the 1579 compression male adapter. Use it alongside the product photos and dimension table to review the straight body, tube connection, and male pipe-threaded end.
When comparing the adapter with an existing part, check the tubing outside diameter and port thread separately. Also confirm the compression components, tube-support arrangement, body dimensions, and space available for installation. The video provides a visual reference, while the drawing and tubing specifications support final product identification.
Click to watch the video and explore the product in more detail. Send Topa your part numbers, tubing specifications, and quantities per size for quotation.

Hot Sales

Compare straight adapters, elbows, and other configurations according to the tubing route and port connection required by your assembly. Confirm the tubing specification, thread, component arrangement, and operating limits for each selected item.
