Female NPT Fitting

7N Female NPT Fitting

Description:

The 7N fitting has female NPT threads at both ends to join two male NPT connections in a straight layout. Equal-size models connect matching thread sizes, while reducing models connect different sizes.

Those female NPT fittings can make a strong seal between pipes and fittings.

If you have any questions about the npt pipe fittings, feel free to ask.

Features and Benefits:

Female NPT Connections: Internal tapered threads at both ends connect mating male NPT components.
Straight Body: Joins two connections in line without adding an elbow.
Equal and Reducing Configurations: Choose matching or different thread sizes for the required connection layout.
Hexagonal Wrench Flats: Provide tool engagement for holding the fitting during assembly.

Description

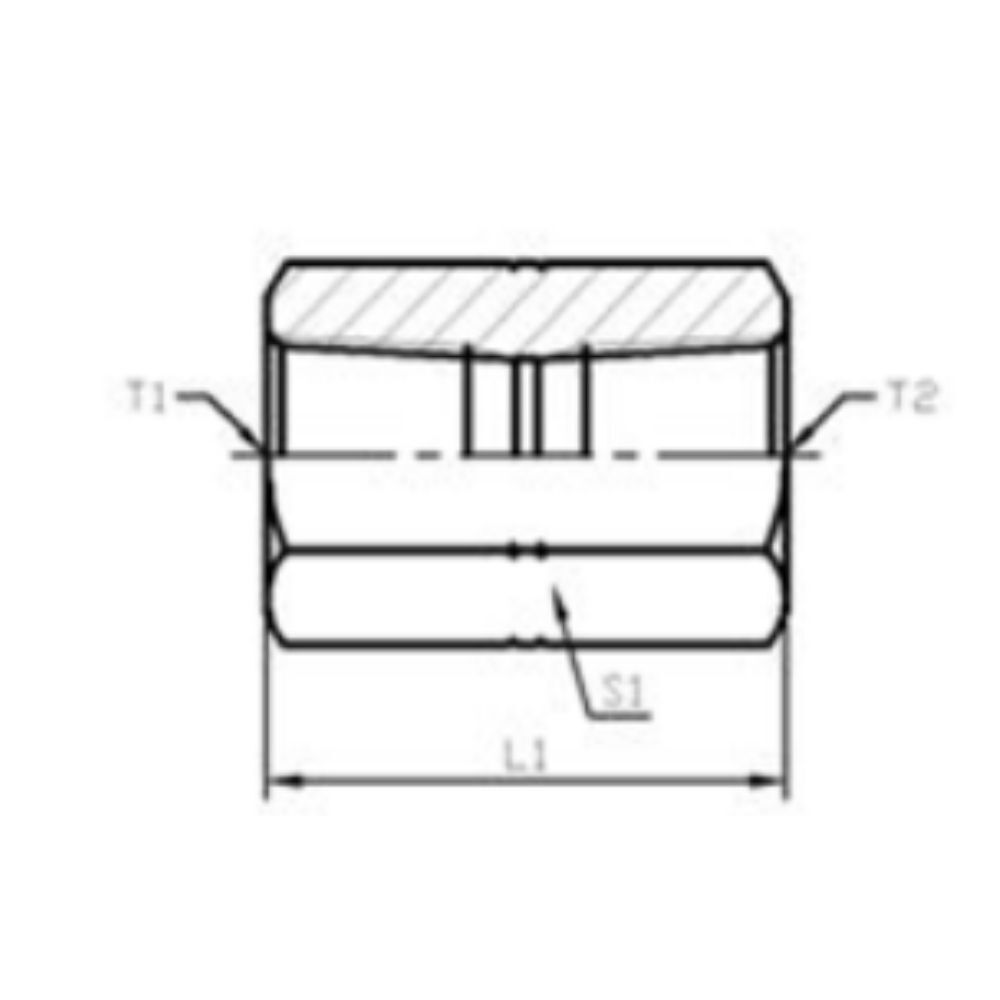

Use the table below to select the required thread combination and check the fitting dimensions. T1 and T2 identify the two female threaded ends, L1 indicates the overall length, and S1 indicates the hex size across flats.

PART NO.	THREAD		DIMENSIONS		Weight(g)	Working pressure MPa
PART NO.	T1	T2	L1	S1	Weight(g)	Working pressure MPa
7N-02	Z1/8＂X27	Z1/8＂X27	24	17	28	34.5
7N-02-04	Z1/8＂X27	Z1/4＂X18	27	19	38	27.5
7N-02-06	Z1/8＂X27	Z3/8＂X18	30	22	55	21
7N-04	Z1/4＂X18	Z1/4＂X18	29	19	33
7N-04-06	Z1/4＂X18	Z3/8＂X18	31	22	49
7N-04-08	Z1/4＂X18	Z1/2＂X14	35	30	129
7N-06	Z3/8＂X18	Z3/8＂X18	29	22	37
7N-06-08	Z3/8＂X18	Z1/2＂X14	38	30	128	17
7N-06-12	Z3/8＂X18	Z3/4＂X14	40	36	201	17
7N-08	Z1/2＂X14	Z1/2＂X14	38	30	110	21
7N-08-12	Z1/2＂X14	Z3/4＂X14	43	36	197	17
7N-12	Z3/4＂X14	Z3/4＂X14	39	36	148	17
7N-12-16	Z3/4＂X14	Z1＂X11.5	45.5	41	227	14
7N-16	Z1＂X11.5	Z1＂X11.5	48	41	183	14
7N-20	Z1.1/4＂X11.5	Z1.1/4＂X11.5	49	50	239	8
7N-24	Z1.1/2＂X11.5	Z1.1/2＂X11.5	49	60	409	7
7N-32	Z2＂X11.5	Z2＂X11.5	50	70	422	–

Working pressure must be confirmed for the selected size, material, and operating conditions. The fitting rating alone does not establish the rating of the complete connection; the mating components and assembly requirements must also be considered.

7N Female NPT Fitting Video

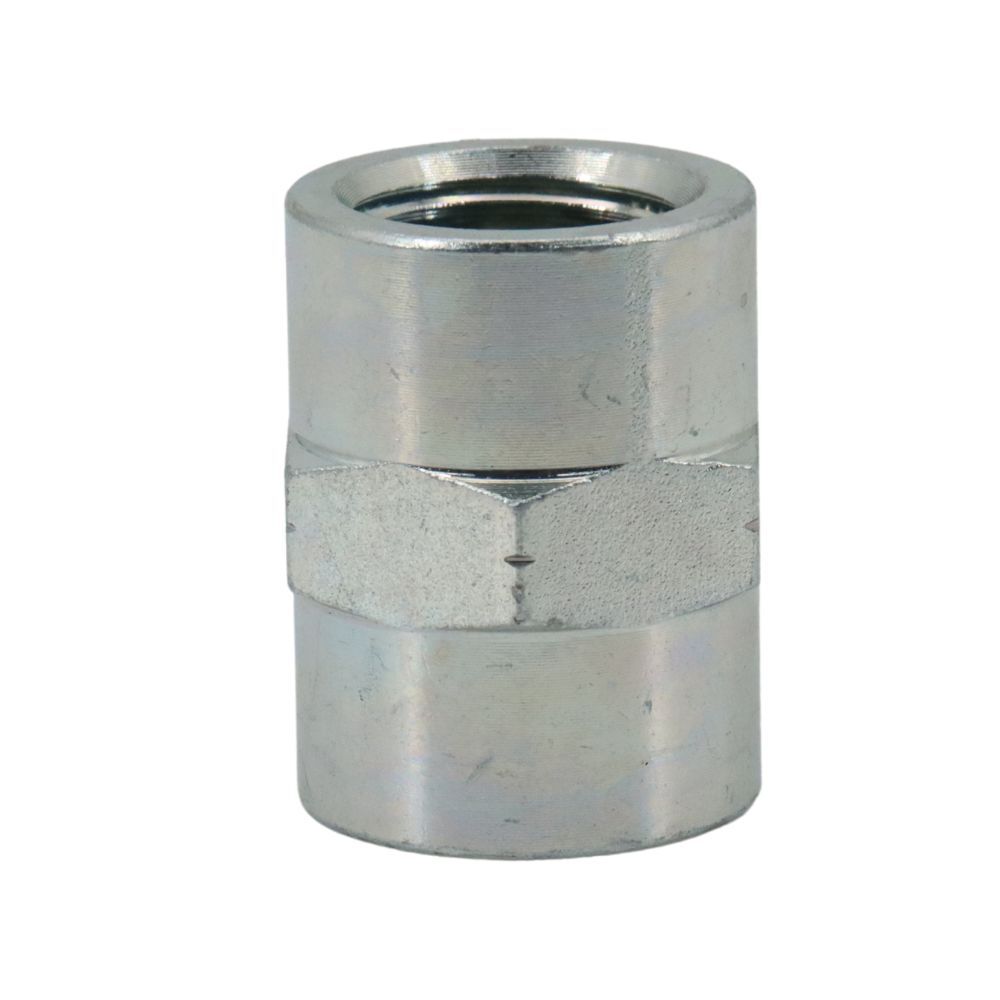

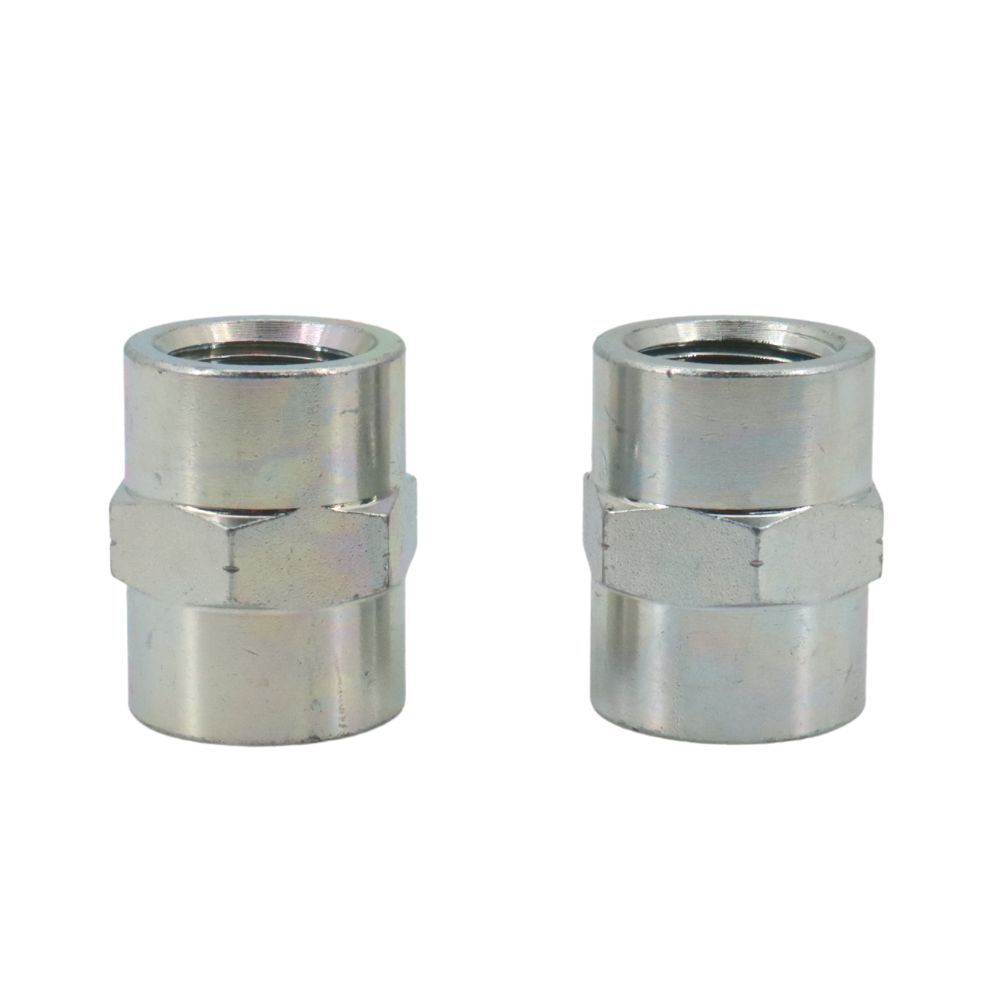

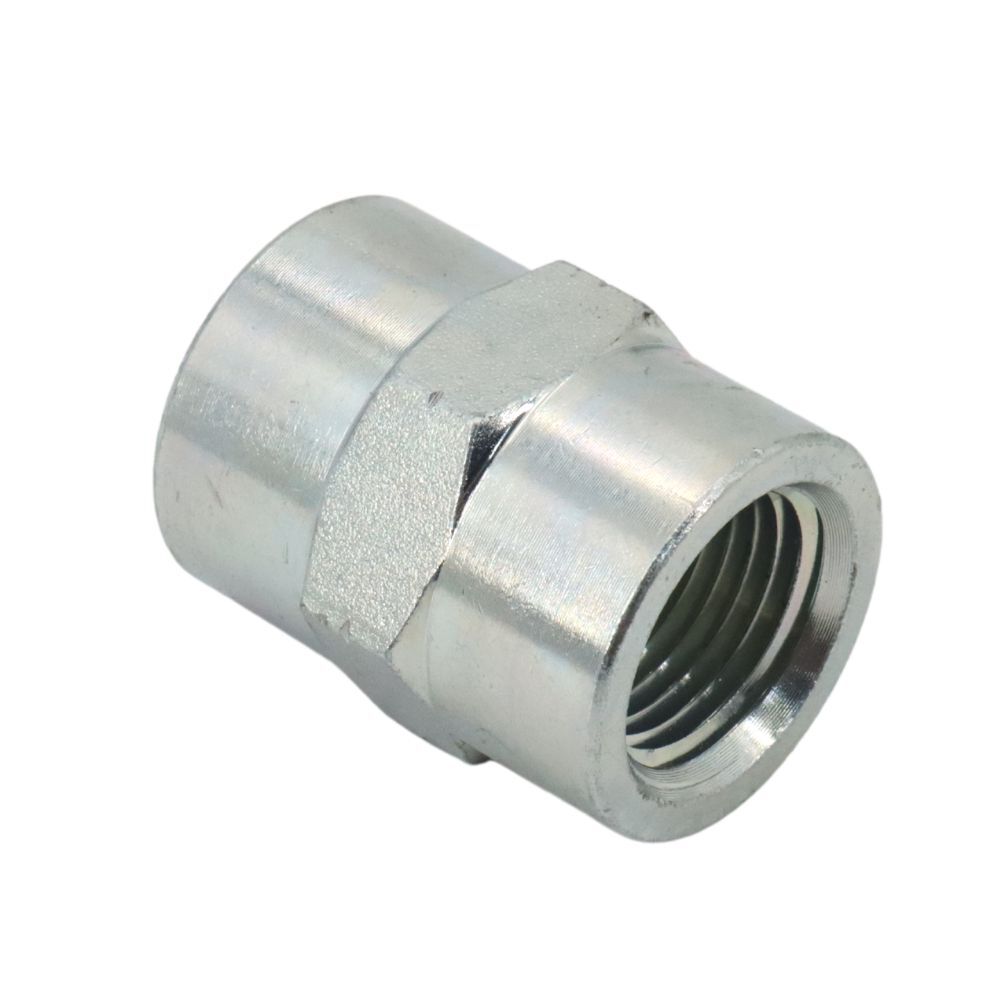

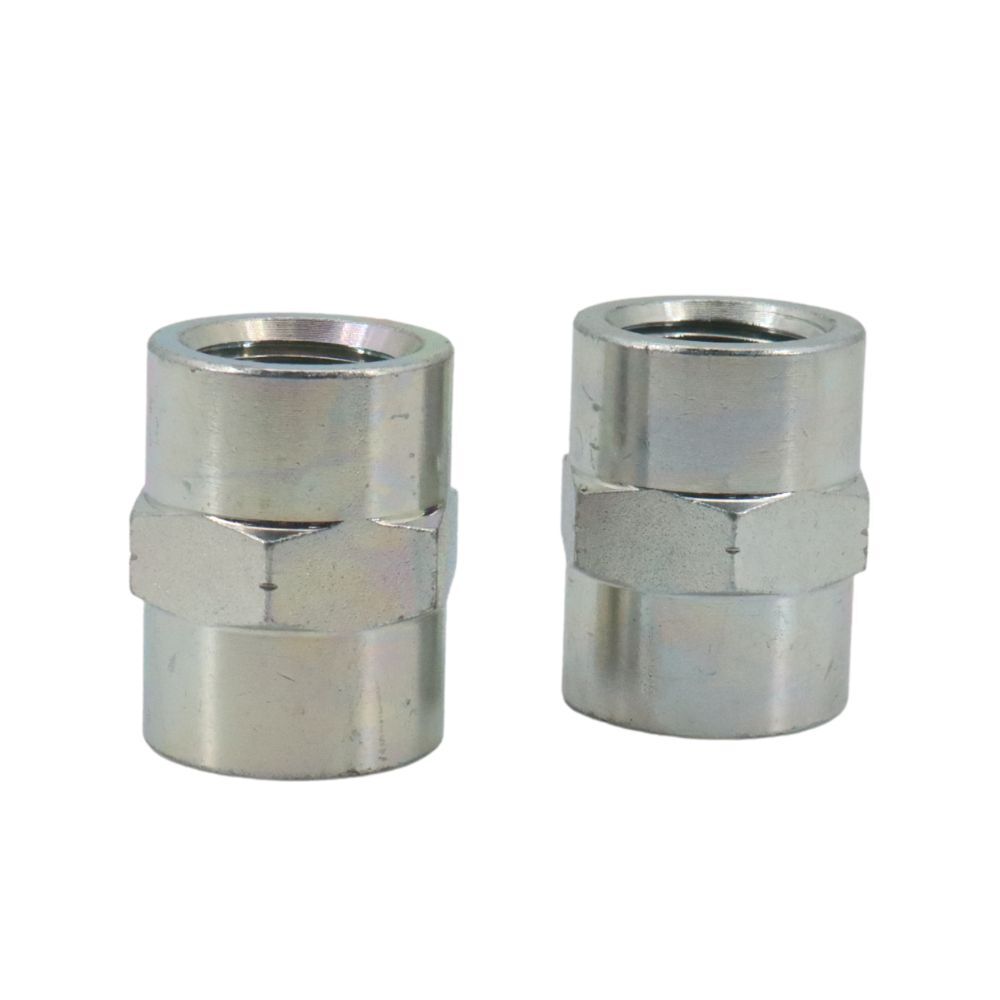

Watch the video for a closer look at the 7N female-to-female NPT fitting, including its straight body, threaded openings, and hexagonal wrench flats. The product view gives you a clearer understanding of its shape and how the two connections are arranged.

The 7N series includes equal-size and reducing configurations for joining two male NPT connections. Before selecting a model, confirm the required female thread size at each end, then review the corresponding dimensions and applicable working pressure. Material and surface finish should also match your operating requirements.

Click to watch the product video and explore the 7N fitting in more detail. For distributor replenishment, OEM production, or recurring supply, send Topa your required part numbers and quantities by item.
