Hydraulic Ferrule

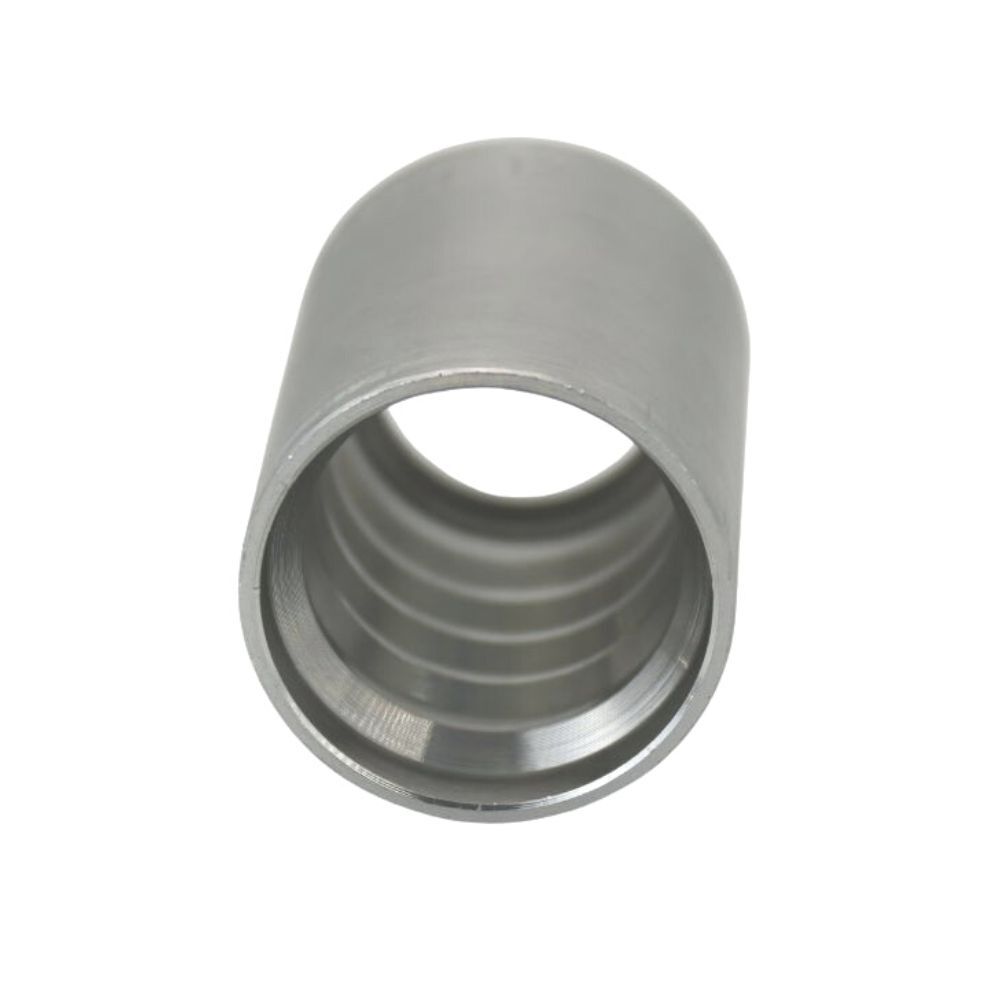

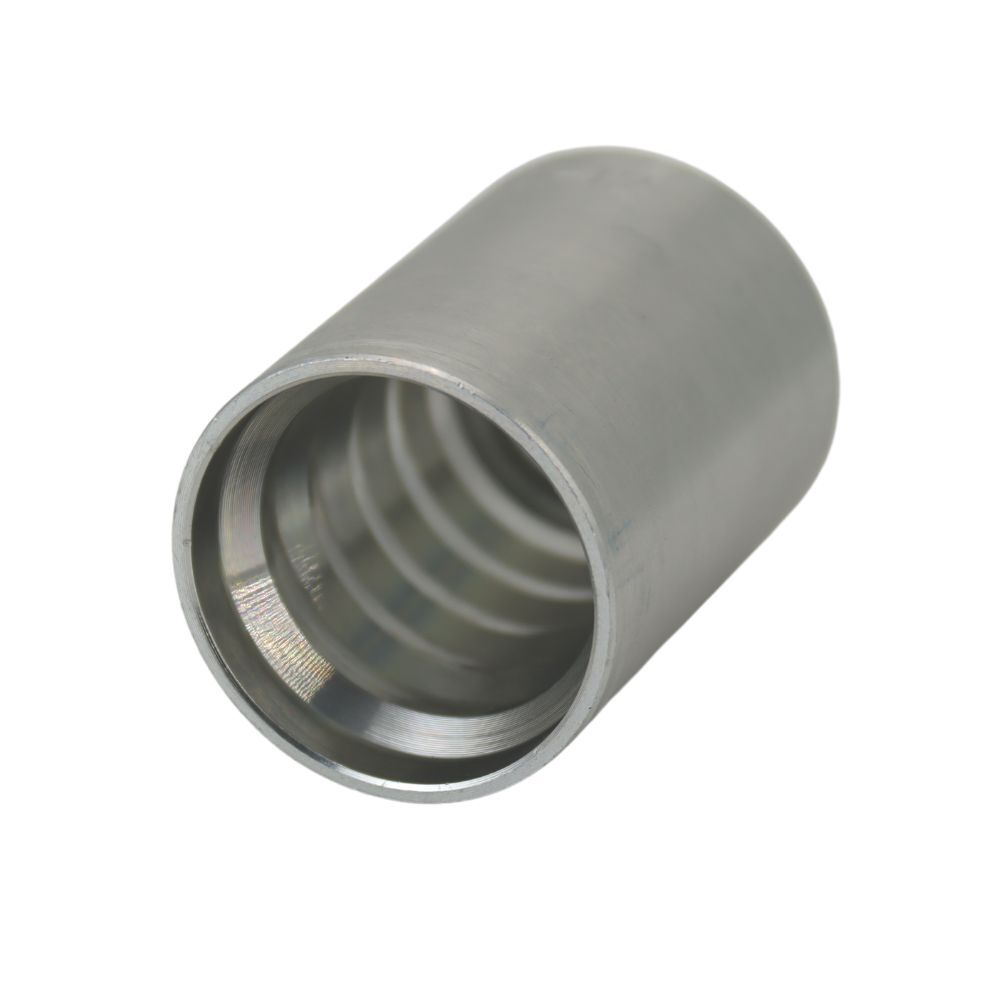

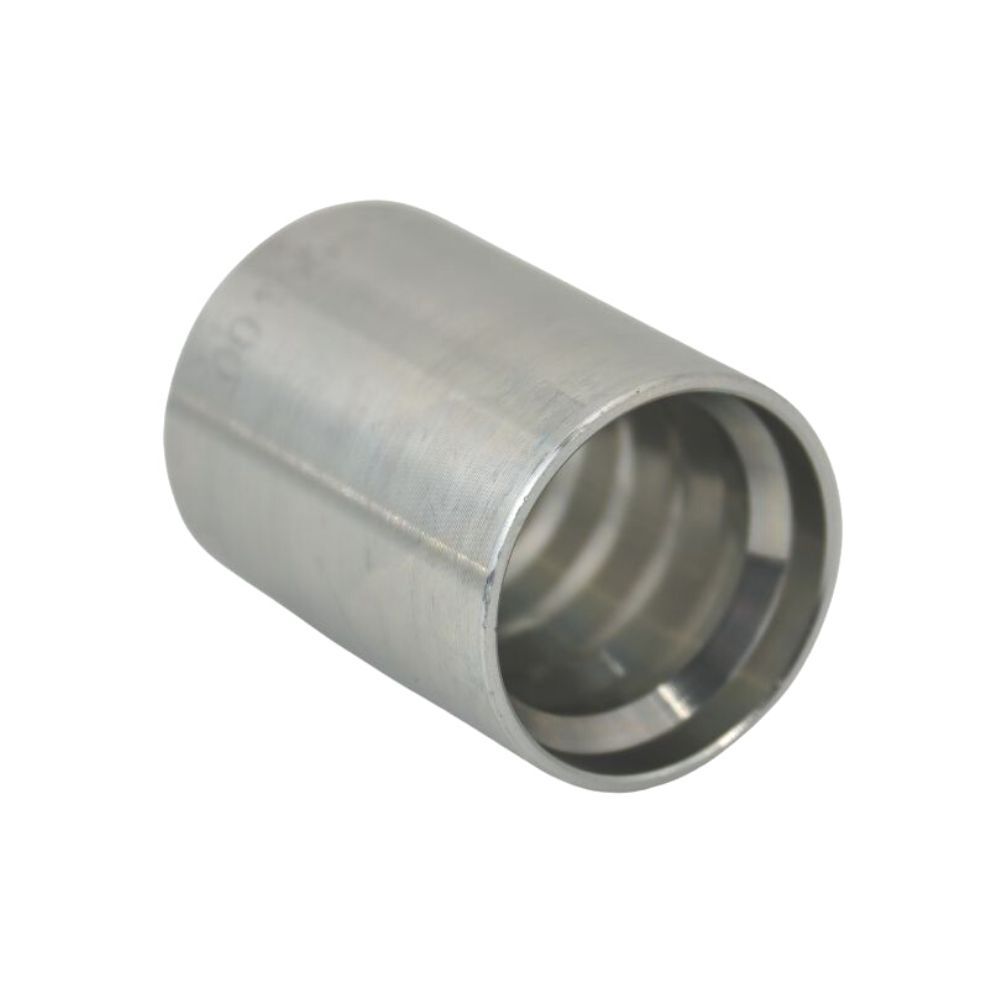

00401 Hydraulic Ferrule

Description:

00401 Hydraulic ferrule is a type of hose ferrule/hose sleeve used for hydraulic SAE 4SH, R12/32 hoses.

Typically, a hose sleeve/ferrule is crimped onto the end of a hydraulic hose to secure the hose to a fitting where a leak-free seal can be formed.

Feel free to ask any questions about the brake hose ferrules.

Features and Benefits:

Separate ferrule construction: Used with a matching fitting insert in a two-piece hose fitting assembly.
Part-number identification: Specify the complete 00401 reference, including the size suffix, when requesting a quotation.
Dimensional reference: Compare the ferrule dimensions with the current drawing when reviewing an existing item.
Assembly-specific selection: Confirm the hose, insert, ferrule, and crimping requirements together before production.

Description

Use the table below to identify the listed part numbers and compare reference dimensions. Hose bore identifies the nominal hose size; it does not specify the ferrule’s internal diameter or the finished crimp diameter.

For a drawing-based review, include the complete part number and the dimensions that must match your existing component.

HOSE BORE		DIMENSIONS
PART NO.	DN	DASH	D	L
00401-20	32	20	53	67.5
00401-24	38	24	61	75
00401-32	51	32	77	79

00401 Hydraulic Ferrule Video

Review the video alongside the product photographs and dimensional drawing when identifying the 00401 ferrule. For a comparison with an existing item, send photographs showing the sleeve opening, internal profile, and any part markings.

Visual similarity is only an initial reference. Confirm the dimensions and matching hose-and-insert combination before approving the item for production.

If you are comparing an existing ferrule, attach its drawing or provide photographs and key measurements. Include material, finish, marking, and packaging requirements where these form part of your specification.
