Hydraulic Ferrules

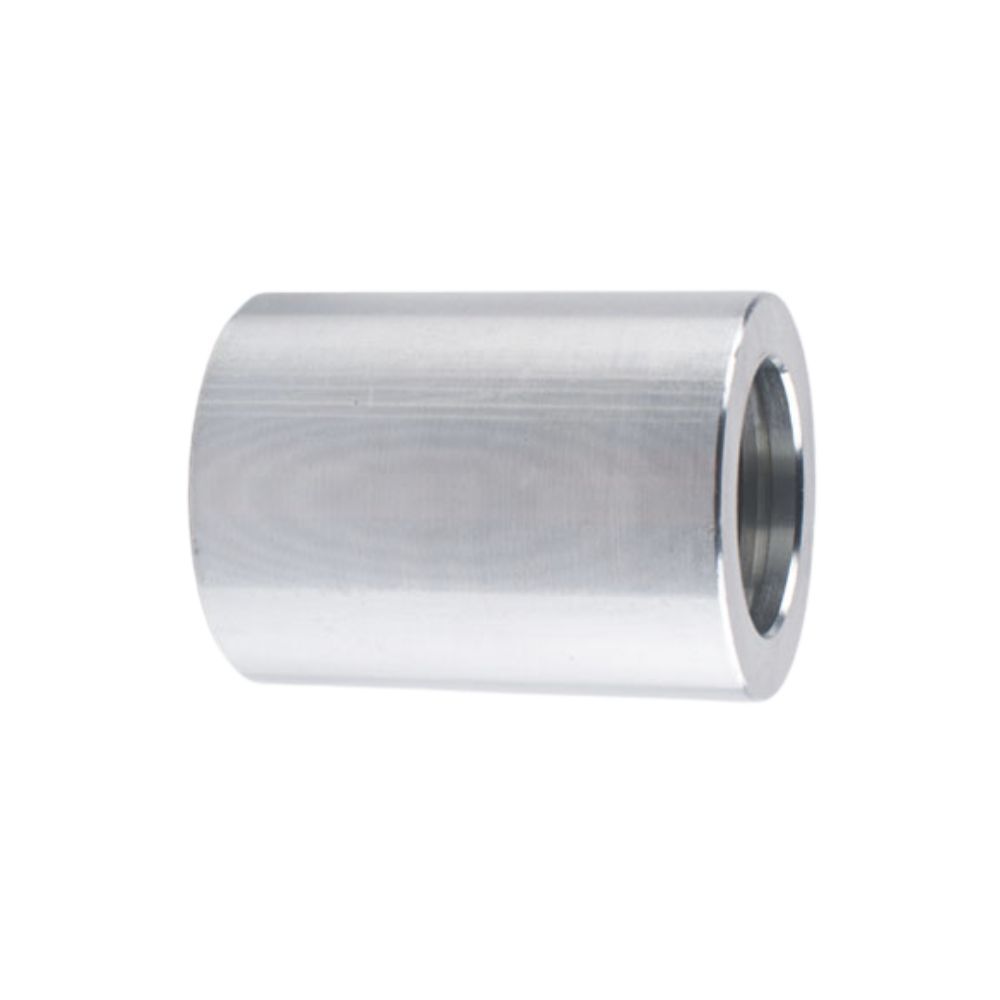

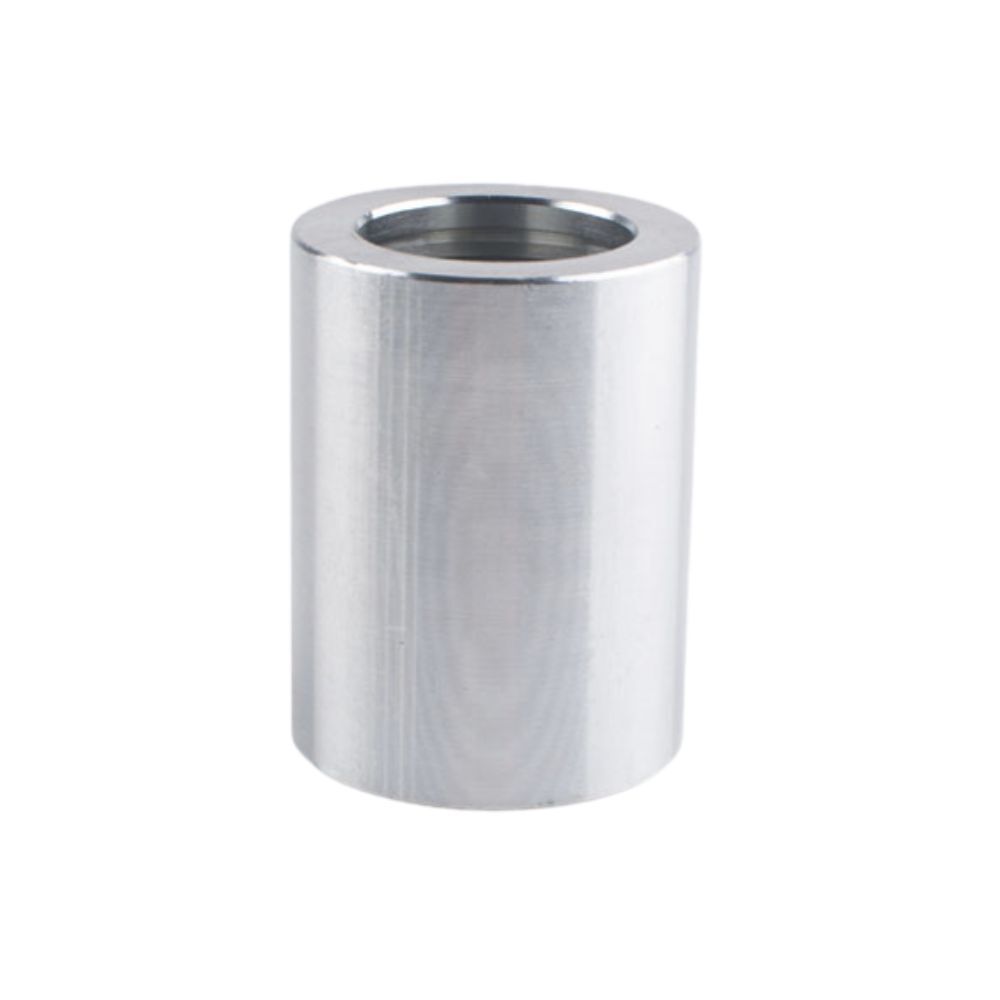

00500 Hydraulic Ferrules

Description:

The 00500 hydraulic ferrule is a crimp sleeve intended for SAE 100R5 hose assemblies. It works with a matching fitting stem to retain the hose after crimping. The ferrule, stem, and hose must be selected as a compatible combination.

Typically, a hose sleeve/ferrule is crimped onto the end of a hydraulic hose to secure the hose to a fitting where a leak-free seal can be formed.

Send Topa your hose details, fitting stem reference, and quantities by size for specification review and quotation.

Features and Benefits:

SAE 100R5 Application: A ferrule series intended for compatible SAE 100R5 hose and fitting combinations.
Separate Crimp Sleeve: Used with a matching fitting stem as part of a two-piece hose connection.
Size-Based Selection: Confirm the hose bore, outside diameter, and complete ferrule part number.
Drawing-Based Dimensions: Review sleeve dimensions against the approved product drawing.

Description

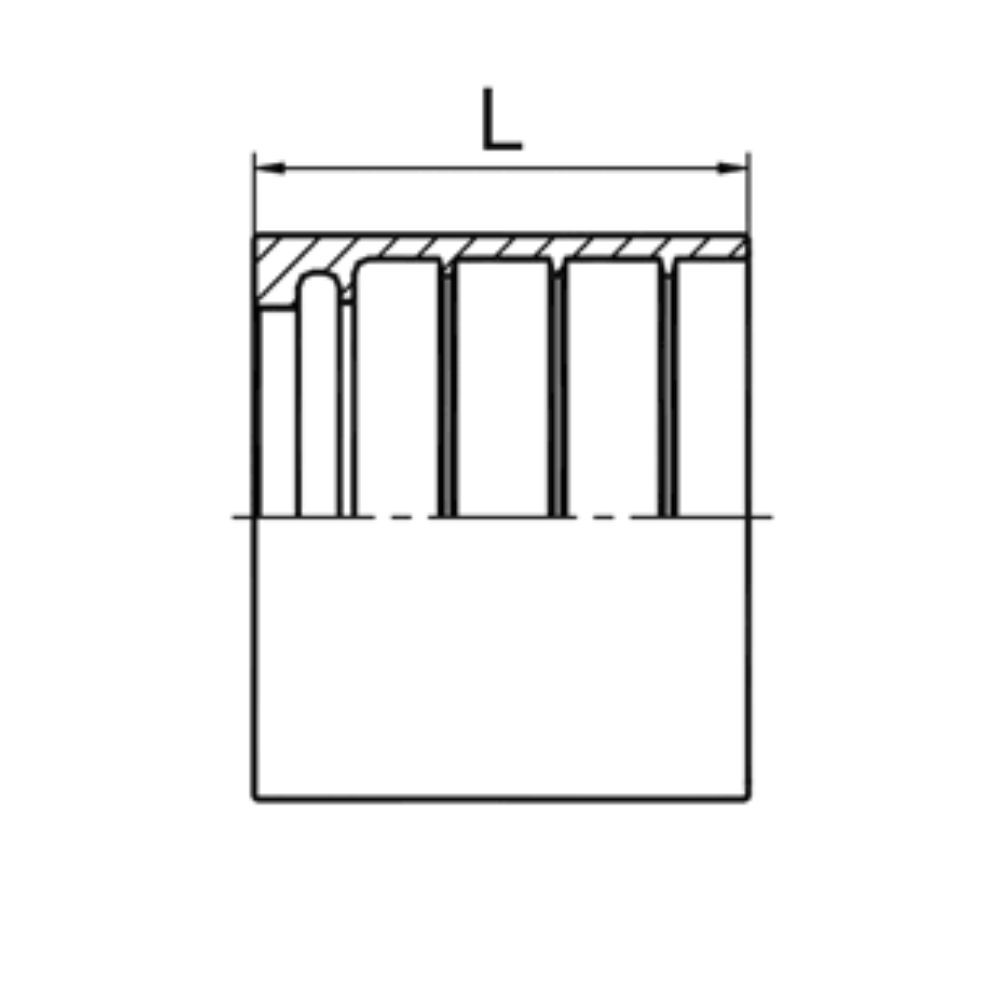

Use the table together with the dimensioned drawing to identify the required 00500 ferrule. Check the complete part number and the applicable hose size designation, particularly where the catalog distinguishes between dash and SAE dash sizes.

The listed ferrule dimensions describe the product geometry. They should not be used as crimp settings unless expressly identified as such in the approved assembly specification. Confirm the hose outside diameter and matching fitting stem before selecting a sleeve.

PART NO.	HOSE BORE		DIMENSIONS
00500	DN	DASH	D	L
00500-03	4	04	19.0	22.6
00500-04	6	05	20.8	25.7
00500-05	8	06	23.8	22.4
00500-06	11	08	26.0	26.2
00500-08	12	10	30.2	27.7
00500-10	16	12	34.9	29.7
00500-12	22	16	38.1	33.5
00500-16	28	20	46.0	42.7
00500-20	35	24	52.3	47.0
00500-24	46	32	65.1	50.8
00500-32	60	40	82.6	63.0

00500 Hydraulic Ferrules Video

Watch the product video for a closer look at the 00500 hydraulic hose ferrule. View it alongside the product photos and dimension table to review the sleeve profile and compare its dimensions with your required hose assembly components.

When identifying an existing ferrule, check the sleeve length and diameters against the drawing, then confirm the hose specification and fitting stem used with it. Similar-looking ferrules may have different dimensions or assembly requirements, so appearance alone is insufficient for selecting a replacement.

Click to watch the video and explore the product in more detail. Send Topa your ferrule part numbers, hose specifications, fitting stem references, and quantities per size for quotation.
