Hydraulic Fittings JIC

2601 Hydraulic Fittings JIC

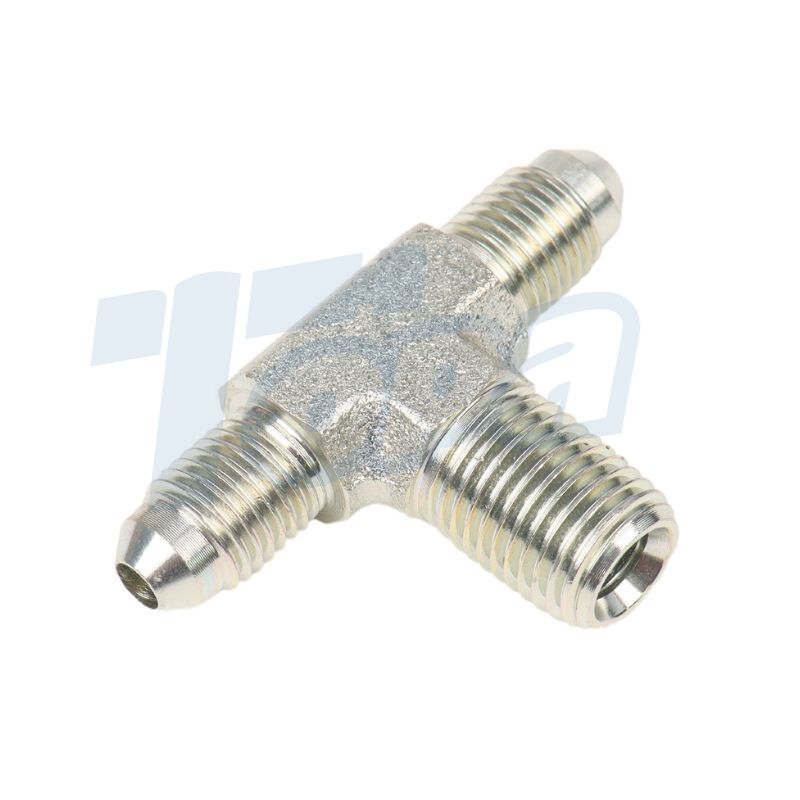

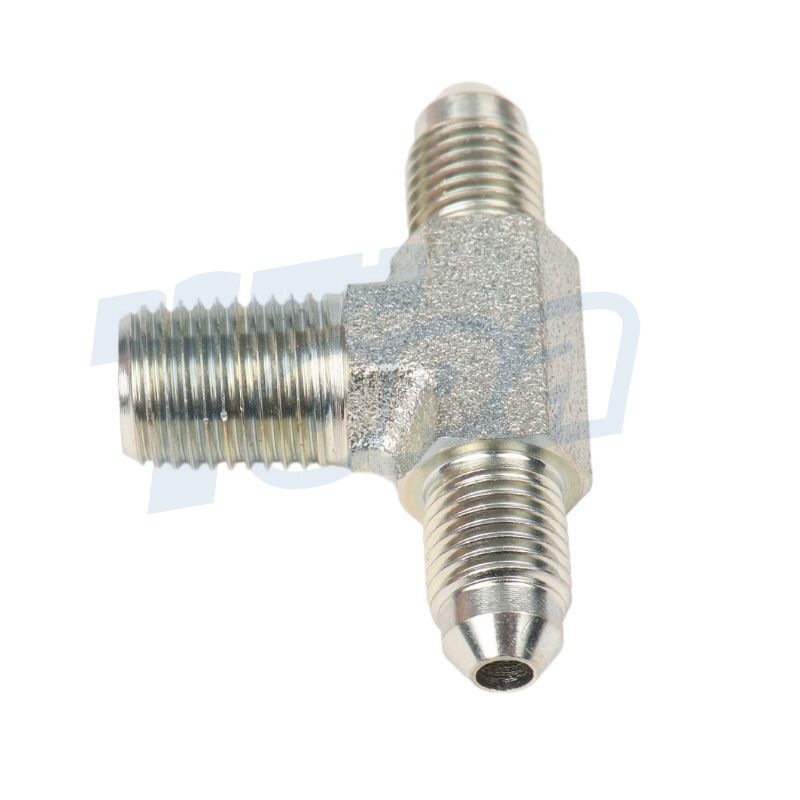

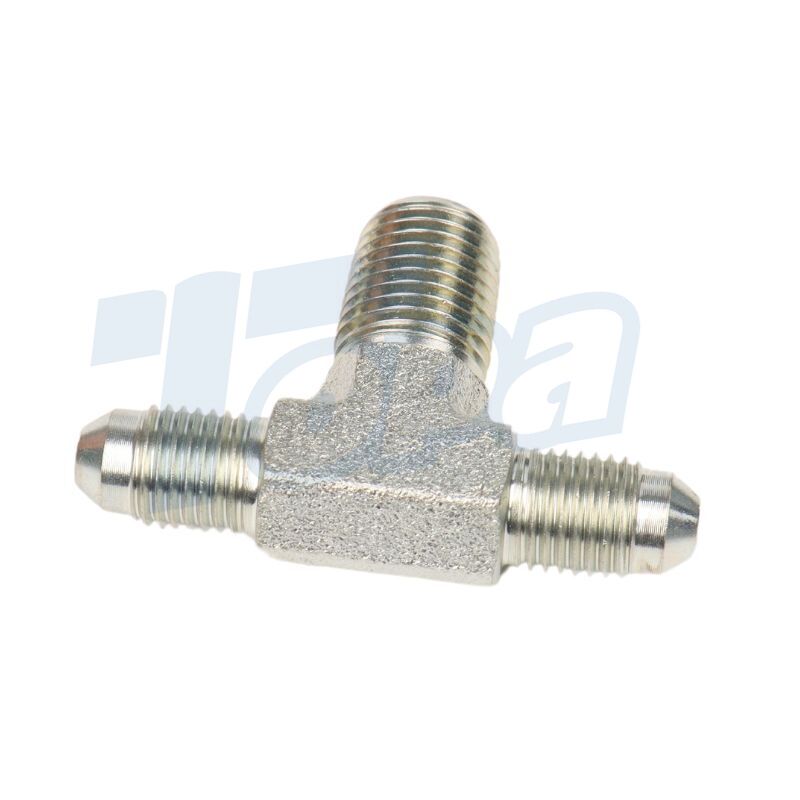

Types: Male Branch Tee

Part Number:2601

Material:Carbon Steel

Thread 1 Type: Flare tube end

Thread 2 Type: Male pipe end

Standard：SAE 070425

Applications:Oil and Gas; Mining; Construction

Perfect quality JIC hydraulic adapter fittings, made of top-quality carbon steel and stainless steel material.

Description

TUBE FITTING PART #	TUBE O.D. (inch)	TUBE END UN/UNF-2A	PT PORT THD NPTF	D DRILL (inch)	D1 DRILL (inch)	M (inch)	N (inch)	Y (inch)
2601-3-3-2	3/16	3/8-24	1/8-27	0.125	0.188	0.83	0.72	7/16
2601-4-4-2	1/4	7/16-20	1/8-27	0.172	0.188	0.89	0.78	7/16
2601-4-4-4	1/4	7/16-20	1/4-18	0.172	0.281	1.05	1.09	9/16
2601-4-4-6	1/4	7/16-20	3/8-18	0.172	0.406	1.13	1.22	3/4
2601-5-5-2	5/16	1/2-20	1/8-27	0.234	0.188	0.95	0.78	9/16
2601-5-5-4	5/16	1/2-20	1/4-18	0.234	0.281	1.05	1.09	9/16
2601-6-6-4	3/8	9/16-18	1/4-18	0.297	0.281	1.06	1.09	9/16
2601-6-6-6	3/8	9/16-18	3/8-18	0.297	0.406	1.14	1.22	3/4
2601-8-8-6	1/2	3/4-16	3/8-18	0.391	0.406	1.25	1.22	3/4
2601-8-8-8	1/2	3/4-16	1/2-14	0.391	0.531	1.34	1.47	7/8
2601-10-10-8	5/8	7/8-14	1/2-14	0.484	0.531	1.45	1.47	7/8
2601-12-12-12	3/4	1 1/16-12	3/4-14	0.609	0.719	1.66	1.59	1 1/16
2601-14-14-12	7/8	1 3/16-12	3/4-14	0.718	0.719	1.80	1.69	1 5/16
2601-16-16-16	1	1 5/16-12	1-11 1/2	0.844	0.938	1.81	1.97	1 5/16
2601-20-20-20	1 1/4	1 5/8-12	1 1/4-11 1/2	1.078	1.250	2.06	2.38	1 5/8
2601-24-24-24	1 1/2	1 7/8-12	1 1/2-11 1/2	1.312	1.500	1.33	2.64	1 7/8

2601 Hydraulic Fittings JIC Video

The 2601 JIC hydraulic fittings manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.

As the video unfolds, you will see the entire process of JIC hydraulic adapters from raw material cutting to completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.

Ready to experience quality service? Visit Topa today to learn more about our line of premium hydraulic adapters. Let Topa help you make a better choice.
