Hydraulic Metric Fittings

20241/20241-T Hydraulic Metric Fittings

Description:

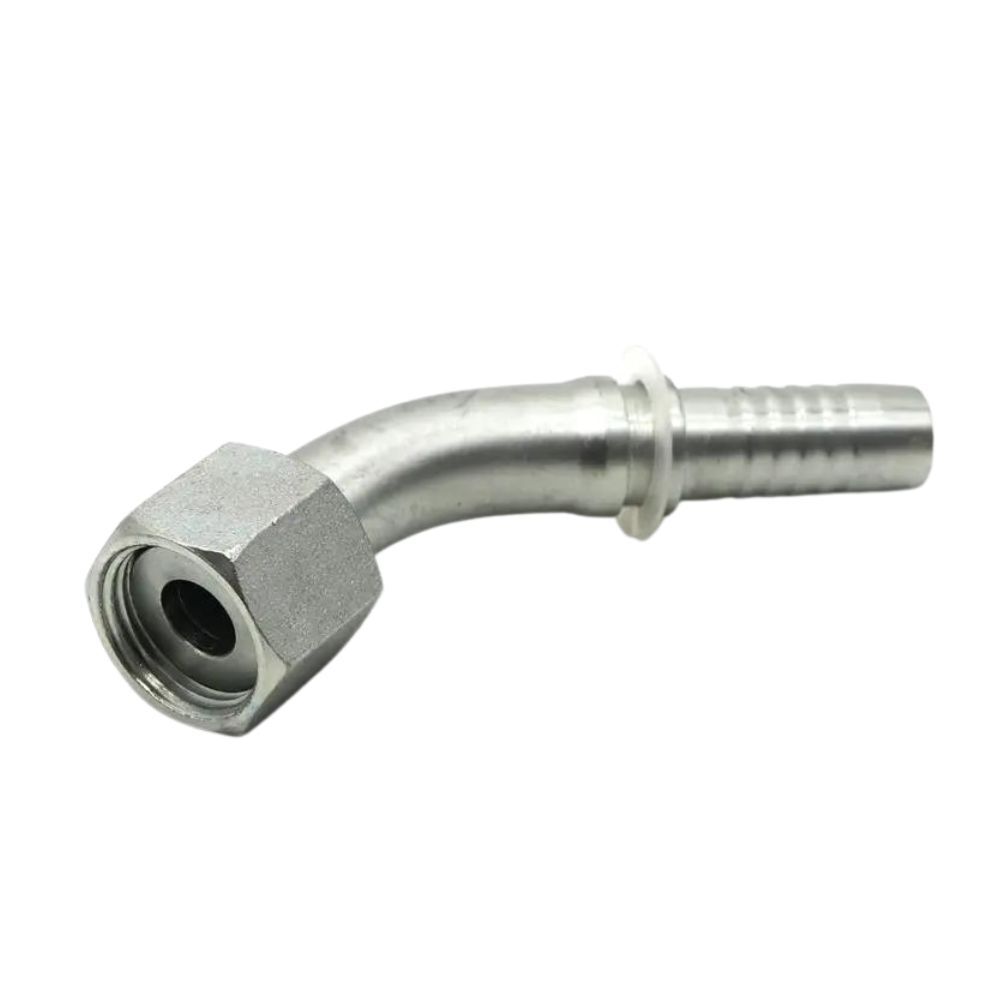

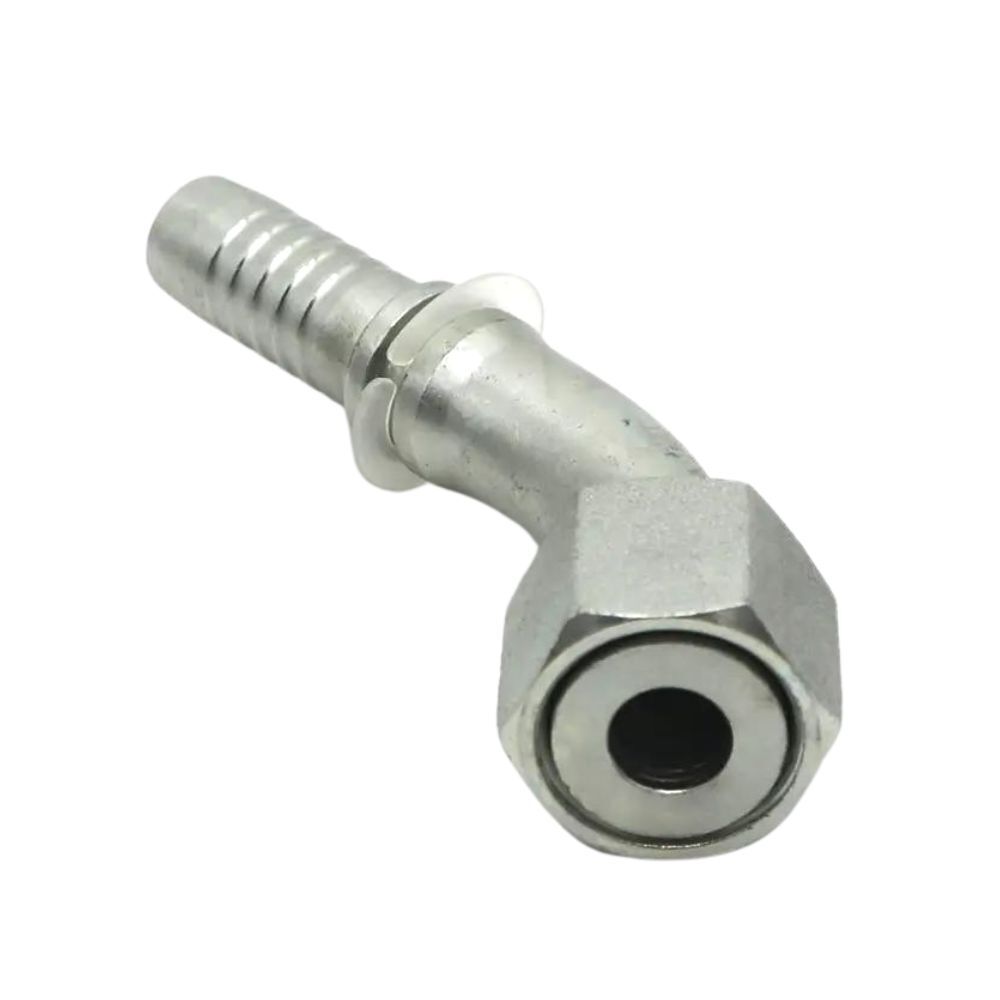

20241/20241-T 45° flat seal metric hydraulic fitting is an elbow 45° female hydraulic hose fitting with a 24-degree metric thread and a flat face, which can create a leak-free seal between two components.

The flat sealing surface is designed to create a leak-tight connection when used with fittings.

Feel free to ask if you have any questions about the hydraulic metric fitting.

Features and Benefits:

• Leak-free
• Reliable
• Easy to operate
• Great strength

Description

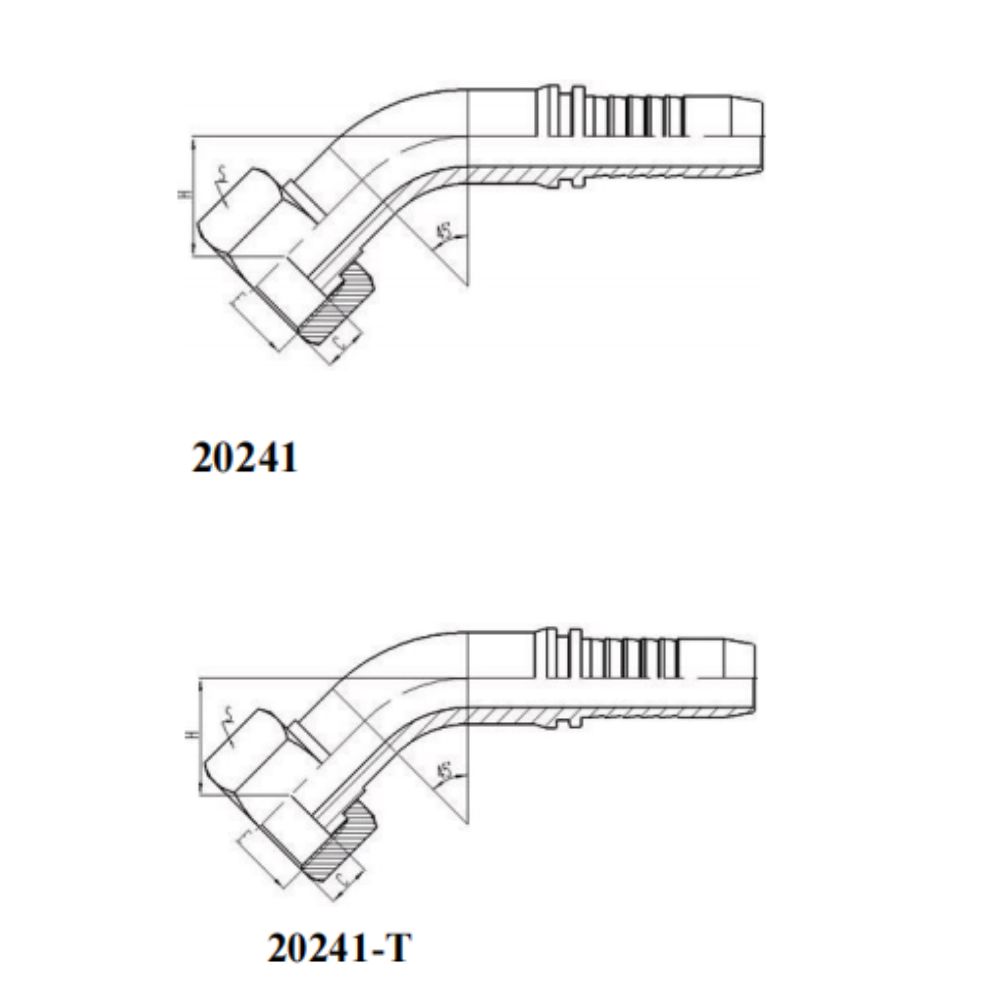

	E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	C	S	H
20241-14-04	M14X1.5	6	04	8.5	19	18.4
20241-16-05	M16X1.5	8	05	8.5	22	20
20241-18-06	M18X1.5	10	06	8.5	24	21.4
20241-22-08	M22X1.5	12	08	10	27	24
20241-27-10	M27X1.5	16	10	10	32	26.4
20241-30-12	M30X1.5	20	12	11	36	30
20241-42-20	M42X2	32	20	15	50	36.6

20241 Elbow 45° Flat Seat Hydraulic Metric Fittings Video

This video shows information about 45-degree flat seal hydraulic metric fittings.

The metric hydraulic flat seal fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems,industrial machinery, and construction equipment.

If you have any questions about metric hydraulic fittings, please contact us.
