4WAFJB 90° Elbow JIC Hydraulic Crimp Fittings

JIC Hydraulic Crimp Fittings

4WAFJB 90° Elbow JIC Hydraulic Crimp Fittings

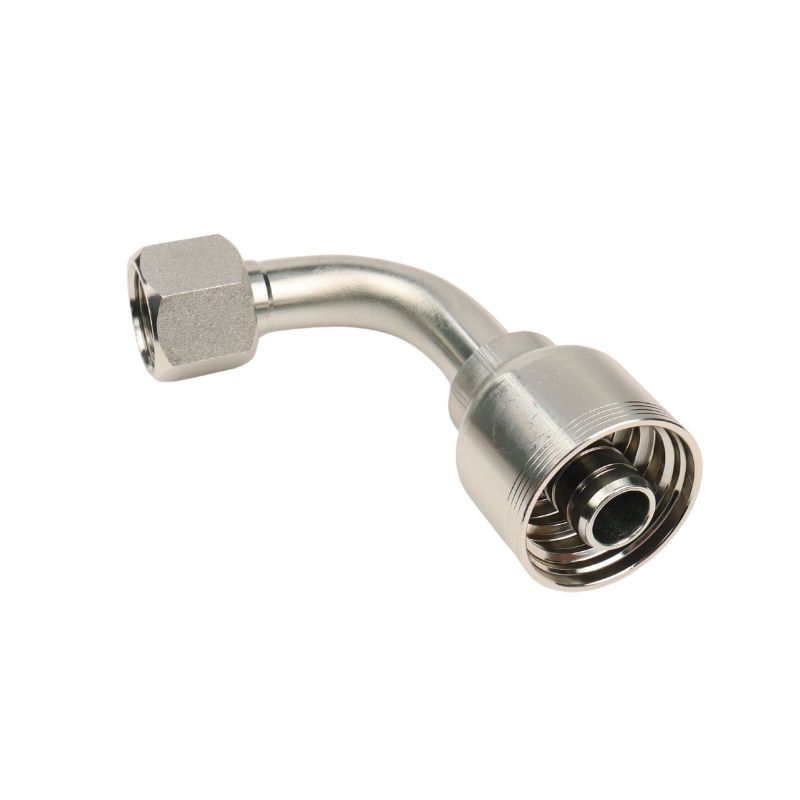

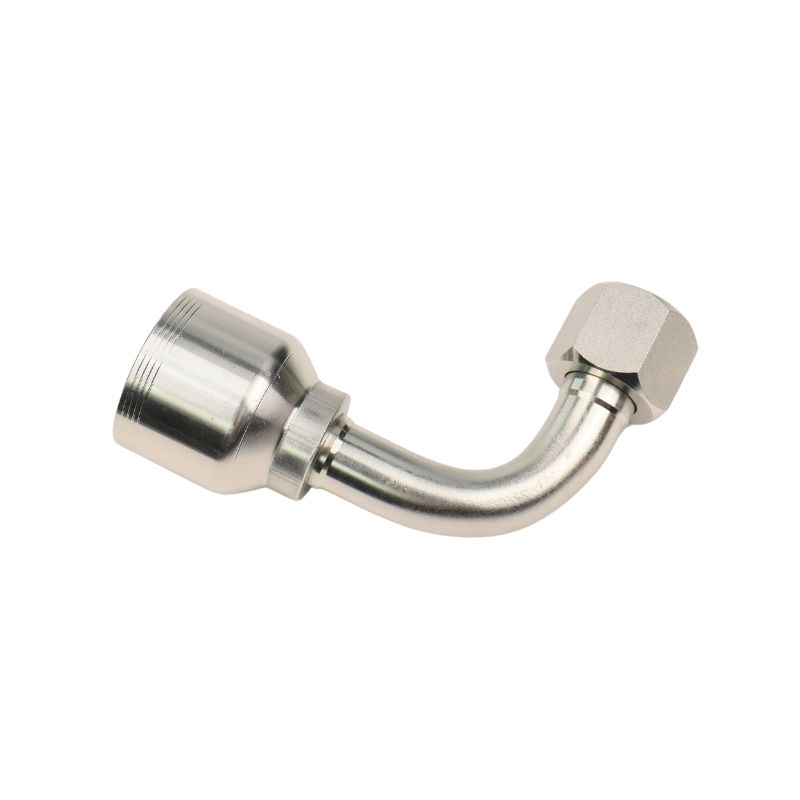

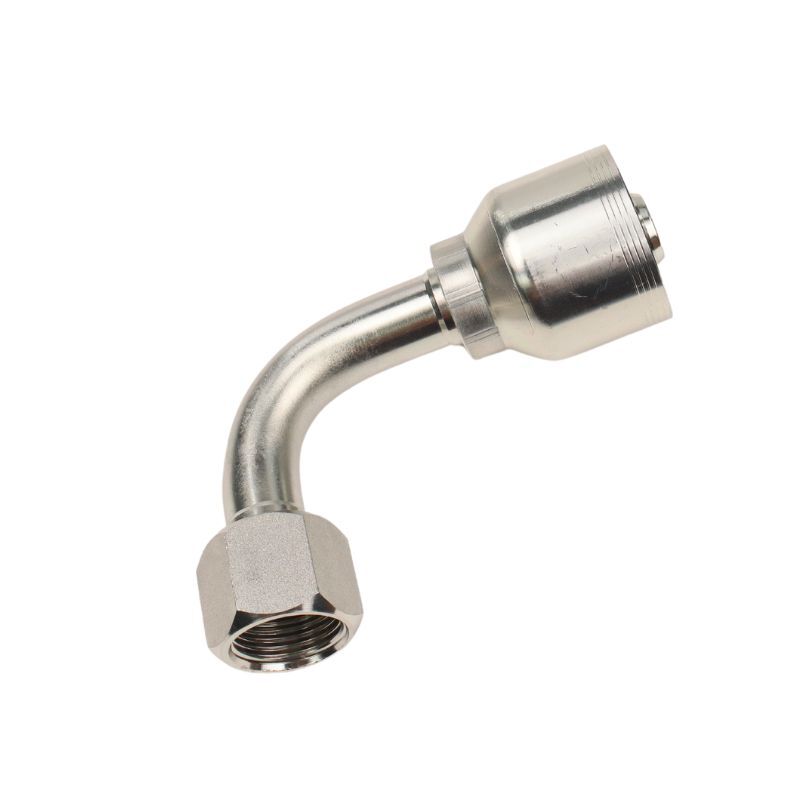

Topa’s 4 Wire female JIC/37° swivel 90° elbow crimp fitting is engineered to deliver a reliable, high-pressure connection for demanding hydraulic applications. Its precise construction and performance are outlined below:

Connection 1: Female JIC – 37° Flare Swivel (SAE J514)

Connection 2: Hose End – Crimp Style for 4-wire Spiral Hose

Material Selection: Carbon Steel (Zinc-Plated); Stainless Steel Optional

Shape: 90° Elbow

Product Types: Heavy-Duty Crimp Fittings – Skive and No-Skive Options Available

Applications: Agriculture, Construction, Mining, Heavy Equipment, Industrial Machinery

If you’re looking for a strong and leak-resistant 90-degree swivel hose fitting, Topa can help. We supply a wide range of standard JIC crimp fittings, and we also offer custom solutions to meet your unique hydraulic system needs! Our one-piece fittings are interchangeable with Danfoss 4W series fittings, feel free to send inquiries!

Description

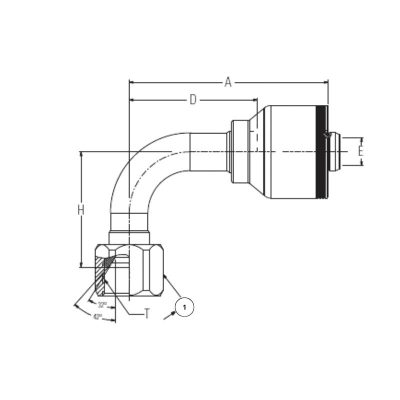

Part	HOSE SIZE INFO				Dimension
① 4W part#	Terminal End Hose Size	DN	Hose size	Thread	A		D		E		H		I
					mm	In	mm	in	mm	in	mm	in	in
4WA6FJB6	-6	10	-6	9/16	54.1	2.13	30.9	1.22	6.2	0.24	21.6	0.85	1 1/16
4WA8FJB6	-8	12	-6	3/4	57.2	2.25	36.1	1.42	6.7	0.26	27.7	1.09	7/8
4WA8FJB8	-8	12	-8	3/4	67.1	2.64	36.7	1.44	9.4	0.37	27.7	1.09	7/8
4WA10FJB8	-10	16	-8	7/8	70.5	2.78	43.3	1.7	9.4	0.37	49	1.93	1
4WA10FJB10	-10	16	-10	7/8	70.2	2.76	39.3	1.55	11.7	0.46	31.2	1.23	1
4WA12FJB10	-12	19	-10	1 1/16	81.4	3.2	55.4	2.18	12.8	0.5	59.7	2.35	1 1/4
4WA12FJB12	-12	19	-12	1 1/16	101,3	3.99	65.3	2.57	14.2	0.56	58.0	2.28	1 1/4
4WA16FJB12	-16	19	-12	1 5/16	110,0	4.33	73.8	2.91	14.2	0.56	71.0	2.80	1 1/2
4WA16FJB16	-16	25	-16	1 5/16	113,1	4.45	73.5	2.89	19.2	0.76	71.0	2.80	1 1/2
4WA20FJB16	-20	25	-16	1 5/8	117,1	4.61	77.4	3.05	19.2	0.75	78,0	3.07	2
4WA20FJB20	-20	31	-20	1 5/8	132,6	5.22	77.4	3.05	25.2	0.99	78，0	3.07	2
4WA24FJB24	-24	38	-24	1 7/8	208,9	8.22	1,30.8	5.15	31.1	1.22	104.0	4.09	2 1/4
② 6W part#	Terminal End Hose Size	DN	Hose size	Thread	A		D		E		H		①
6WA16FJB16	-16	25	-16	1 5/16	113,1	4.45	73,5	2.89	19.0	0.75	71.0	2.80	1 1/2
6WA20FJB20	-20	31	-20	1 5/8	133,4	5.25	77,4	3.05	25.2	0.99	78.0	3.07	2
6WA24FJB24	-24	38	-24	1 7/8	208,9	8.22	130,8	5.15	31.1	1.22	104.0	4.09	2 1/4

JIC Hydraulic Crimp Fittings Video

Take a closer look inside Topa’s production line through our latest video on one-piece hydraulic fitting manufacturing. This behind-the-scenes footage gives you a full view of our factory operations and highlights the skill and precision that go into every product we make.

From raw material cutting to the final inspection, the video walks you through the entire production process of our metric hydraulic crimp fittings. We work exclusively with high-grade carbon steel and stainless steel, and every step is handled with advanced automated machinery to ensure consistent quality and performance.

Want reliable fittings and responsive service? Topa is here to deliver. Explore our full range of hydraulic fittings and experience the difference a dependable supplier can make. Contact us today to get started.
