JIS Hydraulic Fittings

19611 JIS Gas Hose Fitting

Description:

19611 JIS gas hose fitting is a fitting used to connect hoses to gas supply lines or equipment in Japan.

Topa JIS gas hose fittings come in various types, sizes, and materials to suit different applications and gas types.

Send Topa your part numbers, hose specifications, and quantities. Include a drawing or clear photos of the mating connection when identification is needed.

Features and Benefits:

Straight Connection Layout
Male Threaded Connection
Thread and Hose Size Options
Specifications for Repeat Orders

Description

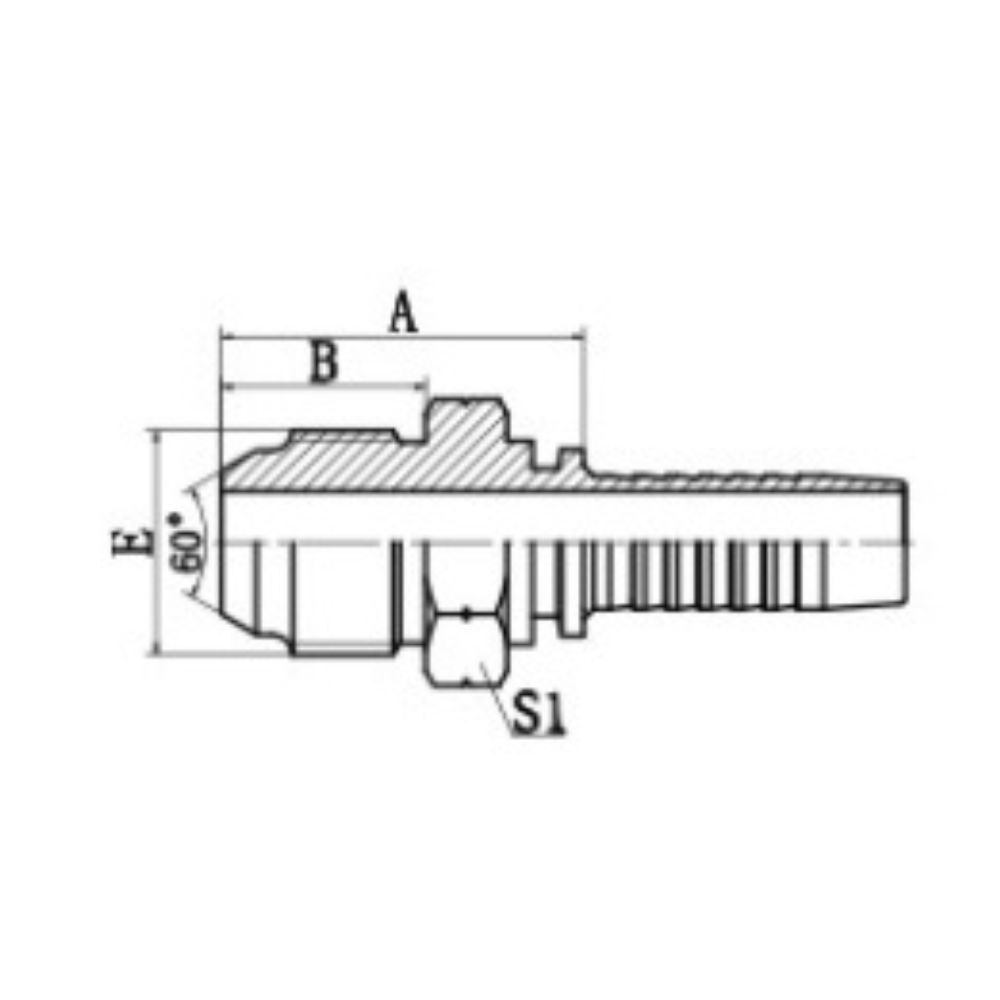

Use the table together with the product drawing to identify the required fitting. Check the connection thread and hose bore separately, then review the dimensions needed for installation and wrench access.

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
		DN	DASH	A	B	S1
19611-04-04	G1/4″×19	6	04	29	16	17
19611-06-06	G3/8″×19	10	06	31	18	19
19611-08-08	G1/2″×14	12	08	35.5	20	22
19611-12-12	G3/4″×14	20	12	41	22	30
19611-16-16	G1″×11	25	16	45.5	24	36

19611 Male Gas JIS Hydraulic Fittings Video

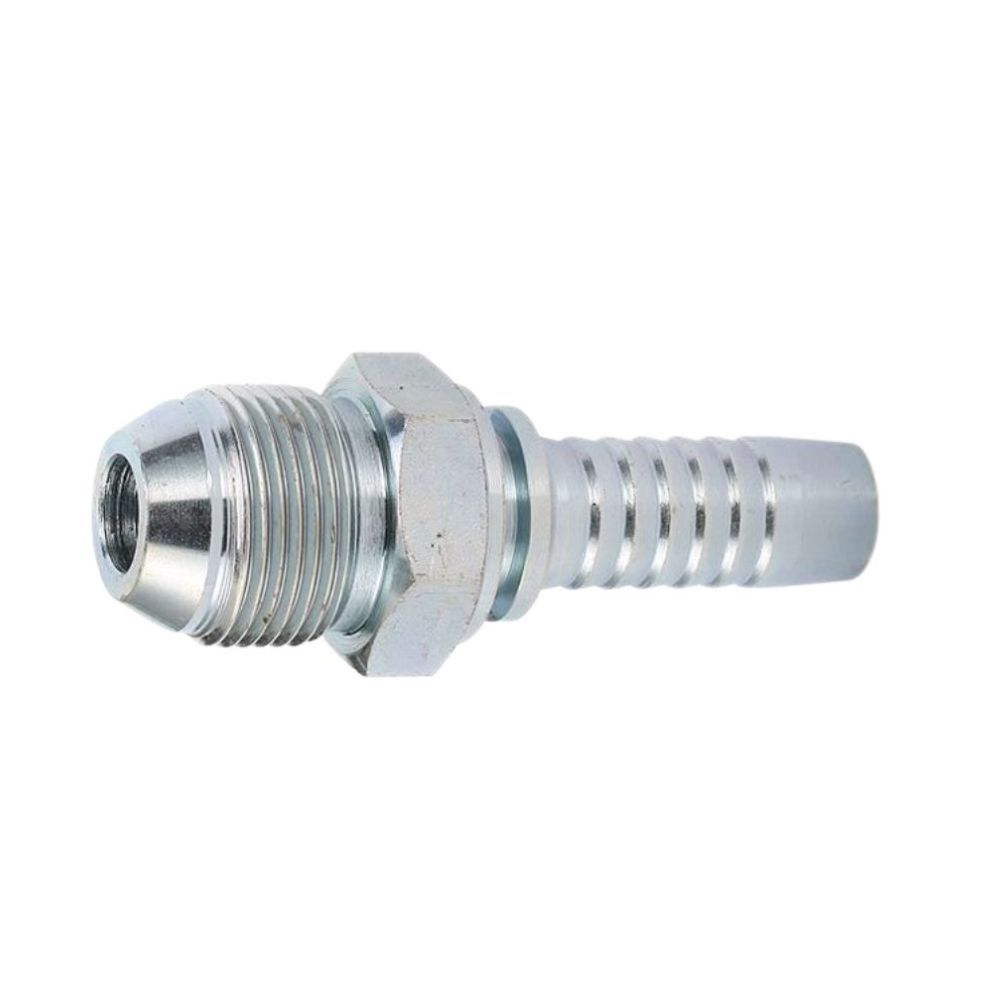

Watch the video for a closer look at the 19611 fitting’s straight body, male connection, wrench flats, and hose-tail layout. Compare the product views with the drawing when reviewing the fitting configuration.

Use the dimensional table to check a specific part number. Thread size, hose bore, and installation dimensions should be confirmed from the documented specifications rather than estimated from the video.

Click to watch, then send Topa your required part numbers, hose details, and quantities for a multi-SKU quotation. If the existing connection needs identification, include clear photos of the fitting and its mating component.
