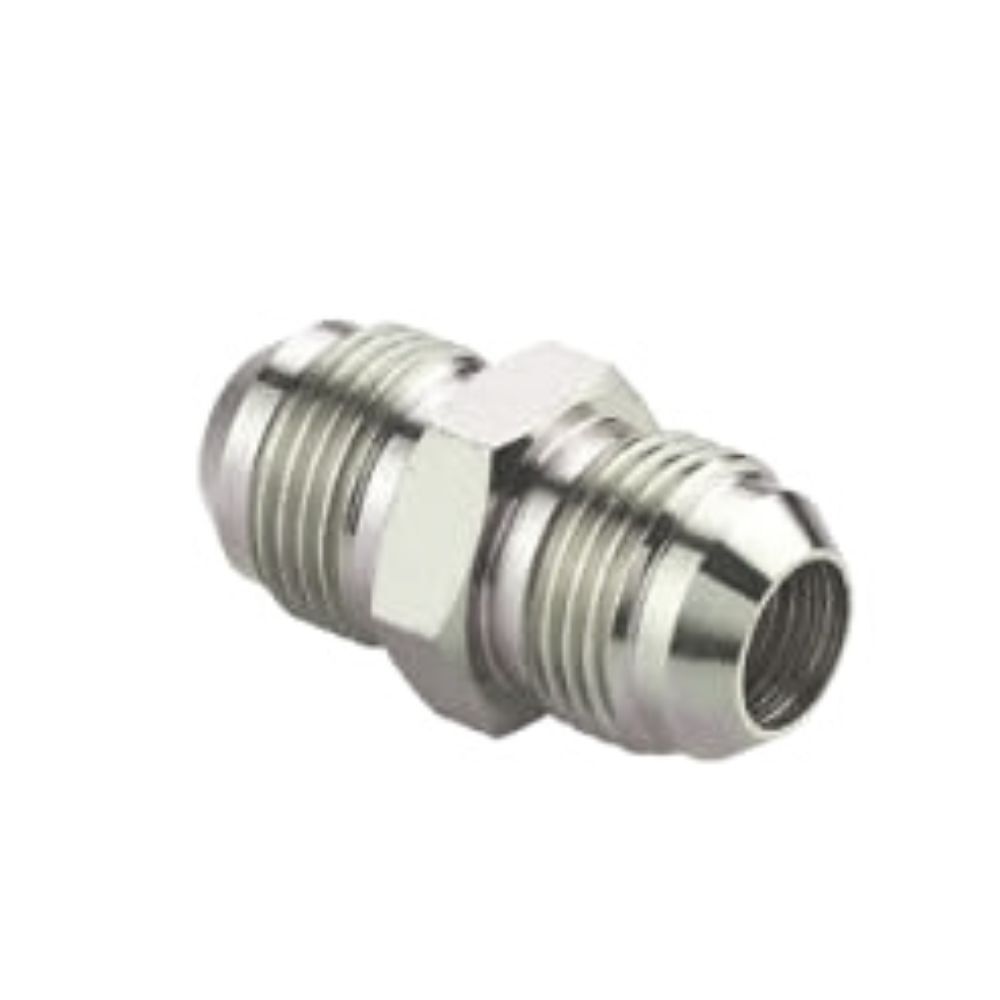

Description

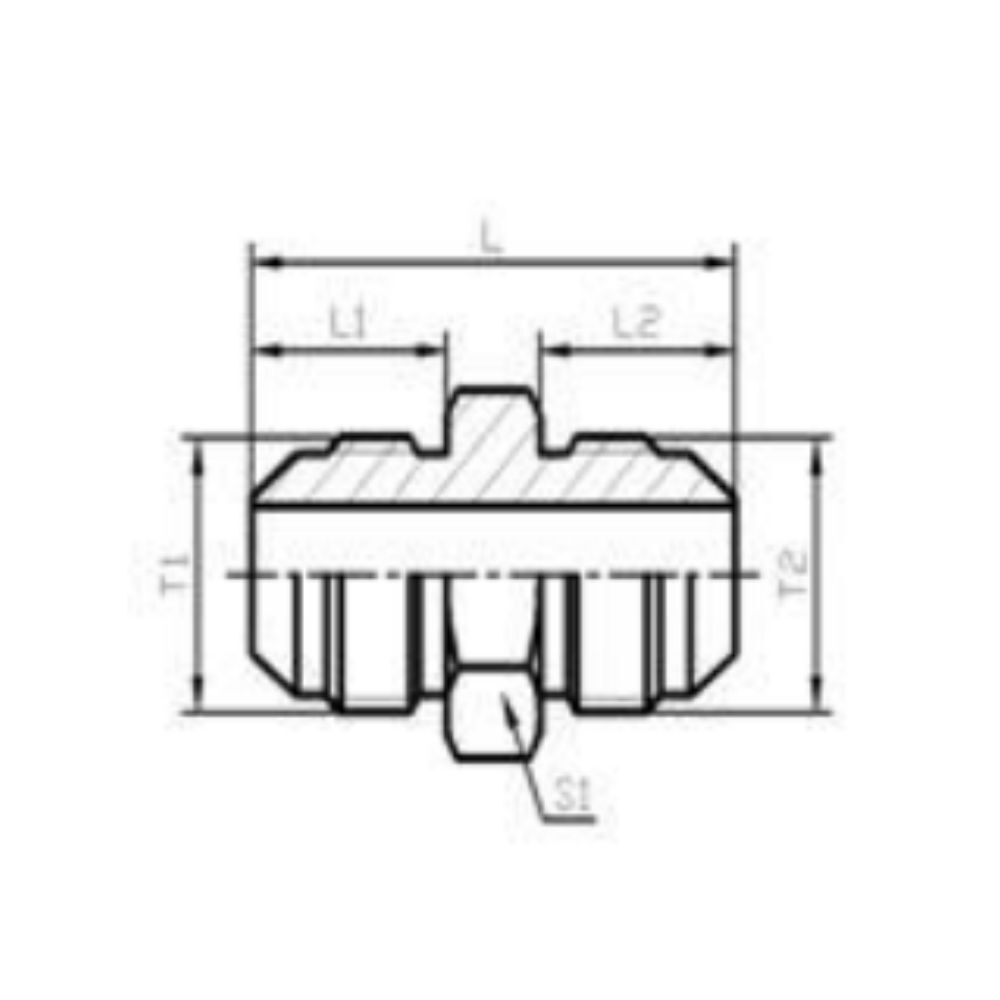

PART NO. | THREAD | DIMENSIONS | MPa | ||||
T1 | T2 | L1 | L2 | L | S1 | ||
1Q-10 | M10X1 | M10X1 | 12.5 | 12.5 | 30 | 12 | 35 |
1Q-12 | M12X1.5 | M12X1.5 | 16 | 16 | 37 | 14 | |
1Q-14 | M14X1.5 | M14X1.5 | 18 | 18 | 42 | 17 | |
1Q-16 | M16X1.5 | M16X1.5 | 19 | 19 | 44 | 19 | 25 |
1Q-18 | M18X1.5 | M18X1.5 | 19 | 19 | 45 | 22 | |
1Q-22 | M22X1.5 | M22X1.5 | 19.5 | 19.5 | 46 | 24 | 20 |
1Q-24 | M24X1.5 | M24X1.5 | 20 | 20 | 48 | 27 | |
1Q-27 | M27X1.5 | M27X1.5 | 20.5 | 20.5 | 49 | 30 | |
1Q-30 | M30X1.5 | M30X1.5 | 23 | 23 | 57 | 32 | |
1Q-30E | M30X2 | M30X2 | 26 | 26 | 62 | 32 | |
1Q-33 | M33X2 | M33X2 | 26 | 26 | 62 | 34 | 16 |
1Q-36 | M36X2 | M36X2 | 26 | 26 | 62 | 41 | |
1Q-39 | M39X2 | M39X2 | 27.5 | 27.5 | 67 | 41 | 12.5 |
1Q-42 | M42X2 | M42X2 | 28.5 | 28.5 | 69 | 46 | |
1Q-45 | M45X2 | M45X2 | 28.5 | 28.5 | 69 | 46 | 10 |
1Q 74° Cone Metric Adapter Video
This video shows information about the 1Q 74° cone seat metric adapter.
Hydraulic metric adapters can be applied in many hydraulic applications, construction equipments, and industrial machinerys.
If you have any questions about metric adapter fittings, please contact us.
