Metric Cutting Ring

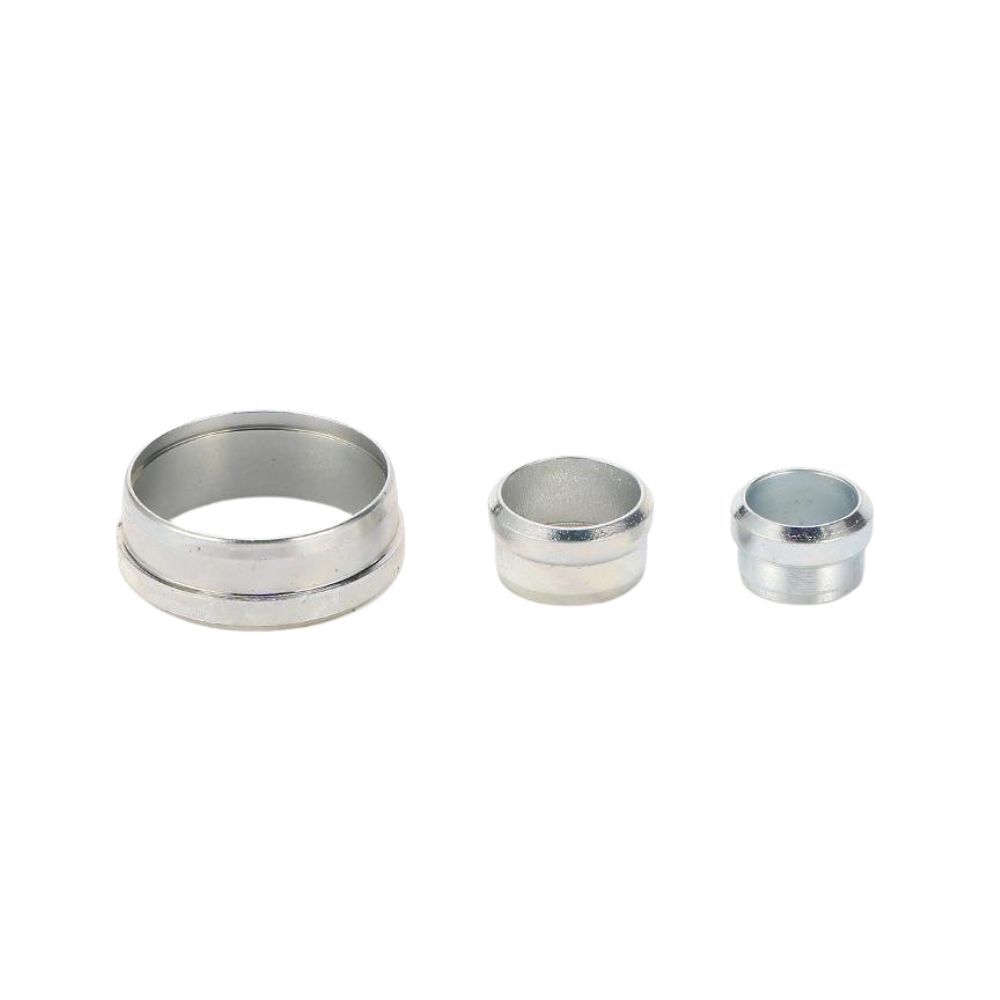

RL/RS Metric Cutting Ring

Description:

RL/RS metric cutting ring is a type of hydraulic fitting commonly used in fluid power systems.

The cutting ring is typically made of metal and is designed to bite into the surface of the hydraulic tube or pipe, creating a leak-tight seal.

Feel free to ask any questions about the metric hydraulic fittings.

Features and Benefits:

Secure Tube Retention: Cutting edges grip the tube during correct assembly to resist axial movement.
Metal-to-Metal Sealing: Forms a seal with the matching tube and fitting body when properly assembled.
Metric Tube Compatibility: Available in sizes for corresponding metric tube outside diameters.
Compact Connection: Fits within the nut and fitting body without adding bulky external components.
Serviceable Assembly: Allows the connection to be disconnected and reassembled following the applicable fitting instructions.

Description

PART NO.	TUBE O.D.	DIMENSIONS	NOTE
RL-06	6	the same as the RS series	L
RL-08	8
RL-10	10
RL-12	12
RL-15	15
RL-18	18
RL-22	22
RL-28	28
RL-35	35
RL-42	42
RS-06	6		S
RS-08	8
RS-10	10
RS-12	12
RS-14	14
RS-16	16
RS-20	20
RS-25	25
RS-30	30
RS-38	38

RL/RS Metric Cutting Ring Video

This video takes a closer look at the RL/RS metric cutting ring, showing its shape, cutting edges, and surface finish. Used in a matching metric tube fitting assembly, the ring grips the tube during tightening and helps form a secure, sealed connection.

Selecting the correct ring requires matching the tube outside diameter, fitting series, and material requirements. Tube preparation and proper assembly are also essential to achieving reliable sealing and retention.

Watch the video to explore the product details. For size selection or a quotation, send Topa your tube dimensions, fitting reference, and required quantities.
