4K Metric Hydraulic Plugs-JIS Male 60° Cone Plug -Topa

Metric Hydraulic Plugs

Description:

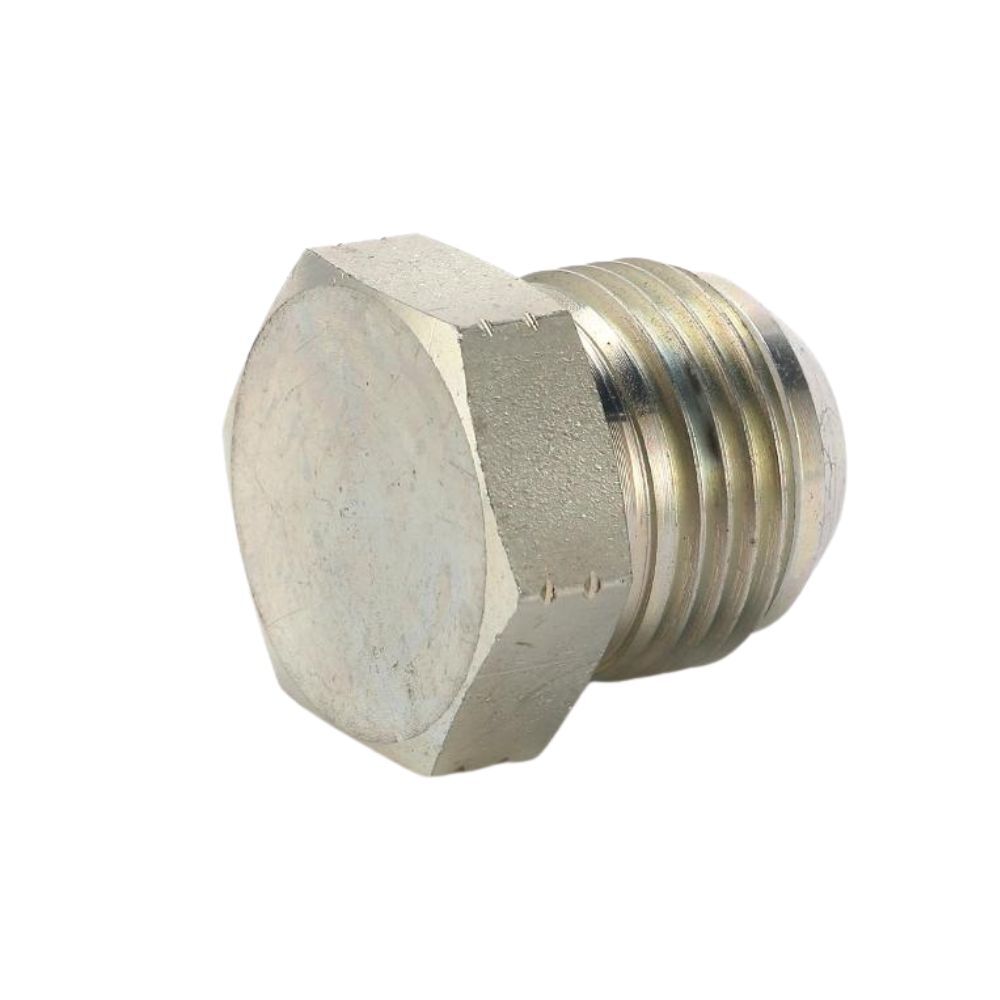

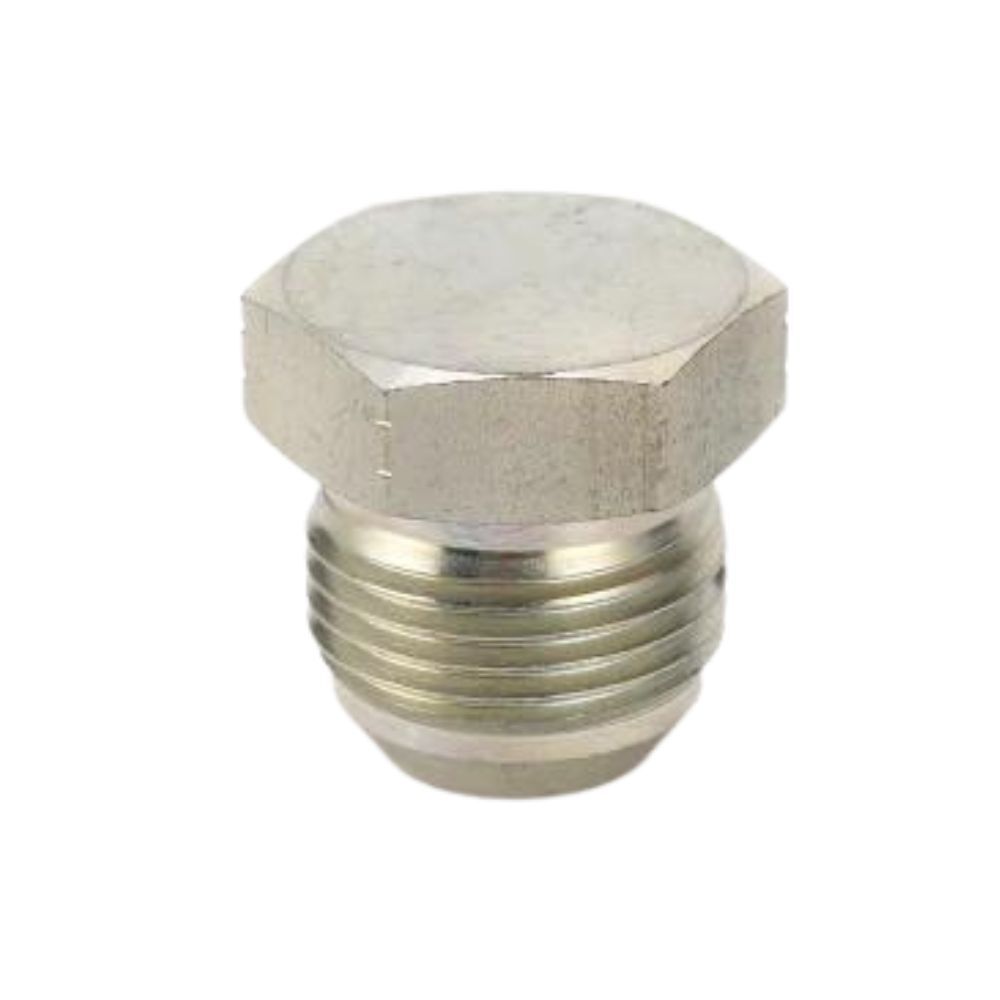

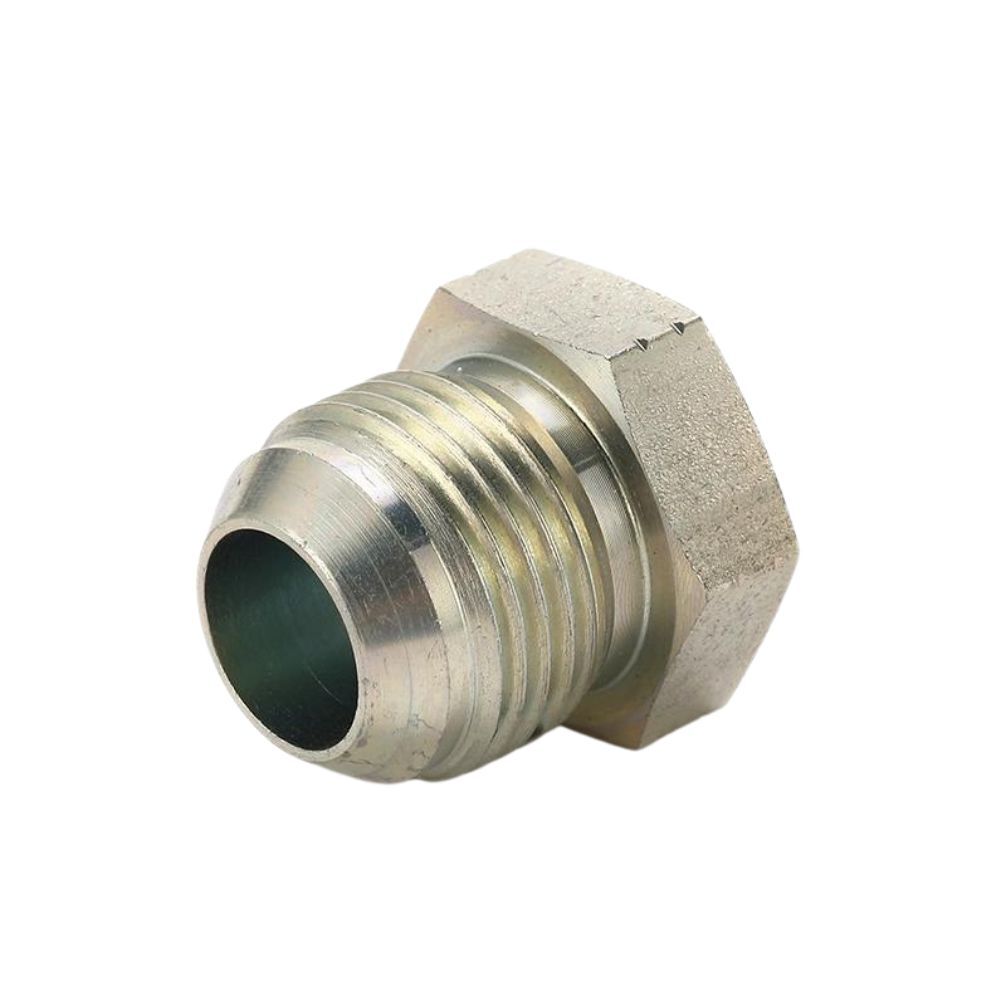

4K male JIS metric hydraulic plug is a male 60-degree cone plug designed to fit into a port or opening with a specific metric thread size and seal against fluid flow under pressure.

The plug has a JIS 60° seal that can provide superior leakage protection for hydraulic threads.

Feel free to ask any questions about the male metric pipe adapters.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

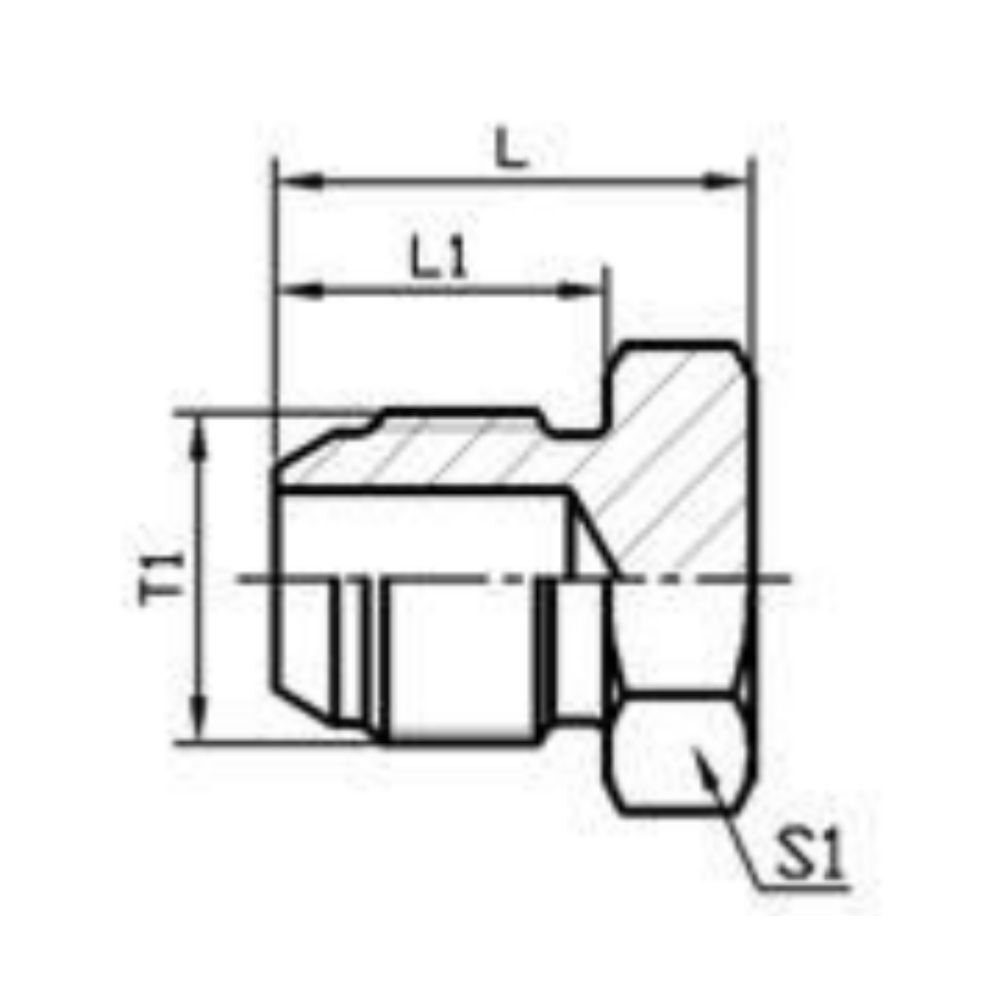

PART NO.	THREAD	DIMENSIONS			Working pressure(bar)
PART NO.	T1	L1	L	S1	Working pressure(bar)
4K-14	M14X1.5	17	23	17	34.5
4K-16	M16X1.5	18	24	17
4K-18	M18X1.5	18	25	19
4K-20	M20X1.5	20	28	22
4K-22	M22X1.5	20	28	24
4K-24	M24X1.5	21.5	31.5	27	27.5
4K-30	M30X1.5	26	37	32	20.5
4K-33	M33X1.5	30	41	36	20.5

4K Male JIS Metric Hydraulic Plugs Video

This video shows information about the 4K metric hydraulic plugs.

Hydraulic metric plug adapters have a wide range of fluid applications in various industries where hydraulic systems are used. Such as automotive, agriculture, and construction systems.

If you have any questions about metric to pipe thread adapters, please contact us.
