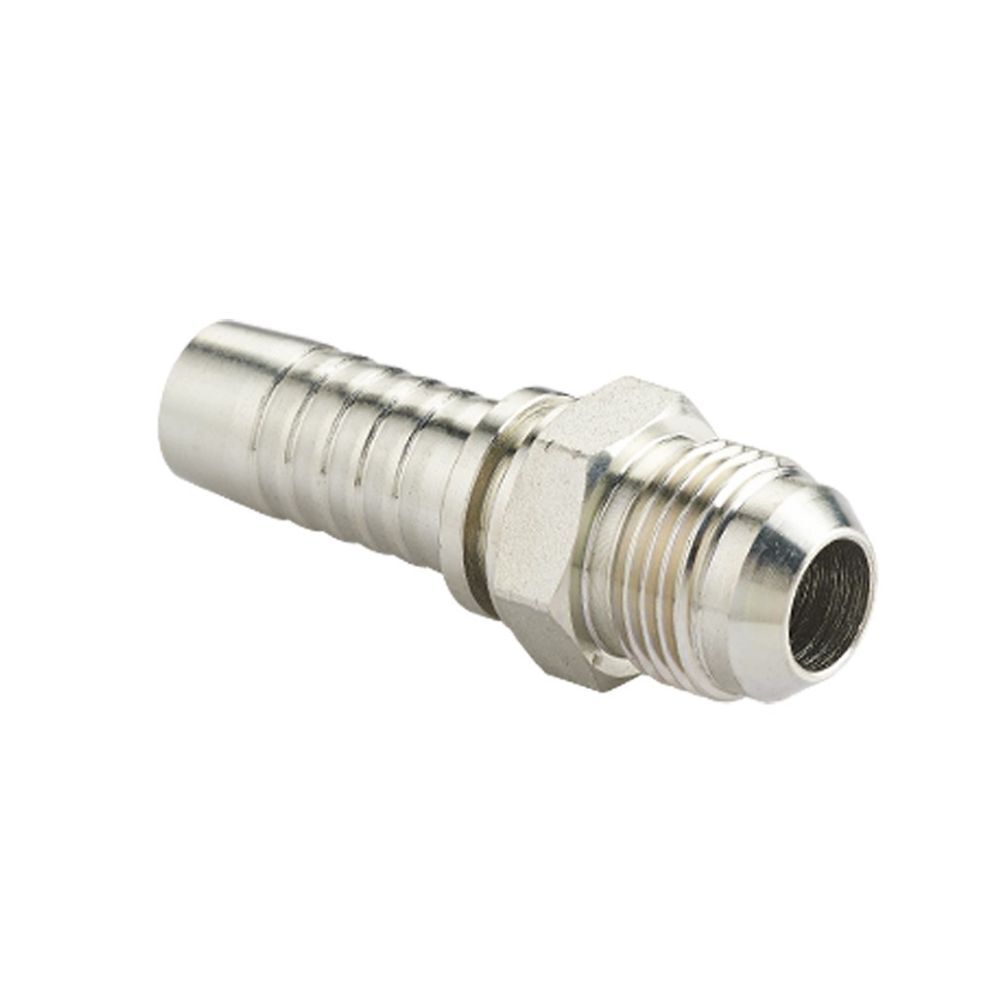

Description

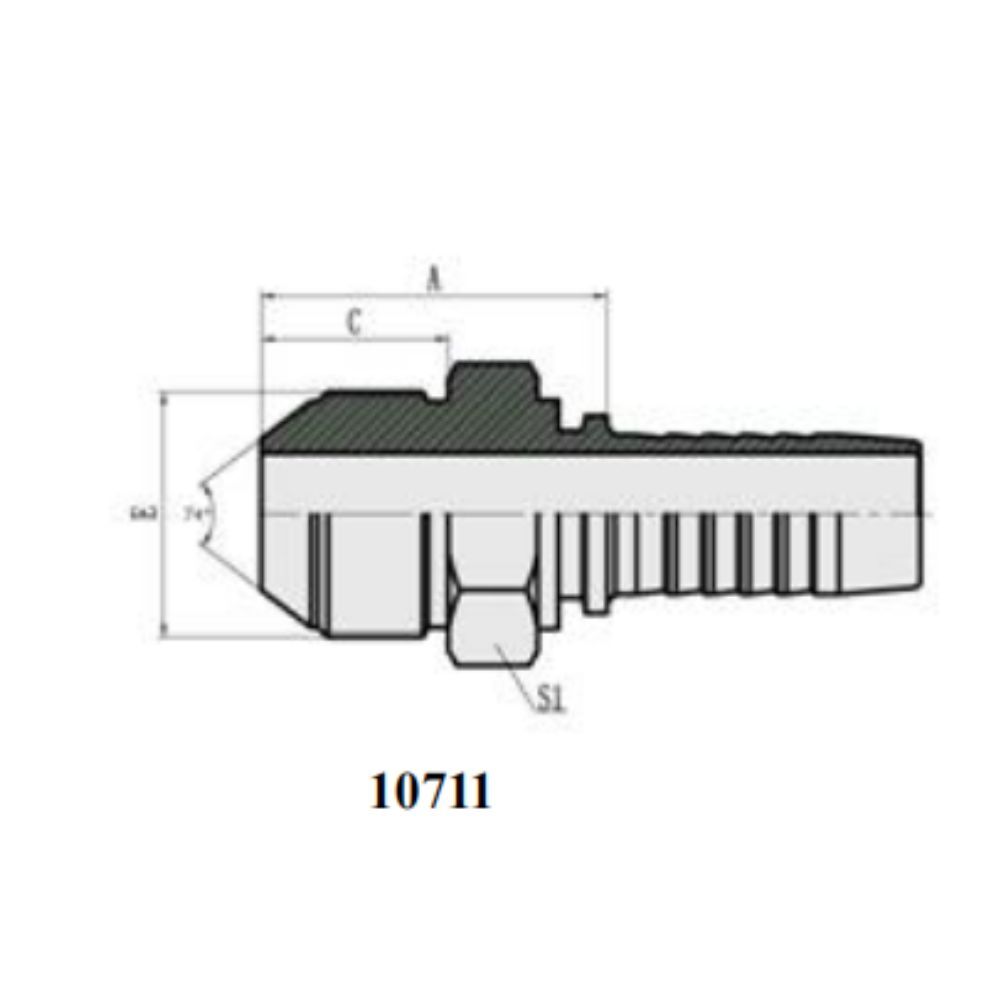

The table below lists 10711 metric male hose fittings by part number, metric thread size, hose bore, and key dimensions. Use it to identify the required thread and hose size combination before placing an order.
Pay particular attention to the thread pitch. Some fittings have the same nominal thread diameter but different pitches, so checking the complete thread designation is essential.
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
DN | DASH | A | C | S1 | ||
10711-10-02 | M10*1 | 4 | 02 | 23 | 12.5 | 14 |
10711-10-03 | M10*1 | 5 | 03 | 23 | 12.5 | 14 |
10711-12-03 | M12*1.5 | 5 | 03 | 26.5 | 15.7 | 14 |
10711-12-03C | M12*1.25 | 5 | 03 | 24.5 | 14 | 14 |
10711-14-04 | M14*1.5 | 6 | 04 | 30.5 | 18 | 17 |
10711-14-06 | M14*1.5 | 10 | 06 | 30.5 | 18 | 17 |
10711-16-05 | M16*1.5 | 8 | 05 | 31.5 | 19 | 17 |
10711-16-06 | M16*1.5 | 10 | 06 | 31.5 | 19 | 17 |
10711-18-06 | M18*1.5 | 10 | 06 | 31.5 | 19 | 19 |
10711-22-08 | M22*1.5 | 12 | 08 | 35 | 19.5 | 22 |
10711-24-08 | M24*1.5 | 12 | 08 | 37 | 20 | 24 |
10711-27-10 | M27*1.5 | 16 | 10 | 38.5 | 20.5 | 27 |
10711-30-12 | M30*1.5 | 20 | 12 | 42.5 | 23 | 32 |
10711-30-12E | M30*2 | 20 | 12 | 45.5 | 26 | 32 |
10711-33-12 | M33*2 | 20 | 12 | 45 | 26 | 36 |
10711-36-14 | M36*2 | 22 | 14 | 45 | 26 | 38 |
10711-39-16 | M39*2 | 25 | 16 | 48 | 27.5 | 41 |
10711-42-20 | M42*2 | 32 | 20 | 52 | 28.5 | 46 |
10711-45-20 | M45*2 | 32 | 20 | 52 | 28.5 | 46 |
10711 74° Cone Seat Metric Male Hose Fitting Video
Take a closer look at Topa 10711 Metric Male Hose Fittings in this product video. Learn about the straight fitting design, metric male threaded end, 74° cone sealing surface, and hose connection structure.
The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems, industrial machinery, and construction equipment.
Need 10711 fittings in different sizes? Send Topa your part numbers, hose specifications, and quantities for a quotation.
