Description

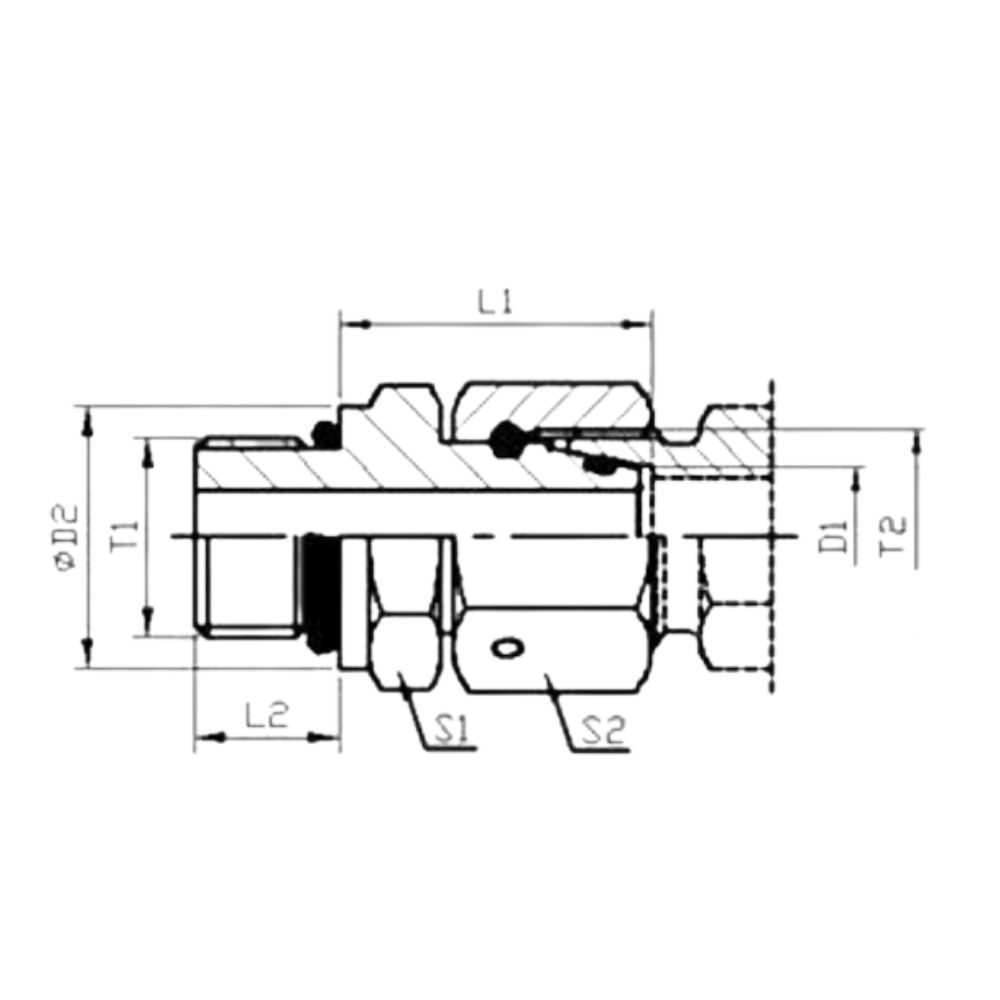

PART NO. | THREAD | TUBE O.D | DIMENSIONS | ||||||
T1 | T2 | D1 | D2 | L1 | L2 | S1 | S2 | ||
L | 2GC-02-12W | G1/8＂X28 | M12X1.5 | 06 | 14 | 24.5 | 8 | 14 | 14 |
2GC-04-14W | G1/4＂X19 | M14X1.5 | 08 | 19 | 29.5 | 12 | 19 | 17 | |
2GC-04-16W | G1/4＂X19 | M16X1.5 | 10 | 19 | 27.5 | 12 | 19 | 19 | |
2GC-06-16W | G3/8＂X19 | M16X1.5 | 10 | 22 | 29 | 12 | 22 | 19 | |
2GC-06-18W | G3/8＂X19 | M18X1.5 | 12 | 22 | 34 | 12 | 22 | 22 | |
2GC-04-18W | G1/4＂X19 | M18X1.5 | 12 | 19 | 27.5 | 12 | 19 | 22 | |
2GC-08-18W | G1/2＂X14 | M18X1.5 | 12 | 27 | 29.5 | 14 | 27 | 22 | |
2GC-08-22W | G1/2＂X14 | M22X1.5 | 15 | 27 | 32 | 14 | 27 | 27 | |
2GC-08-26W | G1/2＂X14 | M26X1.5 | 18 | 27 | 31.5 | 14 | 27 | 32 | |
2GC-12-26W | G3/4＂X14 | M26X1.5 | 18 | 32 | 32.5 | 16 | 32 | 32 | |
2GC-12-30W | G3/4＂X14 | M30X2 | 22 | 32 | 32.5 | 16 | 32 | 36 | |
2GC-16-36W | G1＂X11 | M36X2 | 28 | 40 | 35 | 18 | 41 | 41 | |
2GC-20-45W | G1.1/4＂X11 | M45X2 | 35 | 50 | 42.5 | 20 | 50 | 50 | |
2GC-24-52W | G1.1/2＂X11 | M52X2 | 42 | 55 | 46.5 | 22 | 55 | 60 | |
S | 2GD-04-14W | G1/4＂X19 | M14X1.5 | 06 | 19 | 27 | 12 | 19 | 17 |
2GD-04-16W | G1/4＂X19 | M16X1.5 | 08 | 19 | 29.5 | 12 | 19 | 19 | |
2GD-06-18W | G3/8＂X19 | M18X1.5 | 10 | 22 | 32 | 12 | 22 | 22 | |
2GD-06-20W | G3/8＂X19 | M20X1.5 | 12 | 22 | 34 | 12 | 22 | 24 | |
2GD-04-20W | G1/4＂X19 | M20X1.5 | 12 | 19 | 31.5 | 12 | 19 | 24 | |
2GD-08-20W | G1/2＂X14 | M20X1.5 | 12 | 27 | 35 | 14 | 27 | 24 | |
2GD-08-22W | G1/2＂X14 | M22X1.5 | 14 | 27 | 36.5 | 14 | 27 | 27 | |
2GD-08-24W | G1/2＂X14 | M24X1.5 | 16 | 27 | 37 | 14 | 27 | 30 | |
2GD-12-30W | G3/4＂X14 | M30X2 | 20 | 32 | 43 | 16 | 32 | 36 | |
2GD-16-36W | G1＂X11 | M36X2 | 25 | 40 | 48 | 18 | 41 | 46 | |
2GD-20-42W | G1.1/4＂X11 | M42X2 | 30 | 50 | 51 | 20 | 50 | 50 | |
2GD-24-52W | G1.1/2＂X11 | M52X2 | 38 | 55 | 60 | 22 | 55 | 60 | |

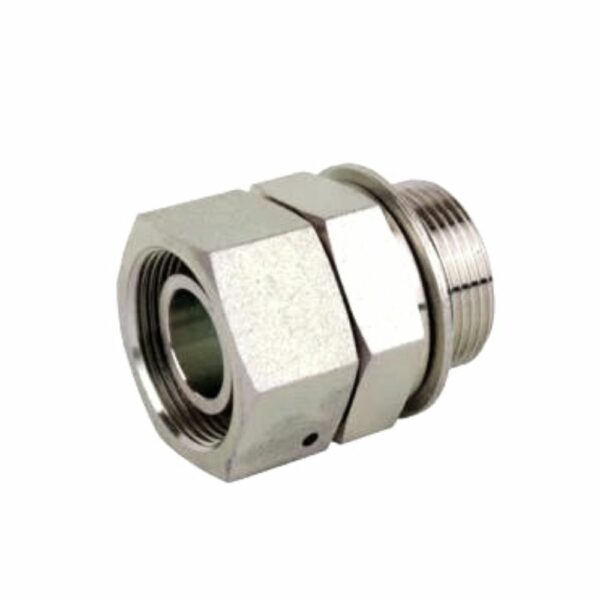

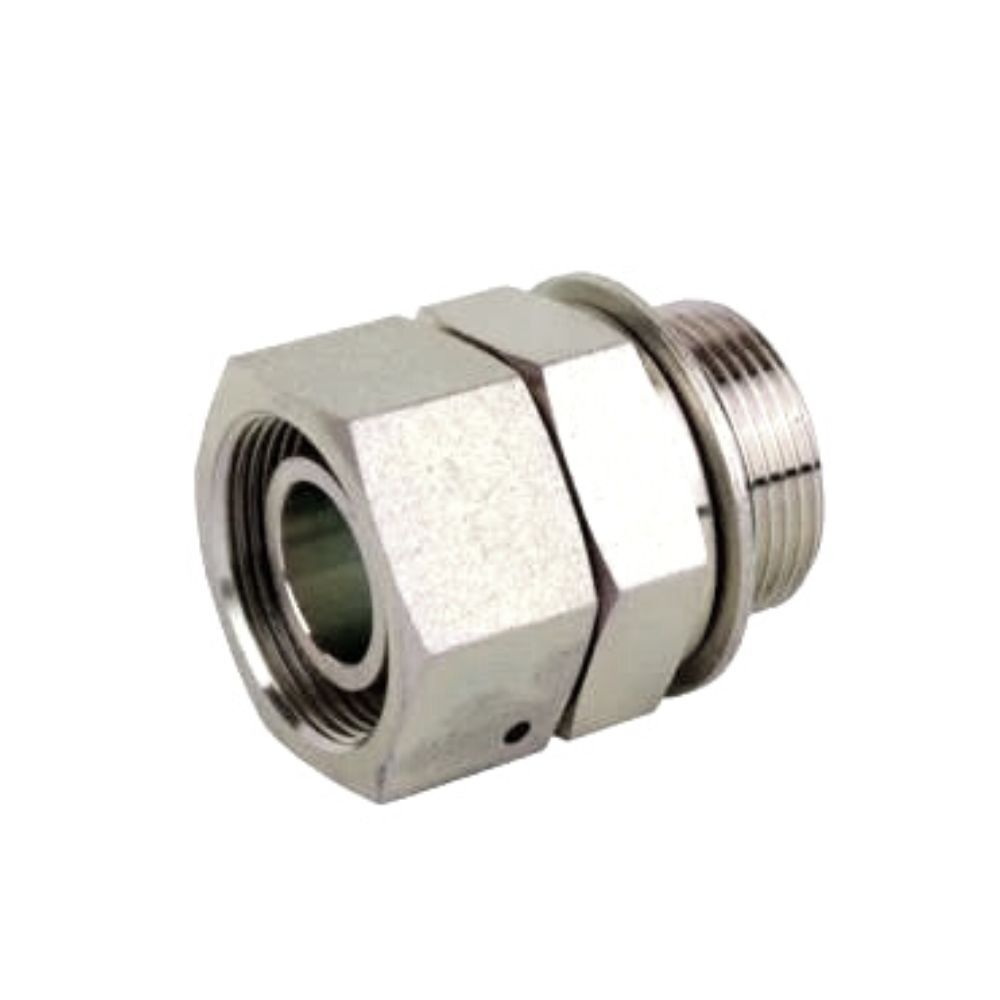

2GC-W/2GD-W Metric to BSP Fitting Video
This video shows information about the 2GC-W/2GD-W metric to BSP fitting.
Hydraulic metric BSP fittings can be applied in many hydraulic applications, plumbing and piping systems, and automotive applications.
If you have any questions about metric hydraulic fitting, please contact us.
