NPT Hydraulic Fitting

1N NPT Male-to-Male Straight Hydraulic Adapter

Description:

1N male NPT hydraulic fitting is a straight adapter that is available in plumbing and hydraulic systems. The 1N adapter has male NPT threads at both ends for joining matching female NPT connections in a straight line. Equal-size and reducing configurations are available in the listed range, allowing selection according to the connection sizes required at each end.

The most common sizes for male NPT fittings are 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, and 2″.

If you have any questions about the stainless steel npt fittings, feel free to ask.

Features and Benefits:

Male NPT Connections: Two tapered male thread ends for matching female NPT interfaces.
Equal and Reducing Sizes: Listed configurations support connections with matching or different nominal sizes.
Straight Layout: Connects compatible components along a common axis.
Hexagonal Body: Provides a wrenching surface for installation.
Defined Dimensions: Listed lengths and hex sizes help check installation space.

Description

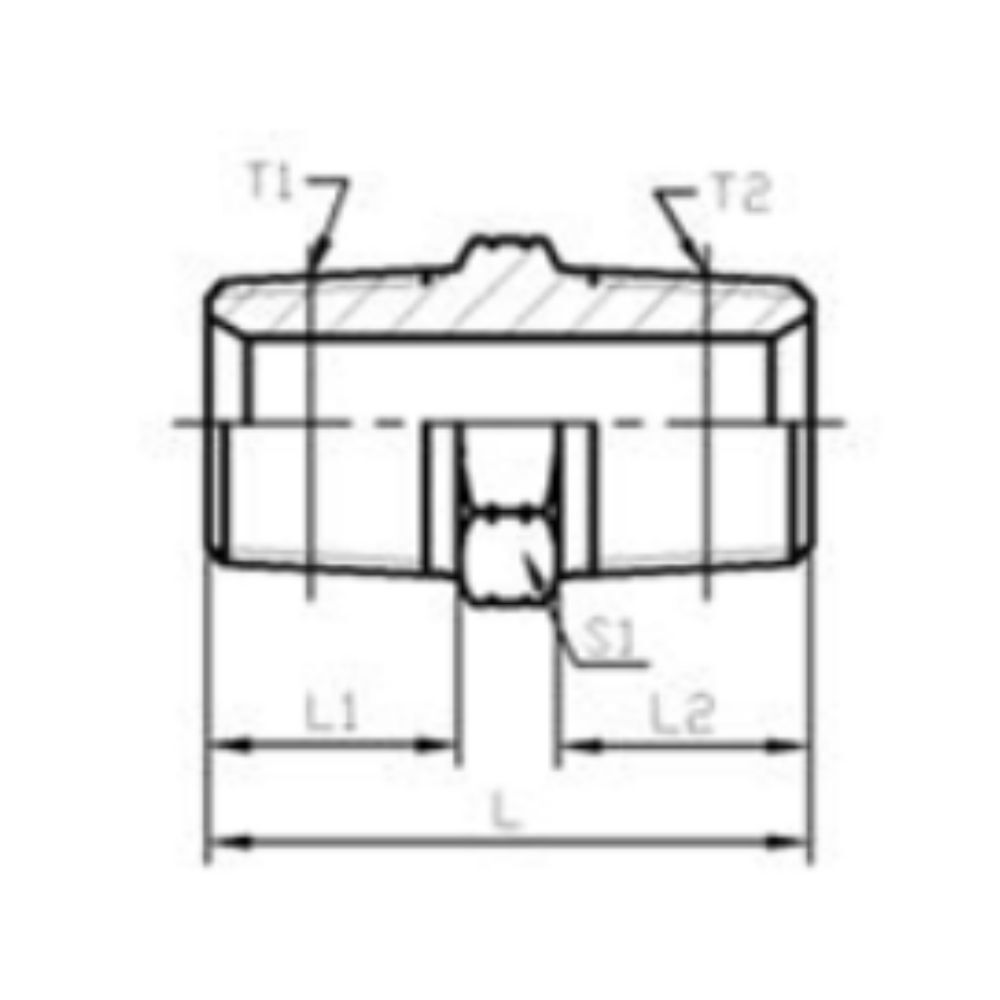

PART NO.	THREAD		DIMENSIONS				WEIGHT(g)	WORKING PRESSURE(MPa)
PART NO.	T1	T2	L1	L2	L	S1	WEIGHT(g)	WORKING PRESSURE(MPa)
1N-02	Z1/8＂X27	Z1/8＂X27	10.5	10.5	27	12	15	34.5
1N-02-04	Z1/8＂X27	Z1/4＂X18	10.5	15	31	17	27	27.5
1N-02-06	Z1/8＂X27	Z3/8＂X18	10.5	16	32	19	40	21
1N-04	Z1/4＂X18	Z1/4＂X18	15	15	37	17	31	27.5
1N-04-06	Z1/4＂X18	Z3/8＂X18	15	16	37	19	42	21
1N-04-08	Z1/4＂X18	Z1/2＂X14	15	19.5	41.5	22	70
1N-06	Z3/8＂X18	Z3/8＂X18	16	16	38	19	45
1N-06-08	Z3/8＂X18	Z1/2＂X14	16	19.5	43.5	22	75
1N-06-12	Z3/8＂X18	Z3/4＂X14	16	19.5	45.5	27	122	17
1N-08	Z1/2＂X14	Z1/2＂X14	19.5	19.5	48	22	81	21
1N-08-12	Z1/2＂X14	Z3/4＂X14	19.5	19.5	49	27	125	17
1N-08-16	Z1/2＂X14	Z1＂X11.5	19.5	25.5	56	36	239	14
1N-12	Z3/4＂X14	Z3/4＂X14	19.5	19.5	49.8	30	135	17
1N-12-16	Z3/4＂X14	Z1＂X11.5	19.5	25.5	55	36	225	17
1N-12-20	Z3/4＂X14	Z1.1/4＂X11.5	19.5	26.5	59	46	408	8
1N-16	Z1＂X11.5	Z1＂X11.5	25.5	25.5	59.5	36	222	8
1N-16-20	Z1＂X11.5	Z1.1/4＂X11.5	25.5	26.5	64	46	400	8
1N-16-24	Z1＂X11.5	Z1.1/2＂X11.5	25.5	27.5	68	50	556	7
1N-20	Z1.1/4＂X11.5	Z1.1/4＂X11.5	26.5	26.5	63	46	376	8
1N-20-24	Z1.1/4＂X11.5	Z1.1/2＂X11.5	26.5	27.5	69	50	544	7
1N-24	Z1.1/2＂X11.5	Z1.1/2＂X11.5	27.5	27.5	66.5	50	592	7
1N-24-32	Z1.1/2＂X11.5	Z2＂X11.5	26.5	27.5	72	65	925	7
1N-32	Z2＂X11.5	Z2＂X11.5	27.5	27.5	71.5	65	735

1N Male NPT Hydraulic Fitting Video

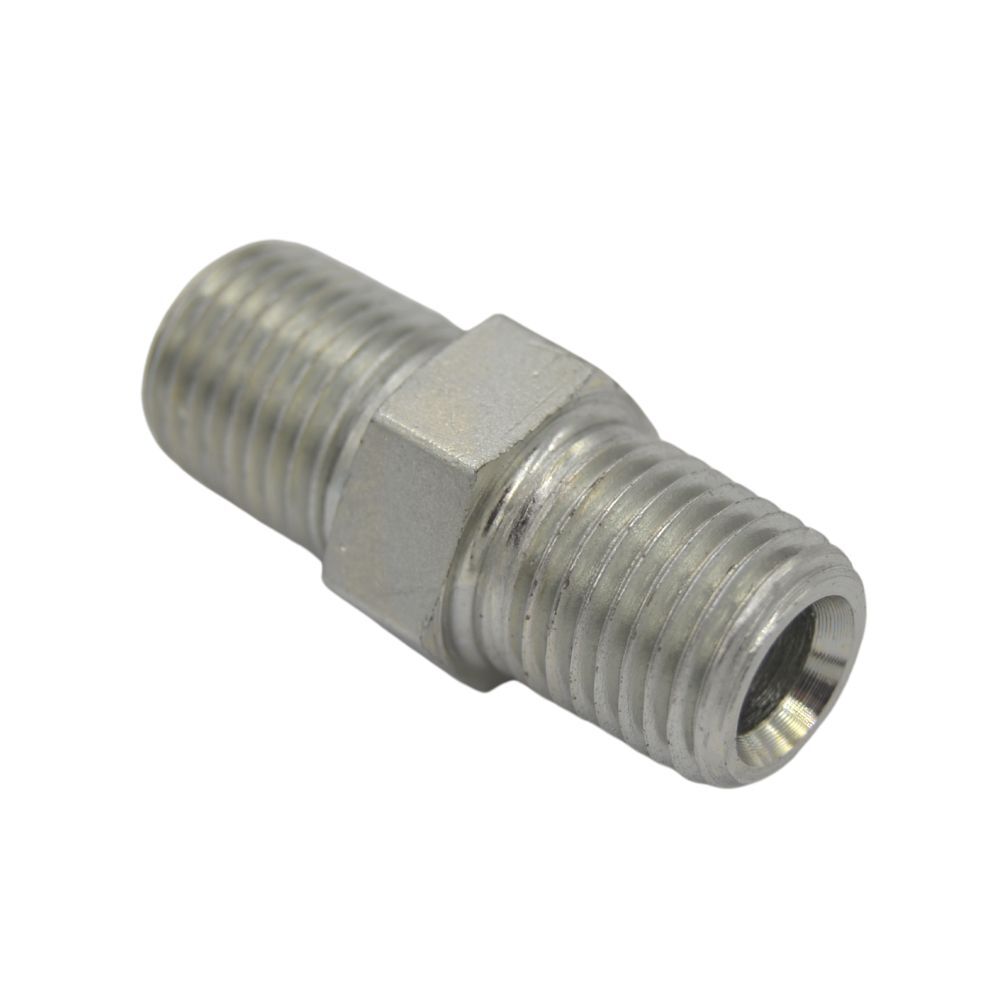

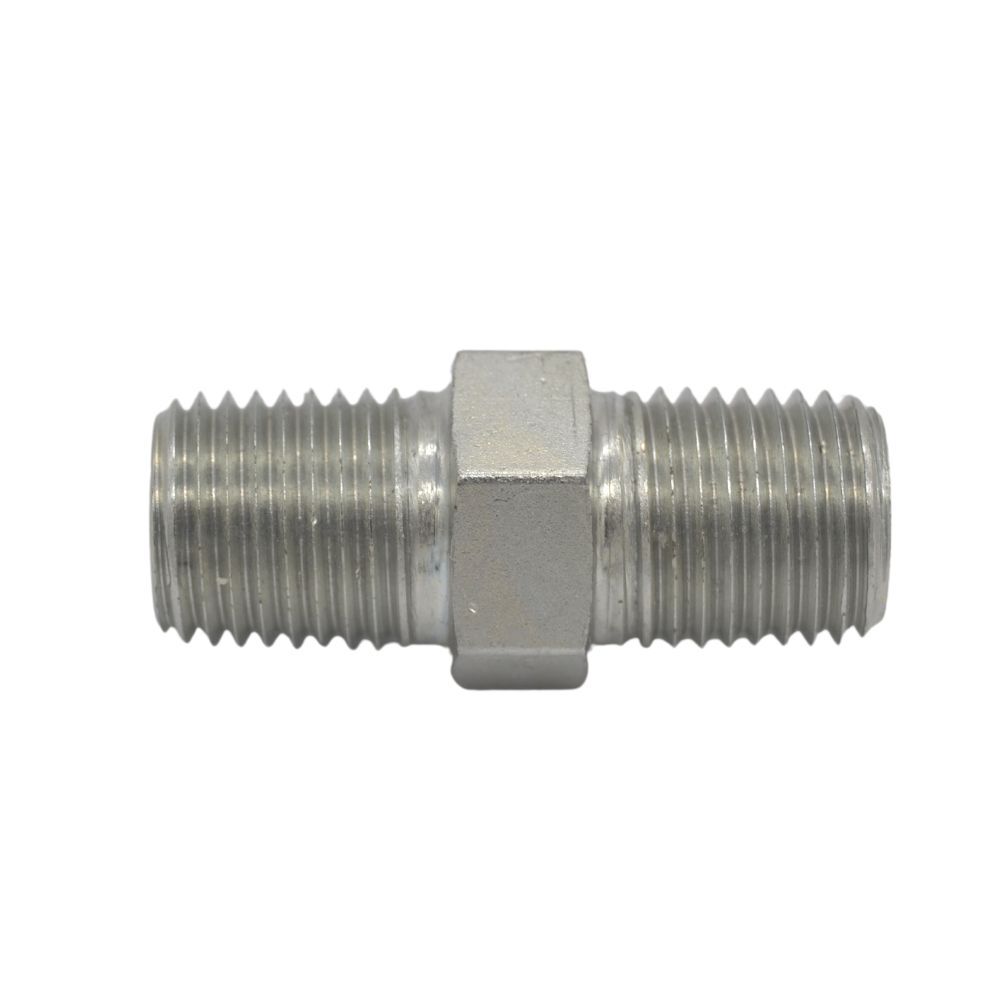

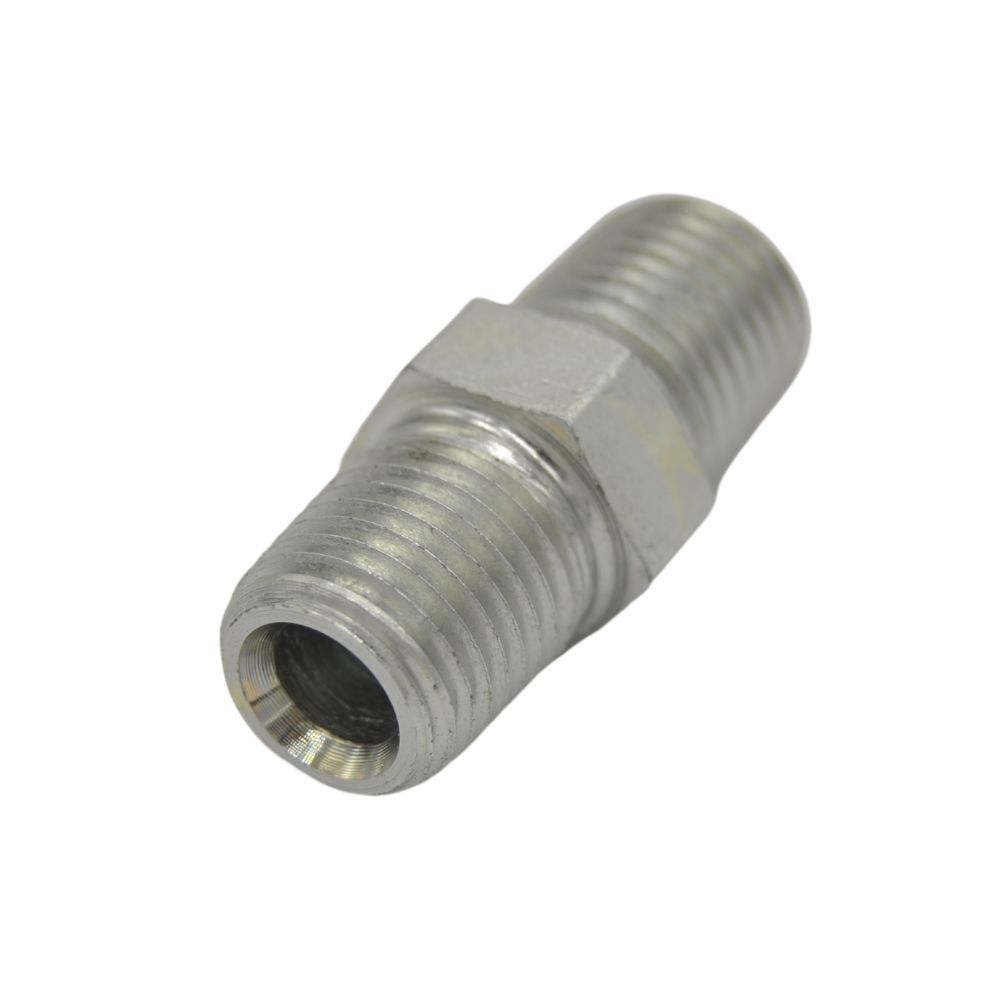

Take a closer look at the 1N male-to-male NPT adapter in this video. The product views show its straight body, external threads, and central hex, helping you examine the connection layout and overall shape.

Use the dimension table to confirm the required sizes at both ends and the available installation space. Material, working pressure, and surface finish should be confirmed for the selected part number.

Watch the video to explore the product details, then send Topa your fitting list and quantities for a quotation.
