Female JIC 37° Hydraulic Reusable Fitting China Factory-Topa

Reusable Fitting

Description:

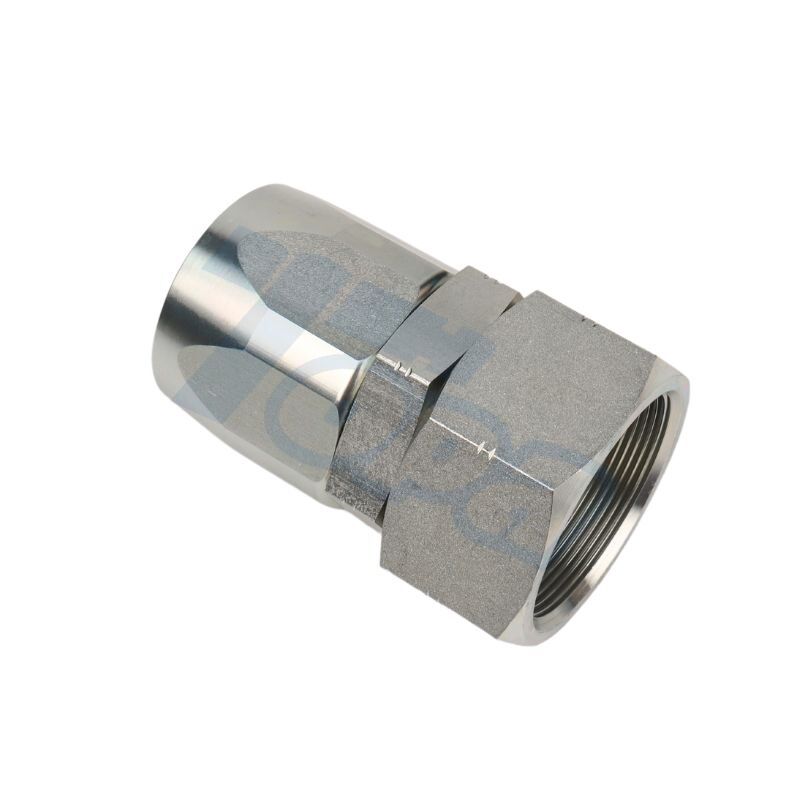

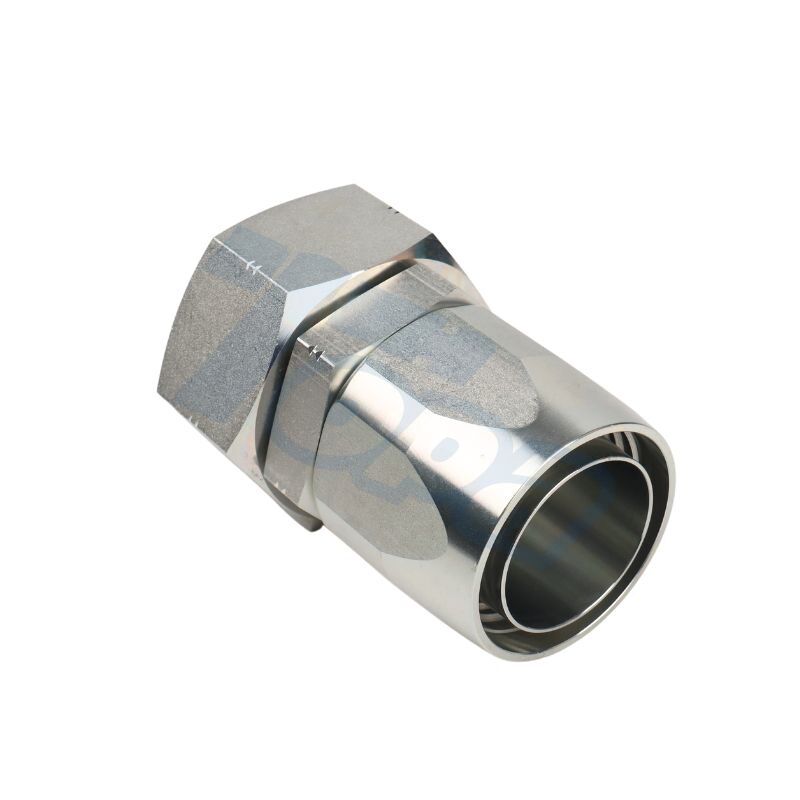

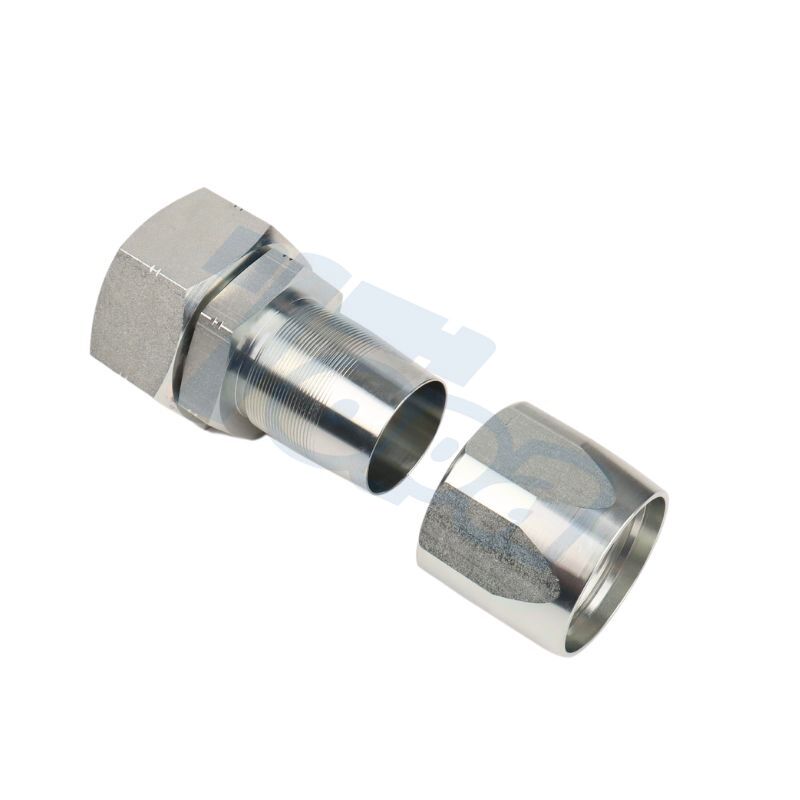

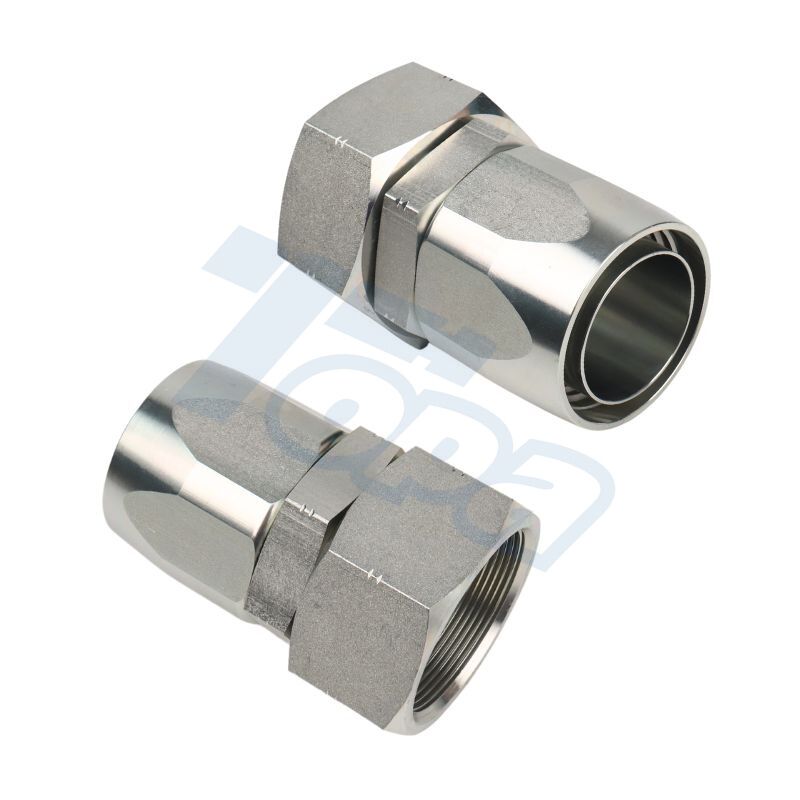

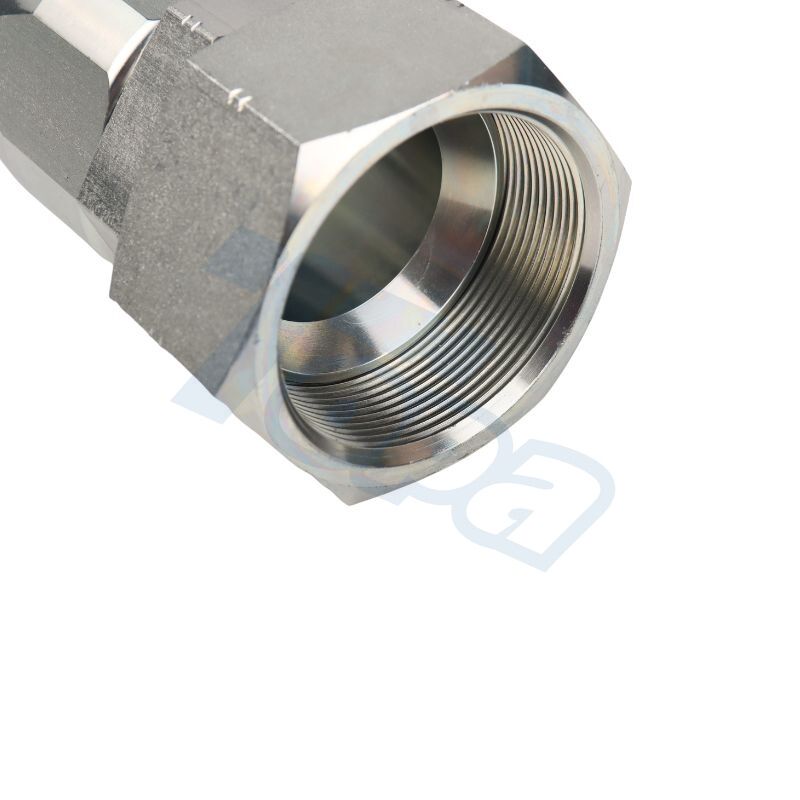

Straight female JIC reusable fitting is a type of hydraulic reusable fitting that features a 37-degree flare seating surface and is designed to be reused when connecting hydraulic hoses to components or other fittings.

Topa can supply all sizes of JIC hydraulic hose reusable fittings to accommodate different hose diameters and fluid flow requirements.

We can produce uncommon models of reusable jic fitting, and customized fittings. If you have special needs, please contact us！

Features and Benefits:

• Easy to install
• High heat resistance
• Higher pressure resistance
• Durable

Description

Hose size	Thread	A		D		E
411		mm	in	mm	in	mm	in
-04	7/16-20	44,5	1.75	25,4	1.00	4,3	0.17
-05	1/2-20	48,3	1.90	28,4	1.12	5,8	0.23
-06	9/16-18	52,1	2.05	29,2	1.15	7,6	0.30
-04	9/16-18	47,0	1.85	27,9	1.10	4,3	0.17
-08	3/4-16	64,0	2.52	35,1	1.38	99	0.39
-10	7/8-14	71,1	2.80	38,4	1.51	12,2	0.48
-08	7/8-14	67,2	2.65	38,1	1.50	9,9	0.39
-12	1 1/16-12	80,0	3.15	40,1	1.58	15,5	0.61
-16	1 5/16-12	71,6	2.82	39,4	1.55	20,8	0.82
-12	1 5/16-12	82,6	3.25	40,9	1.61	15,5	0.61
-20	1 5/8-12	76,2	3.00	41,7	1.64	26,7	1.05
-24	1 7/8-12	83,3	3.28	46,5	1.83	32,5	1.28
-32	2 1/2-12	98,6	3.88	51,6	2.03	44,5	1.75

Female JIC reusable hydraulic fitting Video

This video shows information about the female JIC straight reusable fitting.

JIC reusable fittings are available in a variety of sizes and configurations. Topa JIC reusable hydraulic fitting undergoes a rigorous manufacturing process, surface treatment, and quality testing to ensure that all fittings are of the highest quality for use.

If you have any questions about the hydraulic reusable hose fittings, please contact us!
