Description
| PART NUMBER | BORE | STROKE (INCH) | ROD DIA (INCH) | PIN CENTERS RETRACTED (INCH) | PIN CENTERS EXTENDED (INCH) |
| CML-2004 | 2 | 4 | 1-1/4″ | 14.25 | 18.25 |
| CML-2006 | 2 | 6 | 1-1/4″ | 16.25 | 22.25 |
| CML-2008 | 2 | 8 | 1-1/4″ | 18.25 | 28.25 |
| CML-2010 | 2 | 10 | 1-1/4″ | 20.25 | 30.25 |
| CML-2012 | 2 | 12 | 1-1/4″ | 22.25 | 34.25 |
| CML-2014 | 2 | 14 | 1-1/4″ | 24.25 | 38.25 |
| CML-2016 | 2 | 16 | 1-1/4″ | 26.25 | 42.25 |
| CML-2018 | 2 | 18 | 1-1/4″ | 28.25 | 46.25 |
| CML-2020 | 2 | 20 | 1-1/4″ | 30.25 | 50.25 |
| CML-2024 | 2 | 24 | 1-1/4″ | 34.25 | 58.25 |
| CML-2028 | 2 | 28 | 1-1/4″ | 38.25 | 66.25 |
| CML-2030 | 2 | 30 | 1-1/4″ | 40.25 | 70.25 |
| CML-2032 | 2 | 32 | 1-1/4″ | 42.25 | 74.25 |
| CML-2034 | 2 | 34 | 1-1/4″ | 44.25 | 78.25 |
| CML-2036 | 2 | 36 | 1-1/4″ | 46.25 | 82.25 |
| CML-2504 | 2.5 | 4 | 1-1/2″ | 14.25 | 18.25 |
| CML-2506 | 2.5 | 6 | 1-1/2″ | 16.25 | 22.25 |
| CML-2508 | 2.5 | 8 | 1-1/2″ | 20.25 | 28.25 |
| CML-2510 | 2.5 | 10 | 1-1/2″ | 20.25 | 30.25 |
| CML-2512 | 2.5 | 12 | 1-1/2″ | 22.25 | 34.25 |
| CML-2514 | 2.5 | 14 | 1-1/2″ | 24.25 | 38.25 |
| CML-2516 | 2.5 | 16 | 1-1/2″ | 26.25 | 42.25 |
| CML-2518 | 2.5 | 18 | 1-1/2″ | 28.25 | 46.25 |
| CML-2520 | 2.5 | 20 | 1-1/2″ | 30.25 | 50.25 |
| CML-2524 | 2.5 | 24 | 1-1/2″ | 34.25 | 58.25 |
| CML-2528 | 2.5 | 28 | 1-1/2″ | 38.25 | 66.25 |
| CML-2530 | 2.5 | 30 | 1-1/2″ | 40.25 | 70.25 |
| CML-2532 | 2.5 | 32 | 1-1/2″ | 42.25 | 74.25 |
| CML-2534 | 2.5 | 34 | 1-1/2″ | 44.25 | 78.25 |
| CML-2536 | 2.5 | 36 | 1-1/2″ | 46.25 | 82.25 |
| CML-3004 | 3 | 4 | 1-1/2″ | 14.25 | 18.25 |
| CML-3006 | 3 | 6 | 1-1/2″ | 16.25 | 22.25 |
| CML-3008 | 3 | 8 | 1-1/2″ | 18.25 | 28.25 |
| CML-3010 | 3 | 10 | 1-1/2″ | 20.25 | 30.25 |
| CML-3012 | 3 | 12 | 1-1/2″ | 22.25 | 34.25 |
| CML-3014 | 3 | 14 | 1-1/2″ | 24.25 | 38.25 |
| CML-3016 | 3 | 16 | 1-1/2″ | 26.25 | 42.25 |
| CML-3018 | 3 | 18 | 1-1/2″ | 28.25 | 46.25 |
These welded hydraulic cylinder comse in various sizes, with different bore and rod diameters to suit specific applications. The pressure range can vary significantly, depending on the design and purpose, but they are capable of handling substantial force. Customization options are available to cater to unique requirements. You can tailor the stroke length, mounting options, and other specifications to fit the exact needs of your equipment.

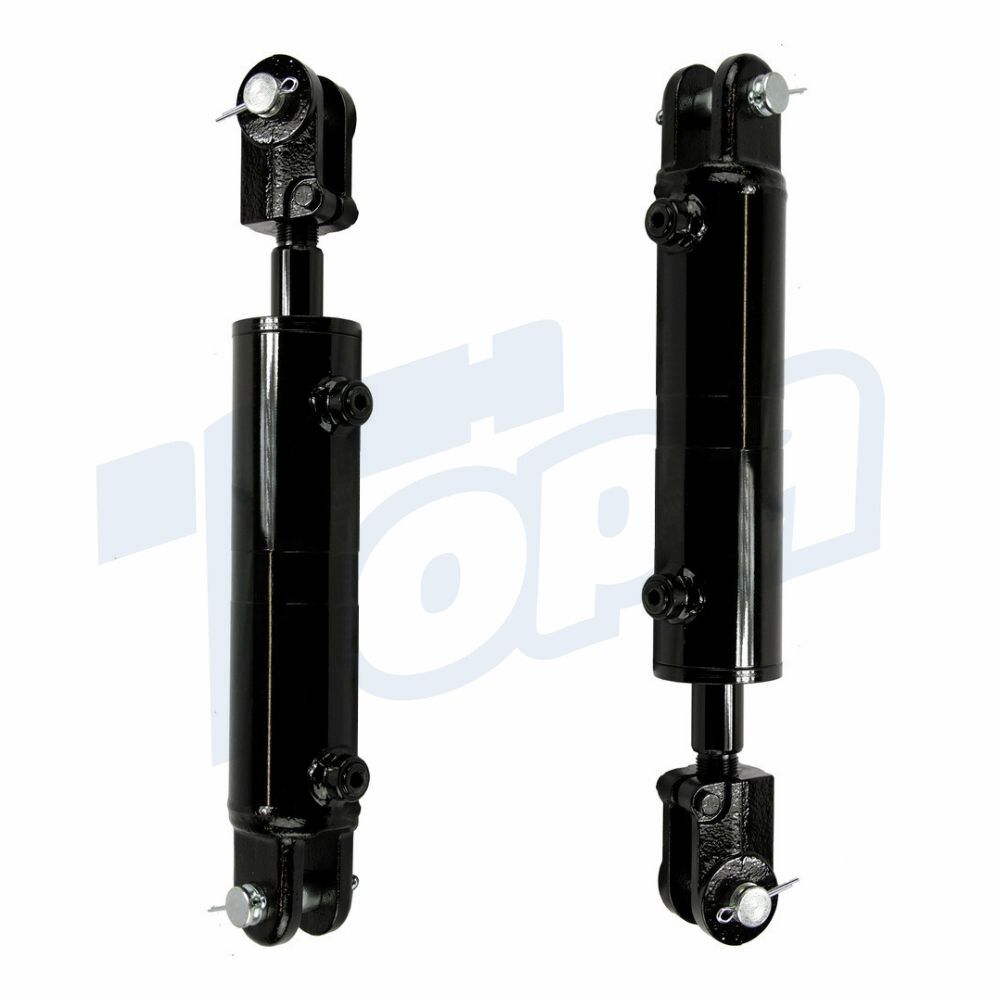

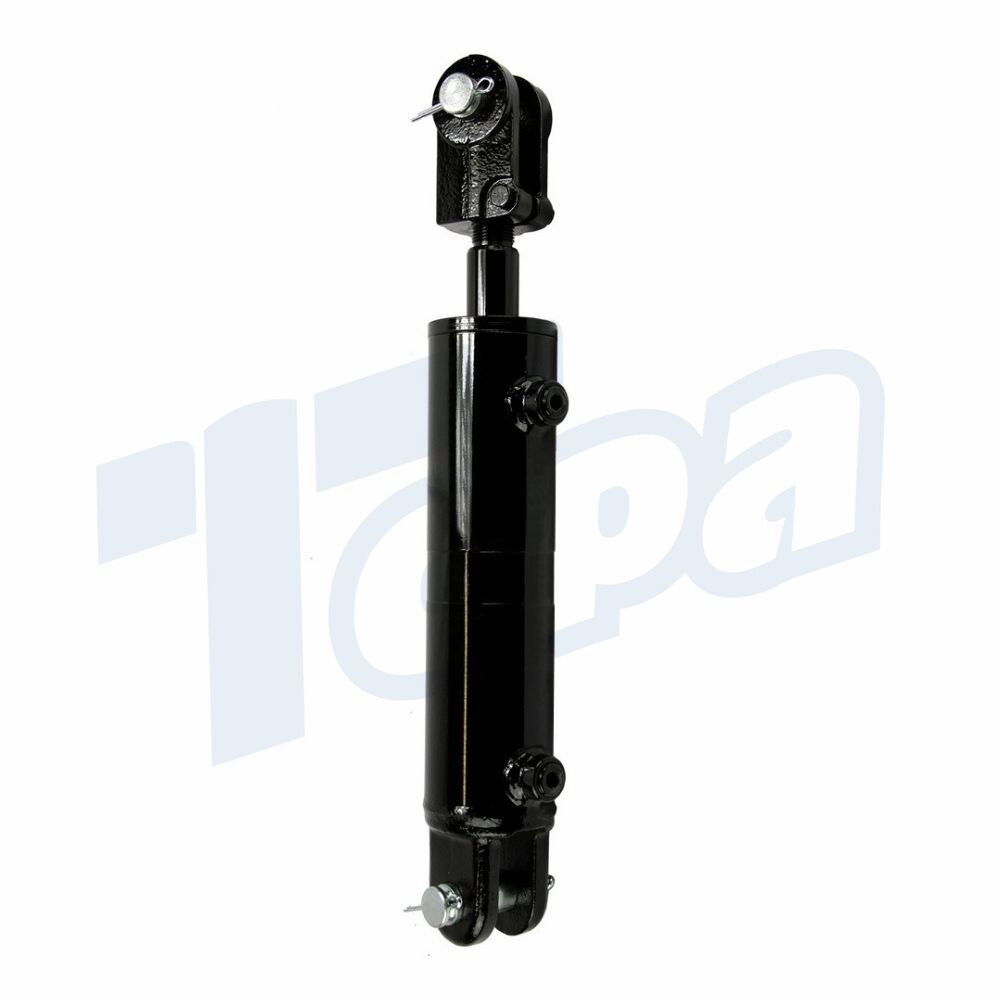

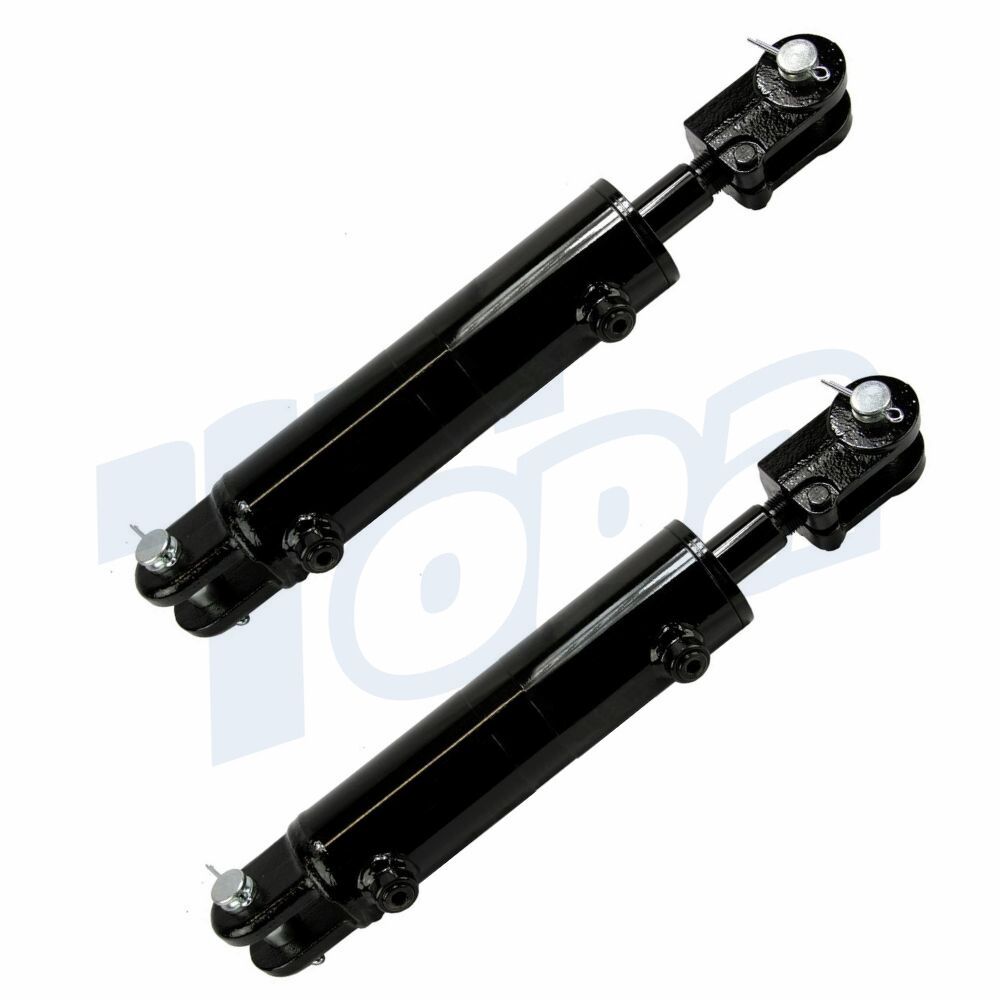

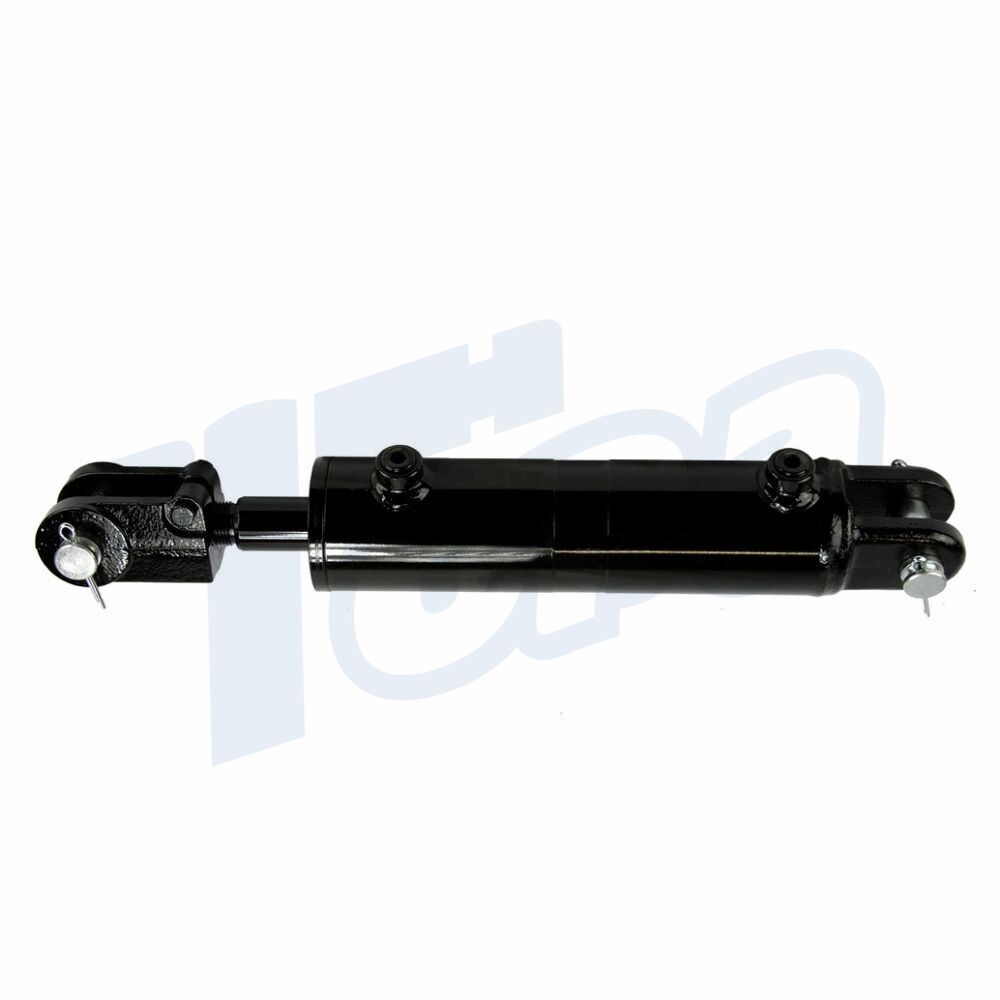

CML - Clevis Welded Hydraulic Cylinder
Hydraulic clevis welded cylinders typically feature a robust and cylindrical design. They consist of a seamless steel tube that houses various hydraulic components, including a piston and rod.
These cylinders find wide-ranging applications in industries such as construction, agriculture, manufacturing, and material handling. They are used in equipment like loaders, excavators, bulldozers, and more.
Hydraulic clevis welded cylinders are often crafted from high-quality steel, ensuring durability and resistance to wear and tear. This choice of material enhances their longevity, even in demanding environments.
Topa can provides all types of welded hydraulic cylinders, contact us for more information!
Advantages of Hydraulic Cylinders From Topa
Competitive Pricing: Our clients appreciate that we offer cost-effective hydraulic clevis welded cylinders without compromising on quality. We understand the importance of affordability.
High-Quality Manufacturing: At Topa, we take pride in our state-of-the-art manufacturing facilities in China. Our products are built to last and perform consistently under demanding conditions.
One-Stop Solution: We offer a comprehensive range of hydraulic products and components, making it convenient for our clients to source everything they need from a single, reliable supplier.
Customization Expertise: Whether you need specific dimensions, mounting options, or pressure ratings, we have the expertise to customize hydraulic cylinders to meet your exact specifications.
