Camlock Fittings Factory in China

❖Exceptionally versatile

❖Dust prevention

❖Structural durability

❖Highly adaptable

Product List

Camlock fittings are hose fittings used to connect hoses and tanks, also known as cam and groove fittings. These hose fittings are very convenient to install without extra tools. Camlock fittings require the use of both male and female ends to form a seal in the pipeline system. The types of camlock fittings are standard models, classified as type A(male camlock to female thread), type B(female camlock to male thread), type C(female cmalock to hose shank), type D(female camlock to female threads), type E(male camlock to hose shank), type F(male camlock to male threads), type DC(camlock dust cap), and type DP(dust plug). You can view the pictures below to determine the product you like.

Camlock Fittings Video

Explore our diverse range of camlock fittings in this detailed video presentation. We will walk you through various sizes, materials, and types of camlock fittings, showcasing how each option can serve your specific operational needs. From high-pressure applications to chemical-resistant designs, our fittings are versatile and tailored to ensure your connections are secure, reliable, and easy to use.

Watch the video to see how our camlock fittings can streamline your workflow. You’ll get a closer look at the different materials—such as aluminum, stainless steel, and brass—along with tips on how to install them quickly and efficiently.

By clicking to watch the video now, you’ll have the opportunity to explore our full range of camlock fitting options. See firsthand how our products can benefit your operations and how easy it is to integrate them into your existing systems. Whether you need a quick-connect solution for a construction site or a leak-proof connection for hazardous materials, our camlock fittings provide the reliable performance you need.

Application

Camlock fittings are perfect choices for medium and low-pressure fluid environments. These fittings are usually sealed with O-rings to prevent leakage effectively. Standard camlock fittings are always applied in many fluid environments, such as agriculture, oil and gas, food, chemical, and military.

Ready to optimize your system?

Explore our full range of camlock fittings and find the perfect solution for your needs today!

Camlock Couplings Features

Structure

A camlock fitting consists of two main parts: the male and female coupling. The male coupling has a set of latching arms, while the female coupling has corresponding receiving points for those arms. These fittings also incorporate a seal or gasket, typically made of rubber or silicone, to ensure a leak-proof connection.

The male coupling is inserted into the female coupling, and the arms are then pushed over the female coupling and latched into place, securing the two halves together. Once locked, the gasket between the two halves compresses to form a tight seal, preventing any leakage of fluids or gases.

Principle

The principle behind camlock fittings is simple yet effective. The cam mechanism (the arms) allows for quick and secure coupling without the need for tools, which makes them ideal for fast-paced environments where time is of the essence. The locking arms apply pressure onto the female coupling, ensuring the connection stays intact under pressure or other mechanical stresses.

Quick Connect: The camlock system allows for fast connection and disconnection, providing a reliable alternative to threaded fittings, which require time-consuming twisting.

Leak-Proof: The compression of the sealing gasket ensures that there are no gaps between the male and female parts, preventing leaks during operation.

Durability: The strong materials used, such as aluminum, stainless steel, or brass, ensure that the camlock fittings can withstand high pressures and harsh environments.

Material

Camlock fittings are manufactured from a variety of materials to suit different applications and environments. The choice of material significantly affects the performance, durability, and resistance of the fitting to various chemicals, temperatures, and pressures. The material selection for camlock fittings is crucial for ensuring that the fittings can handle the specific demands of an application.

Aluminum and stainless steel are the most common choices due to their versatility, while brass and polypropylene offer specialized advantages for specific needs like corrosion resistance and chemical compatibility. Nylon and ductile iron serve niche applications requiring flexibility and strength, respectively.

Types of Hydraulic Camlock Fittings

Camlock fittings, also known as cam and groove couplings, are widely used in industries for quick and secure connections of hoses and pipes. Available in various materials such as aluminum, stainless steel, and brass, these fittings are essential for fluid transfer in construction, agriculture, and chemical industries.

Type A (Male Camlock to Female Threaded)

This fitting features a male camlock coupling on one side and a female threaded connection on the other. It is commonly used for connecting hoses to threaded pipes or other equipment with threaded ports.

Type B (Female Camlock to Male Threaded)

The Type B fitting has a female camlock on one side and a male threaded connection on the other. It is ideal for situations where a female threaded pipe needs to be connected to a hose.

Type C (Male Camlock to Male Threaded)

This fitting consists of a male camlock coupling on both ends, with one end having a male threaded connection. It is designed for applications requiring quick coupling and high-pressure connections with male threads.

Type D (Female Camlock to Female Threaded)

Featuring a female camlock on one side and a female threaded connection on the other, this fitting is typically used to connect hoses to female threaded pipe systems.

Type E (Male Camlock to Hose Shank)

This fitting has a male camlock on one side and a hose shank on the other. It is designed for easy connection to hoses, providing a secure fit without the need for additional clamps.

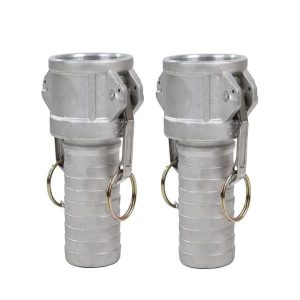

Type F (Female Camlock to Hose Shank)

A female camlock on one side and a hose shank on the other, this fitting is ideal for connecting hoses to female threaded pipes or systems with hose connections.

Type DP (Dust Plug)

The dust plug is used to close off open camlock fittings to prevent dirt, debris, or moisture from entering the coupling. It is an essential accessory for keeping fittings clean when not in use.

Type DC (Dust Cap)

Similar to the dust plug, the dust cap is used to protect the male portion of a camlock fitting. It ensures the integrity of the fitting and prevents contamination during storage or transport.

Don't wait!

Click here to browse our selection and place your order for high-quality camlock fittings with fast delivery!

How to Select the Right Camlock Fitting

Choosing the right camlock fitting is crucial for ensuring safety, efficiency, and longevity in your fluid and material transfer systems. Here are the key factors to consider when selecting the appropriate camlock fitting for your specific application:

Consider the Material Compatibility

The material of the camlock fitting must be compatible with the fluid or gas you are transferring to avoid corrosion, degradation, or contamination. Different materials offer specific benefits:

Aluminum: Ideal for general use, lightweight applications, and environments that don’t involve aggressive chemicals.

Stainless Steel: Best for harsh environments, high temperatures, and where chemical resistance is essential, such as in the food, pharmaceutical, and chemical industries.

Brass: Common in water-based applications and mild chemical environments.

Polypropylene: Suitable for chemical applications where acid or alkali resistance is critical.

Nylon: A lightweight, cost-effective option for low-pressure applications that require abrasion resistance.

Match the Fitting Size

The size of the camlock fitting must match both the hose and the connection points it will be attaching to. Camlock fittings typically come in various sizes, ranging from small diameters for low-flow applications to large diameters for high-flow systems.

Identify the hose diameter: Measure the inside diameter (ID) or outside diameter (OD) of your hose to ensure proper compatibility.

Verify system connections: Ensure that the fitting size matches both the hose and any threaded connections it will attach to.

Assess the Pressure and Temperature Requirements

Different applications have varying pressure and temperature demands. Make sure the camlock fitting you select can handle the maximum pressure and temperature conditions of your system.

Pressure: Stainless steel camlock fittings are often preferred for high-pressure applications, whereas aluminum may be sufficient for low-pressure systems.

Temperature: Check whether your application involves extreme temperatures (either hot or cold). For high-temperature applications, stainless steel or brass may be the best options.

Choose the Right Type of Camlock Fitting

Camlock fittings come in various types, each designed for specific needs. Consider the types of connections required by your system:

Type A: Male camlock to female threaded connection, commonly used for connecting threaded pipes to hoses.

Type B: Female camlock to male threaded connection, typically used for connecting male-threaded equipment to hoses.

Type C: Male camlock to male threaded connection, often used for creating a secure, straight connection between two male-threaded parts.

Type D: Female camlock to female threaded connection, ideal for joining two female-threaded components.

Type E & F: Male camlock to hose shank or female camlock to hose shank, useful for easy hose connections without the need for additional clamps.

Dust Caps/Plugs (DP/DC): Used for covering and protecting camlock fittings when not in use.

Check for Sealing Requirements

The effectiveness of a camlock fitting is largely dependent on the quality of its seal. Choose a fitting with the appropriate gasket or seal material based on the fluids you’re working with:

EPDM (Ethylene Propylene Diene Monomer): Common for water, air, and general-purpose fluid transfer.

Viton®: Suitable for handling high temperatures and chemical exposure.

Nitrile (Buna-N): Ideal for fuel, oils, and hydraulic fluid systems.

Evaluate the Environment and Application

Consider the environment where the camlock fitting will be used. Outdoor or marine environments may require a more durable, corrosion-resistant fitting, while food processing systems require hygienic and clean fittings.

Corrosion Resistance: If you’re working in a highly corrosive environment (e.g., marine or chemical industries), stainless steel or polypropylene may be more appropriate.

Ease of Use: For applications requiring frequent connections and disconnections, choose camlock fittings that provide tool-free, quick-connect functionality.

Hygiene: For food and beverage applications, ensure that the fittings are made of food-grade materials, such as stainless steel, to meet health and safety regulations.

By considering these factors and understanding the operational environment, you can ensure that you choose the most suitable camlock fitting for your needs, improving safety, efficiency, and the lifespan of your system.

Camlock Measurements

Understanding the correct measurements for camlock fittings is essential for ensuring a secure, leak-proof connection in any system. Whether you’re working with hoses, pipes, or other equipment, getting the right size and dimensions is crucial for both performance and safety. Camlock fittings come in a variety of sizes and configurations, each designed to meet specific operational needs.

Threaded ID (Female) or OD Male	Pipe Size (NPT)	Coupling Normal Size	Coupler Inside Diameter
3/4	1/2	1/2	15/16
1	3/4	3月4日	1-1/4
1-3/8	1	1	1-7/16
1-5/8	1-1/4	1-1/4	1-13/16
1-7/8	1-1/2	1-1/2	2-1/5
2-3/8	2	2	2-1/2
2-7/8	2-1/2	2-1/2	3
3-1/2	3	3	3-5/8
4-1/2	4	4	4-3/4
5-5/8	5	5	5-3/4
6-5/8	6	6	6-15/16
8-5/8	8	8	8-15/16
10-3/4	10	10	11-3/8
12-3/4	12	12	13-1/2

Data is for reference only, please contact Topa for specific parameters.

Get a Custom Quote Today!

Unlock tailored solutions for your hydraulic needs! Fill out our form, and one of our experts will reach out to provide a personalized quote within 24 hours.

Topa Services

At Topa, we are committed to providing top-quality camlock fittings that meet the diverse needs of our customers. Our services are designed to ensure seamless experiences from product selection to after-sales support. Whether you’re looking for customized solutions, fast delivery, or expert technical advice, Topa stands ready to offer reliable and cost-effective solutions. We believe in building long-term partnerships with our clients, backed by superior service and unparalleled product quality.

Customized Fitting Solutions

We offer tailor-made camlock fittings designed to meet the specific needs of your application.

Fast Delivery Times

Topa guarantees quick production and delivery to ensure minimal downtime for your operations.

High-Quality Standards

Our camlock fittings are manufactured to the highest quality standards for reliable, long-lasting performance.

Expert Technical Support

Our team of experts is available to provide guidance on selecting and using camlock fittings for your system.

Competitive Pricing

We offer high-quality camlock fittings at competitive prices, providing cost-effective solutions for every budget.

Flexible Payment Options

Topa offers various payment methods to make transactions smooth and convenient for our customers.

After-Sales Assistance

We provide ongoing support and assistance even after the purchase to ensure your complete satisfaction.

Global Shipping Network

With our efficient global logistics system, we deliver camlock fittings to clients worldwide, no matter the location.

Why Choose Us

Topa is the manufacturer and expert specialized in researching, developing, and producing hydraulic fittings. Our main products are various hydraulic fittings such as adapters, ferrules, flanges, and clamps. In Topa, You will find the exact products you want. We are committed to providing one-stop procurement services for our clients.

We are a hydraulic company in China with the following advantages:

More than 20 years of hydraulic experience

With more than 20 years of industry experience, Topa has built reliable and long-term partnerships with many suppliers and importers.

High-Quality Products and Hydraulic Technicians

We are able to provide various products such as rubber hoses, fittings, assemblies, etc. Our technicians have rich professional knowledge and are good at finding problems from daily work, summarizing experience, and improving product quality.

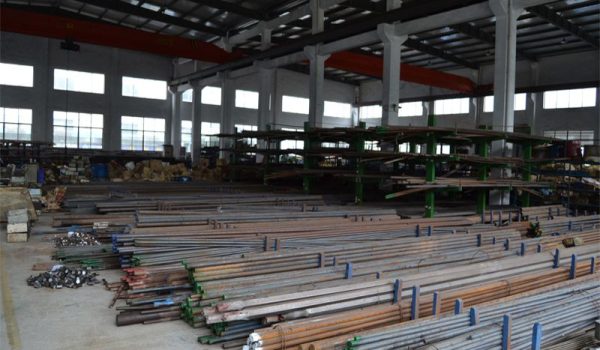

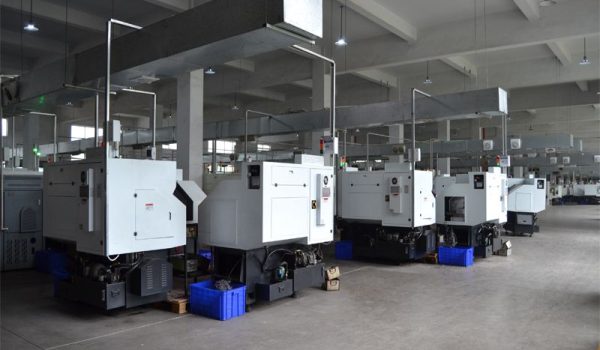

Advanced Workshop

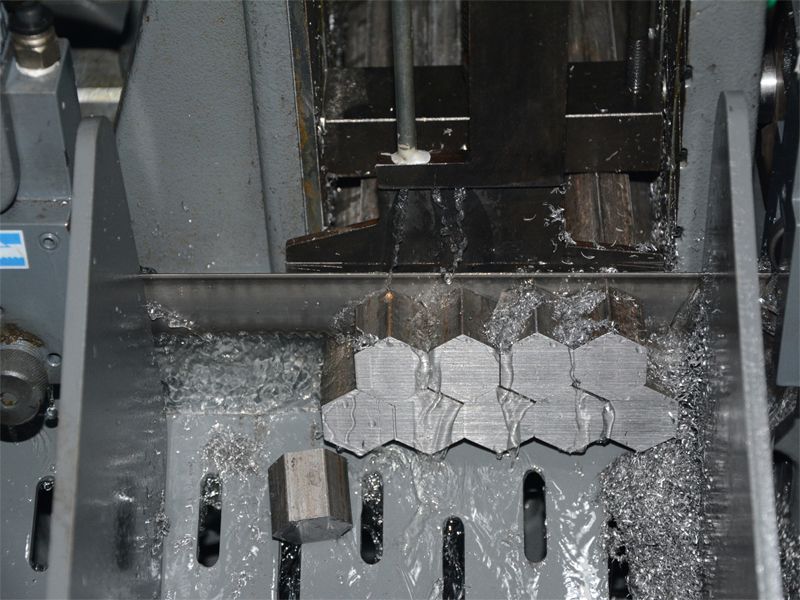

Topa has a high-level workshop with advanced equipment, which means we can customize fittings for our clients. We can produce the specific product with the specific details and model you provide.

Major savings on high-pressure hose assemblies

We produce our products in our factory to control product quality and cost. This means that we can provide our customers with high-quality hose assemblies at a competitive price to help them save costs.

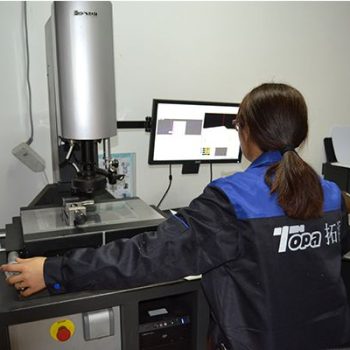

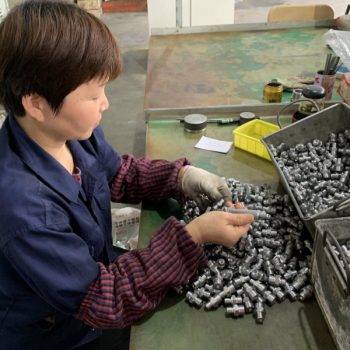

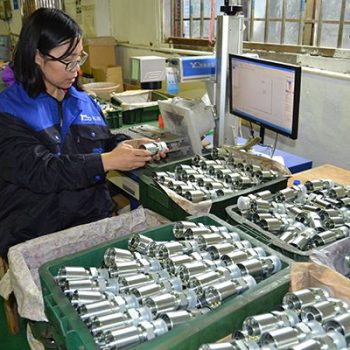

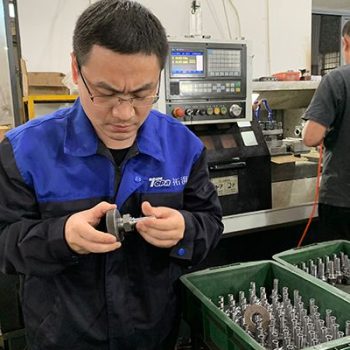

Strict quality control

Topa hydraulic fittings have passed a strict quality control test. Quality is not only limited to our products but also presented in our services and our management process.

Your Reliable Camlock Fittings Factory

Camlock fittings are made of aluminum alloy, stainless steel 316 and 304, polypropylene, nylon, and brass. For different working applications, you need to choose different camlock fittings.

The working environment pressure, temperature, and PH of camlock fittings determine the different materials. The standards of camlock fittings are generally universal internationally, except for some special types.

Topa can provide brass, stainless steel, aluminum alloy, and polypropylene camlock fittings. These fittings have a wide range of sizes to meet the needs of most customers.

The benefits of Toap camlock fittings are:

※ Easy to install and uninstall

※ Save time

※ Strong seal

※ Durable

※ Reliable

FAQ

What is camlock fitting?

Camlock fitting is a quick-connect hose fitting that is easy to install and easy to remove.

What are the materials of camlock fitting?

Aluminum, stainless steel, brass, polypropylene, and plastic.

What are the advantages of camlock fitting?

Easy to install, time-saving, durable, and reliable.

What are the categories of camlock fitting?

Camlock fitting is available in A, B, C, D, E, F, DC, and DP models.

Can camlock fittings fail?

Camlock fittings can leak if they are not installed properly or if they are damaged.

Can I customize camlock fittings?

Yes, we offer a customization service.

Where can camlock fitting be used?

In applications where fluids need to be transferred, such as agriculture, chemicals, food processing, oil and gas.

How do I choose the right camlock connector?

By suitable materials, applications, and sizes.

What is the pressure range for camlock fitting?

Plastic camlock couplings are made to withstand less pressure, while metal couplings are made to withstand pressures ranging from 150psi-250psi.

How long does it take to make a camlock fitting?

The normal time frame is about 30-45 days.
