Hydraulic hoses are crucial components in hydraulic systems, serving as the conduits that convey hydraulic fluid between different parts of the system. The importance of selecting the right hydraulic hose cannot be overstated, as it directly impacts the efficiency, safety, and longevity of the machinery. Each application has unique demands, including pressure, temperature, and environmental conditions, making it essential to choose hoses that match these specific requirements.
Hydraulic hoses are critical components in hydraulic systems, serving as the conduits that transport hydraulic fluid between various system parts. Their design allows them to be flexible yet robust enough to handle the pressures and environmental conditions they encounter in service.
Hydraulic hoses are flexible tubes specifically engineered to convey hydraulic fluid, such as oil or water-glycol solutions, under pressure. These hoses are integral to the functioning of hydraulic systems found in various industries, including construction, manufacturing, agriculture, and marine. Their primary function is to transmit fluid power efficiently and reliably, enabling the movement and operation of machinery and equipment. The flexibility of hydraulic hoses allows them to be routed around obstacles and through tight spaces, making them essential in applications where rigid tubing is impractical.
Key Components
Inner Tube
The inner tube is the innermost layer of the hydraulic hose and is designed to come into direct contact with the hydraulic fluid. It is crafted from materials that are compatible with the fluid, ensuring chemical resistance and preventing any reaction that could degrade the tube or contaminate the fluid. Common materials for the inner tube include synthetic rubbers and thermoplastics, chosen for their compatibility with a wide range of hydraulic fluids and their ability to maintain flexibility under varying temperatures and pressures.
Reinforcement
The reinforcement layer is situated between the inner tube and the outer cover. Its primary function is to provide the hose with the necessary strength to withstand internal pressures. This layer is typically made of braided or spiral-wound wire, which offers excellent pressure resistance and flexibility. Braided reinforcement, often made from textile or metal, provides flexibility and moderate strength, making it suitable for standard applications. Spiral-wound wire reinforcement offers superior strength and is used in high-pressure applications, ensuring the hose can handle significant pressure without rupturing.
Outer Cover
The outer cover is the protective exterior layer of the hydraulic hose, designed to shield the inner components from external environmental factors such as abrasion, weather, and chemicals. This layer is usually made from synthetic rubber or thermoplastic, providing a robust barrier against harsh conditions. The outer cover’s durability ensures the hose can withstand rough handling, exposure to UV rays, and contact with various chemicals without deteriorating, thus prolonging the hose’s service life.
SAE 100R1 and R2 are standard hydraulic hoses used in general hydraulic applications with moderate pressure requirements. SAE 100R1 consists of one layer of braided steel wire reinforcement, while SAE 100R2 has two layers. These hoses are suitable for conveying petroleum-based hydraulic fluids and are commonly used in construction equipment, industrial machinery, and agricultural machinery. Their moderate pressure rating makes them versatile and widely used in applications that do not require extremely high pressure.
SAE 100R4 hoses are designed for low-pressure suction applications. They typically have a spiral wire reinforcement that provides the necessary support to prevent collapse under vacuum conditions. These hoses are commonly used in hydraulic systems to draw fluid from a reservoir or tank. They are essential in applications where a reliable suction hose is needed to ensure fluid flow into the hydraulic pump without cavitation.
Thermoplastic hydraulic hoses are used in high-temperature and high-pressure environments. Made from advanced thermoplastic materials, these hoses offer excellent chemical resistance, flexibility, and durability. They are lightweight compared to traditional rubber hoses and can be used in applications where weight reduction is a priority, such as in aerospace and mobile equipment. Thermoplastic hoses are also suitable for conveying synthetic and water-based hydraulic fluids.
Polytetrafluoroethylene (PTFE) hoses are ideal for applications requiring chemical compatibility and high-temperature performance. PTFE is a synthetic fluoropolymer known for its non-reactivity and resistance to almost all chemicals. PTFE hoses can handle very high temperatures and are often used in chemical processing, food and beverage industries, and other applications where the conveyed fluid’s purity must be maintained. Their high temperature and chemical resistance make them suitable for use in challenging environments where other hoses might fail.
Selecting the appropriate hydraulic hose for a specific application involves understanding various factors that can influence the hose’s performance and longevity. Here, we discuss the critical factors to consider, including pressure requirements, temperature considerations, fluid compatibility, and environmental conditions.
Understanding Working Pressure and Burst Pressure
Working Pressure: This is the maximum pressure at which a hose can continuously operate without failure. It is essential to select a hose with a working pressure rating that matches or exceeds the system’s operational pressure to ensure reliable performance.
Burst Pressure: This refers to the pressure at which the hose will fail or burst. Burst pressure is usually several times higher than the working pressure and provides a safety margin to accommodate pressure spikes and unexpected increases in system pressure.
Calculating Pressure Needs Based on Application
Evaluate Operating Pressure: Assess the system’s normal operating pressure and any potential pressure spikes. Pressure spikes can occur during rapid changes in flow or when equipment is started or stopped.
Select Appropriate Hose: Choose a hose with a working pressure rating higher than the system’s maximum operating pressure to ensure safety and durability. For example, if the system operates at 2000 psi, a hose with a working pressure rating of at least 2500 psi should be selected.
Effects of Temperature on Hose Materials
High Temperatures: Elevated temperatures can cause the hose material to degrade, reducing its flexibility and lifespan. Prolonged exposure to high temperatures can also lead to hardening and cracking of the hose.
Low Temperatures: In cold environments, hoses can become brittle and prone to cracking. Low temperatures reduce the hose’s flexibility, making it more susceptible to damage from bending or impacts.
Selecting Hoses for High and Low-Temperature Environments
High-Temperature Environments: Use hoses specifically rated for high temperatures, which are made from materials designed to withstand prolonged exposure to heat without degrading.
Low-Temperature Environments: Choose hoses that maintain flexibility and resilience in cold conditions. These hoses are typically made from materials that remain pliable at low temperatures, preventing cracking and brittleness.
Types of Hydraulic Fluids
Mineral Oils: Commonly used in hydraulic systems due to their lubricating properties and compatibility with various hose materials.
Water-Based Fluids: These include water-glycol and water-oil emulsions, used in applications where fire resistance is required.
Synthetic Fluids: These include phosphate esters and other synthetic compounds, offering high-temperature stability and fire resistance.
Importance of Material Compatibility
Inner Tube Material: Ensure the inner tube of the hose is compatible with the hydraulic fluid used in the system. Incompatible materials can degrade, leading to leaks and contamination of the hydraulic fluid.
Chemical Resistance: Consider the chemical properties of the hydraulic fluid and choose a hose with an inner tube material that can resist those chemicals without degrading.
Abrasion Resistance
Durable Outer Cover: Select hoses with a robust outer cover if the application involves abrasive conditions, such as contact with rough surfaces or frequent handling. A durable outer cover protects the inner layers from wear and tear, extending the hose’s lifespan.
Weather and Chemical Exposure
Weather-Resistant Covers: For outdoor applications, choose hoses with weather-resistant covers that can withstand UV rays, rain, and other environmental factors. These covers prevent degradation from prolonged exposure to the elements.
Chemical Resistance: In environments with potential chemical exposure, use hoses with chemically resistant covers. These hoses are designed to resist the effects of various chemicals, preventing damage and ensuring long-term performance.
Selecting the right hydraulic hose involves considering the specific requirements of the application in which the hose will be used. Different industries and applications have unique demands that must be met to ensure optimal performance and longevity of the hydraulic system. Here, we outline the application-specific criteria for industrial, mobile, and marine/offshore applications.
In industrial applications such as construction, manufacturing, and heavy equipment operation, hydraulic hoses must meet high durability and pressure requirements. These environments are often harsh, involving exposure to abrasive materials, extreme temperatures, and high-pressure conditions.
High Durability and Pressure Ratings: Select hoses with high-pressure ratings to handle the intense demands of industrial machinery. Durability is critical to withstand constant operational stress.
Abrasion-Resistant Covers: Use hoses with abrasion-resistant outer covers to protect against wear and tear from contact with rough surfaces and materials commonly found in industrial settings.
Different industries have unique requirements based on the specific processes and environments they operate:
Manufacturing Processes: May require hoses with specific chemical resistance due to exposure to various chemicals used in manufacturing. Ensure the hose material is compatible with these chemicals to prevent degradation and leaks.
Heavy Equipment: Often needs hoses with high flexibility and strength to handle the constant movement and heavy loads. Flexible hoses can better accommodate the dynamic movements of heavy machinery without kinking or failing.

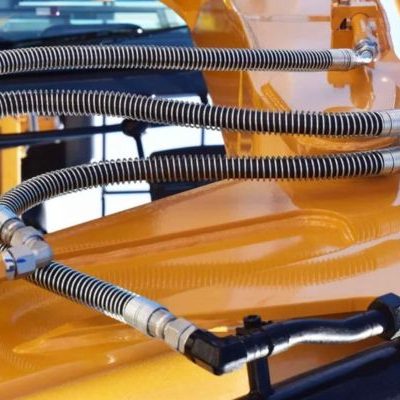

Mobile applications, including agricultural machinery, trucks, and transport equipment, require hoses that can handle the constant movement and varying environmental conditions they encounter.
High Flexibility: Hoses must be highly flexible to accommodate the continuous movement and vibrations experienced by mobile equipment. Flexibility ensures the hoses can bend and flex without kinking or breaking.
Durability: Durability is crucial to withstand the rough terrain and heavy usage common in agricultural and transport applications. Hoses should be able to endure physical impacts and abrasive conditions.
Flexibility and Durability Requirements
For mobile applications, it is essential to use hoses designed for high-cycle flexing and resilience against wear and tear:
High-Cycle Flexing: Choose hoses that can endure repeated bending and flexing without compromising their structural integrity. This is especially important for applications where the hose is frequently moved or bent.
Resilience Against Wear and Tear: Use hoses made from durable materials that can resist wear and tear from constant use and exposure to harsh conditions. Reinforced hoses can provide additional strength and longevity.
Corrosion Resistance and Environmental Protection
Marine and offshore applications present unique challenges due to exposure to saltwater, harsh weather conditions, and UV radiation. Hydraulic hoses used in these environments must offer superior corrosion resistance and environmental protection.
Saltwater and Marine Conditions: Use hoses made from materials resistant to saltwater corrosion to prevent degradation and failure. Materials such as stainless steel or specially coated metals can provide the necessary resistance.
UV Protection: Consider hoses with UV-resistant outer covers to withstand prolonged exposure to sunlight. UV protection prevents the hose material from breaking down due to sun exposure.
In the hydraulic hose industry, adherence to established standards and certifications is essential to ensure the performance, safety, and reliability of the hoses. This section outlines the key industry standards, the importance of compliance, and the certification processes that hydraulic hoses must undergo.
Several organizations set the standards for hydraulic hoses, ensuring that they meet specific criteria for performance, safety, and compatibility. The most notable standards come from SAE, ISO, and DIN.
SAE (Society of Automotive Engineers)
The Society of Automotive Engineers (SAE) provides a wide range of standards for hydraulic hoses, covering various aspects such as dimensions, performance, and testing protocols. Some of the commonly referenced SAE standards include:
SAE J517: This standard provides general specifications for hydraulic hoses, including performance requirements and testing procedures.
SAE 100R Series: These standards specify the construction, performance, and dimensions of different types of hydraulic hoses, such as 100R1, 100R2, and 100R4.
ISO (International Organization for Standardization)
The International Organization for Standardization (ISO) develops global standards to ensure compatibility and performance across different regions and industries. Key ISO standards for hydraulic hoses include:
ISO 1436: This standard specifies the requirements for rubber hoses and hose assemblies used in hydraulic applications.
ISO 4079: Covers textile-reinforced hydraulic hoses, including specifications for performance and testing.
DIN (Deutsches Institut für Normung)
The German Institute for Standardization (DIN) provides comprehensive standards for hydraulic hose performance and safety. DIN standards are widely recognized for their rigorous requirements, including:
DIN EN 853: Specifies requirements for rubber hoses and hose assemblies with steel wire reinforcements.
DIN EN 856: Covers high-pressure hydraulic hoses with four or six steel wire spirals.
Certified hydraulic hoses undergo rigorous testing and quality assurance processes to ensure they meet the required standards. The certification process includes:
Testing and Quality Assurance
Pressure Testing: Hoses are tested for their ability to withstand specified working pressures and burst pressures.
Temperature Testing: Hoses are subjected to various temperature conditions to ensure they maintain performance and integrity under extreme heat and cold.
Chemical Resistance Testing: The compatibility of the hose materials with different hydraulic fluids is tested to prevent degradation and leaks.
Abrasion and Flexibility Testing: Hoses are tested for their resistance to abrasion and their ability to flex without damage.
Quality assurance processes are integral to maintaining consistent performance and reliability in hydraulic hoses. This includes regular inspections, adherence to manufacturing protocols, and continuous monitoring of production quality.
Using certified hoses offers several advantages, including:
Compliance with Industry Standards: Certified hoses are guaranteed to meet the rigorous standards set by organizations such as SAE, ISO, and DIN, ensuring they are suitable for their intended applications.
Enhanced Safety: Certified hoses are tested to withstand specified pressures, temperatures, and chemical exposures, reducing the risk of failures and accidents.
Reliability: Certified hoses provide consistent performance, minimizing downtime and maintenance costs. Their reliability ensures that hydraulic systems operate smoothly and efficiently.
Quality Assurance: Certified hoses undergo stringent quality assurance processes, ensuring they are free from defects and capable of handling demanding conditions.
Throughout this guide, we have explored the essential aspects of hydraulic hose selection. Careful selection and proper maintenance of hydraulic hoses are critical to the successful operation of your hydraulic system. By understanding the key factors and application-specific criteria, adhering to them, and consulting with experts, you can optimize the performance and service life of your hydraulic hoses, ultimately improving the overall efficiency and safety of your hydraulic system.
Hydraulic hoses typically consist of three main components: the inner tube, the reinforcement layer, and the outer cover. The inner tube carries the hydraulic fluid, the reinforcement layer provides strength and flexibility, and the outer cover protects against environmental factors.
To select the correct hydraulic hose, consider factors such as the operating pressure, temperature range, fluid compatibility, and environmental conditions. Consulting with hydraulic experts and referring to industry standards can also help in making an informed decision.
Working pressure is the maximum pressure at which a hose can continuously operate safely, while burst pressure is the pressure at which the hose will fail or burst. Burst pressure is usually several times higher than the working pressure to provide a safety margin.
Fluid compatibility is crucial because the inner tube material must be resistant to the hydraulic fluid used in the system. Incompatible materials can degrade, leading to leaks, contamination, and hose failure.
Regular maintenance practices include routine inspections for signs of wear and tear, proper installation techniques to avoid kinks and twists, and timely replacement of hoses showing signs of damage. Following manufacturer guidelines and industry best practices is essential for extending hose life.
Certified hydraulic hoses meet rigorous industry standards for performance and safety, ensuring reliability under demanding conditions. Using certified hoses reduces the risk of system failures, enhances safety, and ensures compliance with industry regulations.
