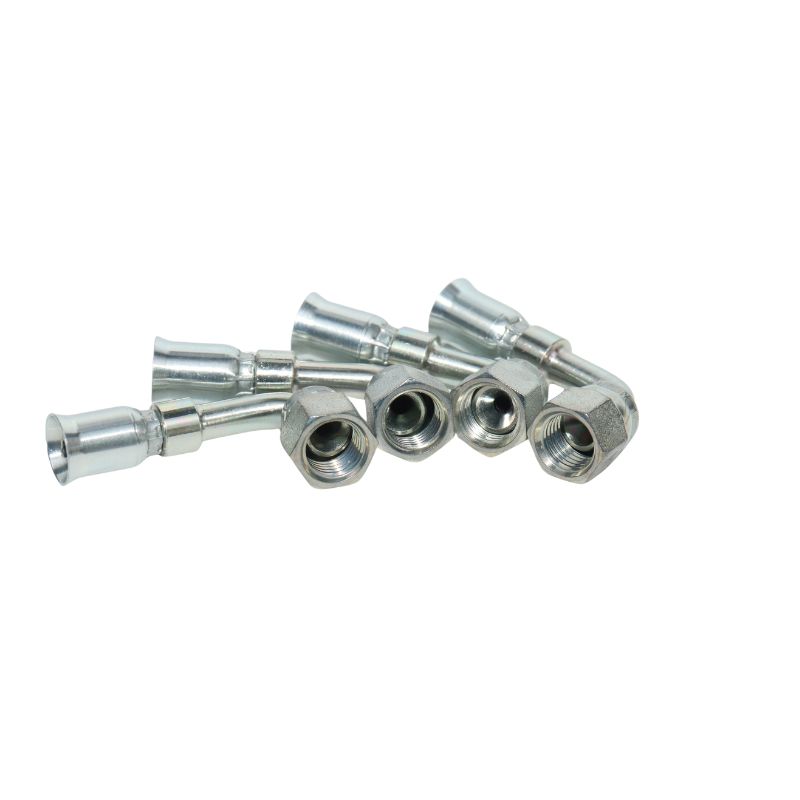

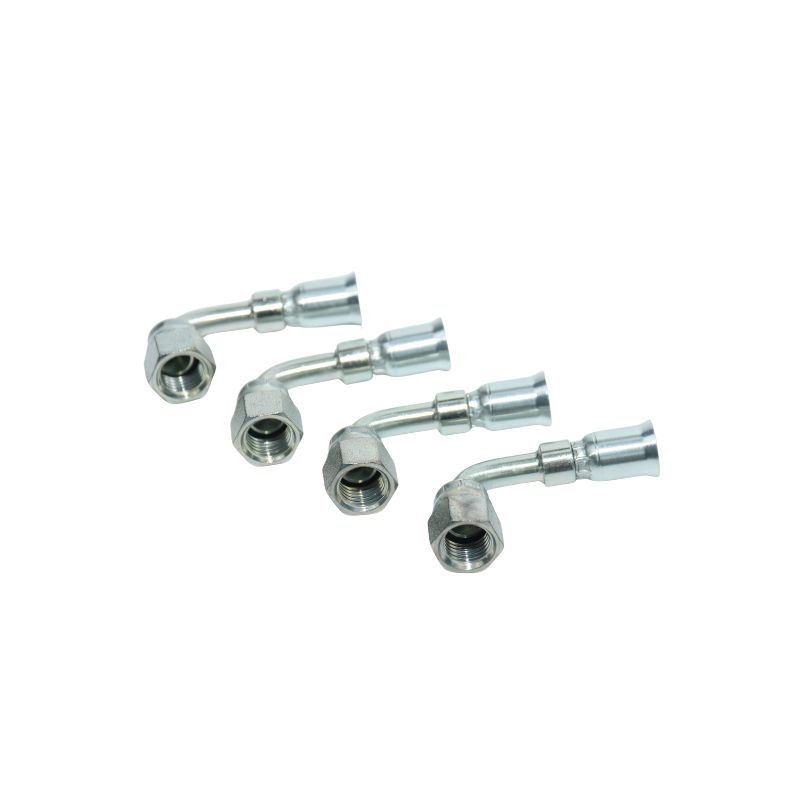

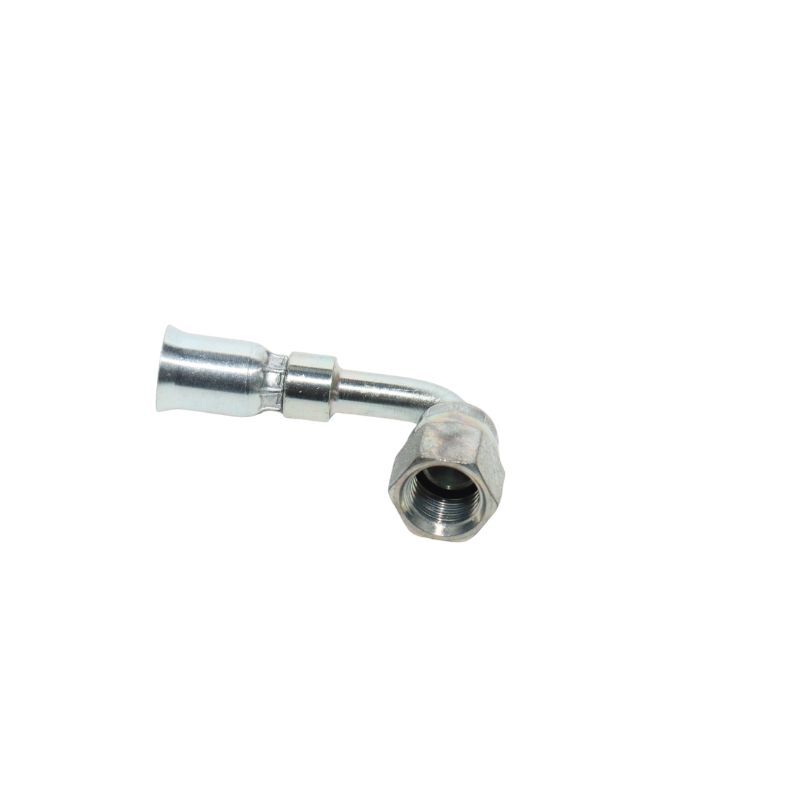

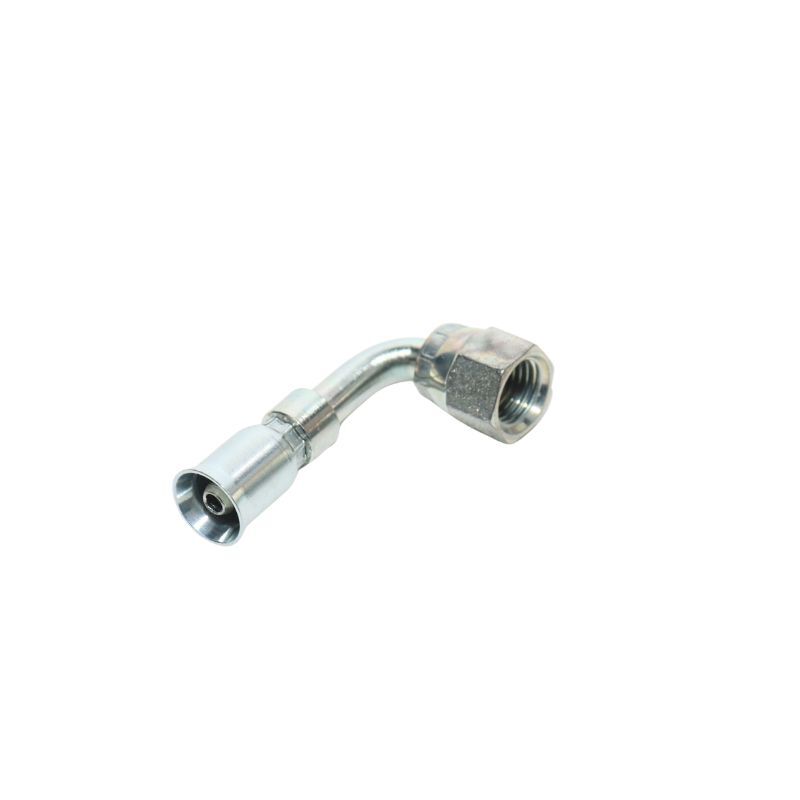

14191N Crimping Hydraulic Hose Fittings

14191N Crimping Hydraulic Hose Fittings

Topa 14191N crimping hydraulic hose fittings provide durable JIC connection for hydraulic hoses, delivering secure, leak-free performance across diverse applications. Explore the product’s construction details below:

Connection 1: Female JIC 37° – Swivel

Connection 2: Hose End – Designed for PTFE hoses

Material selection: Carbon steel; Stainless steel

Shape:  Elbow 90°  Long Drop

Product types: Crimp Fittings No-Skive

Applications: Agriculture;Marine;Construction;Heavy Machine;Oil and Gas

Looking for trusted hydraulic fittings? Topa offers precision-made crimp solutions, standard or customized. Quote today!

Category: Tags: , ,

Description

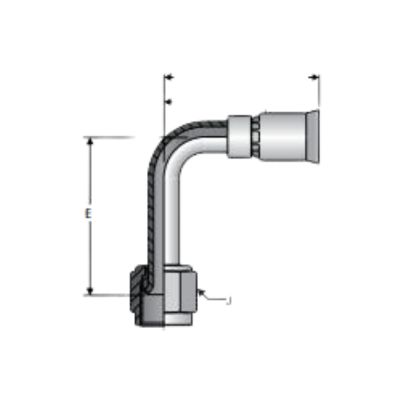

14191N crimping hydraulic hose fittings drawing Topa
Part
Number
Thread
Size
Hose
Size
inch
ACutoff
Allow. B
EJ
Hex
inch
inch  mminch  mminch  mm
     14191N-4-47/16-20-4 1.66 42 1-1/829 1.80 46 9/16
     14191N-5-51/2-20-5 1.72 44 1-1/829 1.77 45 5/8
     14191N-6-69/16-18-6 1.93 49 1-5/1633 2.13 54 11/16
     14191N-8-83/4-16-8 2.11 54 1-3/835 2.52 64 7/8
     14191N-10-107/8-14-10 2.34 59 1-5/841 2.57 65
     14191N-12-121-1/16-12-12 2.63 67 1-7/848 3.73 95 1-1/4
     14191N-16-161-5/16-12-16 3.15 80 2-3/1656 4.33 110 1-1/2
     14191-20-201-5/8-12-20 4.00 102 2-15/1675 5.28 134

14191N Crimping Hydraulic Hose Fittings Video

Discover the appearance and performance of the Topa 14191N crimping hydraulic hose fittings in this video.

The fitting is manufactured from premium carbon steel with stainless steel options available, ensuring both strength and corrosion resistance. Its precise design guarantees secure, leak-free connections, making it a trusted choice for demanding hydraulic systems.

Topa’s hydraulic crimp fittings are already relied upon by customers worldwide for their durability, compatibility, and efficiency. Watch the video to see why Topa is the right partner for your hydraulic needs—and contact us today to request a quick quote or place your order.
