Description:
1700 Hydraulic Male JIC Code61 Flange is a straight male flange adapter with a 74-Degree cone flare JIC thread. And it has a 3000 PSI maximum pressure.
Fluid power and fuel distribution applications typically use JIC (or Joint Industry Council), a hydraulic fitting with parallel threads and a 37-degree flared seating surface.
Please get in touch with us for free samples or more information on code 61 flange fittings.
Features and Benefits:
• Strong seal
• Temperature resistance
• Pressure resistance
• No leaks
Categories: JIC, Code 61, Straight, Carbon steel, Adapter

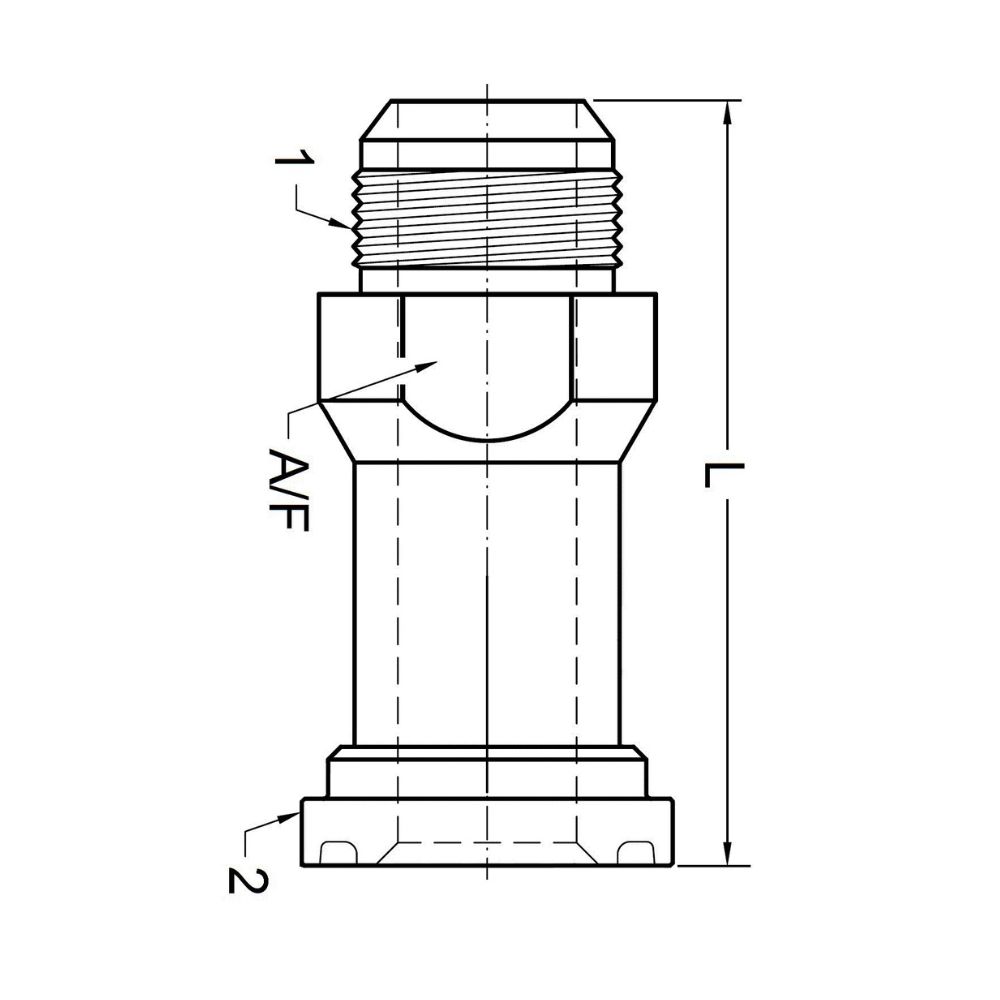

Part NO. | TUBE | FLANGE | B1 SAE 37 | L | M.M. | W* | M.M. | C HEX | C HEX | M.M. |
1700-08-08 | 1/2 | 1/2 | 3/4-16 | 2.350 | 59.69 | 0.500 | 12.70 | 13/16 | 0.812 | 20.62 |
1700-08-12 | 1/2 | 3/4 | 3/4-16 | 2.350 | 59.69 | 0.560 | 14.22 | 1 1/4 | 1.125 | 28.57 |
1700-12-12 | 3/4 | 3/4 | 1 1/16-12 | 2.600 | 66.04 | 0.560 | 14.22 | 1 1/4 | 1.125 | 28.57 |
1700-12-16 | 3/4 | 1 | 1 1/16-12 | 2.600 | 66.04 | 0.560 | 14.22 | 1 1/4 | 1.125 | 28.57 |
1700-12-20 | 3/4 | 1 1/4 | 1 1/16-12 | 2.600 | 66.04 | 0.560 | 14.22 | 1 3/8 | 1.375 | 34.92 |
1700-16-12 | 1 | 3/4 | 1 5/16-12 | 2.640 | 67.04 | 0.560 | 14.22 | 1 3/8 | 1.375 | 34.92 |
1700-16-16 | 1 | 1 | 1 5/16-12 | 2.640 | 67.04 | 0.560 | 14.22 | 1 3/8 | 1.375 | 34.92 |
1700-16-20 | 1 | 1 1/4 | 1 5/16-12 | 2.640 | 67.04 | 0.560 | 14.22 | 1 3/8 | 1.375 | 34.92 |
1700-16-24 | 1 | 1 1/2 | 1 5/16-12 | 2.640 | 67.04 | 0.620 | 15.75 | 2 | 2.000 | 50.80 |
1700-20-16 | 1 1/4 | 1 | 1 5/8-12 | 3.125 | 79.38 | 0.560 | 14.22 | 1 11/16 | 1.687 | 42.85 |
1700-20-20 | 1 1/4 | 1 1/4 | 1 5/8-12 | 3.125 | 79.38 | 0.560 | 14.22 | 1 11/16 | 1.687 | 42.85 |
1700-20-24 | 1 1/4 | 1 1/2 | 1 5/8-12 | 2.687 | 68.25 | 0.620 | 15.75 | 2 | 2.000 | 50.80 |
1700-24-20 | 1 1/2 | 1 1/4 | 1 7/8-12 | 3.000 | 76.20 | 0.560 | 14.22 | 2 | 2.000 | 50.80 |
1700-24-24 | 1 1/2 | 1 1/2 | 1 7/8-12 | 3.000 | 76.20 | 0.620 | 15.75 | 2 | 2.000 | 50.80 |
1700-24-32 | 1 1/2 | 2 | 1 7/8-12 | 3.000 | 76.20 | 0.620 | 16.00 | 2 | 2.00 | 50.80 |
1700-32-24 | 2 | 1 1/2 | 2 1/2-12 | 3.350 | 85.09 | 0.620 | 15.75 | 2 3/4 | 2.750 | 69.85 |
This video describes the 1700 Hydraulic Male JIC Code61 Flange in detail.
Furthermore, 1700 JIC hydraulic flange fittings are available in a variety of applications, sizes, and dimensions, allowing them to be used in a variety of hydraulic fluid systems.
If you have any questions about code 61 flanges, please contact us.
