1B143 Hydraulic Hose Crimp Fittings Supplier

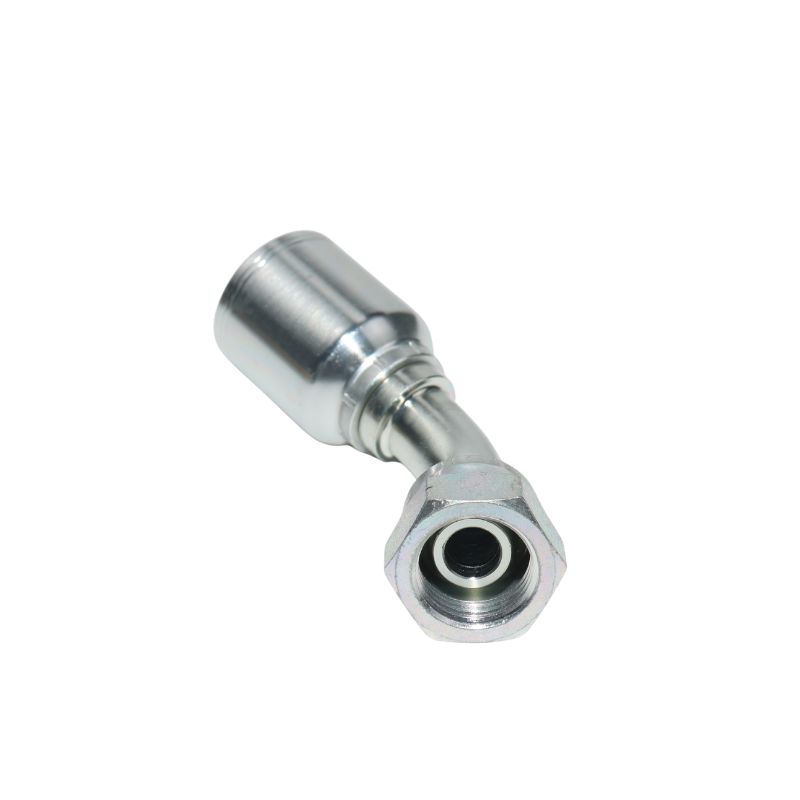

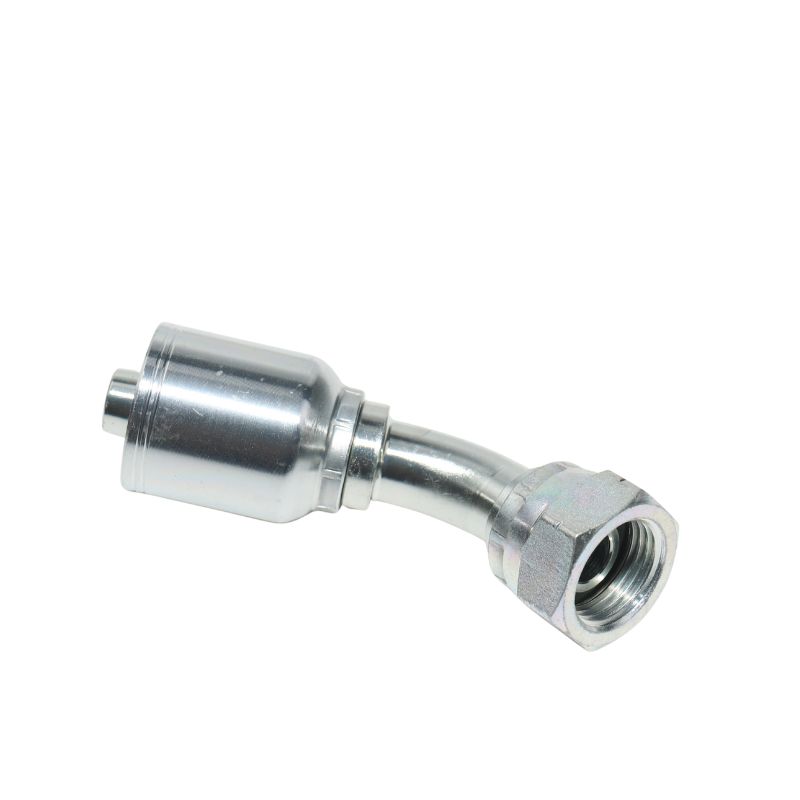

1B143 Hydraulic Hose Crimp Fittings

Topa 1B143 hydraulic hose crimp fittings are carbon steel hydraulic hose fitting with BSP thread, ensuring accurate fit and reliable connection in hydraulic systems.

Check the construction details below:

Connection 1: Female BSP Parallel Pipe -Swivel(60° cone)

Connection 2: Hose End – Designed for 1-wire/2-wire braided hydraulic hoses

Material selection: Carbon steel; Stainless steel

Shape: 45° Elbow

Product types: Crimp Fittings – Skive or No-Skive

Applications: Construction; Agriculture；Marine; Industry; Heavy Machine;

Dependable hydraulic crimp fittings from Topa—standard or custom, always a perfect fit. Interchangeable with Parker 43 Series. Get your quote today!

Description

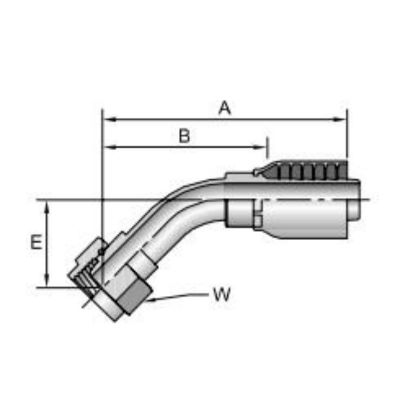

Part Number	Thread inch	Hose I.D. inch	A		E		W	B
Part Number	Thread inch	Hose I.D. inch	inch	mm	inch	mm	mm	inch	mm
1B143-4-4	1/4×19	1/4	2.26	57	0.61	15	19	1.51	38
1B143-6-6	3/8×19	3/8	2.61	66	0.67	17	22	1.59	40
1B143-8-8	1/2×14	1/2	3.10	78	0.79	20	27	1.85	46
1B143-10-10	5/8×14	5/8	3.53	89	0.91	23	30	2.08	52
1B143-12-10	3/4×14	5/8	3.47	88	0.87	22	32	2.02	51
1B143-12-12	3/4×14	3/4	3.77	95	0.98	24	32	2.34	59
1B143-16-16	1×11	1	4.72	119	1.22	30	41	3.10	78

1B143 Hydraulic Hose Crimp Fittings Video

This video provides a detailed look at the Topa 1B143 hydraulic hose crimp fittings.

It highlights the product’s construction, including the high-quality carbon steel and stainless steel materials used, and the precise machining process that guarantees accurate dimensions. You will also see the surface finish and design features that ensure strong, leak-free connections in demanding hydraulic applications.

Topa’s one union hydraulic fittings are built for durability and consistent performance under high pressure and vibration. Watch the full video to understand our technical expertise—and contact Topa today to request your inquiry or order.
