Description:

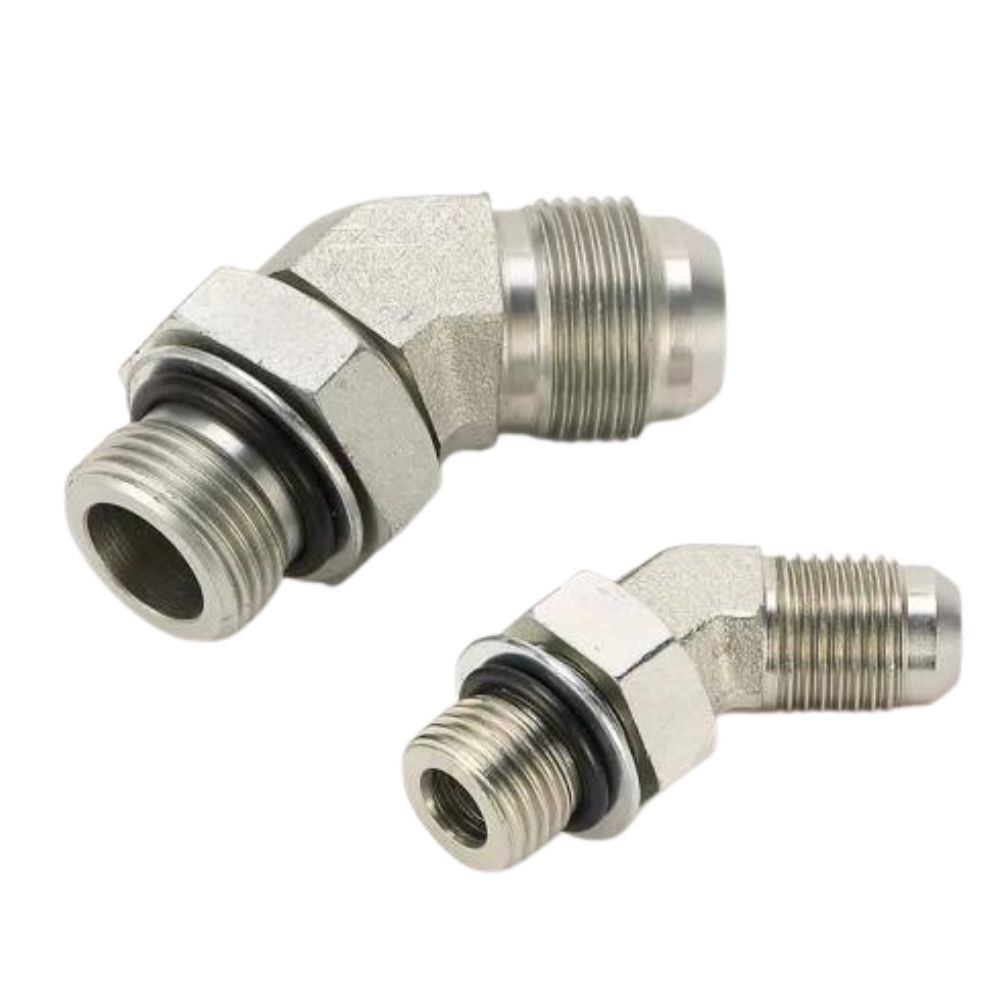

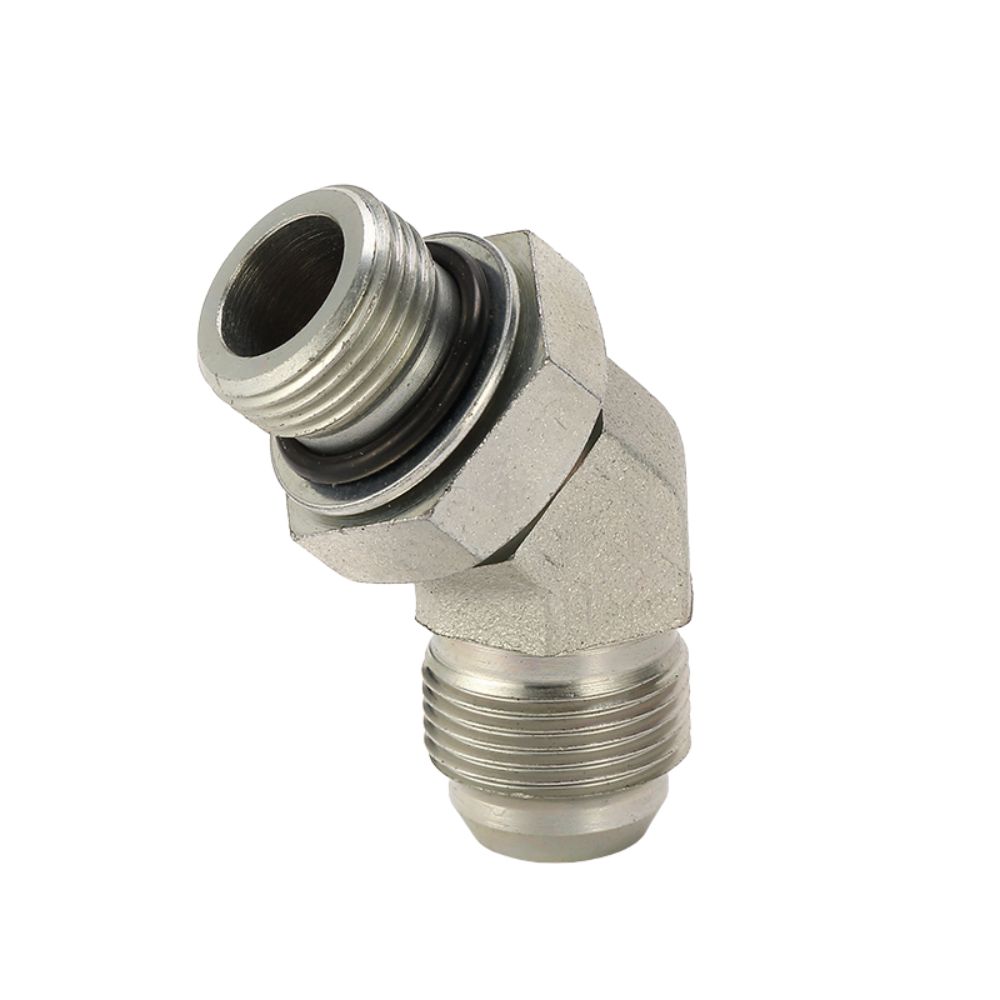

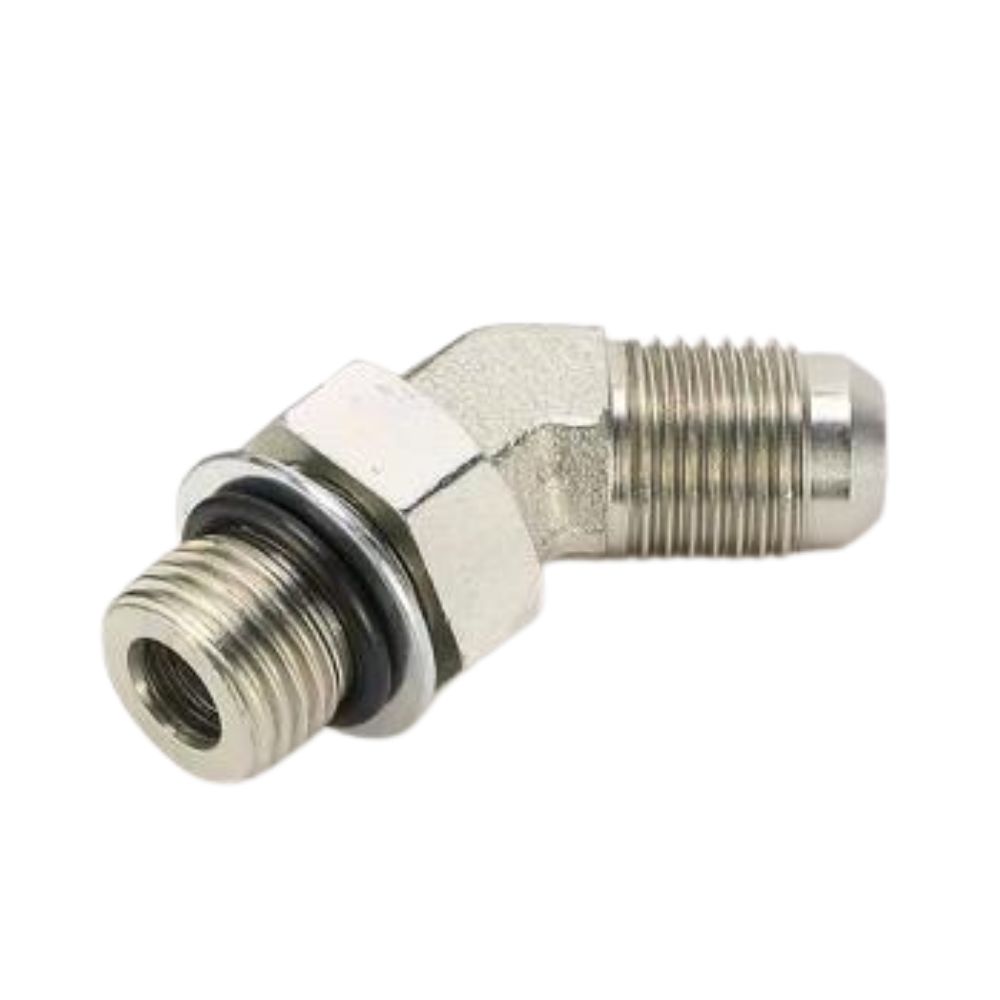

1BJ4 BSP to JIC hydraulic fitting is a 45-degree elbow male bonded seal fitting with a 74-degree cone flare JIC thread and a 60-degree cone BSP thread.
They can be used in many hydraulic and pneumatic pipes or tubes.
If you want free samples or want to know more information about bsp hydraulic hose fittings, please contact us.
Features and Benefits:
• Affordable
• Practically
• Lone-life
• High-pressure resistance
Categories: hydraulic fitting, BSP thread, JIC threads
PART NO | THREADE | DIMENSIONS | |||
| E | F | A | B | SI | |
| 1BJ4-04 | G1/4″X19 | U7/16″X20 | 22 | 22 | 14 |
| 1BJ4-04-05 | G1/4″X19 | U1/2”X20 | 22 | 22 | 14 |
| 1BJ4-04-06 | G1/4″X19 | U9/16″X18 | 22 | 22 | 14 |
| 1BJ4-06 | G3/8*X19 | U9/16”X18 | 22 | 22 | 17 |
| 1BJ4-06-08 | G3/8*X19 | U3/4″X16 | 25 | 25 | 19 |
| 1BJ4-08 | G1/2″X14 | U3/4″X16 | 27 | 27 | 22 |
| 1BJ4-08-10 | G1/2″X14 | U7/8″X14 | 27 | 27 | 22 |
| 1BJ4-10 | G5/8*X14 | U7/8*X14 | 33 | 33 | 27 |
| 1BJ4-12 | G3/4″X14 | U1.1/16°X12 | 33 | 33 | 27 |
| 1BJ4-16 | G1″X11 | U1.5/16″X12 | 37 | 37 | 33 |
| 1BJ4-16-20 | G1”Xi1 | U1.5/8″X12 | 40 | 40 | 44 |
| 1BJ4-20 | G1.1/4″X11 | U1.5/8″X12 | 40 | 40 | 44 |
| 1BJ4-24 | G1.1/2″Xi1 | U1.7/8~X12 | 47 | 47 | 53 |
| 1BJ4-32 | G2”X11 | U2.1/2~X12 | 55 | 55 | 65 |
This video is about the details of the 1BJ4 BSP to JIC hydraulic fitting. The main feature of BSP to JIC hydraulic fitting is they have two different threads.
They have many usages, sizes, and dimensions and can also play an essential role in many hydraulic systems.
And if you want more information about bsp fittings, please contact us.
