Description:

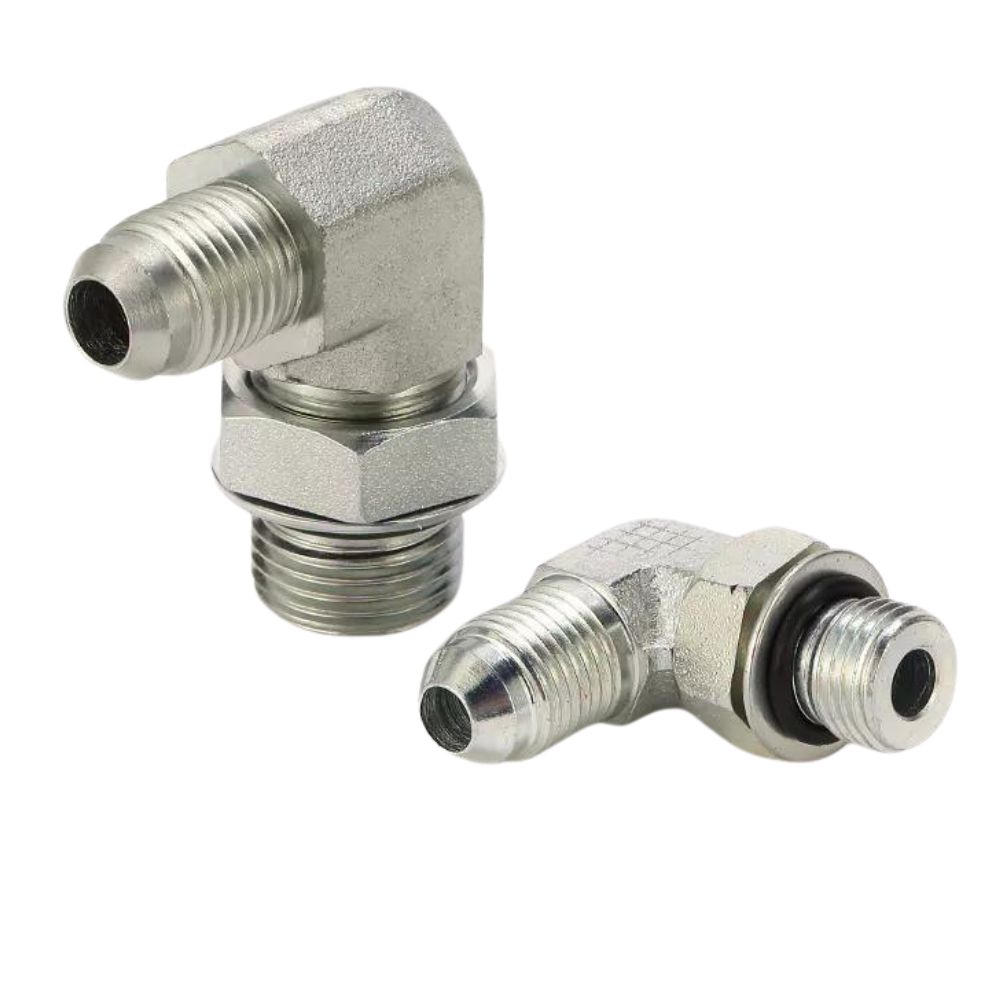

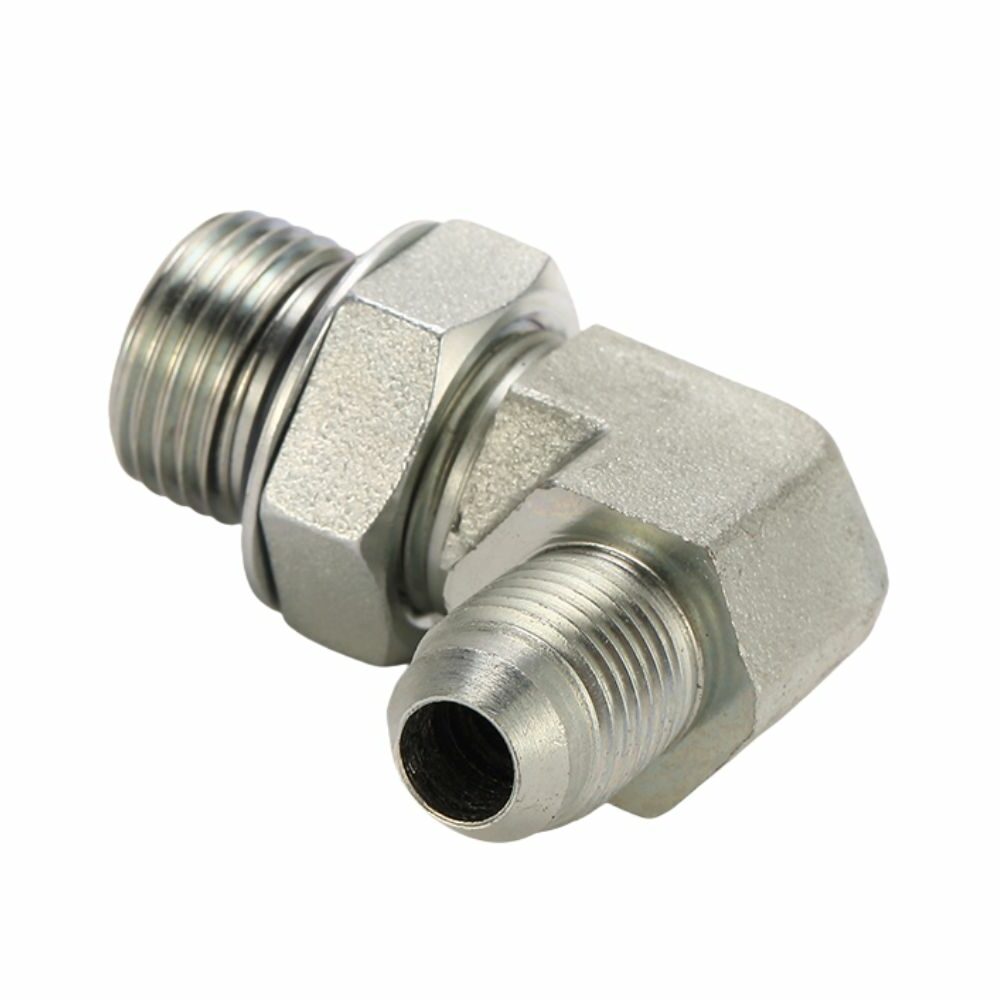

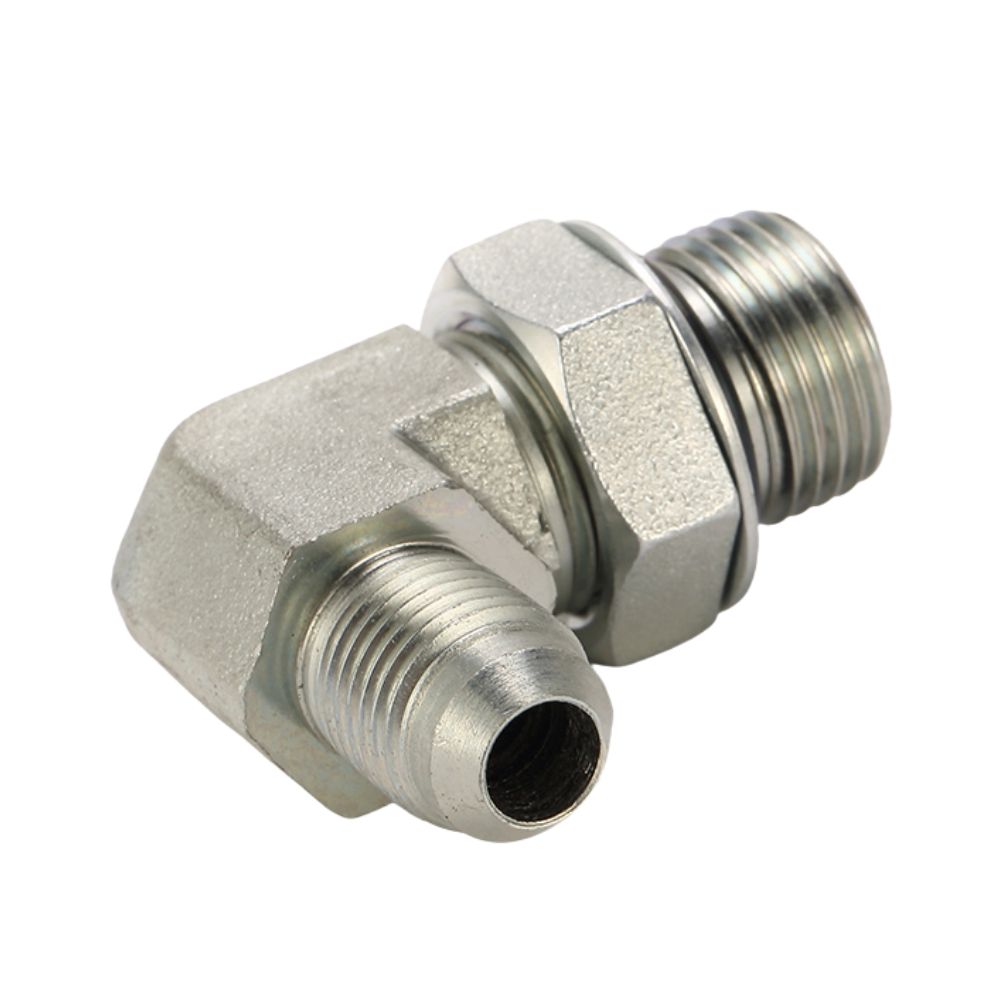

1BJ9 BSP to JIC hydraulic fitting is a 90-degree elbow male bonded seal fitting with a 74-degree cone flare JIC thread and a 60-degree cone BSP thread.
They can be used in many hydraulic and pneumatic pipes or tubes.
If you want free samples or want to know more information about bsp 90 degree hydraulic hose fitting, please contact us.
Features and Benefits:
• Affordable
• Practically
• Multiple applications
• High-pressure resistance
Categories: hydraulic fitting, BSP thread, JIC threads
| PART NO | THREADE | DIMENSIONS | |||
| E | F | A | B | S1 | |
| 1BJ9-04 | G1/4″X19 | U7/16″X20 | 27 | 29 | 14 |
| 1BJ9-04-05 | G1/4X19 | U1/2″X20 | 27 | 29 | 14 |
| 1BJ9-04-06 | G1/4″X19 | U9/16″X18 | 27 | 29 | 14 |
| 1BJ9-06 | G3/8″X19 | U9/16″X18 | 29 | 30 | 17 |
| 1BJ9-06-08 | G3/8″X19 | U3/4″X16 | 33 | 33 | 19 |
| 1BJ9-08 | G1/2″X14 | U3/4″X16 | 37 | 37 | 22 |
| 1BJ9-08-10 | G1/2″X14 | U7/8″X14 | 37 | 37 | 22 |
| 1BJ9-10 | G5/8″X14 | U7/8″X14 | 40 | 40 | 27 |
| 1BJ9-12 | G3/4″X14 | U1.1/16″X12 | 40 | 40 | 27 |
| 1BJ9-16 | G1″X11 | U1.5/16″X12 | 49 | 49 | 33 |
| 1BJ9-16-20 | G1″X11 | U1.5/8″X12 | 57 | 57 | 44 |
| 1BJ9-20 | G1.1/4″X11 | U1.5/8″X12 | 57 | 57 | 44 |
| 1BJ9-24 | G1.1/2″Xi1 | U1.7/8″X12 | 57 | 57 | 48 |
| 1BJ9-32 | G2″X11 | U2.1/2″X12 | 66 | 66 | 65 |
