Description:

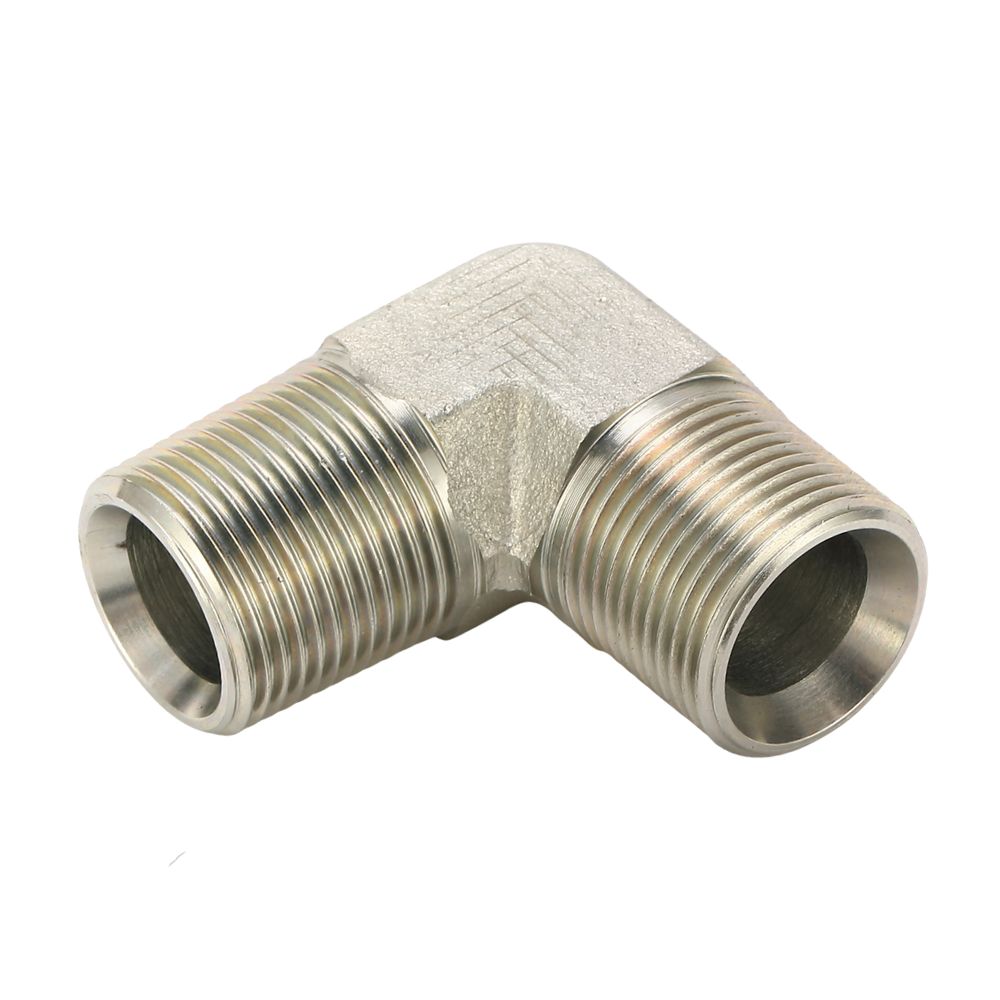

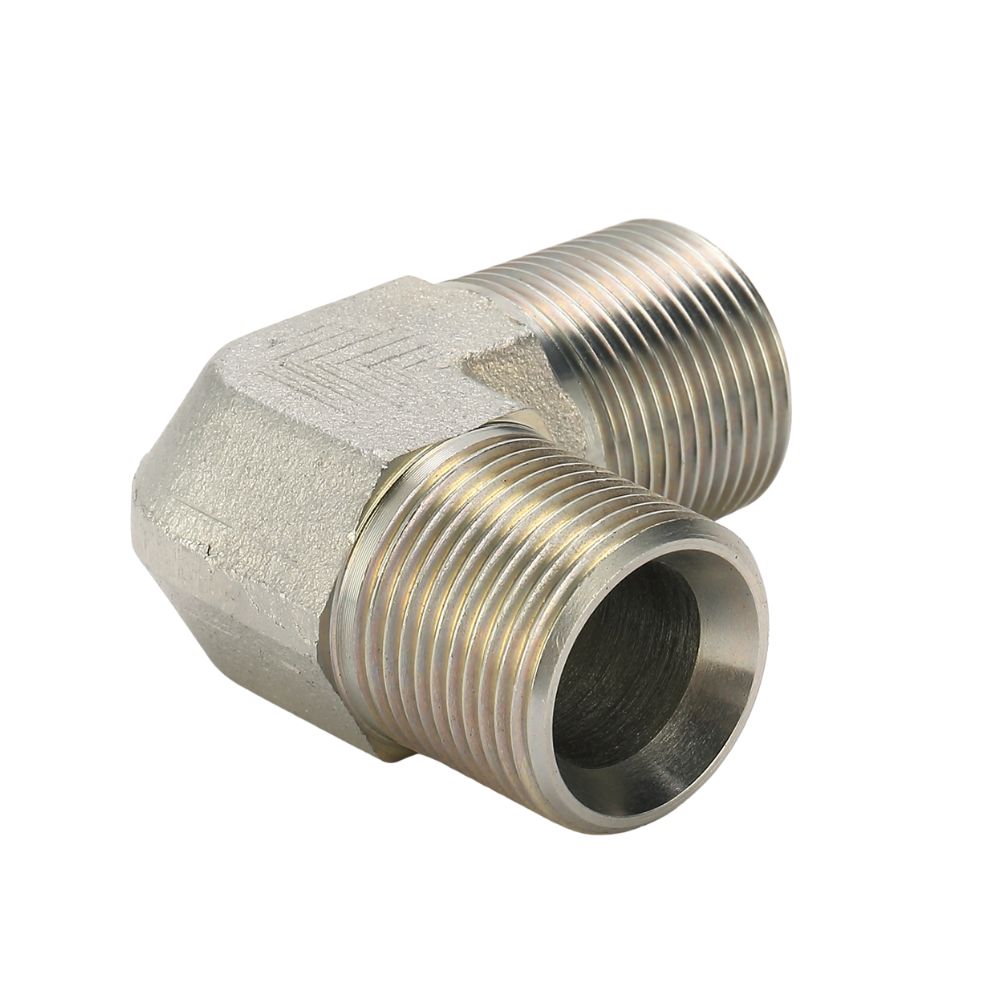

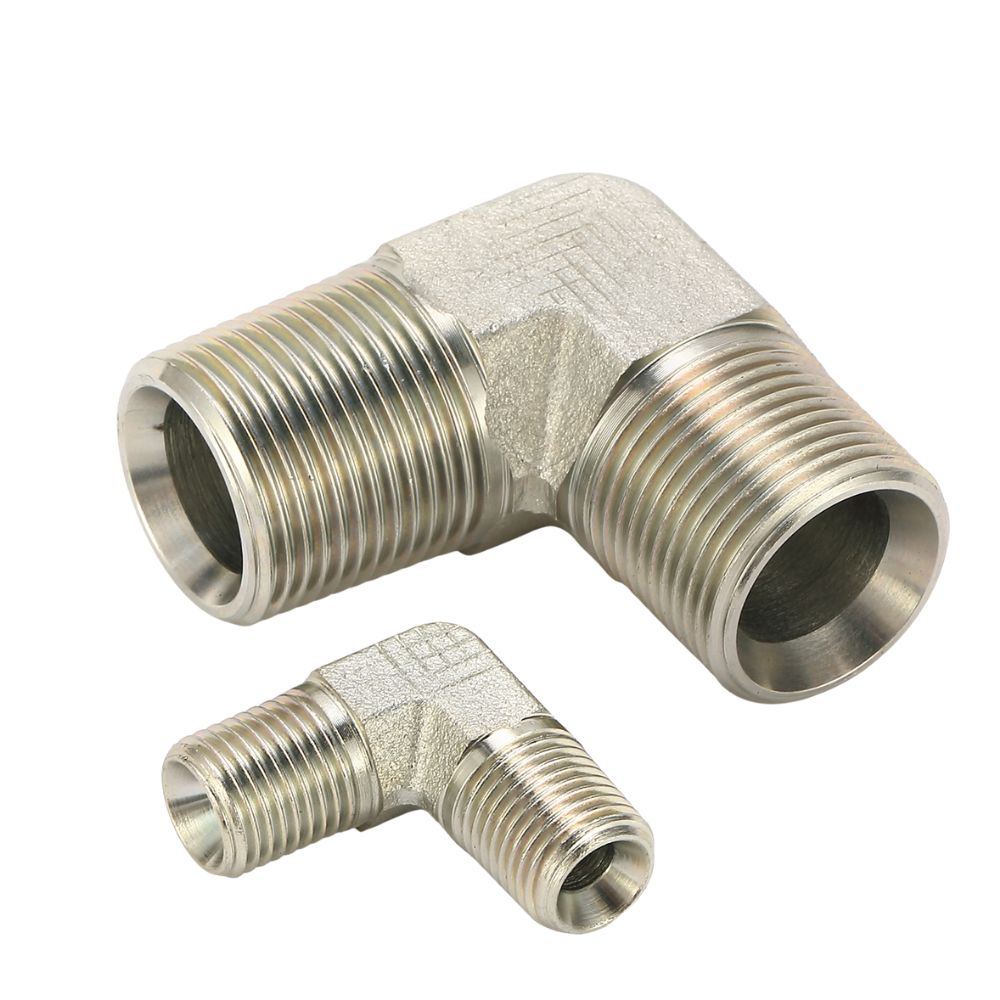

1BT9-SP BSP bend hydraulic fitting is a 90-degree elbow male bonded seal fitting with a 60-degree cone BSP thread and a BSPT thread.
They can be used to connect many hydraulic pipes or tubes.
If you want free samples or want to know more information about bsp fittings, please contact us.
Features and Benefits:
• Reliable
• Practically
• Tight seal
• High-pressure resistance
Categories: hydraulic fitting, BSP thread, BSPT thread
RAPT NO. | THREAD | DIMENSIONS | |||
T1 | T2 | L1 | L2 | S1 | |
1BT9-02SP | G1/8＂X28 | R1/8＂X28 | 20 | 21 | 11 |
1BT9-02-04SP | G1/8＂X28 | R1/4＂X19 | 22.3 | 25.5 | 14 |
1BT9-04SP | G1/4＂X19 | R1/4＂X19 | 24.5 | 25.5 | 14 |
1BT9-04-02SP | G1/4＂X19 | R1/8＂X28 | 25 | 23.5 | 14 |
1BT9-04-06SP | G1/4＂X19 | R3/8＂X19 | 25 | 28.5 | 16 |
1BT9-06SP | G3/8＂X19 | R3/8＂X19 | 27.5 | 28.5 | 16 |
1BT9-06-04SP | G3/8＂X19 | R1/4＂X19 | 27.5 | 26.5 | 16 |
1BT9-06-08SP | G3/8＂X19 | R1/2＂X14 | 31 | 36 | 22 |
1BT9-08SP | G1/2＂X14 | R1/2＂X14 | 34.5 | 36 | 22 |
1BT9-08-06SP | G1/2＂X14 | R3/8＂X19 | 34.5 | 32.5 | 22 |
1BT9-08-12SP | G1/2＂X14 | R3/4＂X14 | 37.5 | 43.5 | 27 |
1BT9-10-08SP | G5/8＂X14 | R1/2＂X14 | 35 | 36 | 22 |
1BT9-10-12SP | G5/8＂X14 | R3/4＂X14 | 39 | 43.5 | 27 |
1BT9-12SP | G3/4＂X14 | R3/4＂X14 | 40 | 43 | 27 |
1BT9-12-08SP | G3/4＂X14 | R1/2＂X14 | 40 | 39.5 | 27 |
1BT9-12-16SP | G3/4＂X14 | R1＂X11 | 43.5 | 50 | 33 |
1BT9-16SP | G1＂X11 | R1＂X11 | 46 | 50 | 33 |
1BT9-16-12SP | G1＂X11 | R3/4＂X14 | 46 | 47.5 | 33 |
1BT9-16-20SP | G1＂X11 | R1.1/4＂X11 | 50.5 | 56.5 | 41 |
1BT9-20SP | G1.1/4＂X11 | R1.1/4＂X11 | 52 | 59 | 41 |
1BT9-20-16SP | G1.1/4＂X11 | R1＂X11 | 52 | 56.5 | 41 |
1BT9-20-24SP | G1.1/4＂X11 | R1.1/2＂X11 | 54.5 | 62.5 | 48 |
1BT9-24SP | G1.1/2＂X11 | R1.1/2＂X11 | 57.5 | 62 | 48 |
1BT9-24-20SP | G1.1/2＂X11 | R1.1/4＂X11 | 57.5 | 61 | 48 |
1BT9-24-32SP | G1.1/2＂X11 | R2＂X11 | 66 | 75 | 63 |
1BT9-32SP | G2＂X11 | R2＂X11 | 67 | 75 | 63 |
This video is about the details of the 1BT9-SP BSP bend hydraulic fitting. And the main feature of BSP bend hydraulic fittings 1BT9 is they have a 90-degree elbow, and the BSP and BSPT threads.
They have several applications, sizes, and dimensions, and may also play an important part in various hydraulic systems.
And if you want more information about bsp 90 degree hydraulic hose fitting, please contact us.
