Description
The table below lists reference dimensions for the corrugated hose. Confirm whether the outside diameter refers to the unbraided hose or the finished braided construction.
These dimensions do not establish the working pressure, temperature limit, vacuum capability, or minimum bend radius of the complete assembly. Confirm those values for the selected hose size, construction, end connections, and gasket.
DN | I.D | O.D | Pitch distance | Wall Thickness | |
(mm) | in | (mm) | (mm) | (mm) | (mm) |
6 | 1/4 | 6 | 8.8 | 2 | 0.2 |
8 | 5/16 | 7.80 | 11.3 | 3 | 0.2 |
10 | 3/8 | 11.00 | 15.7 | 3 | 0.2 |
12 | 1/2 | 11.6 | 18 | 3 | 0.2 |
15 | 5/8 | 14.4 | 21.5 | 3.5 | 0.3 |
20 | 3/4 | 19.4 | 27 | 4.5 | 0.3 |
25 | 1 | 24.4 | 32.5 | 5 | 0.3 |
32 | 1 1/4 | 31.4 | 40 | 5.5 | 0.3 |
40 | 1 1/2 | 39.4 | 5o | 6 | 0.3 |
50 | 2 | 49.4 | 63 | 7.5 | 0.3 |
65 | 2 1/2 | 64.4 | 81 | 9 | 0.3 |
80 | 3 | 79.2 | 98 | 10.5 | 0.4 |
100 | 4 | 99.2 | 120 | 13 | 0.4 |
125 | 5 | 124 | 150 | 14.5 | 0.5 |
150 | 6 | 149 | 180 | 17.5 | 0.5 |
200 | 8 | 198.8 | 240 | 24 | 0.6 |
250 | 10 | 248.4 | 300 | 28 | 0.8 |
300 | 12 | 298 | 355 | 33.5 | 1 |
Note: This is only a reference parameter, if you need other parameters of metal bellows, please contact us!

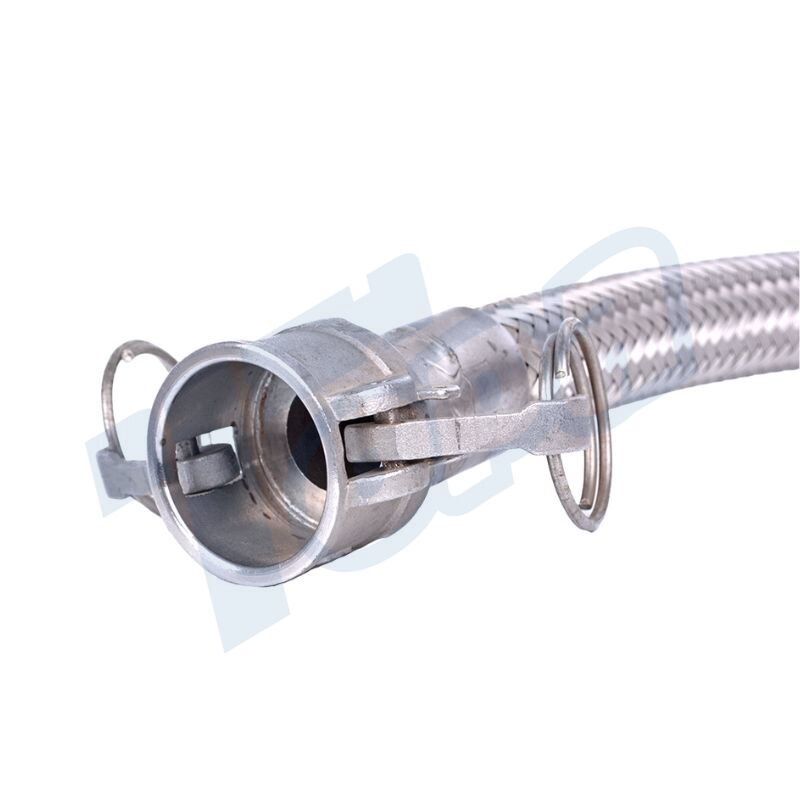

Type D Camlock Annular Corrugated Metal Hose Video
This video shows information about the annular corrugated metal hose.
Camlock flexible metal fittings are easy to connect and disconnect, so they are the perfect choice for oil, gas, fuel, and other fluid systems. Our corrugated metal pipes are subjected to strict quality control to ensure that all pipes meet your standards of use!
If you have any questions about the bellows corrugated metal flexible hose, please contact us!
Send Your Metal Hose Assembly Requirements
For OEM production or recurring supply, send your hose size, overall length, end connections, and quantities by item.
Include the fluid, working and transient pressures, operating temperature, movement requirements, and any vacuum conditions. Attach a drawing showing the length measurement points, connection orientation, and installation space. Specify material, gasket, inspection, and packaging requirements where applicable.
