Description
DN | I.D | O.D | Pitch distance | Wall Thickness | |
(mm) | in | (mm) | (mm) | (mm) | (mm) |
6 | 1/4 | 6 | 8.8 | 2 | 0.2 |
8 | 5/16 | 7.80 | 11.3 | 3 | 0.2 |
10 | 3/8 | 11.00 | 15.7 | 3 | 0.2 |
12 | 1/2 | 11.6 | 18 | 3 | 0.2 |
15 | 5/8 | 14.4 | 21.5 | 3.5 | 0.3 |
20 | 3/4 | 19.4 | 27 | 4.5 | 0.3 |
25 | 1 | 24.4 | 32.5 | 5 | 0.3 |
32 | 1 1/4 | 31.4 | 40 | 5.5 | 0.3 |
40 | 1 1/2 | 39.4 | 5o | 6 | 0.3 |
50 | 2 | 49.4 | 63 | 7.5 | 0.3 |
65 | 2 1/2 | 64.4 | 81 | 9 | 0.3 |
80 | 3 | 79.2 | 98 | 10.5 | 0.4 |
100 | 4 | 99.2 | 120 | 13 | 0.4 |
125 | 5 | 124 | 150 | 14.5 | 0.5 |
150 | 6 | 149 | 180 | 17.5 | 0.5 |
200 | 8 | 198.8 | 240 | 24 | 0.6 |
250 | 10 | 248.4 | 300 | 28 | 0.8 |
300 | 12 | 298 | 355 | 33.5 | 1 |
Note: This is only a reference parameter, if you need other parameters of metal bellows, please contact us!

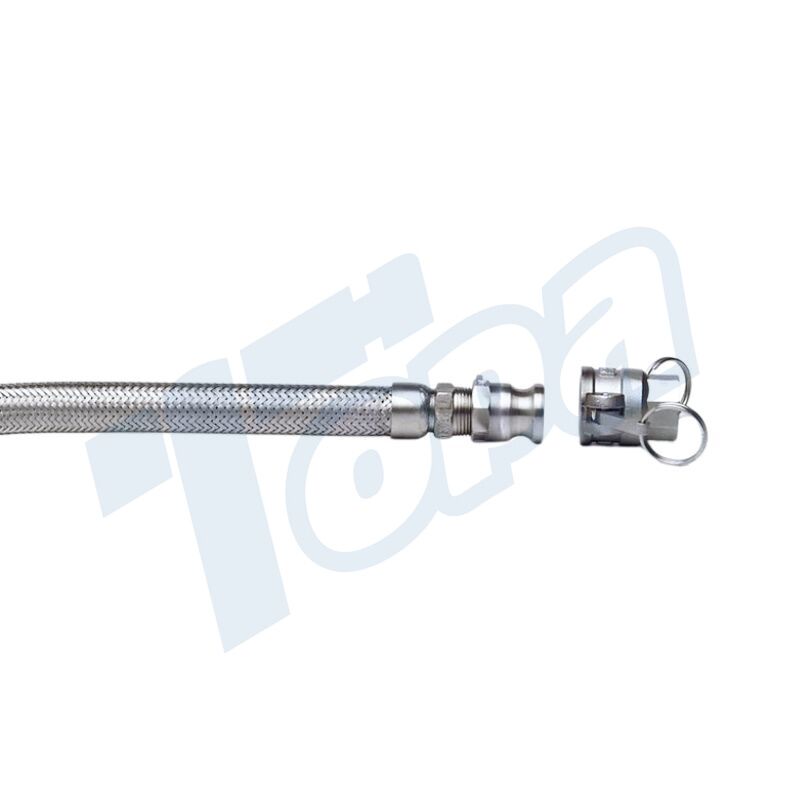

Type A Camlock Flexible Metal Braided Hose Video
This video shows information about the flexible metal braided hose.
Camlock flexible metal fittings are easy to connect and disconnect, so they are the perfect choice for oil, gas, fuel, and other fluid systems. Our corrugated metal pipes are subjected to strict quality control to ensure that all pipes meet your standards of use!
If you have any questions about the metal flexible garden hose, please contact us!
