Brass Compression Elbows

Description:

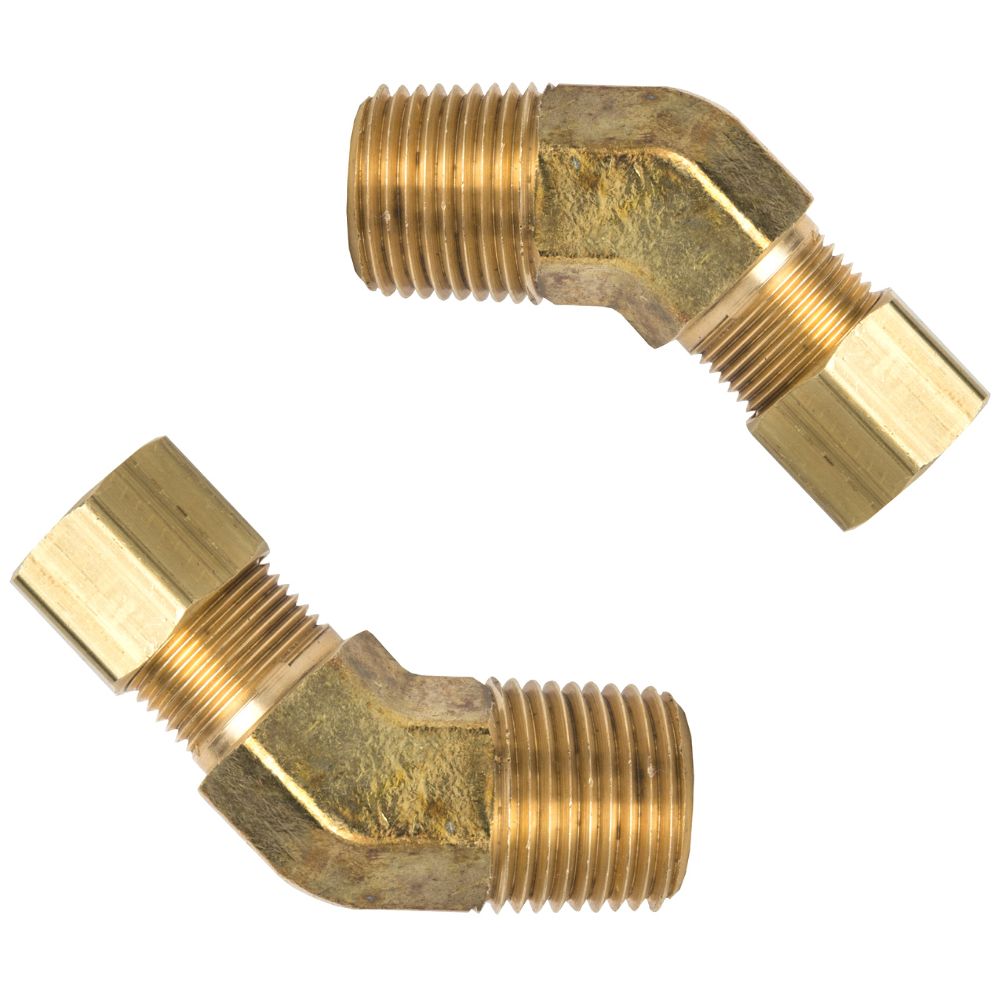

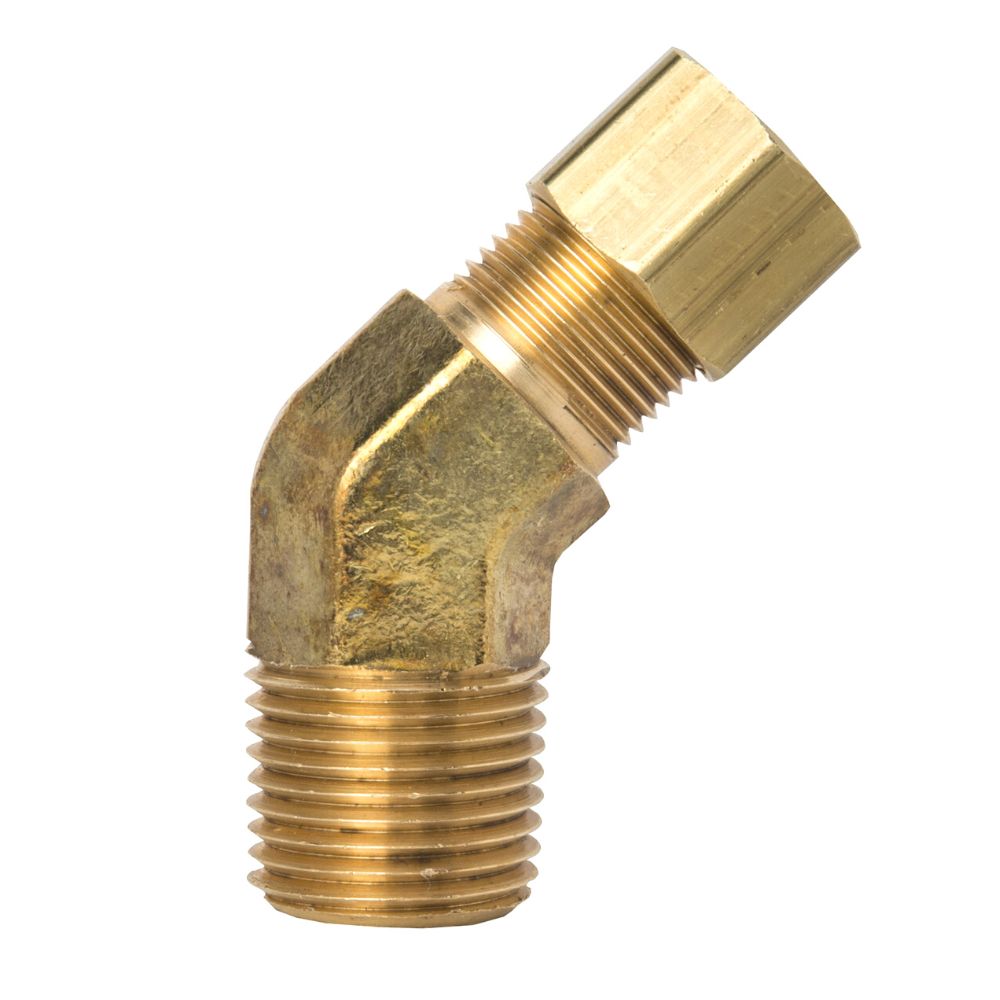

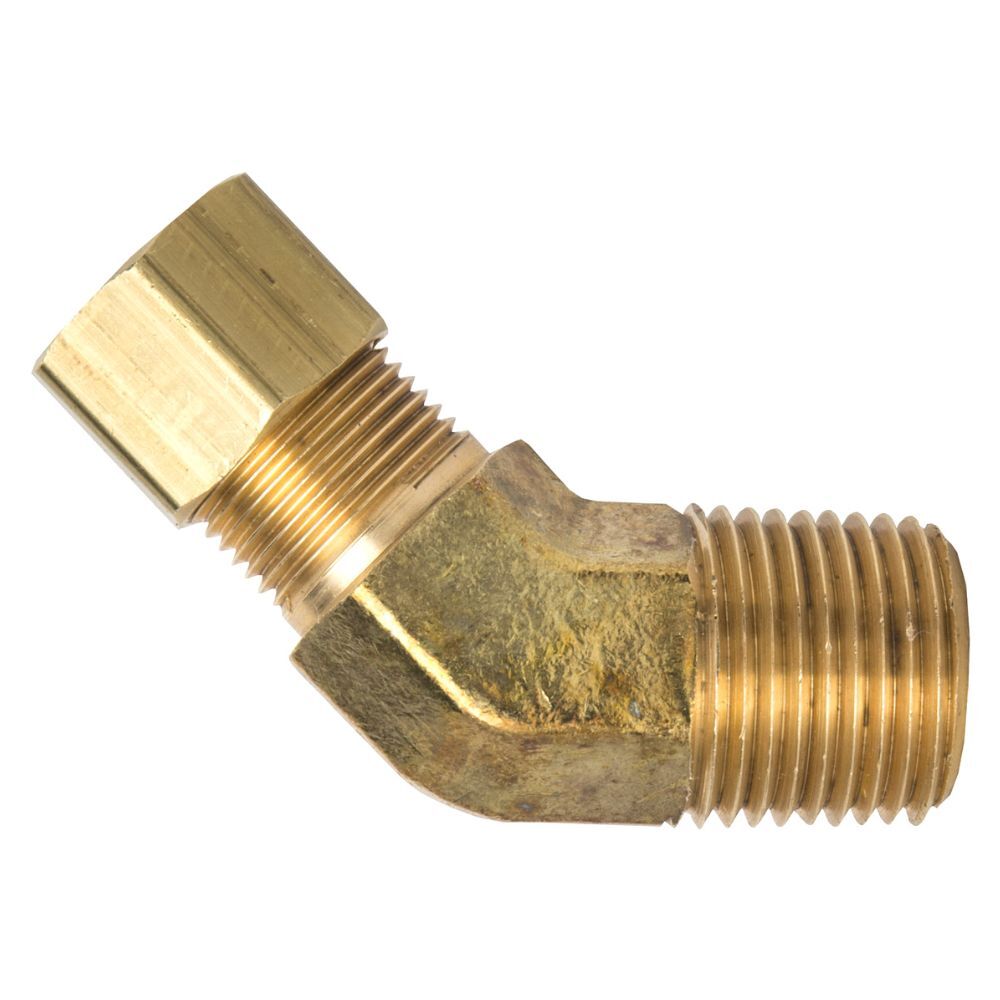

A brass compression 45-degree elbow is a type of compression fitting that is used to connect two pipes together at a 45-degree angle.

It can be used in tight spaces where it is difficult to make a soldered or welded connection, and where a leak-proof seal is necessary.

If you have any questions about the brass compression elbow fittings, feel free to ask.

Features and Benefits:

• Lead-free
• Reusable
• Easy to assemble
• Strong seal

Description

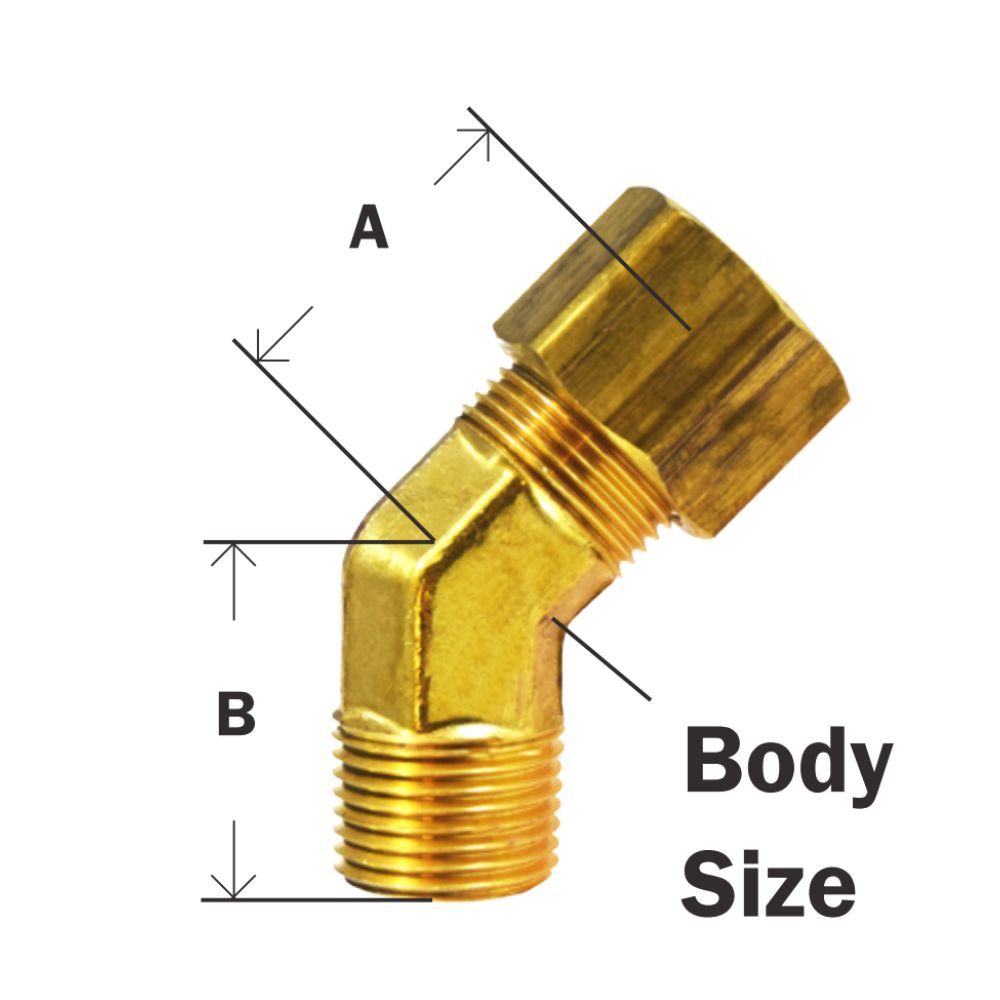

Part #	Comp. X Male NPTF	A	B	Body Size	Approx. Wt. Lbs.
18-329	3/16” x 1/8”	0.40	0.63	0.41	0.04
18-330	1/4” x 1/8”	0.40	0.61	0.41	0.04
18-336	1/4” x 1/4”	0.59	0.84	0.53	0.06
18-331	5/16” x 1/8”	0.59	0.65	0.53	0.06
18-332	5/16” x 1/4”	0.59	0.83	0.53	0.08
18-333	3/8” x 1/4”	0.62	0.83	0.53	0.08
18-338	3/8” x 3/8”	0.75	0.95	0.59	0.10
18-334	1/2” x 3/8”	0.75	0.88	0.59	0.14
18-339	1/2” x 1/2”	0.94	1.14	0.75	0.14
18-335	5/8” x 1/2”	0.78	1.14	0.78	0.14

Brass Compression Elbows-45° Elbow Video

This video shows information about brass compression elbows-45° elbow.

Brass compression male 45-degree elbows are available in a variety of sizes and can be used with a wide range of pipe materials, including copper, brass, and plastic.

If you have any questions about brass elbow compression fittings, please contact us.
