Description

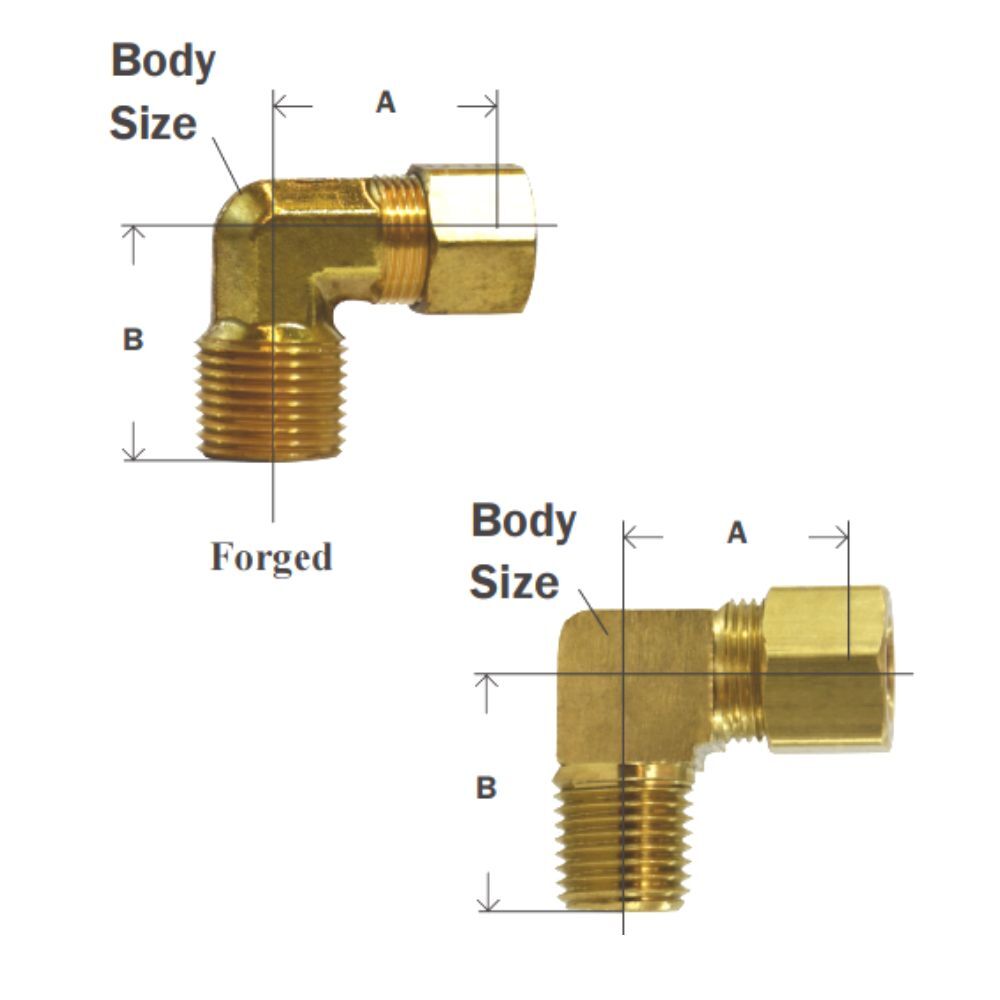

Part # | Comp. X Male NPTF | A | B | Body Size | Approx. Wt. Lbs. |
18-220 | 1/8” x 1/8” | 0.59 | 0.75 | 0.34 | 0.02 |
18-220B* | 1/8” x 1/8” | 0.60 | 0.67 | 0.43 | 0.04 |
18-221 | 3/16” x 1/8” | 0.63 | 0.72 | 0.34 | 0.04 |
18-221B* | 3/16” x 1/8” | 0.62 | 0.69 | 0.43 | 0.06 |
18-223 | 3/16” x 1/4” | 0.60 | 0.81 | 0.39 | 0.05 |
18-224 | 1/4” x 1/8” | 0.60 | 0.75 | 0.37 | 0.06 |
18-224B* | 1/4” x 1/8” | 0.62 | 0.75 | 0.43 | 0.06 |
18-225 | 1/4” x 1/4” | 0.65 | 0.94 | 0.36 | 0.08 |
18-225B* | 1/4” x 1/4” | 0.61 | 0.81 | 0.56 | 0.08 |
18-226 | 1/4” x 3/8” | 0.75 | 0.91 | 0.47 | 0.08 |
18-227 | 1/4” x 1/2” | 0.81 | 1.13 | 0.56 | 0.12 |
18-228 | 5/16” x 1/8” | 0.66 | 0.75 | 0.47 | 0.06 |
18-228B* | 5/16” x 1/8” | 0.62 | 0.75 | 0.42 | 0.06 |
18-229 | 5/16” x 1/4” | 0.66 | 0.81 | 0.47 | 0.07 |
18-229B* | 5/16” x 1/4” | 0.69 | 0.84 | 0.57 | 0.08 |
18-230 | 5/16” x 3/8” | 0.75 | 0.91 | 0.47 | 0.10 |
18-231 | 5/16” x 1/2” | 0.84 | 1.12 | 0.56 | 0.12 |
18-232 | 3/8” x 1/8” | 0.72 | 0.66 | 0.39 | 0.06 |
18-232B* | 3/8” x 1/8” | 0.69 | 0.69 | 0.57 | 0.06 |
18-233 | 3/8” x 1/4” | 0.75 | 0.82 | 0.46 | 0.08 |
18-233B* | 3/8” x 1/4” | 0.75 | 0.94 | 0.57 | 0.08 |
18-234 | 3/8” x 3/8” | 0.81 | 0.94 | 0.46 | 0.10 |
18-234B* | 3/8” x 3/8” | 0.71 | 0.83 | 0.69 | 0.10 |
18-235 | 3/8” x 1/2” | 0.87 | 1.12 | 0.56 | 0.14 |
18-235B* | 3/8” x 1/2” | 0.88 | 1.16 | 0.94 | 0.14 |
18-248 | 3/8” x 3/4” | 1.03 | 1.19 | 0.81 | 0.18 |
18-247 | 7/16” x 1/4” | 0.84 | 1.00 | 0.56 | 0.14 |
18-236 | 1/2” x 1/4” | 0.88 | 0.97 | 0.56 | 0.14 |
18-237 | 1/2” x 3/8” | 0.88 | 1.03 | 0.56 | 0.19 |
18-237B* | 1/2” x 3/8” | 0.94 | 1.12 | 0.70 | 0.19 |
18-238 | 1/2” x 1/2” | 0.94 | 1.13 | 0.59 | 0.17 |
18-238B* | 1/2” x 1/2” | 0.94 | 1.31 | 0.86 | 0.17 |
18-239 | 1/2” x 3/4” | 1.16 | 1.25 | 0.81 | 0.18 |
18-240 | 5/8” x 3/8” | 1.06 | 1.12 | 0.68 | 0.18 |
18-241 | 5/8” x 1/2” | 1.06 | 1.16 | 0.68 | 0.20 |
18-241B* | 5/8” x 1/2” | 1.06 | 1.31 | 0.86 | 0.20 |
18-242 | 5/8” x 3/4” | 1.16 | 1.31 | 0.81 | 0.24 |
18-243 | 3/4” x 1/2” | 1.19 | 1.31 | 0.94 | 0.26 |
18-245 | 3/4” x 3/4” | 1.19 | 1.38 | 0.94 | 0.30 |
18-246 | 7/8” x 3/4” | 1.25 | 1.38 | 0.94 | 0.35 |

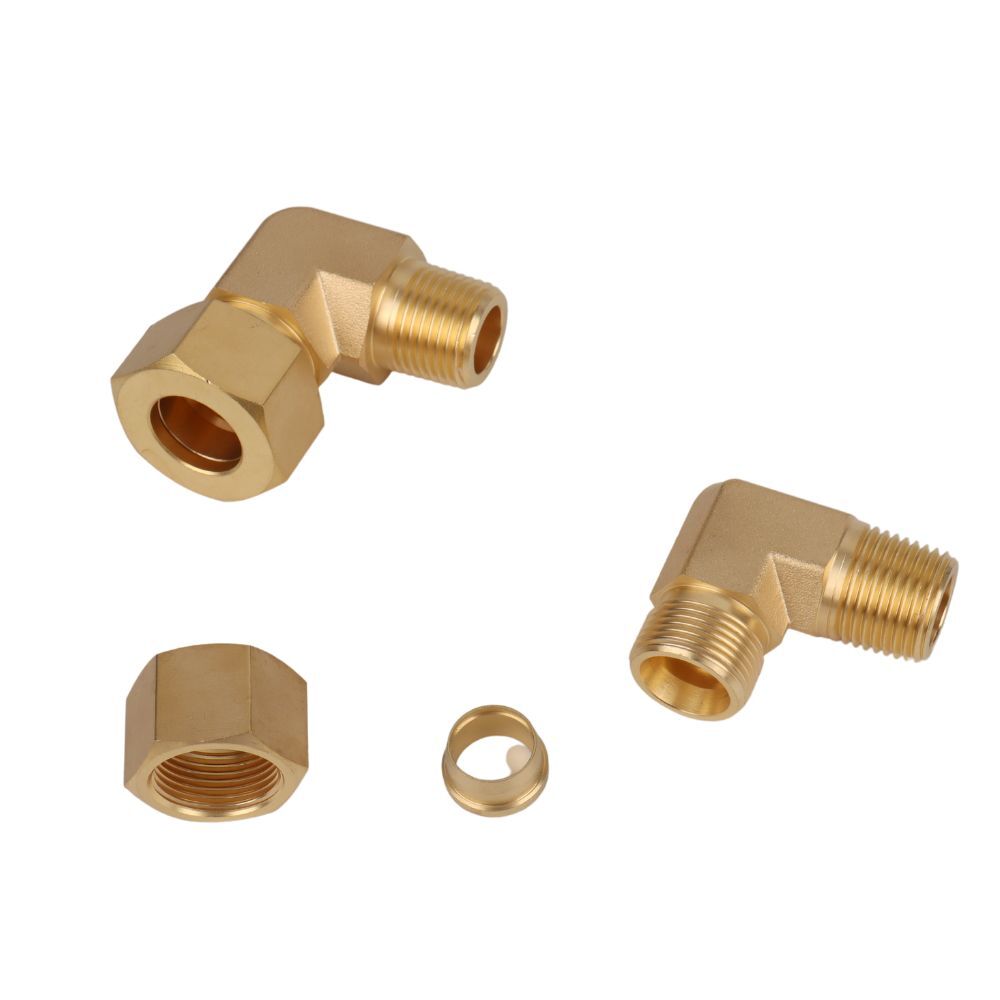

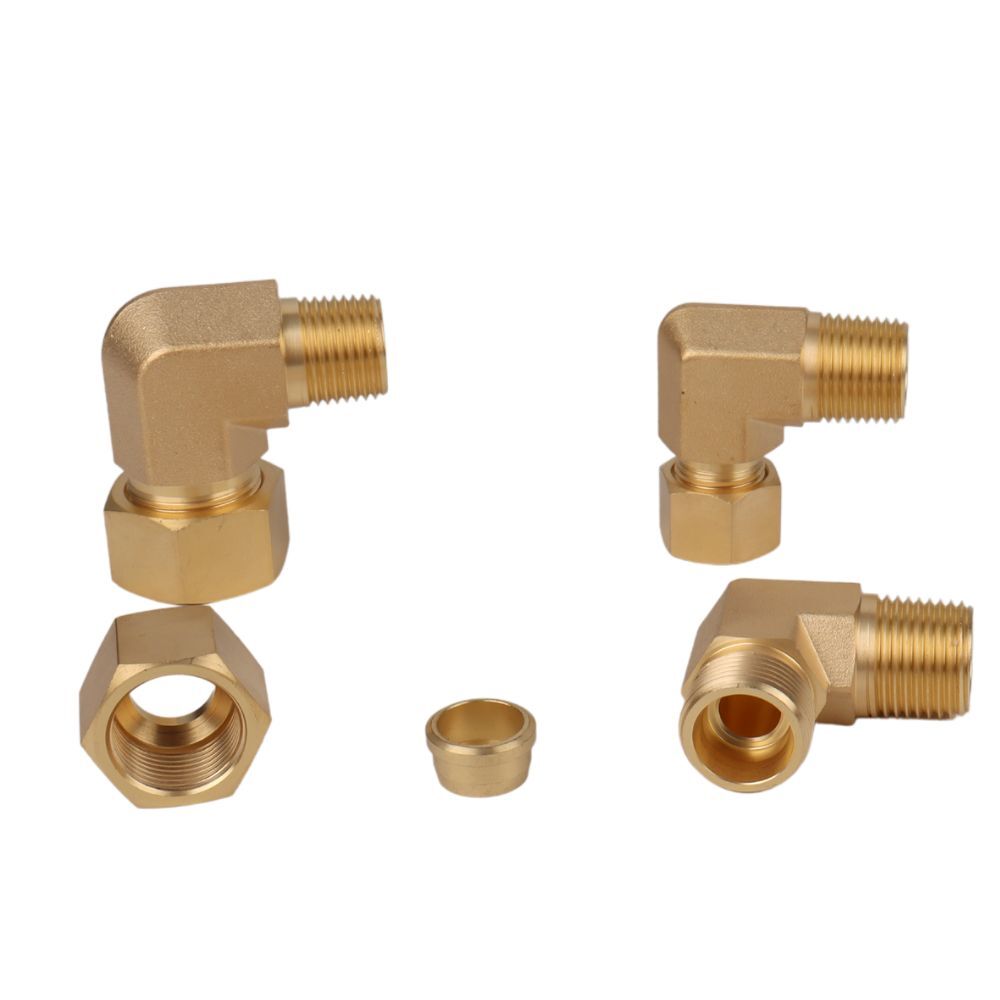

Brass Compression Tube Fittings - Male Elbow Video
This video shows information about male brass compression tube fittings.

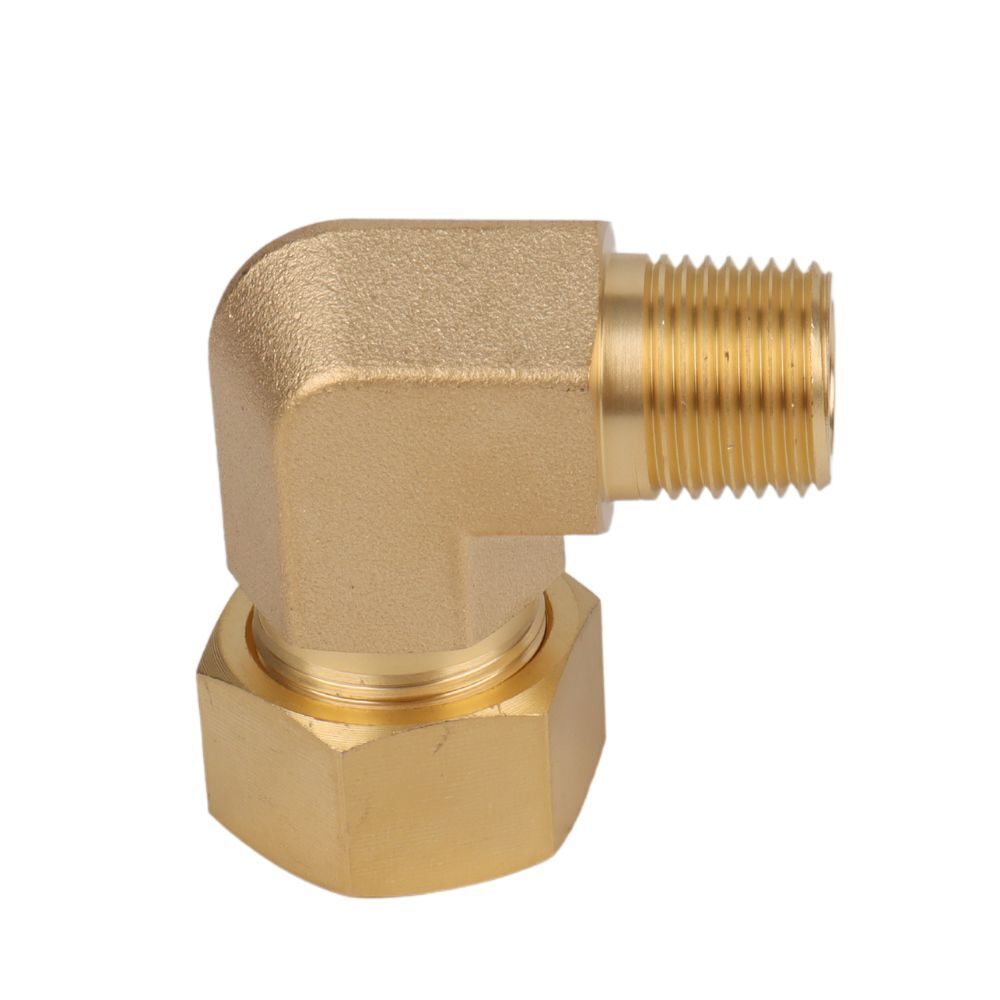

Brass compression male elbows are available in a variety of sizes and can be used with a wide range of pipe materials, including copper, brass, and plastic.
If you have any questions about male brass compression elbow adapter, please contact us.
