Description
NPT Hydraulic 90 Degree Fittings

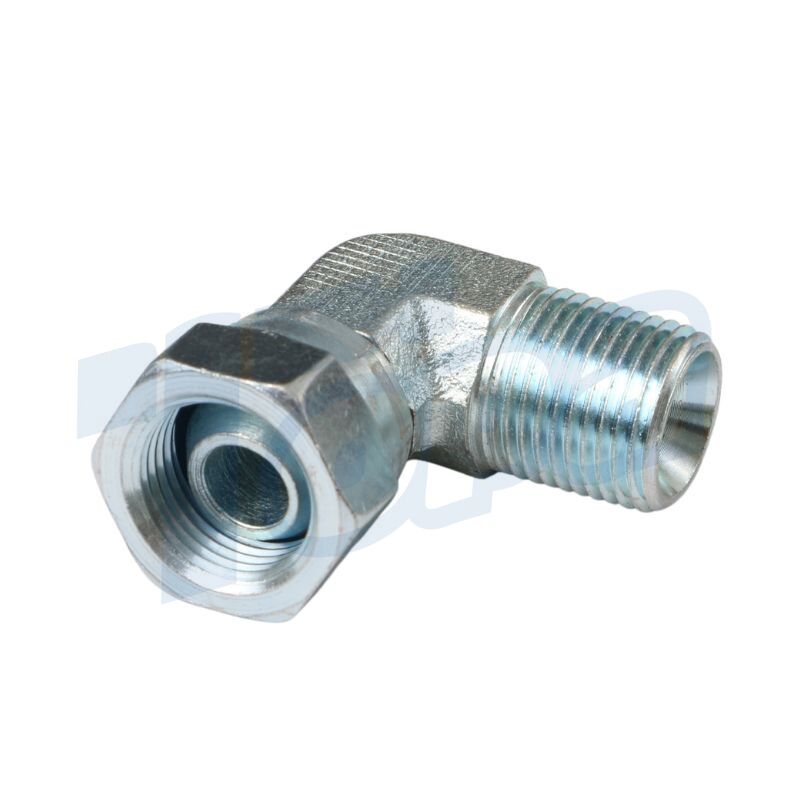

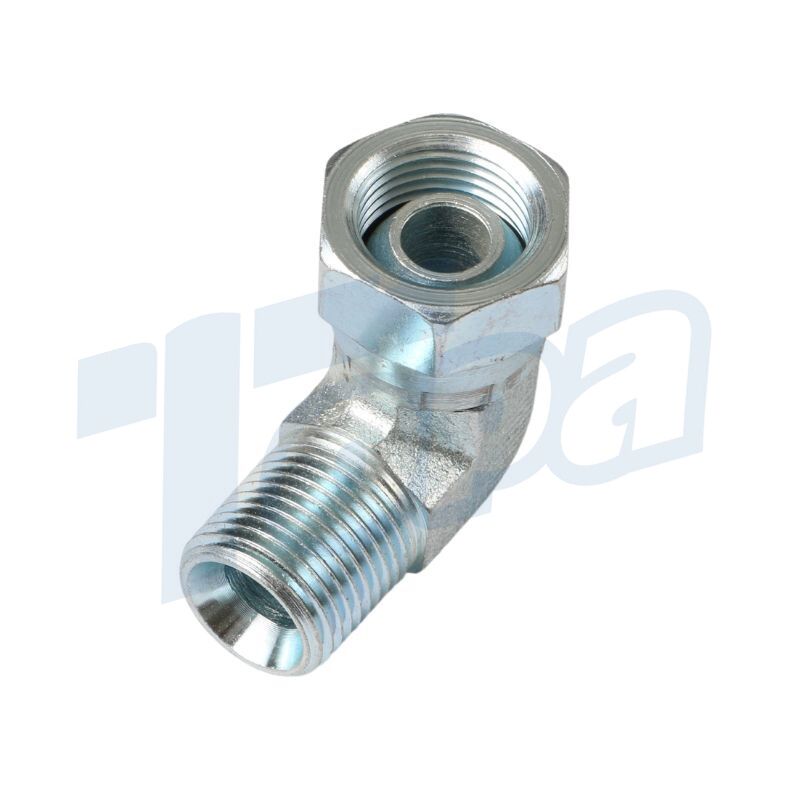

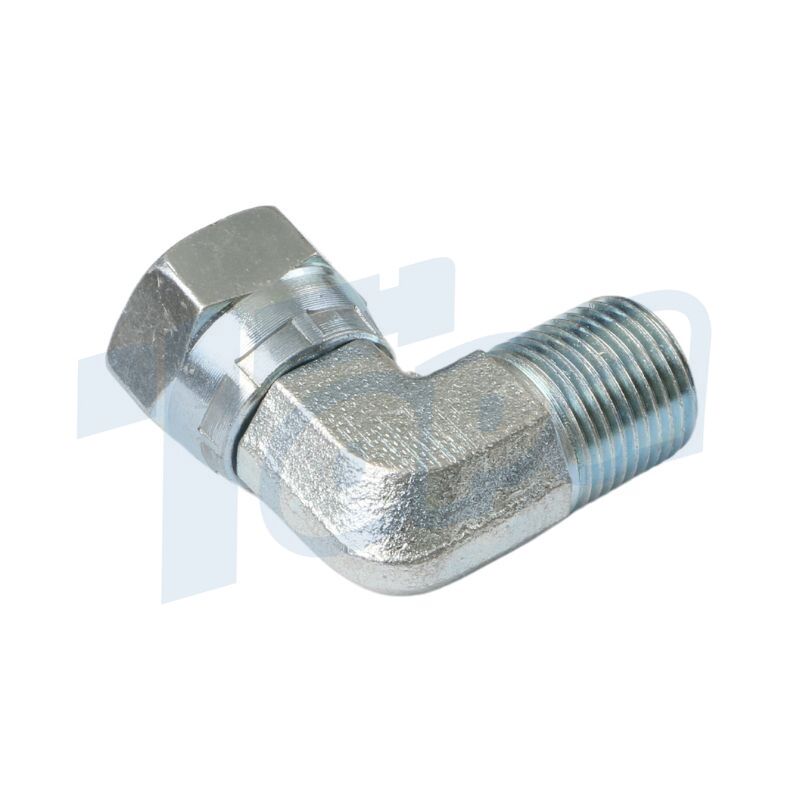

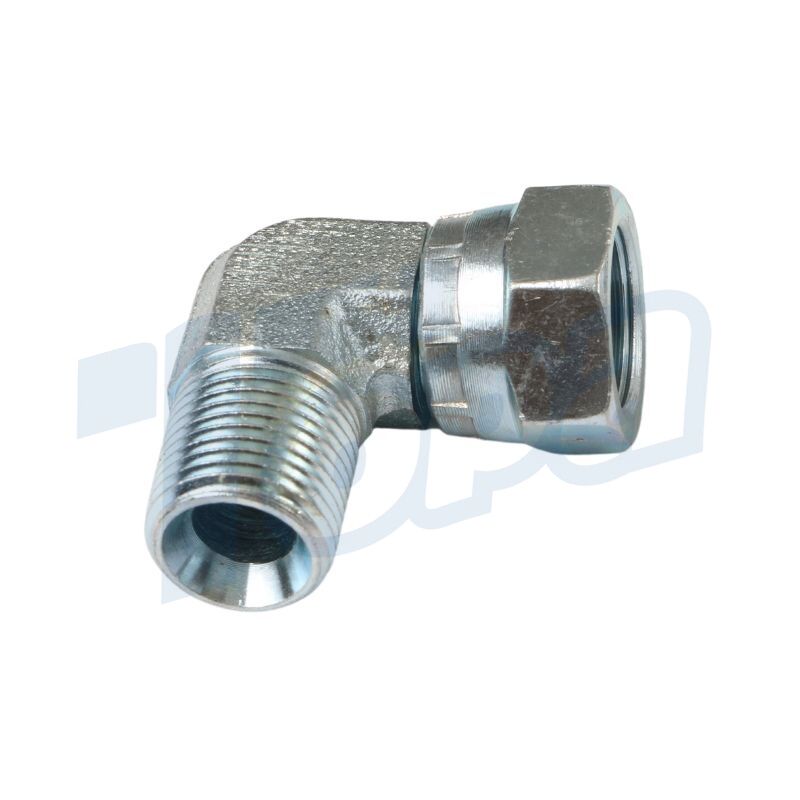

1501 NPT elbow adapters have a female NPSM thread and a male NPT thread on both ends. And they are used to connect hydraulic pipes and tubes. Those fittings are made of high-quality metal materials, durable and versatile. So if you have any problems with NPT hydraulic connector fittings, please contact us!
Dimensional Drawings:
TUBE FITTING PART # | A PIPE THD NPTF | A1 SWIVEL THD HEX NPSM | C (inch) | C1 HEX (inch) | D DRILL (inch) | D2 DRILL (inch) | M1 (inch) | N (inch) | W3 (inch) |
1501-2-2 | 1/8-27 | 1/8-27 | 9/16 | 7/16 | 0.156 | 0.188 | 0.70 | 0.72 | 0.85 |
1501-4-2 | 1/4-18 | 1/8-27 | 9/16 | 9/16 | 0.219 | 0.188 | 0.88 | 0.90 | 1.05 |
1501-4-4 | 1/4-18 | 1/4-18 | 11/16 | 9/16 | 0.219 | 0.281 | 0.88 | 1.09 | 1.06 |
1501-4-6 | 1/4-18 | 3/8-18 | 7/8 | 3/4 | 0.344 | 0.281 | 0.99 | 1.09 | 1.28 |
1501-6-4 | 3/8-18 | 1/4-18 | 11/16 | 3/4 | 0.219 | 0.406 | 0.99 | 1.22 | 1.17 |
1501-6-6 | 3/8-18 | 3/8-18 | 7/8 | 3/4 | 0.344 | 0.406 | 0.99 | 1.22 | 1.28 |
1501-6-8 | 3/8-18 | 1/2-14 | 1 | 3/4 | 0.469 | 0.406 | 1.04 | 1.22 | 1.33 |
1501-8-6 | 1/2-14 | 3/8-18 | 7/8 | 7/8 | 0.344 | 0.531 | 1.06 | 1.47 | 1.35 |
1501-8-8 | 1/2-14 | 1/2-14 | 1 | 7/8 | 0.469 | 0.531 | 1.11 | 1.47 | 1.40 |
1501-8-12 | 1/2-14 | 3/4-14 | 11/4 | 11/16 | 0.641 | 0.531 | 1.30 | 1.47 | 1.65 |
1501-12-6 | 3/4-14 | 3/8-18 | 7/8 | 11/16 | 0.344 | 0.719 | 1.19 | 1.59 | 1.48 |
1501-12-8 | 3/4-14 | 1/2-14 | 1 | 11/16 | 0.469 | 0.719 | 1.24 | 1.59 | 1.53 |
1501-12-12 | 3/4-14 | 3/4-14 | 1 1/4 | 11/16 | 0.641 | 0.719 | 1.30 | 1.59 | 1.65 |
1501-16-12 | 1-11 1/2 | 3/4-14 | 1 1/4 | 15/16 | 0.641 | 0.938 | 1.47 | 1.97 | 1.82 |
1501-16-16 | 1-11 1/2 | 1-11 1/2 | 1 1/2 | 15/16 | 0.844 | 0.938 | 1.54 | 1.97 | 1.91 |
1501-20-20 | 1 1/4-11 1/2 | 1 1/4-11 1/2 | 1 7/8 | 1 5/8 | 1.141 | 1.250 | 1.73 | 2.38 | 2.11 |
1501-24-24 | 1 1/2-11 1/2 | 1 1/2-11 1/2 | 2 1/8 | 1 7/8 | 1.359 | 1.500 | 1.89 | 2.64 | 2.31 |
1501-32-32 | 2-11 1/2 | 2-11 1/2 | 2 5/8 | 2 1/2 | 1.813 | 1.938 | 2.27 | 3.00 | 2.70 |
1501-L-2-2 | 1/8-27 | 1/8-27 | 9/16 | 9/16 | 0.156 | 0.188 | 0.940 | 1.640 | 1.09 |
1501-L-4-4 | 1/4-18 | 1/4-18 | 11/16 | 11/16 | 0.219 | 0.281 | 1.190 | 2.250 | 1.37 |
1501-L-6-6 | 3/8-18 | 3/8-18 | 7/8 | 7/8 | 0.344 | 0.406 | 1.50 | 2.760 | 1.79 |
1501-L-6-8 | 3/8-18 | 1/2-14 | 1 | 7/8 | 0.469 | 0.406 | 1.50 | 2.760 | 1.79 |
1501-L-8-6 | 1/2-14 | 3/8-18 | 7/8 | 7/8 | 0.344 | 0.531 | 1.50 | 3.190 | 1.79 |
1501-L-8-8 | 1/2-14 | 1/2-14 | 1 | 1 | 0.469 | 0.531 | 1.50 | 3.190 | 1.79 |
1501-L-12-12 | 3/4-14 | 3/4-14 | 1 1/4 | 1 1/4 | 0.641 | 0.719 | 2.00 | 3.660 | 2.35 |
1501-L-16-16 | 1-11 1/2 | 1-11 1/2 | 1 1/2 | 1 1/2 | 0.844 | 0.938 | 1.54 | 4.330 | 1.91 |
1501 NPT Hydraulic 90 Degree Fittings Video
As the best Chinese hydraulic adapters manufacturer, Topa can provide hydraulic fittings in a variety of sizes. Our hydraulic products can be used in a wide range of hydraulic fluid applications and are resistant to high pressures and temperatures.
Topa has multiple CNC machines and professional staff, so we can process hydraulic fittings to your exact specifications. Our staff will strictly inspect the quality of the fittings to ensure that the product meets your usage requirements.
If you want more information about npt hydraulic elbow fittings, please contact us!
